125 RB - Husqvarna String Trimmer (SN: 19904400001 - 19931400000) SHAFT Parts Diagram

String Trimmer

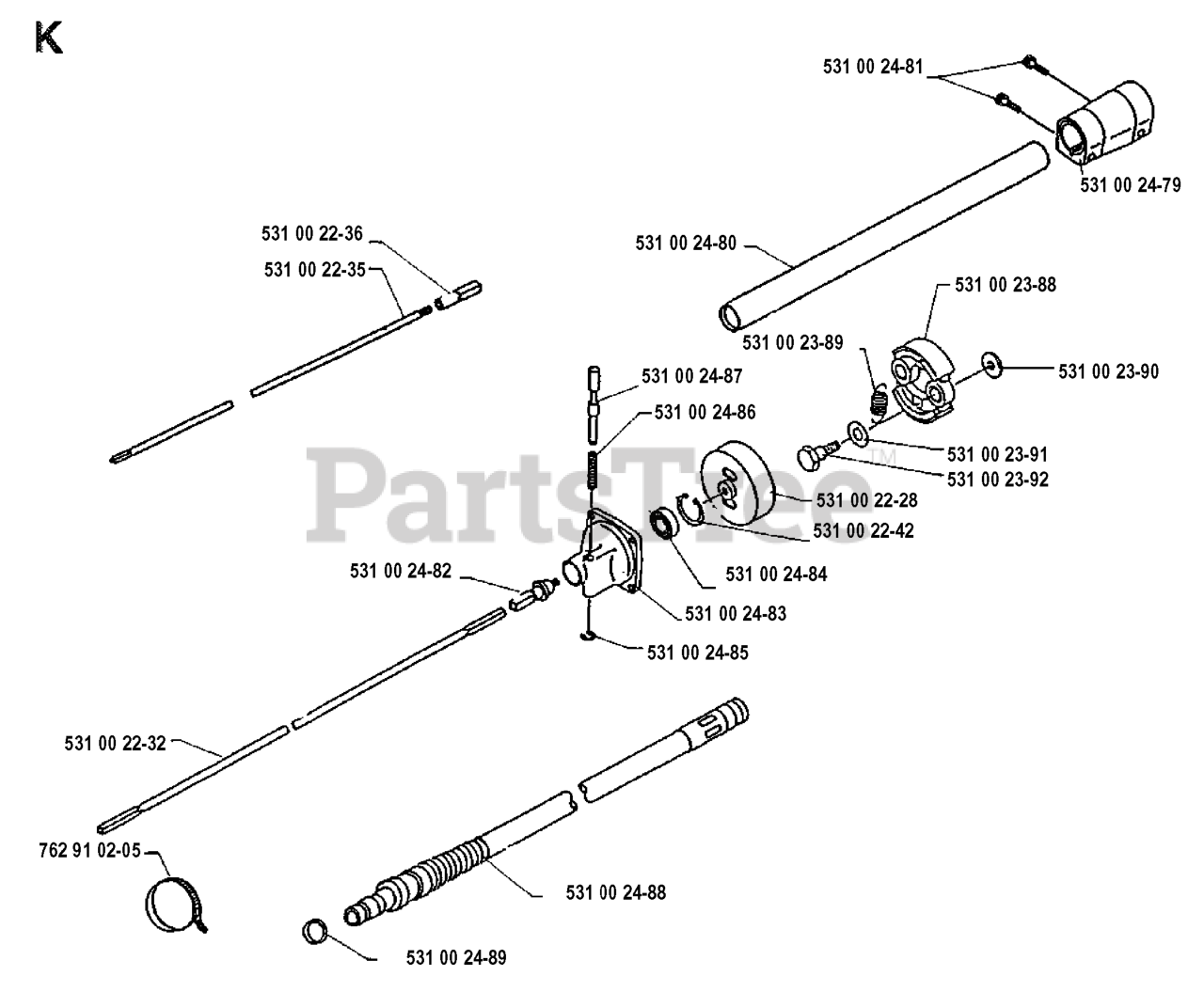

SHAFT Parts Diagram

  • Title

531 00 24-83

Husqvarna 531002483

HOUSING

$

$

Not available

762 91 02-05

Husqvarna 762910205

HOOP

$

$

Not available

531 00 22-36

Husqvarna 531002236

BRACKET
(Superseded to 531004027)

$

$

Not available

531 00 22-42

Husqvarna 531002242

SNAPRING

$

$

Not available

531 00 23-92

Husqvarna 531002392

BOLT
(Superseded to 531004736)

$

$

Not available

531 00 23-90

Husqvarna 531002390

WASHER

$4.99

$

Usually ships in 3-10 days

0

531 00 23-88

Husqvarna 531002388

CLUTCH SHOE
(Superseded to 531004069)

$74.99

$

Usually ships in 3-10 days

0

531 00 23-89

Husqvarna 531002389

SPRING
(Superseded to 531004070)

$7.49

$

In Stock, only 2 left!

0

531 00 24-88

Husqvarna 531002488

TUBE

$

$

Not available

531 00 24-81

Husqvarna 531002481

SCREW

$

$

Not available

531 00 22-28

Husqvarna 531002228

CLUTCH DRUM

$

$

Not available

531 00 24-84

Husqvarna 531002484

BEARING

$

$

Not available

531 00 24-86

Husqvarna 531002486

SPRING

$

$

Not available

531 00 24-85

Husqvarna 531002485

RETAINING RING

$3.49

$

In Stock, only 2 left!

0

531 00 24-80

Husqvarna 531002480

TUBE

$

$

Not available

531 00 24-87

Husqvarna 531002487

SHAFT

$

$

Not available

531 00 22-35

Husqvarna 531002235

DRIVE SHAFT

$

$

Not available

531 00 24-79

Husqvarna 531002479

BRACKET

$

$

Not available

531 00 24-89

Husqvarna 531002489

O-RING

$

$

Not available

531 00 24-82

Husqvarna 531002482

ADAPTER

$

$

Not available

531 00 22-32

Husqvarna 531002232

SHAFT,INNER

$

$

Not available

531 00 23-91

Husqvarna 531002391

WASHER

$3.49

$

In Stock, only 4 left!

0
