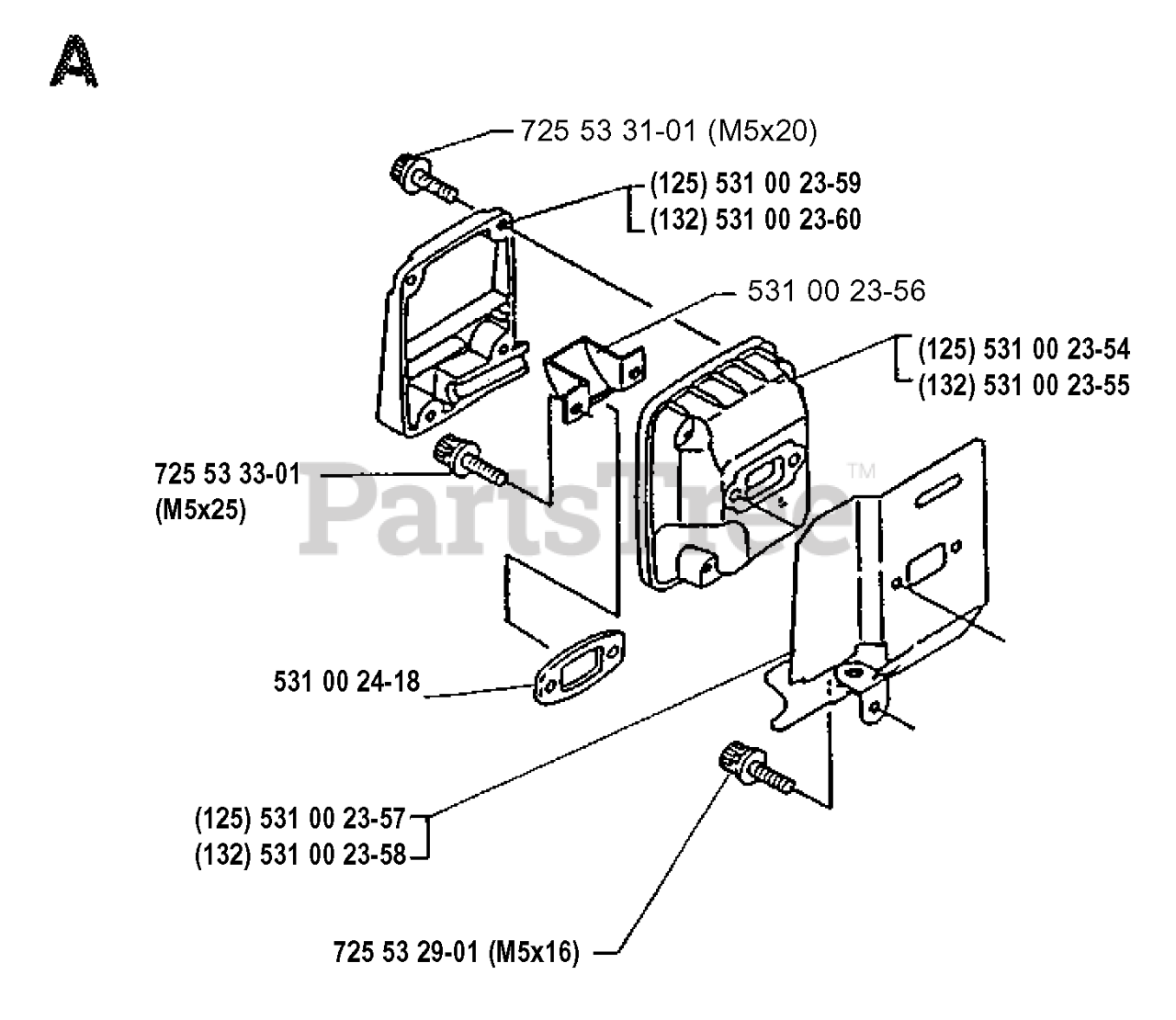

125 RB - Husqvarna String Trimmer (SN: 19904400001 - 19931400000) MUFFLER Parts Diagram

String Trimmer

MUFFLER Parts Diagram

  • Title
531 00 23-56

$

$

Not available

531 00 23-55

Husqvarna 531002355

MUFFLER
(Superseded to 531002499)

Note: 132

$

$

Not available

531 00 23-60

Husqvarna 531002360

Muffler

Note: 132

$

$

Not available

725 53 31-01

Husqvarna 725533101

SCREW

Note: M5X20

$4.99

$

In Stock, only 2 left!

0

531 00 23-59

Husqvarna 531002359

MUFFLER COVER

Note: 125

$

$

Not available

531 00 23-54

Husqvarna 531002354

MUFFLER

Note: 125

$

$

Not available

531 00 23-58

Husqvarna 531002358

GASKET

Note: 132

$

$

Not available

531 00 24-18

$

$

Not available

531 00 23-57

Husqvarna 531002357

GASKET

Note: 125

$27.99

$

Usually ships in 3-10 days

0

725 53 33-01

Husqvarna 725533301

SCREW
(Superseded to 531004730)

Note: M5X25

$2.99

$

Usually ships in 3-10 days

0

725 53 29-01

Husqvarna 725532901

SCREW

Note: M5X16

$3.49

$

Usually ships in 3-10 days

0
