125 R - Husqvarna String Trimmer, Canada (2006-10) Handle, Shaft & Cutting Head Parts Diagram

String Trimmer, Canada

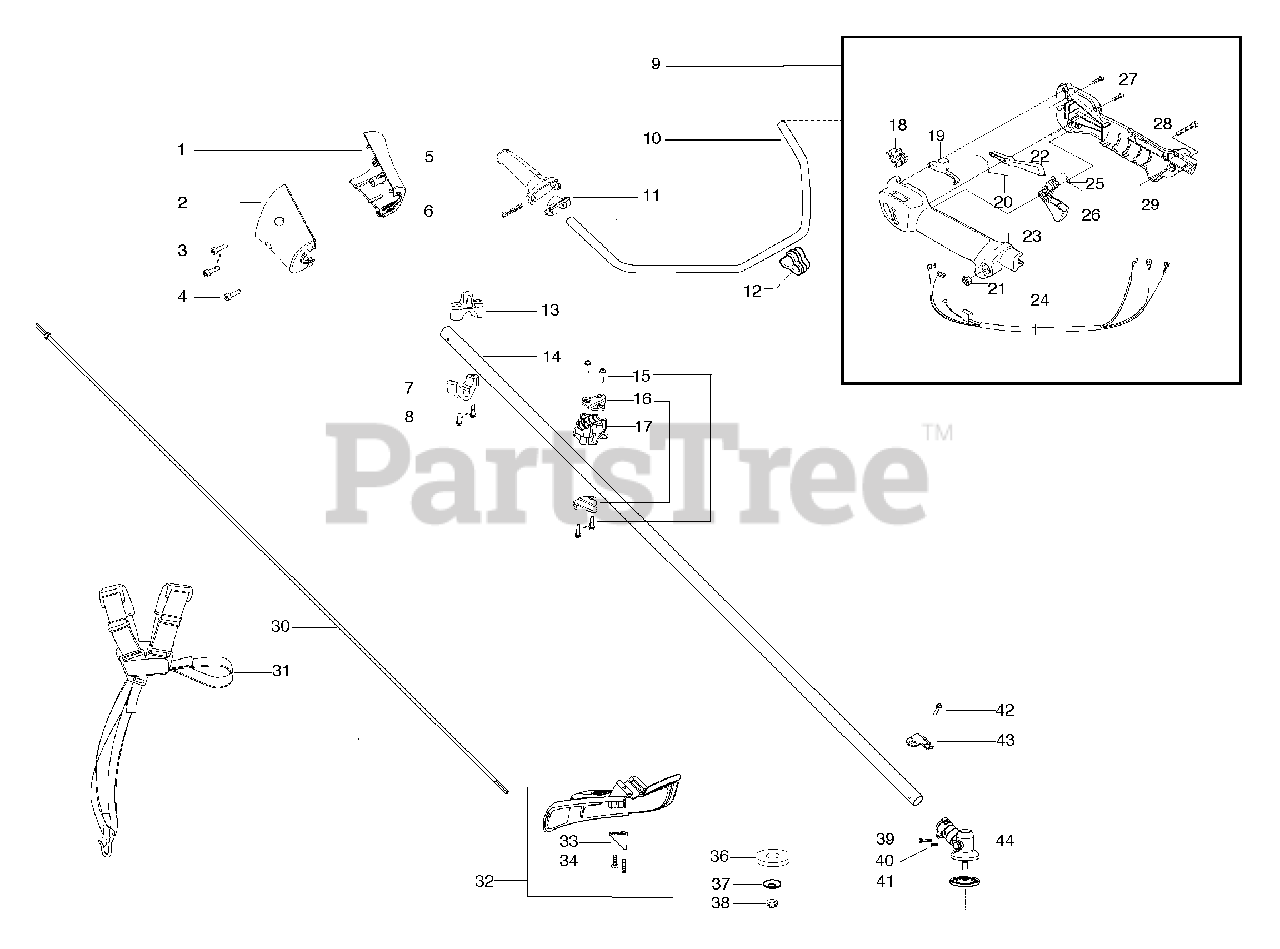

Handle, Shaft & Cutting Head Parts Diagram

  • Title

1

Husqvarna 545036401

Nose Cone - LH

$

$

Not available

2

Husqvarna 545036501

Nose Cone - RH

$

$

Not available

3

Husqvarna 530016448

Screw

$6.49

$

In Stock, only 4 left!

0

4

Husqvarna 530016449

Screw

$6.49

$

In Stock, only 2 left!

0

5

Husqvarna 503721003

Handle-Assist

$30.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503210745

Bolt

$7.49

$

In Stock, only 1 left!

0

7

Husqvarna 545056601

Clamp-Harness (lower)

$4.99

$

In Stock, only 3 left!

0

8

Husqvarna 530015940

Screw

$6.49

$

In Stock, Qty 8

0

9

Husqvarna 545067101

Assy-Throttle Housing
(Superseded to 545125501)

Note: (Incl. 18,19,20,21,22,23,24,25,26,27,28,29)

$56.99

$

Usually ships in 3-10 days

0

10

Husqvarna 502199503

Handlebar

$48.99

$

In Stock, only 1 left!

0

11

Husqvarna 503804501

Cover-Assist Handle

$5.76

$

Usually ships in 3-10 days

0

12

Husqvarna 502211201

Clip-Handlebar

$7.49

$

In Stock, only 2 left!

0

13

Husqvarna 530057986

Clamp-Harness (upper)

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 545081011

Kit-Driveshaft

$

$

Not available

15

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

16

Husqvarna 530058563

Clamp - Bracket

$4.99

$

In Stock, only 1 left!

0

17

Husqvarna 545058501

Clamp 1" Handlebar

$17.99

$

Usually ships in 3-10 days

0

18

Husqvarna 545030601

Kit-Switch
(Superseded to 545049301)

$10.99

$

In Stock, Qty 10

0

19

Husqvarna 537160701

Lockout-Starter Throttle
(Superseded to 537160703)

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 537174301

Spring - Lockout

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 503221013

Nut

$7.49

$

In Stock, only 2 left!

0

22

Husqvarna 537160601

Lockout - Throttle
(Superseded to 506497701)

$12.99

$

In Stock, only 1 left!

0

23

Husqvarna 537160203

Housing - Throttle -LH

$34.99

$

In Stock, only 1 left!

0

24

Husqvarna 545056201

Assy - Cable Wire
(Superseded to 545125801)

$31.99

$

In Stock, only 1 left!

0

25

Husqvarna 537174201

Spring - Trigger

$6.49

$

In Stock, only 4 left!

0

26

Husqvarna 537160801

Trigger - Throttle
(Superseded to 506497701)

$12.99

$

In Stock, only 1 left!

0

27

Husqvarna 503216618

Screw

$7.49

$

In Stock, Qty 5

0

28

Husqvarna 503200735

Screw
(Superseded to 503200782)

$4.99

$

In Stock, only 1 left!

0

29

Husqvarna 537160301

Housing-Throttle - RH

$30.99

$

Usually ships in 3-10 days

0

30

Husqvarna 545007507

Flexshaft

$34.99

$

In Stock, only 1 left!

0

31

Husqvarna 537216301

Harness w/o warning

$

$

Not available

32

Husqvarna 545030901

Kit-Shield

Note: (Incl. 33,34)

$34.99

$

In Stock, Qty 8

0

33

Husqvarna 530052286

Limiter - Line

$

$

Not available

34

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

36

Husqvarna 503890101

Cup-Support

$26.99

$

In Stock, only 1 left!

0

37

Husqvarna 537285601

Support - Flange

$

$

Not available

38

Husqvarna 503856301

Locknut - Blade

$7.49

$

In Stock, only 1 left!

0

39

Husqvarna 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

40

Husqvarna 530016301

Screw

$6.49

$

In Stock, only 4 left!

0

41

Husqvarna 537234901

Assy - Dustcup

$40.99

$

Usually ships in 3-10 days

0

42

Husqvarna 530015771

Screw

$6.49

$

In Stock, Qty 6

0

43

Husqvarna 530057554

Bracket - Shield

$6.49

$

In Stock, only 2 left!

0

44

Husqvarna 530096295

Assy - Gearbox

$80.99

$

In Stock, only 2 left!

0

Husqvarna 545047551

Manual (Euro 7)

Note: Not Shown

$

$

Not available

Husqvarna 545082913

Manual (Euro 8)

Note: Not Shown

$

$

Not available

Husqvarna 545082911

Manual (Euro 9)

Note: Not Shown

$

$

Not available

Husqvarna 545056101

Decal-Warning

Note: Not Shown

$

$

Not available

Husqvarna 537312901

Guard - Transport

Note: Not Shown

$12.99

$

Usually ships in 3-10 days

0

Husqvarna 530031159

Wrench-Hex

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0

Husqvarna 502114602

Wrench-Spark Plug
(Superseded to 530031146)

Note: Not Shown

$8.99

$

In Stock, Qty 8

0

Husqvarna 530092231

O-Ring (Shoulder Strap)

Note: Not Shown

$

$

Not available
