125 R - Husqvarna String Trimmer (2009-09) Handle & Controls Parts Diagram

String Trimmer

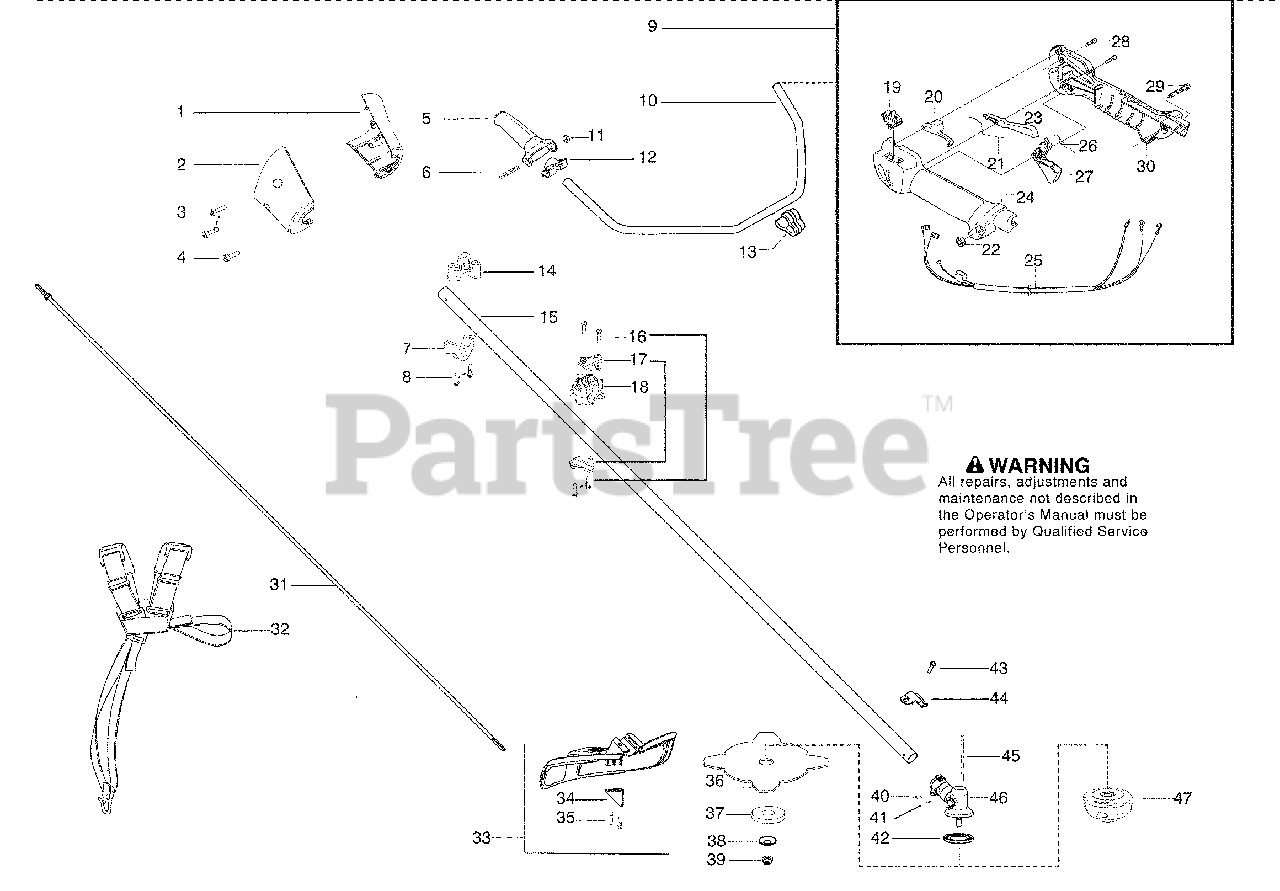

Handle & Controls Parts Diagram

  • Title

1

Husqvarna 545036401

Nose Cone - LH

$

$

Not available

2

Husqvarna 545036501

Nose Cone - RH

$

$

Not available

3

Husqvarna 530016448

Screw

$6.49

$

In Stock, Qty 5

0

4

Husqvarna 530016449

Screw

$6.49

$

In Stock, only 2 left!

0

5

Husqvarna 537172802

Handle-Assist

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503200245

Bolt

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 545056601

Clamp-Harness

Note: (lower)

$4.99

$

In Stock, only 3 left!

0

8

Husqvarna 530015940

Screw

$6.49

$

In Stock, Qty 8

0

9

Husqvarna 545125501

Assy-Throttle Housing

Note: (Incl. 19,20,21,22,23,24,25,26,27,28,29,30)

$56.99

$

Usually ships in 3-10 days

0

10

Husqvarna 502199503

Handlebar

$48.99

$

In Stock, only 1 left!

0

11

Husqvarna 731231401

Nut

$2.49

$

In Stock, only 1 left!

0

12

Husqvarna 537172901

Cover-Assist Handle

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 502211201

Clip-Handlebar

$7.49

$

In Stock, only 2 left!

0

14

Husqvarna 545113301

Clamp-Harness

Note: (upper)

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 545180805

Kit-Driveshaft

Note: (Incl. 40,41,44,46)

$

$

Not available

16

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

17

Husqvarna 530058563

Clamp - Bracket

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 545058501

Clamp 1" Handlebar

$17.99

$

Usually ships in 3-10 days

0

19

Husqvarna 537419001

Switch-Stop

$9.49

$

In Stock, only 2 left!

0

20

Husqvarna 537160701

Lockout-Starter Throttle
(Superseded to 537160703)

$5.99

$

Usually ships in 3-10 days

0

21

Husqvarna 537174301

Spring - Lockout

$7.49

$

Usually ships in 3-10 days

0

22

Husqvarna 503221013

Nut

$7.49

$

In Stock, only 2 left!

0

23

Husqvarna 537160601

Lockout - Throttle
(Superseded to 506497701)

$12.99

$

In Stock, only 1 left!

0

24

Husqvarna 537160203

Housing - Throttle -LH

$34.99

$

In Stock, only 1 left!

0

25

Husqvarna 545125801

Assy - Cable Wire

$31.99

$

In Stock, only 1 left!

0

26

Husqvarna 537174201

Spring - Trigger

$6.49

$

In Stock, only 4 left!

0

27

Husqvarna 537160801

Trigger - Throttle
(Superseded to 506497701)

$12.99

$

In Stock, only 1 left!

0

28

Husqvarna 503216618

Screw

$7.49

$

In Stock, Qty 5

0

29

Husqvarna 503200735

Screw
(Superseded to 503200782)

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 537160301

Housing-Throttle - RH

$30.99

$

Usually ships in 3-10 days

0

31

Flexshaft

$

$

Not available

32

Husqvarna 537216302

Harness w/warning
(Superseded to 596296801)

$34.99

$

In Stock, only 3 left!

0

33

Husqvarna 545030901

Kit-Shield

Note: (Incl. 34,35)

$34.99

$

In Stock, Qty 8

0

34

Husqvarna 530052286

Limiter - Line

$

$

Not available

35

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

36

Husqvarna 537149604

Blade - Grass
(Superseded to 596278001)

$36.99

$

Usually ships in 3-10 days

0

37

Husqvarna 503890101

Cup-Support

$26.99

$

In Stock, only 1 left!

0

38

Husqvarna 537285601

Support - Flange

$

$

Not available

39

Husqvarna 503856301

Locknut - Blade

$7.49

$

In Stock, only 1 left!

0

40

Husqvarna 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

41

Husqvarna 545003902

Screw

$4.99

$

In Stock, Qty 7

0

42

Husqvarna 537234901

Driver Disc

$40.99

$

Usually ships in 3-10 days

0

43

Husqvarna 530015771

Screw

$6.49

$

In Stock, Qty 6

0

44

Husqvarna 530057554

Bracket - Shield

$6.49

$

In Stock, only 2 left!

0

45

Husqvarna 502285901

Pin - Locking

$8.99

$

In Stock, only 1 left!

0

46

Husqvarna 530096295

Assy - Gearbox

$80.99

$

In Stock, only 2 left!

0

47

Husqvarna 537338302

Assy-T25 Cutting Head
(Superseded to 537338310)

$31.99

$

In Stock, Qty 10

0

Husqvarna 545154124

Manual

Note: Not Shown

$

$

Not available

Husqvarna 545098601

Decal-Warning

Note: Not Shown

$

$

Not available

Husqvarna 537312901

Guard - Transport

Note: Not Shown

$12.99

$

Usually ships in 3-10 days

0

Husqvarna 530031159

Wrench-Hex

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0

Husqvarna 502114602

Wrench-Spark Plug
(Superseded to 530031146)

Note: Not Shown

$8.99

$

In Stock, Qty 8

0
