125 R - Husqvarna String Trimmer (1993-04) Oil Pump/Clutch Parts Diagram

String Trimmer

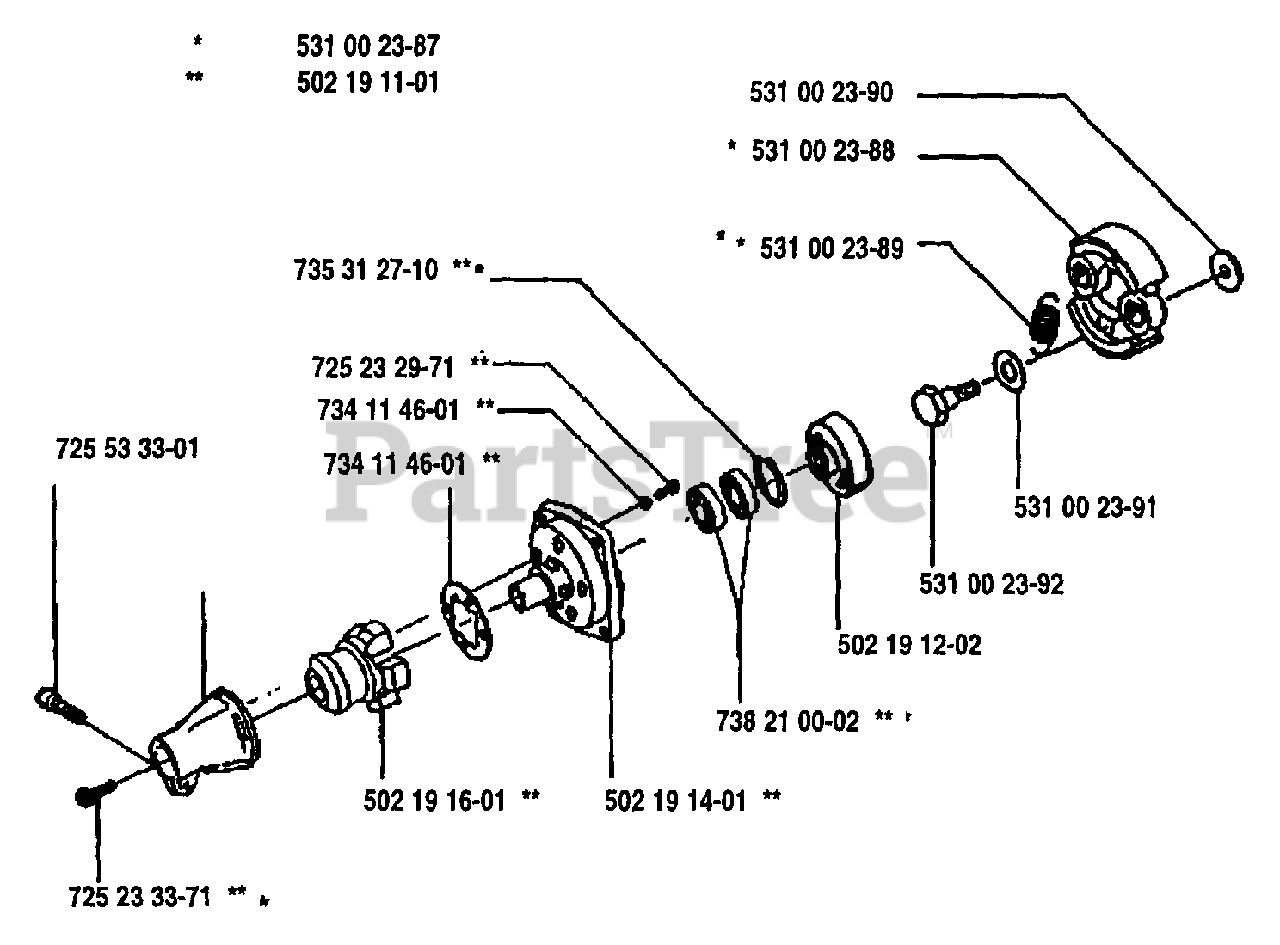

Oil Pump/Clutch Parts Diagram

  • Title

531002387

Husqvarna 531002387

CLUTCH
(Superseded to 531004067)

$74.99

$

Usually ships in 3-10 days

0

502191101

Husqvarna 502191101

CLUTCH HOUSING CPL

$

$

Not available

735312710

Husqvarna 735312710

RETAINING RING SGH 26

$3.49

$

Usually ships in 3-10 days

0

725232971

Husqvarna 725232971

SCREW

$3.49

$

In Stock, Qty 6

0

734114601

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$6.99

$

Usually ships in 3-10 days

0

734114601

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$6.99

$

Usually ships in 3-10 days

0

725533301

Husqvarna 725533301

SCREW
(Superseded to 531004730)

$2.99

$

Usually ships in 3-10 days

0

725233371

Husqvarna 725233371

BOLT

$0.99

$

Usually ships in 3-10 days

0

502191601

Husqvarna 502191601

ANTIVIBE ELEMENT

$17.99

$

Usually ships in 3-10 days

0

531002390

Husqvarna 531002390

WASHER

$4.99

$

Usually ships in 3-10 days

0

531002388

Husqvarna 531002388

CLUTCH SHOE
(Superseded to 531004069)

$74.99

$

Usually ships in 3-10 days

0

531002389

Husqvarna 531002389

SPRING
(Superseded to 531004070)

$7.49

$

In Stock, only 2 left!

0

531002391

Husqvarna 531002391

WASHER

$3.49

$

In Stock, only 4 left!

0

531002392

Husqvarna 531002392

BOLT
(Superseded to 531004736)

$7.49

$

Usually ships in 3-10 days

0

502191202

Husqvarna 502191202

CLUTCH DRUM

$

$

Not available

738210002

Husqvarna 738210002

BALL BEARING 6000-2Z

$34.99

$

In Stock, only 1 left!

0

502191401

Husqvarna 502191401

BEARING HOLDER
(Superseded to 531007857)

$56.99

$

In Stock, only 1 left!

0
