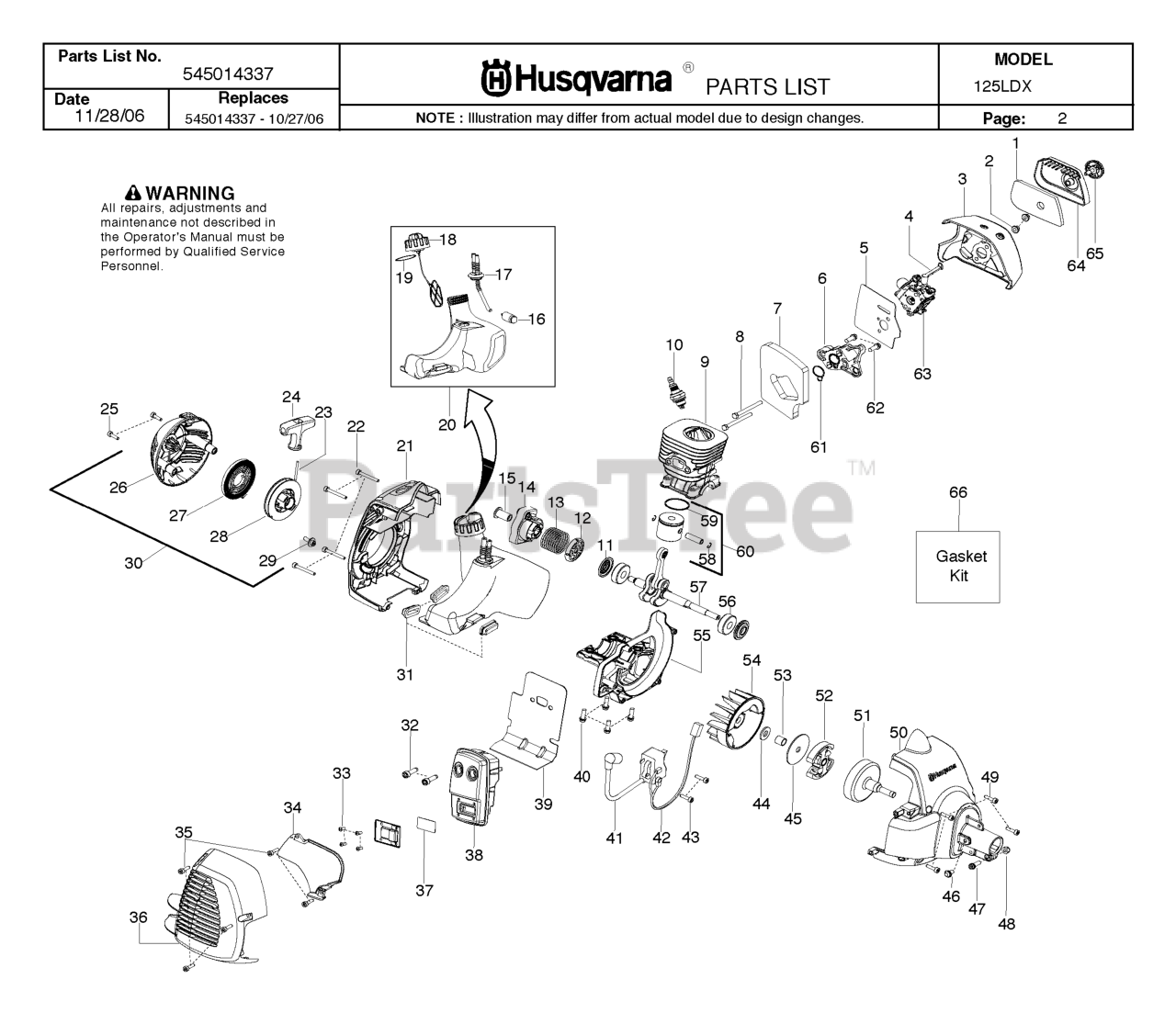

125 LDX - Husqvarna String Trimmer (SN: 20071300001 - 20082200000) ENGINE Parts Diagram

String Trimmer

ENGINE Parts Diagram

  • Title

34

Husqvarna 530150440

SHIELD HEAT

$8.99

$

In Stock, only 1 left!

0

43

Husqvarna 530016456

SCREW M4 X .70 TT 16MM

$6.49

$

In Stock, only 2 left!

0

23

Husqvarna 545029901

KIT ROPE

$14.99

$

In Stock, only 2 left!

0

62

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$6.49

$

In Stock, Qty 19

0

2

Husqvarna 530016101

NUT

$6.49

$

In Stock, only 2 left!

0

7

Husqvarna 545030101

KIT GASKET 28CC TRIMMER
(Superseded to 545081898)

$26.99

$

In Stock, only 1 left!

0

66

Husqvarna 545030101

KIT GASKET 28CC TRIMMER
(Superseded to 545081898)

$26.99

$

In Stock, only 1 left!

0

60

Husqvarna 545030301

KIT PISTON 28CC TRIMMER

$60.99

$

Usually ships in 3-10 days

0

37

Husqvarna 545030501

KIT SPARK ARRESTOR SCREEN

$8.99

$

In Stock, only 1 left!

0

8

Husqvarna 530016400

BOLT CARB ADAPTOR

$6.49

$

In Stock, only 1 left!

0

27

Husqvarna 545029801

%KIT STARTER SPRING
(Superseded to 545008015)

$7.99

$

In Stock, Qty 16

0

32

Husqvarna 530058982

BOLT MUFFLER

$4.99

$

In Stock, Qty 7

0

19

Husqvarna 530019293

O RING NITRILE

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 530016468

SCREW

$6.49

$

In Stock, Qty 7

0

55

Husqvarna 545054601

CRANKCASE CASTING

$27.99

$

Usually ships in 3-10 days

0

57

Husqvarna 545030001

KIT CRANKSHAFT ASSY

$60.99

$

Usually ships in 3-10 days

0

40

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$6.49

$

In Stock, Qty 19

0

15

Husqvarna 530059800

COUPLING STARTER
(Superseded to 545180844)

$37.99

$

In Stock, only 4 left!

0

33

Husqvarna 530015496

SCREW-10-16 X 1/2 HI-LO

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 545106801

ASSY-CLUTCH DRUM

$

$

Not available

6

Husqvarna 530035596

CARB ADAPTOR

$12.99

$

In Stock, only 1 left!

0

50

Husqvarna 545017501

FAN HSG ASSY

$

$

Not available

20

Husqvarna 530057853

ASSY FUEL TANK

$

$

Not available

45

Husqvarna 530094189

WASHER-CLUTCH

$6.99

$

In Stock, only 1 left!

0

54

Husqvarna 530039242

FLYWHEEL

$44.99

$

In Stock, only 1 left!

0

35

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, only 2 left!

0

3

Husqvarna 545084601

RP_AIR BOX
(Superseded to 576459001)

$7.99

$

In Stock, only 2 left!

0

22

Husqvarna 530016448

SCREW

$6.49

$

In Stock, only 4 left!

0

49

Husqvarna 530016456

SCREW M4 X .70 TT 16MM

$6.49

$

In Stock, only 2 left!

0

52

Husqvarna 545050405

%KIT CLUTCH ASSY
(Superseded to 525472901)

$12.99

$

Usually ships in 3-10 days

0

58

Husqvarna 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 1 left!

0

39

Husqvarna 530057848

GASKET PAPER METAL

$12.99

$

Usually ships in 3-10 days

0

48

Husqvarna 530403094

NUT HEX LOCK 10-24

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 530016470

SCREW

$

$

Not available

4

Husqvarna 530057844

CHOKE LEVER

$8.99

$

In Stock, Qty 7

0

31

Husqvarna 530059780

ISOLATOR FUEL TANK

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 530150350

ASSY-CAP W/RETAINER
(Superseded to 578931503)

$7.99

$

In Stock, only 3 left!

0

14

Husqvarna 545102302

ASSY-STARTER CUP
(Superseded to 545102303)

$17.99

$

In Stock, Qty 18

0

36

Husqvarna 530059784

MUFFLER GUARD
(Superseded to 576215001)

$14.99

$

In Stock, Qty 13

0

12

Husqvarna 530016475

WASHER STARTER

$7.49

$

In Stock, Qty 7

0

46

Husqvarna 530016469

SCREW

$

$

Not available

42

Husqvarna 530039227

ASSY MODULE LEAD WIRE

$8.99

$

In Stock, only 3 left!

0

56

Husqvarna 545013401

BEARING RADIAL BALL (6201)

$10.99

$

In Stock, only 2 left!

0

-

Husqvarna 530058709

PURGE BULB ZAMA

$7.99

$

In Stock, only 1 left!

0

64

Husqvarna 530057846

COVER-AIR BOX

$9.49

$

In Stock, Qty 12

0

38

Husqvarna 545057502

ASSY MUFFLER NC
(Superseded to 574031402)

$34.99

$

Usually ships in 3-10 days

0

41

Husqvarna 545046701

IGNITION MODULE MBU-7

$56.99

$

In Stock, only 1 left!

0

9

Husqvarna 545001001

CYLINDER
(Superseded to 545003378)

$34.99

$

In Stock, only 4 left!

0

53

Husqvarna 530057852

SPACER FLYWHEEL

$10.99

$

In Stock, only 2 left!

0

11

Husqvarna 545050403

KIT SEAL CRANKSHAFT

$9.99

$

In Stock, only 4 left!

0

61

Husqvarna 545030101

KIT GASKET 28CC TRIMMER
(Superseded to 545081898)

$26.99

$

In Stock, only 1 left!

0

10

Husqvarna 952030201

Plug - Spark (RCJ-8Y)
(Superseded to 503235112)

$3.99

$

In Stock, Qty 11

0

65

Husqvarna 530059796

KNOB ASSY AIRBOX COVER

$5.99

$

In Stock, Qty 13

0

5

Husqvarna 545050402

KIT GASKET CARB

$18.99

$

In Stock, Qty 9

0

17

Husqvarna 545030201

KIT FUEL LINE
(Superseded to 545081897)

$18.99

$

In Stock, Qty 11

0

13

Husqvarna 530016450

SPRING STARTER CUP
(Superseded to 545160301)

$5.99

$

Usually ships in 3-10 days

0

21

Husqvarna 530057851

REAR SHROUD
(Superseded to 576153201)

$13.99

$

In Stock, only 4 left!

0

30

Husqvarna 545106301

ASSY-STARTER HSG.

$26.99

$

Usually ships in 3-10 days

0

63

Husqvarna 545006061

KIT CARBURETOR

$87.99

$

In Stock, only 2 left!

0

24

Husqvarna 530150318

STARTER HANDLE GRAY

$6.49

$

In Stock, Qty 18

0

44

Husqvarna 530016030

WASHER

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 545029701

KIT STARTER PULLEY

$18.99

$

In Stock, Qty 10

0

59

Husqvarna 530019283

RING PISTON
(Superseded to 575227901)

$7.49

$

In Stock, only 4 left!

0

25

Husqvarna 530016426

SCREW M5-0.8X30MM

$6.49

$

In Stock, only 2 left!

0

16

Husqvarna 530095646

FUEL PICK-UP ASSY

$6.99

$

In Stock, Qty 19

0

1

Husqvarna 530150253

FILTER AIRBOX

$3.99

$

In Stock, only 2 left!

0
