125 - Cub Cadet Garden Tractor Transmission Controls Parts Diagram

Garden Tractor

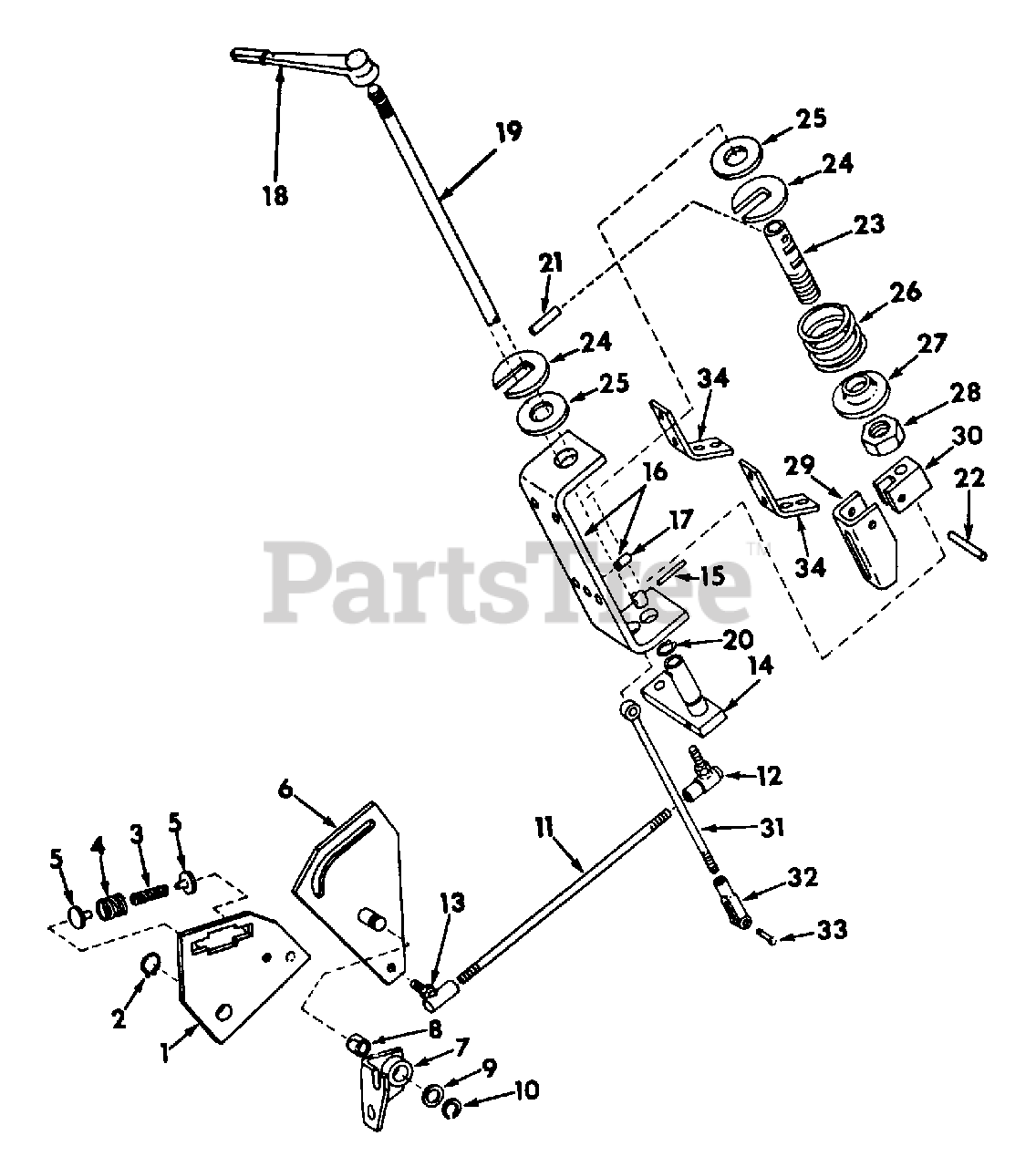

Transmission Controls Parts Diagram

  • Title

1

Cub Cadet 703-0194

Plate Assy, Damper Spring
(Superseded to 903-0194)

$

$

Not available

2

Cub Cadet 716-0115

Ring, Damper Plate Retaining
(Superseded to 916-0115)

$

$

Not available

3

Cub Cadet 732-3012

Spring, Damper Light
(Superseded to 932-3012)

$6.99

$

In Stock, Qty 20+

0

4

Cub Cadet 732-3013

Spring, Damper Heavy
(Superseded to 932-3013)

$7.49

$

In Stock, only 3 left!

0

5

Cub Cadet 711-3033

Pin, Damper Spring Guide

$15.99

$

In Stock, only 4 left!

0

6

Cub Cadet IH-548057-R2

Cam Assy, Speed Control

$

$

Not available

7

NLA

Bracket Assy, Cam Pivot

$

$

Not available

Screw, 3/8-16 x 1-1/2 Hex Hd Cap

$

$

Not available

Cub Cadet IH-279783-R1

Spacer, .406 x .68 x .083

$

$

Not available

8

Cub Cadet IH-394048-R1

Bushing, Cam Pivot

$29.99

$

In Stock, only 1 left!

0

9

Cub Cadet IH-394049-R1

Washer, Cam Retaining
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 716-0865

Ring, Cam Retaining

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet IH-394050-R1

Rod, Speed Control Connection

$

$

Not available

Cub Cadet 736-0119

Nut, 5/16-24 Hex
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 723-3011

Joint, 5/16-24 X 1-1/2 C-Z RH Thd Ball
(Superseded to 923-3011)

$37.99

$

In Stock, only 1 left!

0

Cub Cadet 712-0237

Nut, 5/16-24 Hex Nylon Insert

$4.99

$

In Stock, only 4 left!

0

13

Cub Cadet 723-3012

Joint, 5/16-24 X 1-1/2 C-Z LH Thd Ball
(Superseded to 923-3012)

$42.99

$

In Stock, only 1 left!

0

Cub Cadet 712-0237

Nut, 5/16-24 Hex Nylon Insert

$4.99

$

In Stock, only 4 left!

0

14

~NLA

Lever Assy, Speed Control

$

$

Not available

15

~NLA

Pin, 1/4 X 1-3/4 Dowel

$

$

Not available

16

~NLA

Bracket Assy, Hand Control Mounting

$

$

Not available

Cub Cadet IH-395800-R1

Bolt, 1/4-20 X 1/2 C-Z Hex Hd Mach

$

$

Not available

17

Cub Cadet IH-19841-R1

Pin, 1/4 X 1/2 Dowel
(Superseded to 715-0154)

$5.49

$

Usually ships in 3-6 days

0

18

Cub Cadet IH-401388-R3

Handle, Speed Control

$

$

Currently unavailable

Cub Cadet IH-192454

Screw, 10-24 X 1/2 Hex Soc Hd Half Dog Pt Set

$

$

Not available

19

~NLA

Rod, Speed Control

$

$

Not available

20

Cub Cadet IH-21332-R1

Ring, Lever Retaining

$

$

Not available

21

Cub Cadet IH-19967-R1

Pin, 1/4 X 1-1/4 Dowel

$

$

Not available

22

Cub Cadet 715-0114A

Pin, 1/4 X 1-1/2 Hv Coil Spring
(Superseded to 915-0114)

$9.49

$

In Stock, Qty 5

0

23

~NLA

Shaft, Frictional Adjusting Column

$

$

Not available

24

~NLA

Retainer, Spring

$

$

Not available

25

Cub Cadet 723-3019

Washer, Frictional Disc

$

$

Not available

26

~NLA

Spring, Frictional

$

$

Not available

27

~NLA

Washer, Frictional Spring Guide

$

$

Not available

28

Cub Cadet IH-19331-R1

Nut, 7/8-14 Esna Stop

$

$

Currently unavailable

29

~NLA

Channel, Speed Control Centering Cam

$

$

Not available

30

~NLA

Swivel, Cam Centering Actuator

$

$

Not available

31

~NLA

Rod Assy, Centering Cam Actuating

$

$

Not available

Cub Cadet IH-25930-R1

Nut, 1/4-28 Hex Jam
(Superseded to IH-25930-R2)

$4.99

$

In Stock, Qty 12

0

32

Cub Cadet IH-116383

Clevis, 1/4-28 X 2 Light Adj Rod End Yoke

$

$

Not available

33

Cub Cadet IH-138083

Pin, 1/4 X 51/64 C-Z Rod End

$

$

Not available

~NLA

Pin, 1/16 X 3/8 Cot

$

$

Not available

34

~NLA

Brace, Control Bracket Reinforcement

$

$

Not available

Cub Cadet IH-395800-R1

Screw, 1/4-20 X 1/2 C-Z Hex Washer Hd Mach

$

$

Not available
