125 - Cub Cadet Garden Tractor Hydrostatic Transmission Parts Diagram

Garden Tractor

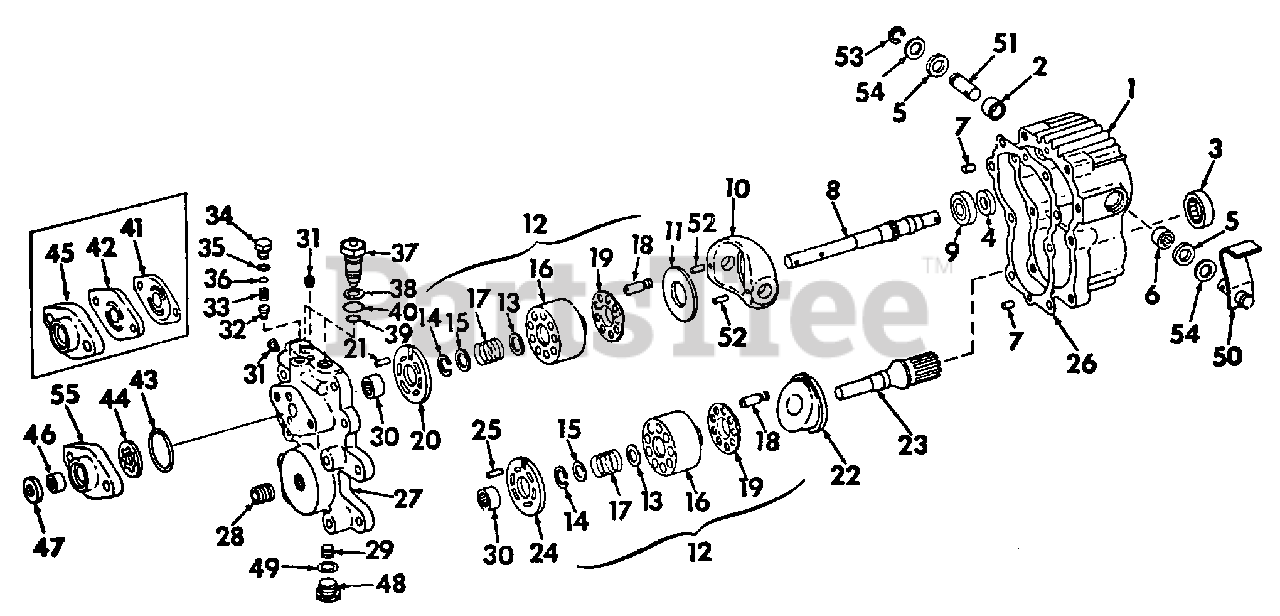

Hydrostatic Transmission Parts Diagram

  • Title

Cub Cadet 717-3032

Transmission Assy, Hydrostatic Drive

$

$

Currently unavailable

1

Cub Cadet IH-398560-R91

Housing Assy

Note: (Includes Ref. No. 2)

$

$

Currently unavailable

Screw, 1/4-20 x 7/8 Hex Soc Hd Cap

$

$

Not available

2

Not used in this application

$

$

Not available

3

Cub Cadet SU-9001370-0003

Bearing, Hyd Pump Shaft Roller

$161.99

$

Usually ships in 3-6 days

0

4

Cub Cadet IH-394847-R91

Seal, Lip
(Superseded to 921-3032)

$17.99

$

In Stock, Qty 20+

0

5

Cub Cadet IH-383534-R91

Seal, Lip
(Superseded to IH-383534-R92)

$

$

Not available

6

Cub Cadet IH-629631-R91

Bearing, Needle

$

$

Not available

7

Cub Cadet SU-9004800-2506

Pin, Transmission Housing
(Superseded to HG-9004800-2506)

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet SU-3101867

Shaft, Transmission Hyd Pump

Note: (Used w/transmission assy IH-406843-R91)

$

$

Not available

9

Cub Cadet 741-0361

Bearing, Ball
(Superseded to 941-0361)

$49.99

$

In Stock, only 2 left!

0

10

Cub Cadet IH-394851-R1

Swashplate, Hyd Pump

$

$

Currently unavailable

11

Cub Cadet IH-394852-R1

Plate, Hyd Pump Swashplate Thrust

$

$

Currently unavailable

12

Cub Cadet IH-398563-R91

Kit, Cylinder Block Motor & Pump

Note: (Used w/transmission assy IH-397475-R92)

$

$

Currently unavailable

12

Cub Cadet SU-3103136

Kit, Cylinder Block Motor & Pump

Note: (Used w/transmission assy IH-397475-R93)

$

$

Not available

13

Cub Cadet IH-405179-R1

Washer, Spring Front

$

$

Not available

14

Cub Cadet IH-317776-R1

Ring, Hyd Cylinder Block Spring Rear Washer Snap

$

$

Currently unavailable

15

Cub Cadet IH-394858-R1

Washer, Hyd Cylinder Block Spring Rear

$

$

Not available

16

Cub Cadet SU-3103136

Block, Cylinder

Note: (See Note)

$

$

Not available

17

Cub Cadet SU-3100120

Spring, Hyd Cylinder Block

$

$

Not available

18

Cub Cadet SU-3103136

Piston Assy, Hyd Pump & Motor

Note: (See Note)

$

$

Not available

19

Cub Cadet SU-3100194

Retainer, Hyd Piston Slipper

$

$

Not available

20

Cub Cadet SU-3102731

Plate, Hyd Cylinder Block Valve

$

$

Not available

21

Cub Cadet SU-9004800-1508

Pin, Hyd Pump Cylinder Block

$

$

Not available

22

Cub Cadet SU-3100349

Swashplate, Hyd Motor

Note: (Order service kit SU-9510735)

$

$

Not available

23

Cub Cadet SU-3101752

Shaft, Transmission Hyd Motor

$

$

Not available

24

Cub Cadet SU-3102687

Plate, Hyd Motor Cylinder Block Valve

$

$

Not available

25

Cub Cadet SU-9004800-1508

Pin, Hyd Motor Cylinder Block

$

$

Not available

26

Cub Cadet SU-3102875

Gasket, Transmission Housing
(Superseded to SU-3102875P)

$

$

Not available

27

Cub Cadet IH-406845-R1

Housing, Center Section

$

$

Currently unavailable

Screw, 3/8-16 x 1-1/4 Hex Hd Cap

$

$

Not available

Screw, 3/8-16 x 1-1/2 Hex Hd Cap

$

$

Not available

Screw, 3/8-16 x 2 Hex Hd Cap

$

$

Not available

Screw, 3/8-16 x 1-1/4 Hex Hd Cap

$

$

Not available

28

Cub Cadet IH-394868-R1

Fitting, Center Housing Oil Filter
(Superseded to SU-3101069)

$40.99

$

Usually ships in 3-6 days

0

29

Cub Cadet IH-444691

Plug, 1/4-18 Automotive Hex Soc Hd Pipe

$

$

Currently unavailable

30

Cub Cadet SU-9001355-0001

Bearing, Center Housing Needle

$

$

Not available

31

Cub Cadet IH-444687

Plug, 1/8-27 Automotive Hex Soc Hd Pipe

$

$

Currently unavailable

32

Cub Cadet SU-3100053

Cone, Charge Pump Relief Valve

$

$

Not available

33

Cub Cadet SU-3101536

Spring, Charge Pump Relief Valve

$

$

Not available

34

Cub Cadet SU-3101159

Plug, Charge Pump Relief Valve
(Superseded to SU-4800172)

$

$

Not available

35

Cub Cadet IH-369384-R1

O-Ring, 13/32 x 9/16 x 5/64 Relief Valve Plug

$

$

Currently unavailable

36

Cub Cadet SU-9510447

Shim, Pack

$

$

Not available

37

Cub Cadet SU-9500085

Valve Assy, Center Housing Check
(Superseded to SU-9500085P)

$502.99

$

Usually ships in 3-6 days

0

38

Cub Cadet SU-9006110-0160

Washer, Check Valve Housing Back Up
(Superseded to SU-11155962)

$13.99

$

In Stock, only 1 left!

0

39

Cub Cadet IH-379181-R1

O-Ring, 5/8 x 3/4 x 1/16 Check Valve Housing Small

$

$

Not available

40

Cub Cadet 721-3005

O-Ring, 3/4 x 15/16 x 3/32 Check Valve Housing Large
(Superseded to 921-3005)

$

$

Not available

41

Cub Cadet IH-398570-R2

Gasket, Charge Pump Port Plate
(Superseded to SU-3101820)

Note: (Used w/transmission assy IH-397475-R93)

$

$

Not available

42

Cub Cadet IH-398571-R1

Plate, Charge Pump Port

Note: (Furnish housing SU-9510405-0001, shaft SU-3101867 & O-ring IH-23707-R1)

$

$

Not available

43

NLA

O-Ring, 2-1/8 x 2-3/8 x 1/8

Note: (Used w/shaft IH-405177-R1)

$

$

Not available

43

Cub Cadet IH-23707-R1

O-Ring, 2-3/8 x 2-1/2 x 16 Class 5

Note: (Used w/shaft SU-3101867)

$11.99

$

In Stock, only 1 left!

0

44

Cub Cadet SU-9510405-0001

Rotor Assy, Charge Pump

$

$

Not available

Cub Cadet SU-9004875-0076

Pin, Charge Pump Rotor

$

$

Not available

45

Cub Cadet IH-398572-R91

Housing Assy, Charge Pump

Note: (Used w/transmission assy IH-397475-R92) (Furnish housing SU-9510405-0001, shaft SU-3101867 & O-ring IH-23707-R1)

$

$

Currently unavailable

45

Cub Cadet IH-398573-R1

Housing, Charge Pump

Note: (Used w/transmission assy IH-397475-R93) (Furnish housing SU-9501405-0001, shaft SU-3101867 & O-ring IH-23707-R1)

$

$

Currently unavailable

46

Cub Cadet IH-381501-R91

Bearing, Charge Pump Housing Needle
(Superseded to SU-9001455-0002)

$

$

Not available

47

Cub Cadet IH-394847-R91

Seal, Lip
(Superseded to 921-3032)

$17.99

$

In Stock, Qty 20+

0

48

Cub Cadet IH-9410359

Plug, 3/4-16 C-Z Str Thrd O-Ring Boss Center Hsg

$

$

Not available

49

Cub Cadet IH-570828-R1

O-Ring, 41/64 x 13/16 x 3/32 Center Hsg O-Ring Plug

$

$

Not available

50

Cub Cadet SU-3103181

Shaft Assy, Trunnion
(Superseded to SU-3103181P)

$

$

Not available

51

Cub Cadet SU-3101045

Shaft, Trunnion

$

$

Not available

52

Cub Cadet IH-27280-R1

Pin, 3/16 x 5/8 Slt Spring

$

$

Not available

53

Cub Cadet IH-21065-R1

Ring, Trunnion Shaft Snap

$

$

Not available

54

Cub Cadet SU-9009625-6904

Washer, Trunnion Shaft Seal Retaining

$

$

Not available

55

Cub Cadet SU-9510405-0001

Housing, Charge Pump

Note: (Used w/transmission assy 717-3032)

$

$

Not available

Screw, 7/16-14 x 2 Hex Hd Cap

$

$

Not available

Cub Cadet 736-0171

Washer, 7/16 Med Lock

$4.49

$

In Stock, only 4 left!

0

Cub Cadet SU-9510735

Kit, Swashplate w/Hsg Service

$

$

Not available

Cub Cadet SU-3103064

Housing

$

$

Not available

Cub Cadet SU-9008000-6201

Oil Seal
(Superseded to 921-3032)

$17.99

$

In Stock, Qty 20+

0

Cub Cadet SU-9008000-6701

Oil Seal
(Superseded to SU-11156097)

$

$

Not available

Cub Cadet SU-9001455-0004

Needle Bearing

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet SU-3102020

Thrust Plate

$

$

Not available

Cub Cadet SU-3102029

Swashplate

$

$

Currently unavailable

$

$
