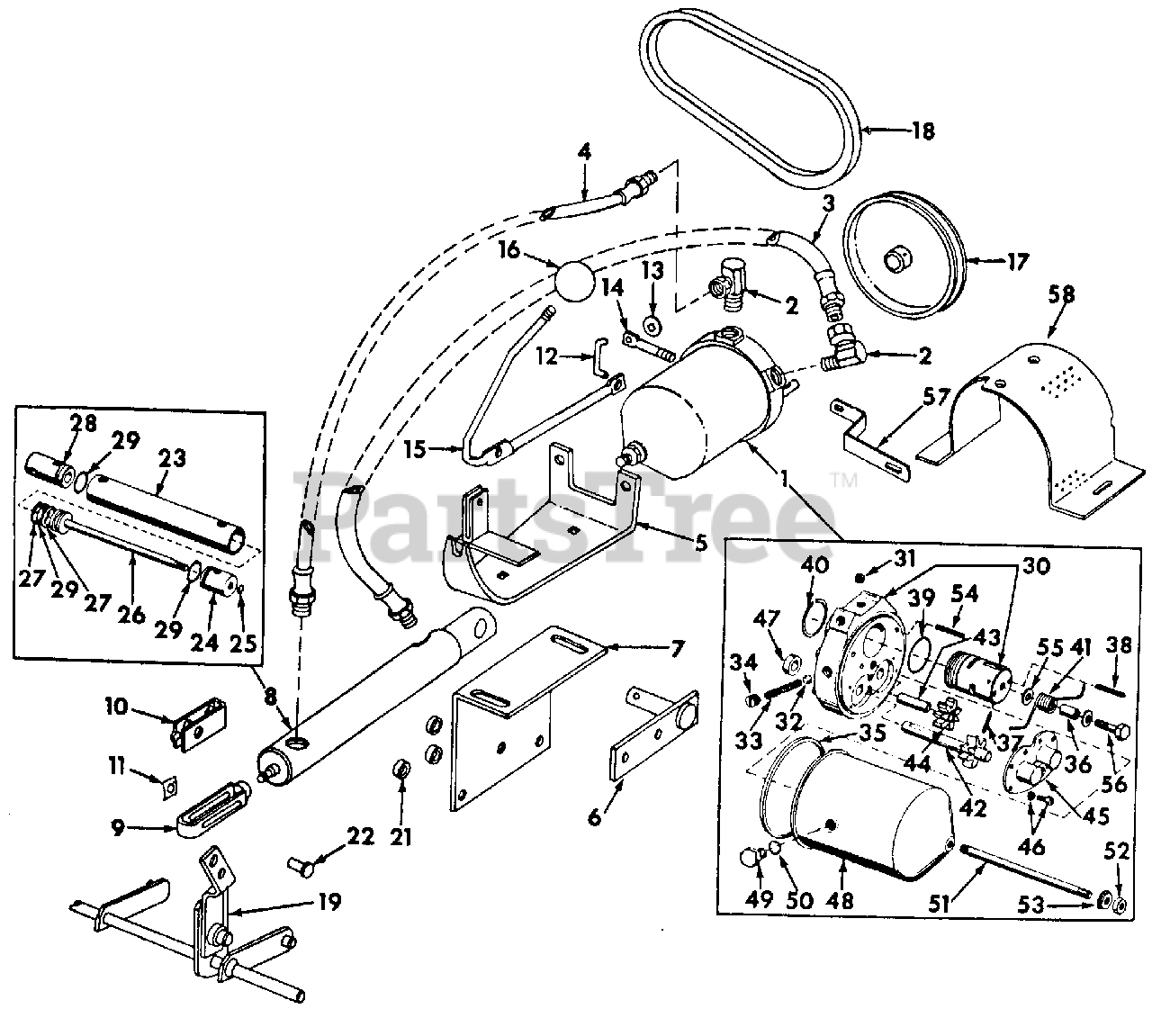

125 - Cub Cadet Garden Tractor Hydraulic Unit & Related Parts Parts Diagram

Garden Tractor

Hydraulic Unit & Related Parts Parts Diagram

  • Title

1

Cub Cadet IH-386136-R91

Pump Assy, Hyd

$

$

Currently unavailable

Cub Cadet 712-0798

Nut, 3/8-16 C-Z Hex

$4.49

$

In Stock, Qty 12

0

Cub Cadet 710-3100

Screw, 5/16-18 X 5/8 C-Z Hex Hd Cap

$

$

Not available

Cub Cadet 736-0119

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0140

Washer, 13/32 X 13/16 X .065 Ga C-Z

$7.49

$

In Stock, Qty 7

0

2

Cub Cadet IH-386137-R1

Fitting, Hyd Pump 90 Deg Union

$

$

Currently unavailable

3

Cub Cadet IH-386138-R91

Hose Assy, Hyd 9 In.

$

$

Not available

4

Cub Cadet IH-386139-R91

Hose Assy, Hyd 14 In.

$

$

Not available

5

~NLA

Bracket Assy, Hyd Pump Mounting

$

$

Not available

Bolt, 3/8-16 X 7/8 C-Z Crg

Note: Common Hardware, Purchase Locally

$

$

Not available

Cub Cadet 712-0798

Nut, 3/8-16 C-Z Hex

$4.49

$

In Stock, Qty 12

0

Cub Cadet 736-0169

Washer, 3/8 C-Z Med Lock

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0140

Washer, 13/32 X 13/16 X .065 Ga C-Z

$7.49

$

In Stock, Qty 7

0

6

~NLA

Bracket Assy, Hyd Cyl Support

$

$

Not available

Bolt, 3/8-16 X 7/8 C-Z Crg

Note: Common Hardware, Purchase Locally

$

$

Not available

Cub Cadet 712-0798

Nut, 3/8-16 C-Z Crg

$4.49

$

In Stock, Qty 12

0

Cub Cadet 736-0169

Pin, 3/16 X 1-1/4 C-Z Cot

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0140

Washer, 3/8 C-Z Med Lock

$7.49

$

In Stock, Qty 7

0

7

~NLA

Bracket, Frame Mounting

$

$

Not available

Cub Cadet 712-0798

Nut, 3/8-16 C-Z Hex

$4.49

$

In Stock, Qty 12

0

Cub Cadet 710-0520

Screw, 3/8-16 x 1-1/2 C-Z Hex Hd Cap

$4.49

$

In Stock, Qty 6

0

Cub Cadet 736-0169

Washer, 3/8 C-Z Med Lock

$3.99

$

In Stock, Qty 20+

0

8

~NLA

Cylinder Assy, Hyd

$

$

Not available

9

~NLA

Clevis Assy, Hyd Cyl End

$

$

Not available

10

~NLA

Clip, Cyl End Clevis Rivet Locking

$

$

Not available

11

~NLA

Nut, Locking Clip Push-On Type

$

$

Not available

12

Cub Cadet IH-386149-R1

Rod, Hyd Pump Actuator Control

$

$

Not available

13

~NLA

Nut, Actuator Control Rod Push-On Type

$

$

Not available

14

~NLA

Extension Pump Spool

$

$

Not available

15

Cub Cadet IH-386152-R1

Rod, Control Lever

$

$

Not available

Cub Cadet IH-20244-R1

Nut, 1/4-20 Nylon Insert

$

$

Not available

Cub Cadet IH-24840-R1

Screw, 1/4-20 x 7/8 C-Z Hex Hd Cap

$

$

Not available

16

Cub Cadet 720-3000

Knob, Control Lever Rod
(Superseded to 920-3000)

$11.99

$

In Stock, only 3 left!

0

17

Cub Cadet IH-386157-R1

Pulley, Driven

$

$

Not available

Screw, 5/16-18 x 3/8 Hex Soc Hd Cup Pt Set

$

$

Not available

18

Cub Cadet IH-386160-R1

Belt, Drive Pulley

$

$

Not available

19

~NLA

Rockshaft Assy, Hyd Lift

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 19

0

Cub Cadet 710-3013

Screw, 1/4-20 x 1/2 C-X Hex Hd Cap

$4.99

$

In Stock, Qty 11

0

Cub Cadet 736-0329

Washer, 1/4 C-Z Med Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

21

~NLA

Spacer, Frame Mounting Bracket

$

$

Not available

Screw, 3/8-16 x 1-1/2 C-Z Hex Hd Cap

$

$

Not available

Nut,3/8-16 C-Z Hex

$

$

Not available

Cub Cadet 736-0169

Washer, 3/8 C-Z Med Lock

$3.99

$

In Stock, Qty 20+

0

22

~NLA

Rivet, 1/2 x 1-1/4 F-Hd Solid

$

$

Not available

23

~NLA

Tube, Hydraulic Cylinder

$

$

Not available

24

~NLA

Guide, Hydraulic Cylinder

$

$

Not available

25

Cub Cadet IH-350429-R1

O-Ring, 5/8 x .813 x 3/32

Note: (Replaces hydraulic cylinder guide)

$

$

Not available

26

~NLA

Piston & Rod, Hydraulic Cylinder

$

$

Not available

27

~NLA

Washer, Piston & Rod Backup

$

$

Not available

28

~NLA

Head, Hyd Cylinder

$

$

Not available

29

Cub Cadet IH-252483-R1

O-Ring, 1-1/4 x 1-1/2 x 1/8

Note: (Hydraulic Cylinder Head)

$

$

Not available

30

~NLA

Body & Valve, Hyd Pump

$

$

Not available

31

Cub Cadet IH-444687

Plug, 1/8-27 Automotive Hex Soc Hd Pipe

$

$

Currently unavailable

32

Cub Cadet IH-17010-R1

Ball, 5/16 Cr-Stl

$

$

Not available

33

~NLA

Spring, Hyd Pump Body

$

$

Not available

34

Cub Cadet IH-584773-R1

Plug, Pump Body Spring Retaining

$

$

Not available

35

Cub Cadet IH-386368-R1

Gasket, Hyd Pump Body

$

$

Not available

36

~NLA

Spacer, Spring Sleeve

$

$

Not available

37

Cub Cadet IH-17047-R1

Pin, 5/32 x 7/8 Slt Spring

$

$

Not available

38

Cub Cadet 715-3004

Pin, 1/8 x 1-1/4 Slt Spring

$

$

Not available

39

Cub Cadet IH-707253-R1

O-Ring, 1-1/4 x 1-1/2 x 1/8

Note: (Hydraulic Pump Spool Valve)

$

$

Not available

40

~NLA

Ring, Hyd Pump Spool Valve Snap

$

$

Not available

41

Cub Cadet IH-386371-R1

Spring, Hyd Pump Spool Valve

$

$

Not available

42

Cub Cadet 759-3715

Shaft Assy, Hyd Pump Drive

Note: (Includes Ref No. 44)

$

$

Currently unavailable

43

~NLA

Shaft, Hyd Pump Idler

$

$

Not available

44

Gear, Hyd Pump Idler Shaft

Note: (Order Ref No. 42)

$

$

Not available

45

~NLA

Cover, Hyd Pump Shaft

$

$

Not available

46

~NLA

Screw w/Spring Lock Washer, 10-13 x 7/16 Slt Fil Hd Mach

$

$

Not available

47

Cub Cadet IH-347478-R91

Seal, Hyd Pump Drive Shaft

$

$

Not available

48

~NLA

Reservoir, Hyd Pump

$

$

Not available

49

Screw, 1/2-20 x 1/2 Hex Hd Cap

$

$

Not available

50

~NLA

Washer Hyd Pump Reservoir Fiber

$

$

Not available

51

~NLA

Stud, Hyd Pump Reservoir

$

$

Not available

52

Nut, 3/8-16 Hex Jam

$

$

Not available

53

Cub Cadet IH-386379-R1

Washer, Hyd Pump Reservoir Stud

$

$

Currently unavailable

54

Cub Cadet TC-792040

Pin, 3/16 x 1-1/2 Slt Spring

$4.49

$

Usually ships in 3-12 days

0

55

~NLA

Washer, 11/32 x 11/16 x .065

$

$

Not available

56

~NLA

Screw w/Nylon Pellet, 5/16-18 x 1-1/8 Hex Hd Cap

$

$

Not available

57

Cub Cadet IH-403281-R1

Arm, Support

$

$

Currently unavailable

Cub Cadet 712-0798

Nut, 3/8-16 C-Z Hex

$4.49

$

In Stock, Qty 12

0

Cub Cadet 710-0514

Screw, 3/8-16 x 1 C-Z Hex Hd Cap

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0169

Washer, 3/8 C-Z Med Lock

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0140

Washer, 13/32 x 3/4 x 16 Ga

$7.49

$

In Stock, Qty 7

0

58

~NLA

Shield, Clutch

$

$

Not available

Cub Cadet IH-172415

Screw, 12-24 x 1/2 C-Z Hex Hd Tap
(Superseded to 710-1189)

$

$

Not available

~NLA

Washer, 12 C-Z Ext Tooth Lock

$

$

Not available

Cub Cadet 726-3015

Clip, Cable Harness
(Superseded to 726-3008)

Note: (For securing cable harness)

$4.99

$

Usually ships in 3-6 days

0
