125 - Cub Cadet Garden Tractor Hood, Grille & Frame Parts Diagram

Garden Tractor

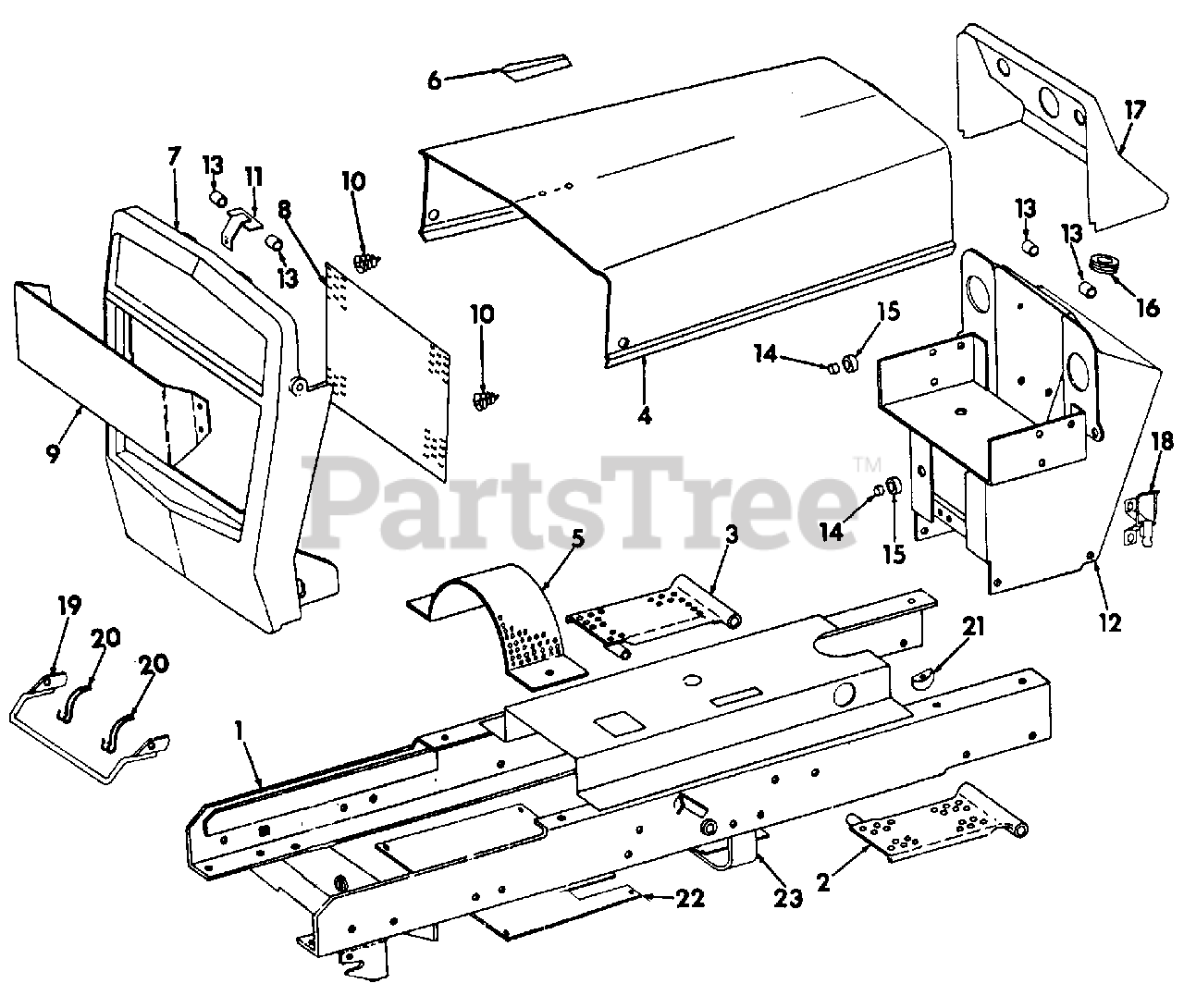

Hood, Grille & Frame Parts Diagram

  • Title

1

~NLA

Frame Assy

$

$

Not available

Screw, 3/8-16 X 11/16 Hex Hd Cap

Note: Common Hardware, Purchase Locally

$

$

Not available

Screw, 3/8-16 X 1-1/4 Hex Hd Cap

Note: Common Hardware, Purchase Locally

$

$

Not available

Cub Cadet IH-21318-R1

Screw, 3/8-16 X 2-1/2 Hex Hd Cap

$

$

Not available

Washer, 3/8 Med Lock

Note: Common Hardware, Purchase Locally

$

$

Not available

2

~NLA

Support Assy, Foot LH

$

$

Not available

Screw, 3/8-16 X 3/4 Hex Hd Cap

Note: Common Hardware, Purchase Locally

$

$

Not available

Washer, 3/8 Med Lock

Note: Common Hardware, Purchase Locally

$

$

Not available

3

~NLA

Support Assy, Foot RH

$

$

Not available

Screw, 3/8-16 X 3/4 Hex Hd Cap

Note: Common Hardware, Purchase Locally

$

$

Not available

Washer, 3/8 Med Lock

Note: Common Hardware, Purchase Locally

$

$

Not available

4

~NLA

Hood Assy

$

$

Not available

Cub Cadet 712-3000

Nut, 3/8-16 Gripco Center Lock

$4.49

$

In Stock, Qty 9

0

Cub Cadet 710-3005

Screw, 3/8-16 X 1-1/4 C-Z Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0140

Washer, 13/32 X 13/16 X .062

$7.49

$

In Stock, Qty 7

0

5

Cub Cadet IH-397457-R1

Shield, Clutch

$

$

Not available

Cub Cadet IH-172415

Screw, 12-24 X 1/2 C-Z Hex Hd Cap
(Superseded to 710-1189)

$

$

Not available

Washer, No. 12 C-Z Ext Tooth Lock

Note: Common Hardware, Purchase Locally

$

$

Not available

6

~NLA

Product Graphic, Hood Ornament

$

$

Not available

Screw w/Ext Tooth Lock Washer 10-24 X 3/8 C-Z Slt Truss Hd

Note: Common Hardware, Purchase Locally

$

$

Not available

7

~NLA

Housing, Grille

$

$

Not available

Cub Cadet 712-0798

Nut, 3/8-16 C-Z Hex

$4.49

$

In Stock, Qty 12

0

Cub Cadet 710-0514

Screw, 3/8-16 X 1 C-Z Hex Hd Cap

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-0520

Screw, 3/8-16 X 1-1/2 C-Z Hex Hd Cap

$4.49

$

In Stock, Qty 6

0

8

Cub Cadet IH-401528-R1

Grille

$

$

Not available

9

~NLA

Strip, Panel

$

$

Not available

Bolt, 1/4-20 X 1/2 C-Z Hex Hd

Note: Common Hardware, Purchase Locally

$

$

Not available

Cub Cadet 736-0329

Washer, 1/4 C-Z Med Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

10

Cub Cadet IH-391347-R1

Spring, Hold Down
(Superseded to IH-391347-R2)

$16.99

$

In Stock, only 3 left!

0

11

Cub Cadet IH-404785-R2

Bracket Assy, Front Hood

$

$

Not available

12

~NLA

Pedestal Assy

$

$

Not available

Cub Cadet 710-3000

Screw, 3/8-16 X 3/4 C-Z Hex Hd Cap
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Cub Cadet 710-0514

Screw, 3/8-16 X 1 Hex Hd Cap

Note: (Used as RH rear pedestal mounting bolt)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0169

Washer, 3/8 C-Z Med Lock

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 735-3007

Pad, Hood Bumper
(Superseded to 935-3007)

$8.49

$

In Stock, only 3 left!

0

14

Cub Cadet IH-384906-R1

Spacer, Hood Roller Lock

$

$

Not available

15

Cub Cadet IH-393859-R2

Roller, Hood Lock, Rubber

$

$

Currently unavailable

Screw, 1/4-20 X 1-1/4 C-Z Hex Hd Cap

Note: Common Hardware, Purchase Locally

$

$

Not available

Nut, 1/4-20 Stover Hex Lock

Note: Common Hardware, Purchase Locally

$

$

Not available

Cub Cadet 736-3020

Washer, 17/64 X 5/8 X .036 C-Z

$6.99

$

In Stock, Qty 9

0

16

Cub Cadet IH-384908-R1

Grommet, Instrument Panel

$

$

Not available

17

Cub Cadet IH-401598-R1

Panel, Instrument

$

$

Currently unavailable

Cub Cadet IH-159921

Screw, 10-24 X 1/2 Crp Cr Rec Pan Hd Mach

$

$

Not available

18

Cub Cadet IH-401631-R1

Latch Assy, Hood

$

$

Not available

Cub Cadet IH-138479

Washer, No. 10 C-Z Ext Tooth Lock

$

$

Not available

Cub Cadet IH-188978

Screw, 10-24 X 3/8 C-Z Hex Hd Mach

$

$

Not available

19

~NLA

Hitch Assy, Quick

$

$

Not available

Cub Cadet 738-3001

Bolt, Implement Mtg Shoulder

$

$

Not available

Cub Cadet 711-3010

Pin, 3/8 X 1-3/32 Std Hd C-Z
(Superseded to 911-3010)

$

$

Not available

Cub Cadet 714-0507

Pin, 3/32 X 3/4 Cot C-Z

$4.49

$

In Stock, Qty 12

0

Cub Cadet 736-0272

Washer, Implement Mtg

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet IH-402344-R3

Spring, Latch
(Superseded to IH-402344-R4)

$

$

Not available

21

~NLA

Plate, Neutral Adj Cover

$

$

Not available

Screw, 1/4-28 X 3/8 C-Z Hex Hd Tap

Note: Common Hardware, Purchase Locally

$

$

Not available

Washer, 1/4 X 9/16 X 18 Ga C-Z

Note: Common Hardware, Purchase Locally

$

$

Not available

22

~NLA

Sheet, Bottom Clutch Shield

$

$

Not available

23

~NLA

Guard Assy, Suction Tube

$

$

Not available

Cub Cadet IH-181593

Screw, 5/16-24 X 5/8 Hex Hd Cap

$

$

Currently unavailable
