125 - Cub Cadet Garden Tractor Electric Lighting Parts Diagram

Garden Tractor

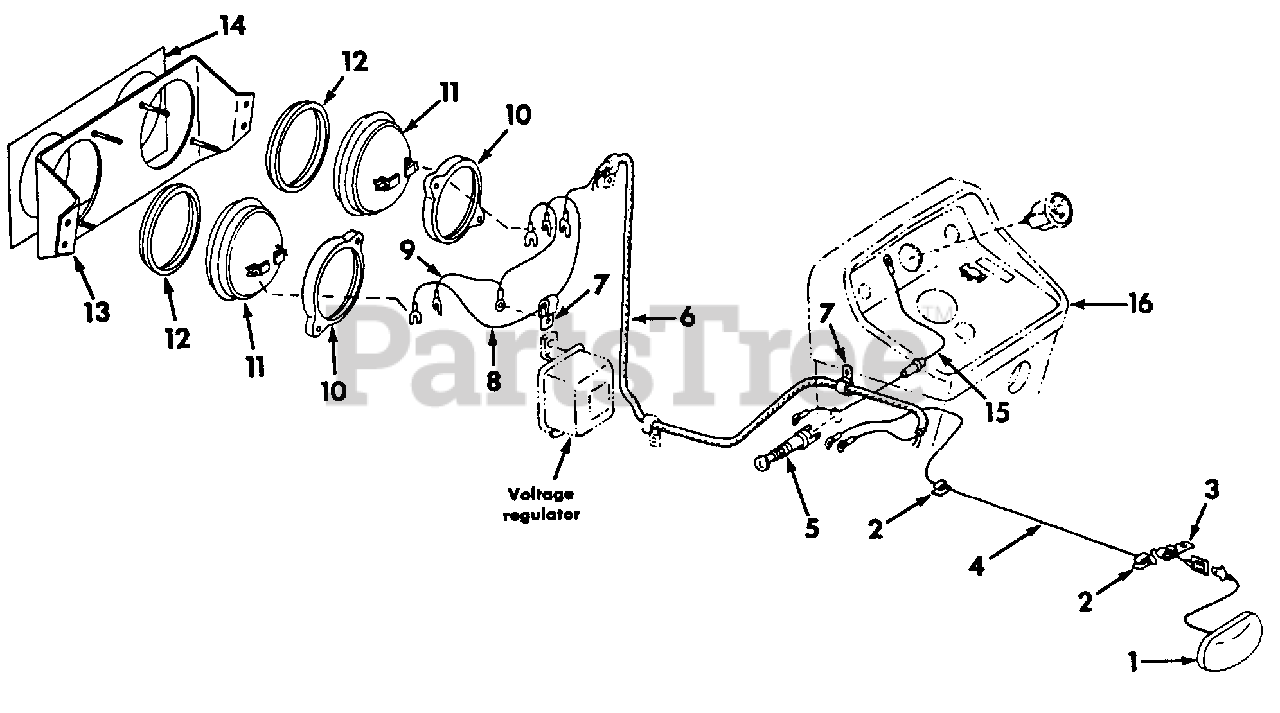

Electric Lighting Parts Diagram

  • Title

1

Cub Cadet IH-545616-R1

Taillight Assy

Note: (Only serviceable items are)

$

$

Not available

Cub Cadet IH-23713-R1

Lamp, No. 1889, 14 Volt

$

$

Not available

Cub Cadet IH-545616-R1

Lens, Taillight

$

$

Not available

Screw, 10-24 X 5/8 Pan Hd Mach

Note: Common Hardware, Purchase Locally

$

$

Not available

Cub Cadet IH-138479

Washer, No. 10 Ext Tooth Lock

$

$

Not available

2

Cub Cadet 726-3021

Clip, Taillight Cable

$

$

Not available

3

Cub Cadet 726-3025

Clip, Lighting Switch to Taillight Cable
(Superseded to 726-0272)

Note: (On rear frame LH side second bolt from rear)

$7.49

$

Usually ships in 3-6 days

0

4

~NLA

Cable Assy, Lighting Switch to Taillight

$

$

Not available

5

Cub Cadet IH-62801-DC

Switch Assy, Lighting
(Superseded to IH-62801-DCP)

$

$

Not available

~NLA

Spacer, Lighting Switch

$

$

Not available

6

Harness Assy, Cable

Note: (Not serviced separately, order wiring package IH-59321-C91)

$

$

Not available

7

Cub Cadet 726-3025

Clip, Headlight Cables
(Superseded to 726-0272)

Note: (On volt- age regulator upper mounting bolt)

$7.49

$

Usually ships in 3-6 days

0

8

Cub Cadet IH-404404-R1

Cable Assy, RH Headlight to LH Headlight

$

$

Currently unavailable

9

~NLA

Cable Assy, Headlight to Ground

$

$

Not available

10

Cub Cadet IH-389746-R1

Ring, Headlight Clamp
(Superseded to IH-389746-R2)

$

$

Not available

Nut, 10-32 C-Z Wing

Note: Common Hardware, Purchase Locally

$

$

Not available

11

Cub Cadet 725-0222

Unit Assy, Sealed Beam Headlight
(Superseded to 925-0222)

$58.99

$

In Stock, Qty 5

0

12

Cub Cadet IH-389745-R1

Ring, Headlight Retaining

$

$

Currently unavailable

13

Cub Cadet IH-402988-R1

Panel Assy, Headlight Mounting

$

$

Not available

14

~NLA

Product Graphic, Headlight Panel Indicator

$

$

Not available

15

Cub Cadet IH-402990-R1

Cable Assy, Lighting Switch to Charge Indicator

$

$

Currently unavailable

Cub Cadet IH-120114

Fuse, Cartridge Type AGC 10

$

$

Not available

16

Pedestal Assy

Note: (Refer to hood, grille & frame listing)

$

$

Not available

Cub Cadet IH-59321-C91

Package, Wiring

$

$

Not available

Cub Cadet IH-404379-R4

Harness Assy
(Superseded to IH-59321-C91)

$

$

Not available

Cub Cadet IH-370383-R1

Clip

$

$

Not available
