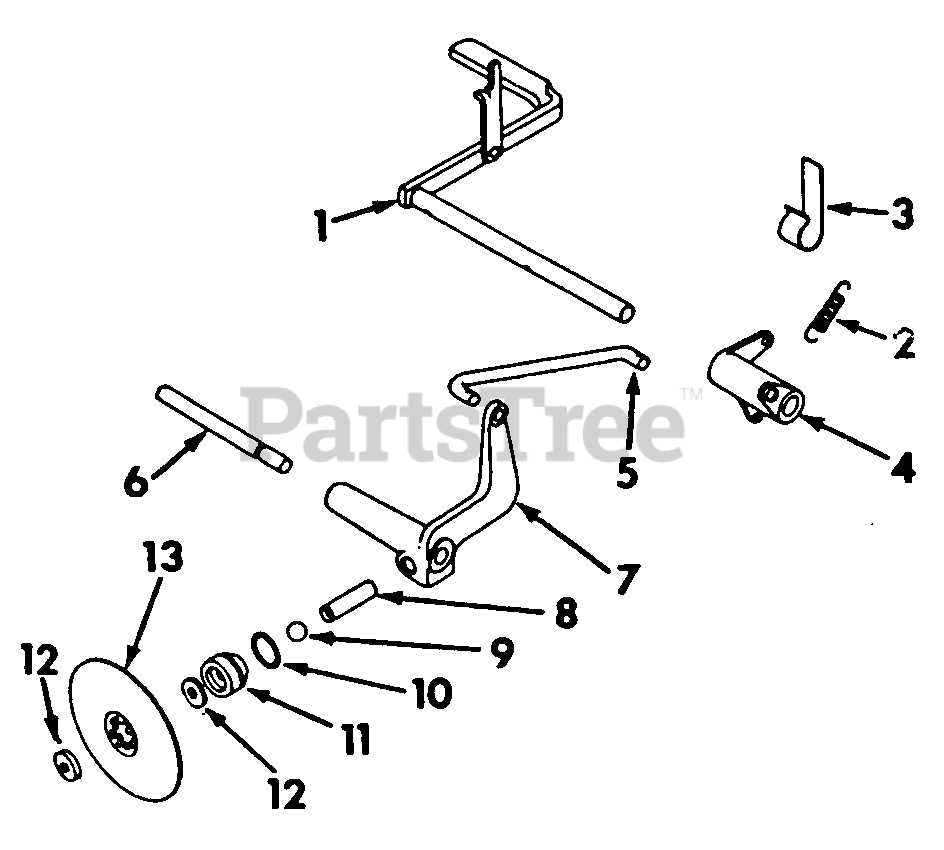

  • Title

1

~NLA

Pedal Assy, Brake

$

$

Not available

~NLA

Rivet, 1/4 X 11/16 Small F Hd Solid

$

$

Not available

Cub Cadet 736-3001

Washer, Spring

$

$

Not available

Cub Cadet IH-19689-R1

Pin, 1/4 X 1-1/4 Hv Coiled Spring
(Superseded to IH-19689-R2)

$

$

Not available

2

Cub Cadet IH-370278-R1

Spring, Clutch Pedal Return
(Superseded to IH-370278-R2)

$

$

Not available

3

Cub Cadet IH-394037-R1

Clip, Safety Switch Release Lever Strip

$

$

Not available

Cub Cadet 715-0114A

Pin, 1/4 X 1-1/2 Hv Coiled Spring
(Superseded to 915-0114)

$9.49

$

In Stock, only 4 left!

0

4

~NLA

Lever, Brake Rod

$

$

Not available

5

~NLA

Rod, Brake

$

$

Not available

Pin, 3/32 X 1/2 Cot

Note: Common Hardware, Purchase Locally

$

$

Not available

6

Cub Cadet IH-394032-R1

Pin, Brake Lever Pivot

$

$

Not available

7

Cub Cadet IH-394033-R1

Lever, Brake

$

$

Not available

Screw, 3/8-16 X 1-3/4 Sq Hd Ov Pt Set

Note: Common Hardware, Purchase Locally

$

$

Not available

Nut, 3/8-16 Hex Jam

Note: Common Hardware, Purchase Locally

$

$

Not available

8

Cub Cadet IH-394031-R1

Pin, Brake Push

$

$

Not available

9

Cub Cadet IH-17018-R1

Ball, 9/16 Dia Cr-Stl

$

$

Not available

10

Cub Cadet IH-378031-R1

O-Ring, 1-3/16 X 1-3/8 X 3/32

$

$

Not available

11

Cub Cadet IH-384720-R2

Retainer, Brake Lining

$

$

Not available

12

Cub Cadet IH-384719-R1

Disc, Brake Lining
(Superseded to IH-384719-R2)

$25.99

$

In Stock, Qty 17

0

13

Cub Cadet IH-384717-R11

Disc Assy, Brake

$

$

Not available
