125 C - Husqvarna String Trimmer (2008-01) Shaft & Handles Parts Diagram

String Trimmer

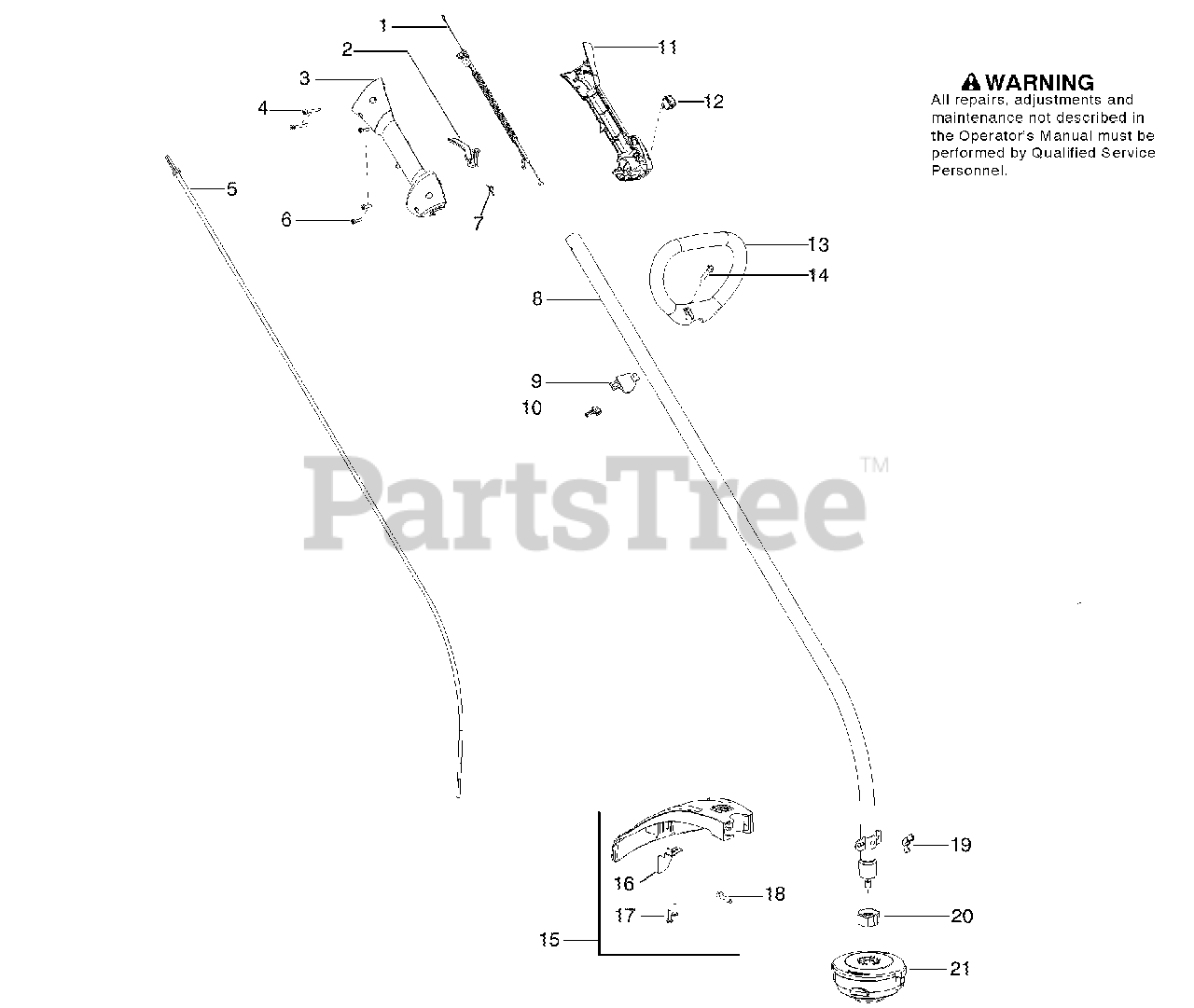

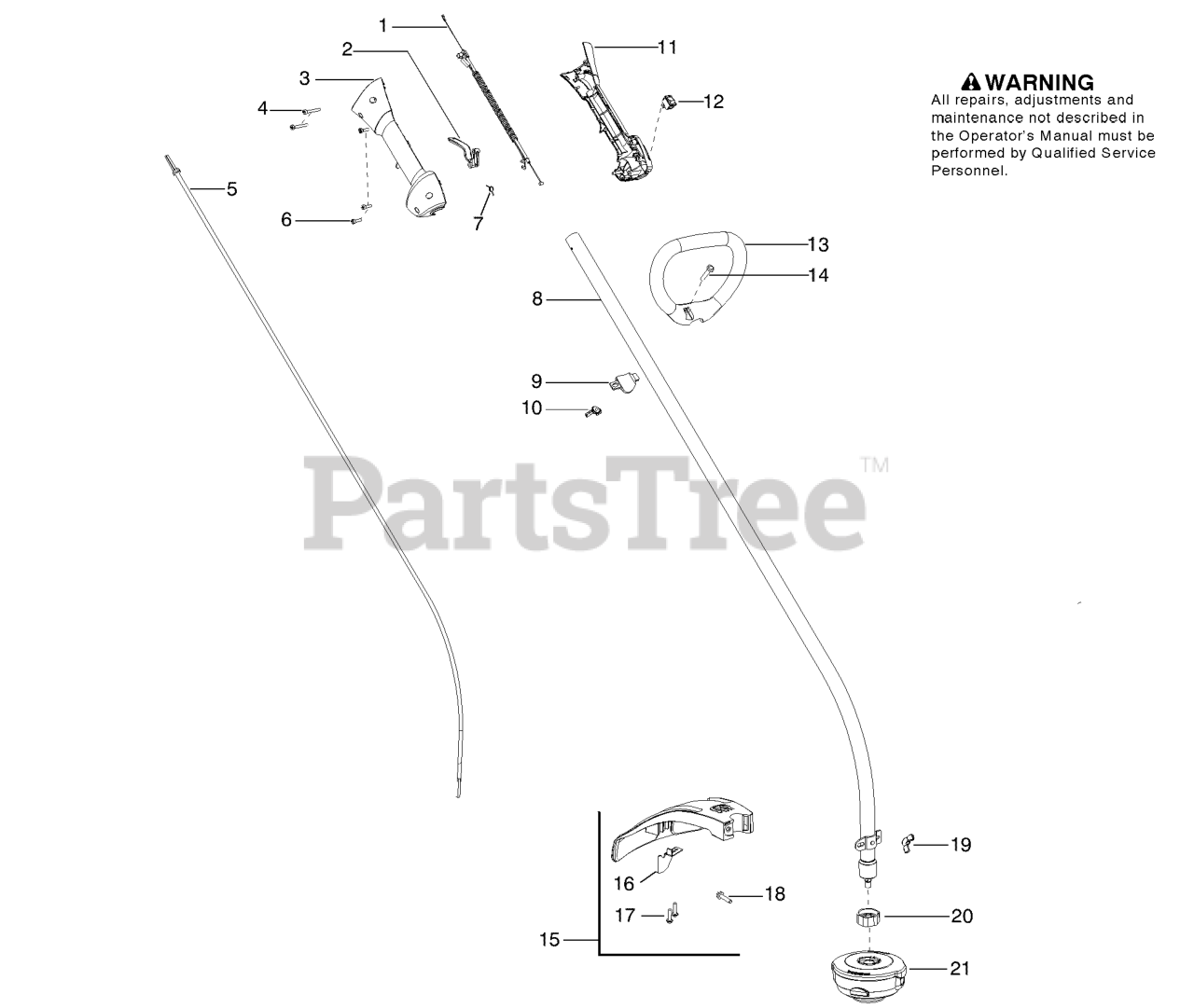

Shaft & Handles Parts Diagram

  • Title

1

Assy-Cable/Wire Harness

$

$

Not available

2

Husqvarna 545066001

Trigger

$

$

Not available

3

Husqvarna 545062002

Housing-Throttle

Note: (RH)

$

$

Not available

4

Husqvarna 530016448

Screw

$6.49

$

In Stock, only 4 left!

0

5

Flexshaft

$

$

Not available

6

Husqvarna 530016449

Screw

$6.49

$

In Stock, only 2 left!

0

7

Husqvarna 530016454

Spring-Trigger

$6.49

$

In Stock, Qty 7

0

8

Husqvarna 545031001

Kit-Driveshaft

$46.99

$

Usually ships in 3-10 days

0

9

Husqvarna 530059185

Clamp-Handle

$6.49

$

In Stock, only 1 left!

0

10

Husqvarna 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

11

Husqvarna 545067001

Housing-Throttle

Note: (LH)

$

$

Not available

12

Husqvarna 545030601

Kit-Switch
(Superseded to 545049301)

$10.99

$

In Stock, Qty 10

0

13

Husqvarna 545042201

Handle-Assist

$17.99

$

Usually ships in 3-10 days

0

14

Husqvarna 530015820

Bolt

$4.99

$

In Stock, only 1 left!

0

15

Husqvarna 545031101

Kit-Shield

Note: (Incl. 16,17,18,19)

$31.99

$

Usually ships in 3-10 days

0

16

Husqvarna 545081862

Kit - Limiter-Line

$6.99

$

In Stock, only 2 left!

0

17

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

18

Husqvarna 530015820

Bolt

$4.99

$

In Stock, only 1 left!

0

19

Husqvarna 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

20

Husqvarna 545017403

Dust cup

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 537338303

Assy-T25 Cutting Head
(Superseded to 537338312)

$26.99

$

Usually ships in 3-10 days

0

Husqvarna 545146947

Manual

Note: (Not Shown)

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 545059101

Decal-Warning

Note: (Not Shown)

$

$

Not available
