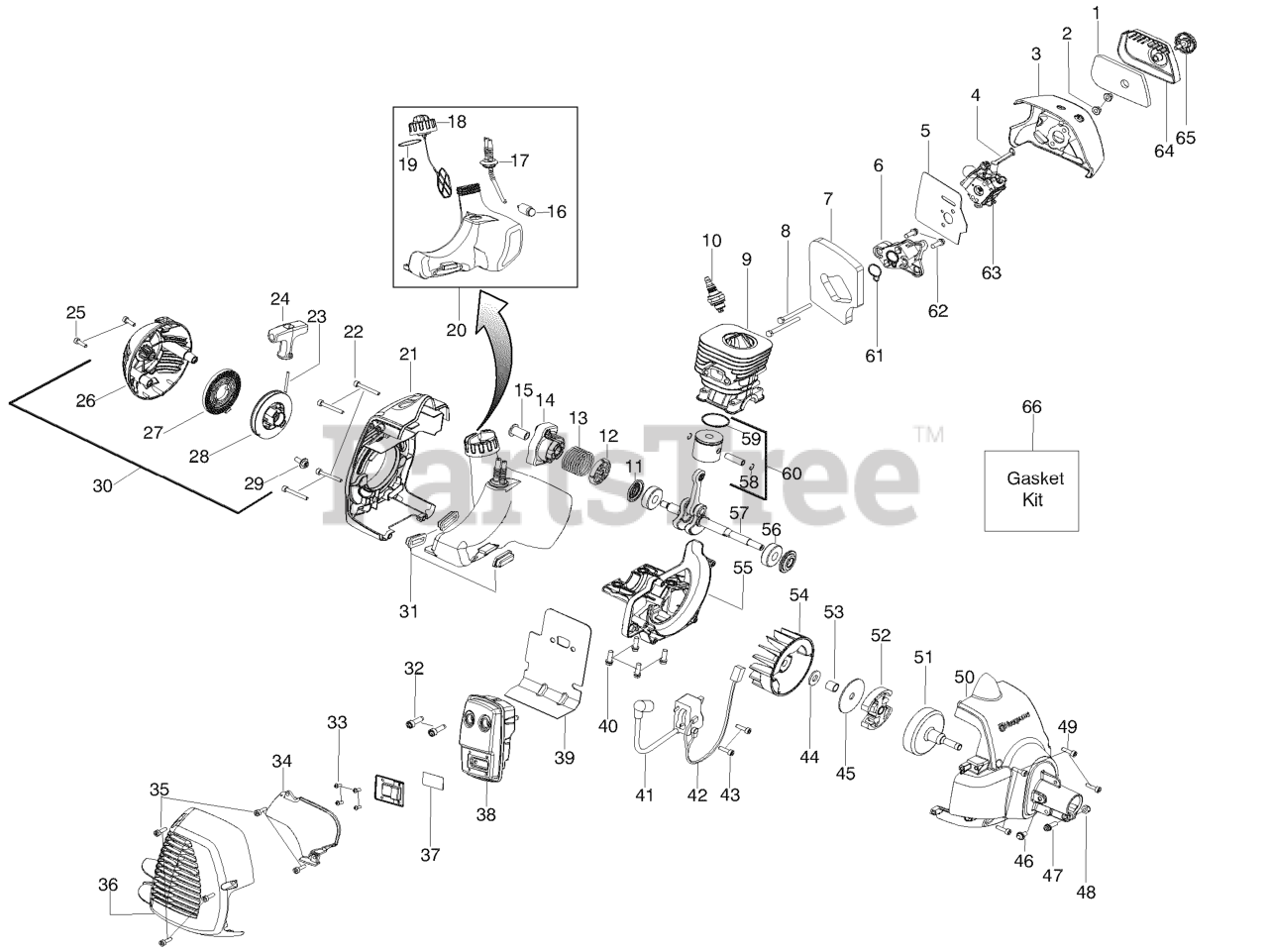

125 C - Husqvarna String Trimmer (2008-01) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

$3.99

$

In Stock, only 2 left!

0

2

Husqvarna 530016101

Nut-Carb. Screw

$6.49

$

In Stock, only 2 left!

0

3

Air Box

$

$

Not available

4

Husqvarna 530057844

Lever - Choke

$8.99

$

In Stock, Qty 7

0

5

Husqvarna 545050402

Kit-Carb. Gasket

Note: (Incl 7,61)

$18.99

$

In Stock, Qty 9

0

6

Husqvarna 530035596

Adaptor-Carb.

$12.99

$

In Stock, only 1 left!

0

7

Husqvarna 545030101

Kit-Gasket
(Superseded to 545081898)

Note: (foam)

$26.99

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 1 left!

0

9

Husqvarna 545001001

Cylinder
(Superseded to 545003378)

$34.99

$

In Stock, only 4 left!

0

10

Husqvarna 952030249

Plug-Spark
(Superseded to 530030179)

Note: (RCJ-6Y)

$7.49

$

In Stock, only 1 left!

0

11

Husqvarna 545050403

Kit-Crankshaft seal

$9.99

$

In Stock, only 4 left!

0

12

Husqvarna 530016475

Washer-Starter

$7.49

$

In Stock, Qty 7

0

13

Husqvarna 545160301

Spring-Starter Cup

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 545102302

Assy-Starter Cup
(Superseded to 545102303)

$17.99

$

In Stock, Qty 18

0

15

Husqvarna 530059800

Coupling-Starter
(Superseded to 545180844)

$37.99

$

In Stock, only 4 left!

0

16

Husqvarna 530095646

Assy-Fuel Filter

$6.99

$

In Stock, Qty 19

0

17

Husqvarna 545081897

Kit-Fuel Line

$18.99

$

In Stock, Qty 11

0

18

Husqvarna 530150350

Assy-Cap w/ret.
(Superseded to 578931503)

Note: (Incl. 19)

$7.99

$

In Stock, only 3 left!

0

19

Husqvarna 530019293

O-ring - Fuel Cap

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 545105105

Assy-Fuel Tank
(Superseded to 545105107)

Note: (Incl. 16,17,18,19)

$

$

Not available

21

Husqvarna 530057851

Shroud-Rear
(Superseded to 576153201)

$13.99

$

In Stock, only 4 left!

0

$6.49

$

In Stock, only 4 left!

0

23

$14.99

$

In Stock, only 2 left!

0

24

Husqvarna 530150318

Handle-Starter

$6.49

$

In Stock, Qty 18

0

25

Screw

$

$

Not available

26

Husqvarna 545029603

Starter Hsg. w/eyelet

$

$

Not available

27

Husqvarna 545029801

Kit-Starter Spring
(Superseded to 545008015)

$7.99

$

In Stock, Qty 16

0

28

Husqvarna 545029701

Kit-Starter Pulley

$18.99

$

In Stock, Qty 10

0

$6.49

$

In Stock, Qty 7

0

30

Husqvarna 545106301

Assy-Starter Hsg.

Note: (Incl. 23,24,26,27,28,29)

$26.99

$

Usually ships in 3-10 days

0

31

Husqvarna 530059780

Isolator-Tank

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 530058982

Bolt-Muffler

$4.99

$

In Stock, Qty 7

0

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 530150440

Shield-Heat

$8.99

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 2 left!

0

36

Husqvarna 545104901

Guard-Muffler
(Superseded to 576215001)

$14.99

$

In Stock, Qty 13

0

37

Husqvarna 545030501

Kit-Spark Arrestor

Note: (Incl. 33)

$8.99

$

In Stock, only 1 left!

0

38

Husqvarna 545057501

Assy-Muffler
(Superseded to 574031502)

$40.99

$

In Stock, only 1 left!

0

39

Husqvarna 530057848

Gasket-Paper Metal

$12.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, Qty 19

0

41

Husqvarna 530039224

Module
(Superseded to 545046701)

$56.99

$

In Stock, only 1 left!

0

42

Husqvarna 530039227

Assy-Leadwire

$8.99

$

In Stock, only 3 left!

0

$6.49

$

In Stock, only 2 left!

0

$6.99

$

In Stock, only 3 left!

0

45

Husqvarna 530094189

Washer-Clutch

$6.99

$

In Stock, only 1 left!

0

$

$

Not available

$

$

Not available

48

$6.49

$

In Stock, only 2 left!

0

$6.49

$

In Stock, only 2 left!

0

50

Husqvarna 545017501

Assy-Fan Housing

$

$

Not available

51

Assy-Clutch Drum

$

$

Not available

52

Husqvarna 545050405

Kit-Clutch Assy.
(Superseded to 525472901)

$12.99

$

Usually ships in 3-10 days

0

$10.99

$

In Stock, only 2 left!

0

54

$44.99

$

In Stock, only 1 left!

0

55

Crankcase

$

$

Not available

56

$10.99

$

In Stock, only 2 left!

0

57

Husqvarna 545030001

Kit-Crankshaft

$60.99

$

Usually ships in 3-10 days

0

58

Husqvarna 530015162

Retainer-Piston Pin

$6.49

$

In Stock, only 1 left!

0

59

Husqvarna 530019283

Ring-Piston
(Superseded to 575227901)

$7.49

$

In Stock, only 4 left!

0

60

Husqvarna 545030301

Kit-Piston

Note: (Incl. 58,59)

$60.99

$

Usually ships in 3-10 days

0

61

Husqvarna 545030101

Kit-Gasket
(Superseded to 545081898)

Note: (adaptor seal)

$26.99

$

In Stock, only 1 left!

0

$6.49

$

In Stock, Qty 19

0

63

Kit-Carb.

Note: (Incl. 4,5)

$

$

Not available

64

Husqvarna 530057846

Cover-Air Box

$9.49

$

In Stock, Qty 12

0

65

$5.99

$

In Stock, Qty 13

0

66

Husqvarna 545030101

Kit-Gasket
(Superseded to 545081898)

Note: (Incl. 5,7,11,19,39,61)

$26.99

$

In Stock, only 1 left!

0

Husqvarna 530058709

Bulb-Purge

Note: (Not Shown)

$7.99

$

In Stock, only 1 left!

0
