125 C - Husqvarna String Trimmer (2005-06) Shaft & Cutting Head Parts Diagram

String Trimmer

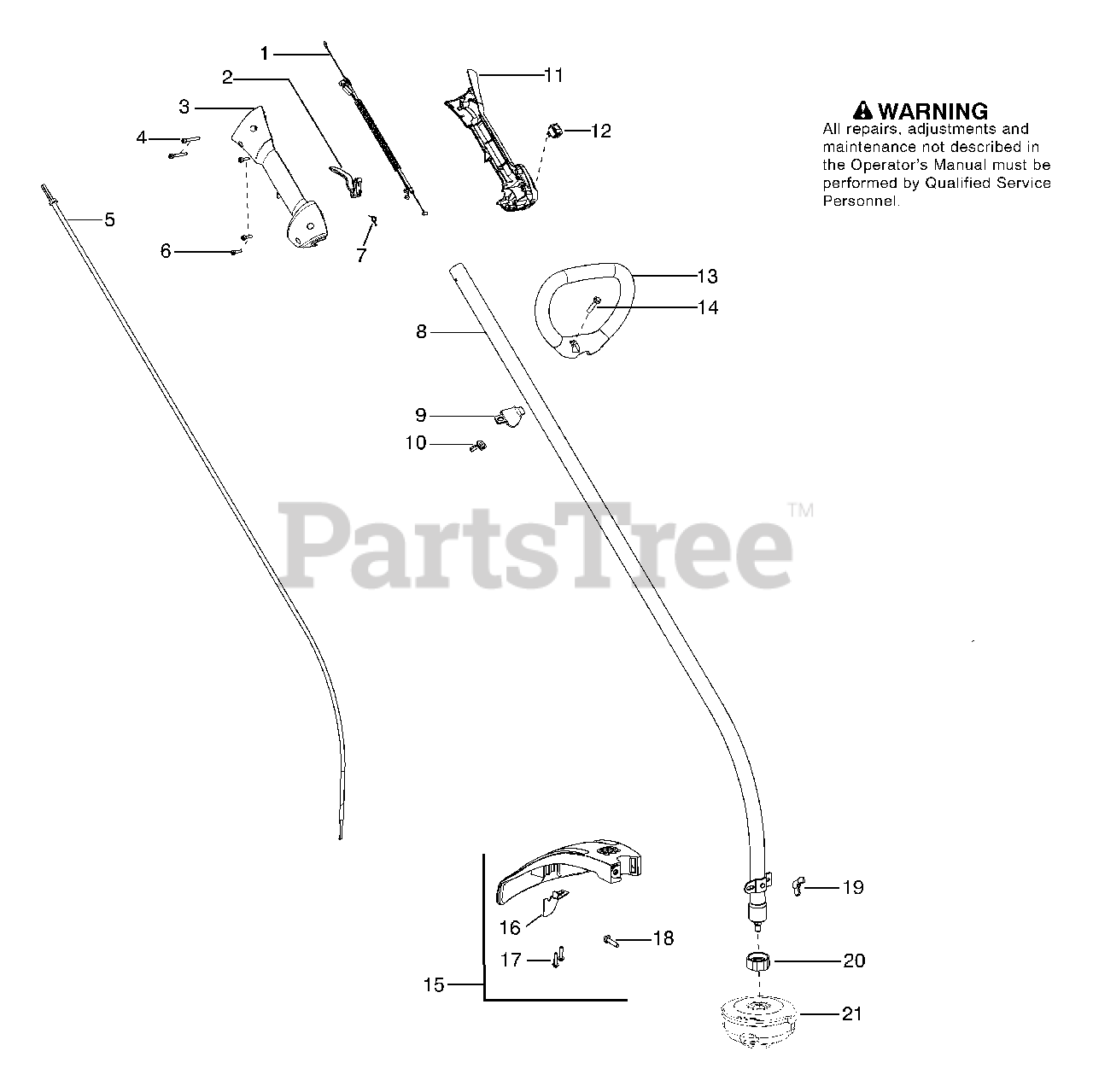

Shaft & Cutting Head Parts Diagram

  • Title

1

Husqvarna 530150561

Assy-Cable/Wire Harness
(Superseded to 545125301)

$37.99

$

In Stock, only 3 left!

0

2

Husqvarna 530059807

Trigger
(Superseded to 545066001)

$

$

Not available

3

Husqvarna 545024201

Housing-Throttle (RH)

$

$

Not available

4

Husqvarna 530016448

Screw

$6.49

$

In Stock, only 4 left!

0

5

Husqvarna 545007508

Flexshaft

$22.99

$

Usually ships in 3-10 days

0

6

Husqvarna 530016449

Screw

$6.49

$

In Stock, only 2 left!

0

7

Husqvarna 530016454

Spring-Trigger

$6.49

$

In Stock, Qty 7

0

8

Husqvarna 545031001

Kit-Driveshaft

$46.99

$

Usually ships in 3-10 days

0

9

Husqvarna 530059185

Clamp-Handle

$6.49

$

In Stock, only 1 left!

0

10

Husqvarna 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

11

Husqvarna 530057856

Housing-Throttle (LH)

$

$

Not available

12

Husqvarna 545030601

Kit-Switch
(Superseded to 545049301)

$10.99

$

In Stock, Qty 10

0

13

Husqvarna 530150076

Handle-Assist

$12.99

$

In Stock, Qty 5

0

14

Husqvarna 530015820

Bolt

$4.99

$

In Stock, only 1 left!

0

15

Husqvarna 545031101

Kit-Shield

Note: (Incl. 16,17,18,19)

$31.99

$

Usually ships in 3-10 days

0

16

Husqvarna 530052287

Limiter-Line

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

18

Husqvarna 530015820

Bolt

$4.99

$

In Stock, only 1 left!

0

19

Husqvarna 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

20

Husqvarna 530096309

Dust Cup
(Superseded to 545017403)

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 537338303

Assy-T25 Cutting Head
(Superseded to 537338312)

$26.99

$

Usually ships in 3-10 days

0

Husqvarna 545047592

Manual

$

$

Not available

Husqvarna 530163946

Decal-Warning

$

$

Not available
