125 BX - Husqvarna Handheld Blower (2010-01) Starter Parts Diagram

Handheld Blower

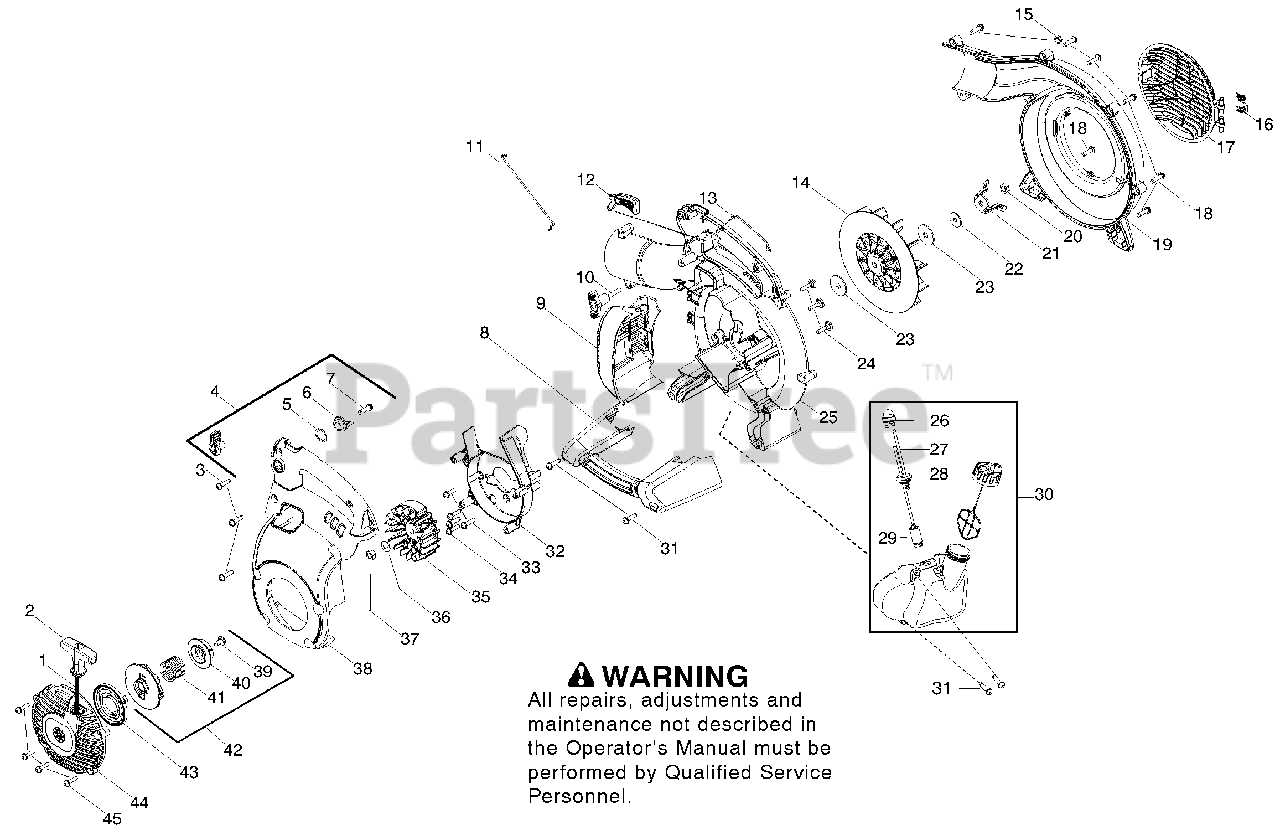

Starter Parts Diagram

  • Title

1

Husqvarna 545081817

Kit - Rope

$9.49

$

In Stock, only 1 left!

0

2

Husqvarna 545043204

Handle - Starter

$7.99

$

In Stock, only 3 left!

0

3

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

4

Husqvarna 545081822

Kit - Cruise control

Note: (Incl. 5,6,7)

$9.99

$

In Stock, only 2 left!

0

5

Husqvarna 530015147

Washer - Wave

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 545111501

Ratchet - Cruise control

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

8

Husqvarna 545119002

Handle - Assist

$13.99

$

Usually ships in 3-10 days

0

9

Husqvarna 545157901

Assy. - Muffler guard

$

$

Not available

10

Husqvarna 545108701

Assy. - Knob tube clamp

$6.49

$

In Stock, only 3 left!

0

11

Husqvarna 545111301

Wire - Linkage

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 545111601

Trigger - Throttle

$9.99

$

Usually ships in 3-10 days

0

13

Husqvarna 545131701

Wire - Handle ground

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 545173201

Impeller
(Superseded to 581449401)

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 530015197

Nut - Blower tube

$6.49

$

In Stock, only 4 left!

0

16

Husqvarna 545111101

Spring - Vac door

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 545111201

Cover - Vac door

$13.99

$

In Stock, only 1 left!

0

18

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

19

Husqvarna 575533201

Assy - Outer scroll

Note: (Incl. 16,17)

$37.99

$

Usually ships in 3-10 days

0

20

Husqvarna 545147101

Nut - Impeller

$6.49

$

In Stock, only 1 left!

0

21

Blade - Mulch

$

$

Not available

22

Washer

$

$

Not available

23

Husqvarna 545164501

Washer - Impeller

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 530016445

Screw

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 545110001

Scroll - Inner

$37.99

$

Usually ships in 3-10 days

0

26

Husqvarna 530047721

Bulb - Purge

$9.49

$

Usually ships in 3-10 days

0

27

Husqvarna 545081841

Kit - Fuel line grommet
(Superseded to 581798001)

Note: (Incl. 26,29)

$11.99

$

In Stock, Qty 7

0

28

Husqvarna 530150350

Assy - Fuel cap with retainer
(Superseded to 578931503)

$7.99

$

In Stock, only 3 left!

0

29

Husqvarna 530095646

Assy - Fuel pickup

$6.99

$

In Stock, Qty 19

0

30

Husqvarna 545108901

Assy - Fuel tank
(Superseded to 581337213)

Note: (Incl. 26,27,28,29)

$37.99

$

In Stock, only 3 left!

0

31

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

32

Scroll - Flywheel

$

$

Not available

33

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

34

Husqvarna 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

35

Husqvarna 545088801

Assy - Flywheel
(Superseded to 576423301)

$26.99

$

In Stock, only 1 left!

0

36

Husqvarna 530015828

Washer

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 530016134

Nut - Flywheel

$6.49

$

In Stock, only 1 left!

0

38

Husqvarna 545108801

Cover - Motor housing
(Superseded to 545111001)

$18.99

$

Usually ships in 3-10 days

0

39

Husqvarna 545112801

Screw

$4.99

$

In Stock, only 3 left!

0

40

Husqvarna 545089001

Hub

$8.99

$

Usually ships in 3-10 days

0

41

Husqvarna 545115901

Spring - EPS2

$8.99

$

In Stock, only 1 left!

0

42

Husqvarna 545006084

Kit - Starter

Note: (Incl. 39,40,41)

$24.99

$

In Stock, only 1 left!

0

43

Husqvarna 530042095

Spring - Starter
(Superseded to 545008013)

$6.99

$

In Stock, Qty 8

0

44

Husqvarna 545111801

Housing - Starter Cover
(Superseded to 545111701)

$20.99

$

In Stock, only 1 left!

0

45

Husqvarna 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

Husqvarna 545154658

Manual - Operators

Note: Not Shown

$

$

Not available
