125 BVX - Husqvarna Handheld Blower (Original) HOUSING Parts Diagram

Handheld Blower

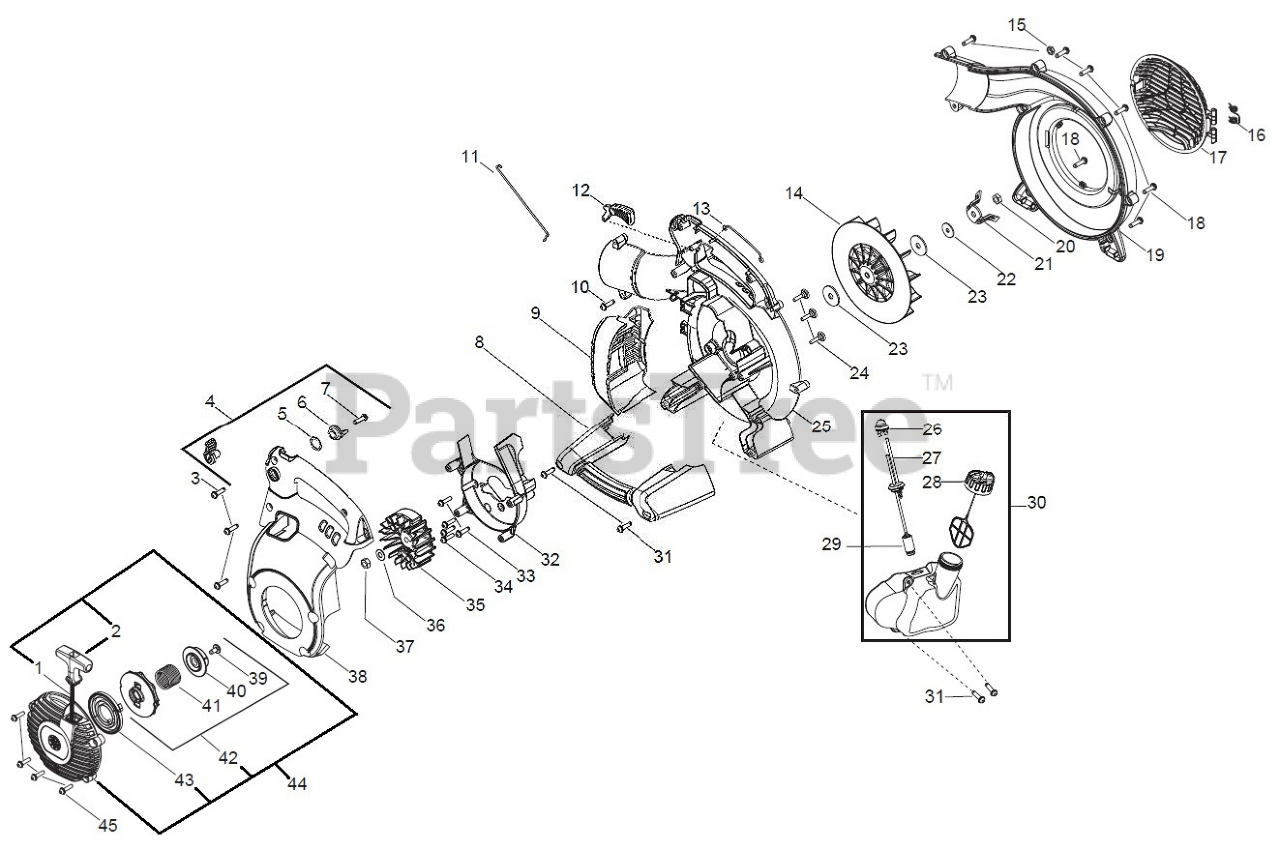

HOUSING Parts Diagram

  • Title
37

Husqvarna 530016134

NUT-FLYWHEEL

Note: Nut - Flywheel

$6.49

$

In Stock, only 1 left!

0

29

Husqvarna 530095601

NEEDS DESCRIPTION

Note: 30 pcs, plastic bag of 530095646

$

$

Currently unavailable

27

Husqvarna 581798001

FUEL LINE GROMMET KIT

Note: Fuel line

$11.99

$

In Stock, Qty 7

0

15

Husqvarna 530015197

NUT

Note: Nut - Blower tube

$6.49

$

In Stock, only 4 left!

0

1

Husqvarna 545081817

KIT ROPE

Note: Kit - Rope

$9.49

$

In Stock, only 1 left!

0

22

Husqvarna .

NEEDS DESCRIPTION

Note: Washer - Flywheel

$

$

Currently unavailable

39

Husqvarna 545112801

SCREW

Note: Screw

$4.99

$

In Stock, only 3 left!

0

42

Husqvarna 545006084

KIT - STARTER

Note: Kit - Starter

$24.99

$

In Stock, only 1 left!

0

11

Husqvarna 545111301

WIRE LINKAGE

Note: Wire - Linkage

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 545111201

COVER VAC DOOR

Note: Cover - Vac door

$13.99

$

In Stock, only 1 left!

0

35

Husqvarna 576423301

FLYWHEEL ASSY

Note: Assy - Flywheel

$26.99

$

In Stock, only 1 left!

0

36

Husqvarna 530015828

WASHER FLAT

Note: Washer

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 530015814

SCREW

Note: Screw

$6.49

$

In Stock, Qty 16

0

8

Husqvarna 545119002

HANDLE ASSIST W/OVER MOLD

Note: Handle - Assist

$13.99

$

Usually ships in 3-10 days

0

41

Husqvarna 545115901

SPRING EPS2

Note: Spring - EPS2

$8.99

$

In Stock, only 1 left!

0

25

Husqvarna 545110001

SCROLL - INNER

Note: Scroll - Inner

$37.99

$

Usually ships in 3-10 days

0

32

Husqvarna 578318701

NEEDS DESCRIPTION

Note: Scroll - Flywheel

$

$

Currently unavailable

16

Husqvarna 545111101

SPRING, VAC DOOR

Note: Spring - Vac door

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 545147101

NUT, IMPELLER

Note: Nut - Impeller

$6.49

$

In Stock, only 1 left!

0

26

Husqvarna 530047721

AIR PURGE

Note: Bulb - Purge

$9.49

$

Usually ships in 3-10 days

0

33

Husqvarna 530015814

SCREW

Note: Screw

$6.49

$

In Stock, Qty 16

0

10

Husqvarna 545003502

SCREW

Note: Bolt - Tube clamp

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 530095646

FUEL PICK-UP ASSY

$6.99

$

In Stock, Qty 19

0

2

Husqvarna 545043204

STARTER HANDLE

Note: Handle - Starter

$7.99

$

In Stock, only 3 left!

0

24

Husqvarna 530016445

SCREW FUEL TANK RETAINER

Note: Screw

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 545157901

ASSY, MUFFLER GUARD

Note: Assy. - Muffler guard

$

$

Not available

6

Husqvarna 545111501

RATCHET CRUISE CONTROL

Note: Ratchet - Cruise control

$7.49

$

Usually ships in 3-10 days

0

34

Husqvarna 530016445

SCREW FUEL TANK RETAINER

Note: Screw

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 545131701

WIRE, HANDLE GROUND

Note: Wire - Handle ground

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 545108801

COVER - MOTOR HOUSING
(Superseded to 545111001)

Note: Cover - Motor housing

$18.99

$

Usually ships in 3-10 days

0

18

Husqvarna 530015814

SCREW

Note: Screw

$6.49

$

In Stock, Qty 16

0

44

Husqvarna 545111801

HOUSING - STARTER COVER
(Superseded to 545111701)

Note: Housing - Starter Cover

$20.99

$

In Stock, only 1 left!

0

45

Husqvarna 530016386

SCREW

Note: Screw

$8.99

$

In Stock, only 1 left!

0

5

Husqvarna 530015147

WAVE WASHER

Note: Washer - Wave

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 545164501

WASHER IMPELLER

Note: Washer - Impeller

$4.99

$

Usually ships in 3-10 days

0

43

Husqvarna 530042095

SPRING STARTER
(Superseded to 545008013)

Note: Spring - Starter

$6.99

$

In Stock, Qty 8

0

40

Husqvarna 545089001

HUB

Note: Hub

$8.99

$

Usually ships in 3-10 days

0

19

Husqvarna 575533201

OUTER SCROLL ASSY VAC

Note: Assy - Outer scroll

$37.99

$

Usually ships in 3-10 days

0

7

Husqvarna 530015814

SCREW

Note: Screw

$6.49

$

In Stock, Qty 16

0

12

Husqvarna 545111601

TRIGGER, THROTTLE

Note: Trigger - Throttle

$9.99

$

Usually ships in 3-10 days

0

4

Husqvarna 545081822

KIT CRUISE CONTROL

Note: Kit - Cruise control

$9.99

$

In Stock, only 2 left!

0

31

Husqvarna 530015814

SCREW

Note: Screw

$6.49

$

In Stock, Qty 16

0
