125 B - Husqvarna Handheld Blower (2010-01) Starter Parts Diagram

Handheld Blower

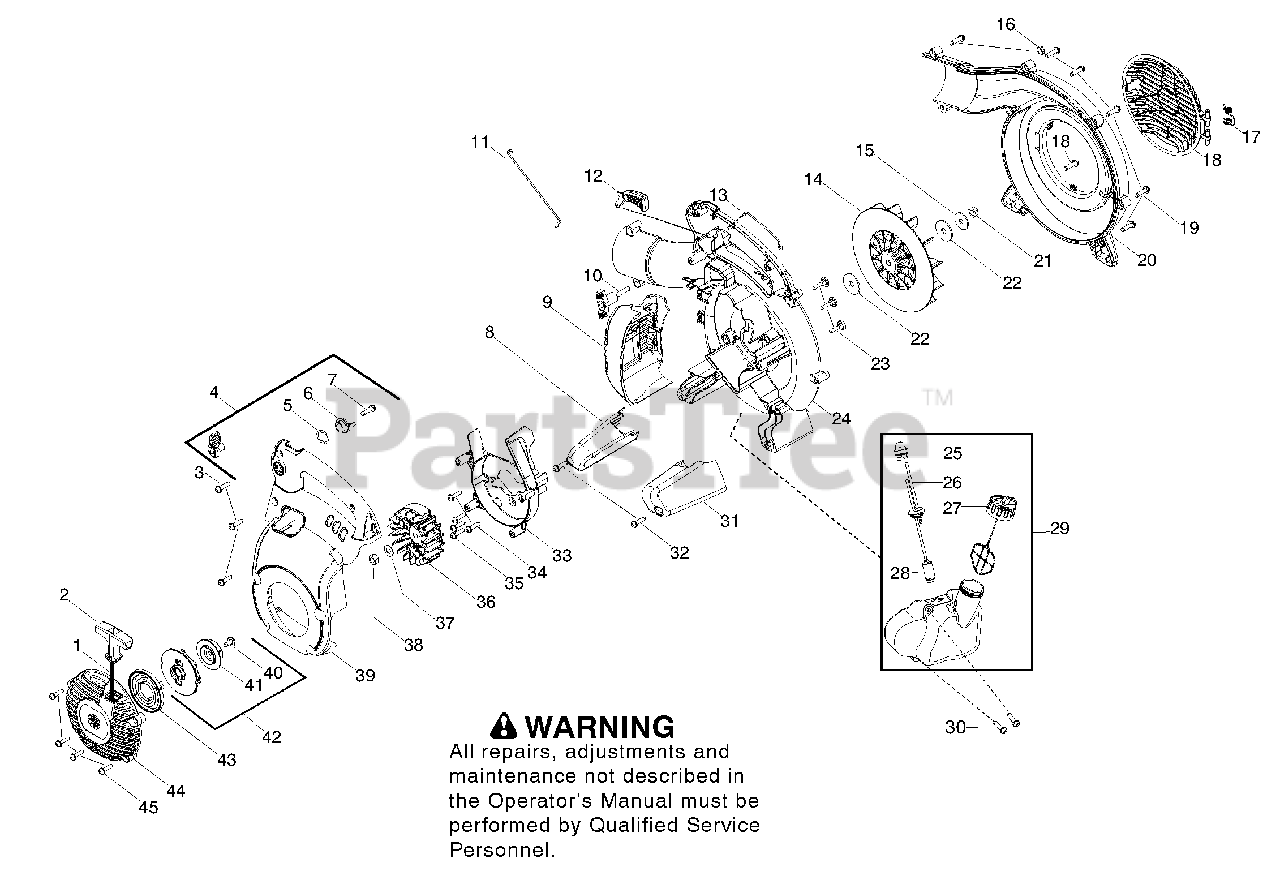

Starter Parts Diagram

  • Title

1

Husqvarna 545081817

Kit - Rope

$9.49

$

In Stock, only 1 left!

0

2

Husqvarna 545043204

Handle - Starter

$7.99

$

In Stock, only 3 left!

0

3

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

4

Husqvarna 545081822

Kit - Cruise Control

Note: (Incl. 5,6,7)

$9.99

$

In Stock, only 2 left!

0

5

Husqvarna 530015147

Washer - Wave

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 545111501

Ratchet - Cruise Control

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

8

Husqvarna 545140301

Foot - Front Impact

$7.99

$

Usually ships in 3-10 days

0

9

Husqvarna 545157901

Assy. - Muffler Guard

$

$

Not available

10

Husqvarna 545108701

Assy - Blower Knob

$6.49

$

In Stock, only 4 left!

0

11

Husqvarna 545111301

Wire - Linkage

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 545111601

Trigger - Throttle

$9.99

$

Usually ships in 3-10 days

0

13

Husqvarna 545131701

Wire - Handle Ground

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 545173201

Impeller
(Superseded to 581449401)

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 530015127

Washer

$6.49

$

In Stock, only 2 left!

0

16

Husqvarna 530015197

Nut - Blower Tube Knob

$6.49

$

In Stock, Qty 5

0

17

Husqvarna 545111101

Spring - Vac Door

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 545111202

Cover - Vac Door

$

$

Not available

19

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

20

Husqvarna 575533202

Assy - Outer scroll

Note: (Incl. 17,18)

$37.99

$

Usually ships in 3-10 days

0

21

Husqvarna 545147101

Nut - Impeller

$6.49

$

In Stock, only 4 left!

0

22

Husqvarna 545164501

Washer - Impeller

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 530016445

Screw

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 545110002

Scroll - Inner

$36.99

$

Usually ships in 3-10 days

0

25

Husqvarna 530047721

Bulb - Purge

$9.49

$

Usually ships in 3-10 days

0

26

Husqvarna 545081841

Kit - Fuel line grommet
(Superseded to 581798001)

Note: (Incl. 25,28)

$11.99

$

In Stock, Qty 12

0

27

Husqvarna 530150350

Assy - Fuel cap with retainer
(Superseded to 578931503)

$7.99

$

In Stock, only 4 left!

0

28

Husqvarna 530095646

Assy - Fuel pickup

$6.99

$

In Stock, Qty 20+

0

29

Husqvarna 545108901

Assy - Fuel tank
(Superseded to 581337213)

Note: (Incl. 25,26,27,28)

$37.99

$

In Stock, only 3 left!

0

30

Husqvarna 530015814

Screw - Fuel tank

$6.49

$

In Stock, Qty 16

0

31

Husqvarna 545140401

Foot - Rear Impact

$6.99

$

Usually ships in 3-10 days

0

32

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

33

Scroll - Flywheel

$

$

Not available

34

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

35

Husqvarna 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

36

Husqvarna 545088801

Assy - Flywheel
(Superseded to 576423301)

$26.99

$

In Stock, only 1 left!

0

37

Husqvarna 530015828

Washer

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 530016134

Nut - Flywheel

$6.49

$

In Stock, only 1 left!

0

39

Husqvarna 545108802

Cover - Motor housing

$27.99

$

Usually ships in 3-10 days

0

40

Husqvarna 545112801

Screw

$4.99

$

In Stock, only 3 left!

0

41

Husqvarna 545140801

Hub

$9.99

$

In Stock, only 2 left!

0

42

Husqvarna 545081818

Kit - Starter
(Superseded to 545006084)

Note: (Incl. 40,41)

$24.99

$

In Stock, only 1 left!

0

43

Husqvarna 530042095

Spring - Starter
(Superseded to 545008013)

$6.99

$

In Stock, only 4 left!

0

44

Husqvarna 545111801

Housing - Starter Cover
(Superseded to 545111701)

$20.99

$

In Stock, only 1 left!

0

45

Husqvarna 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

Husqvarna 545154658

Manual - Operators

Note: Not Shown

$

$

Not available
