125-848C054 - Mastercraft Walk-Behind Mower (1995) General Assembly Parts Diagram

Walk-Behind Mower

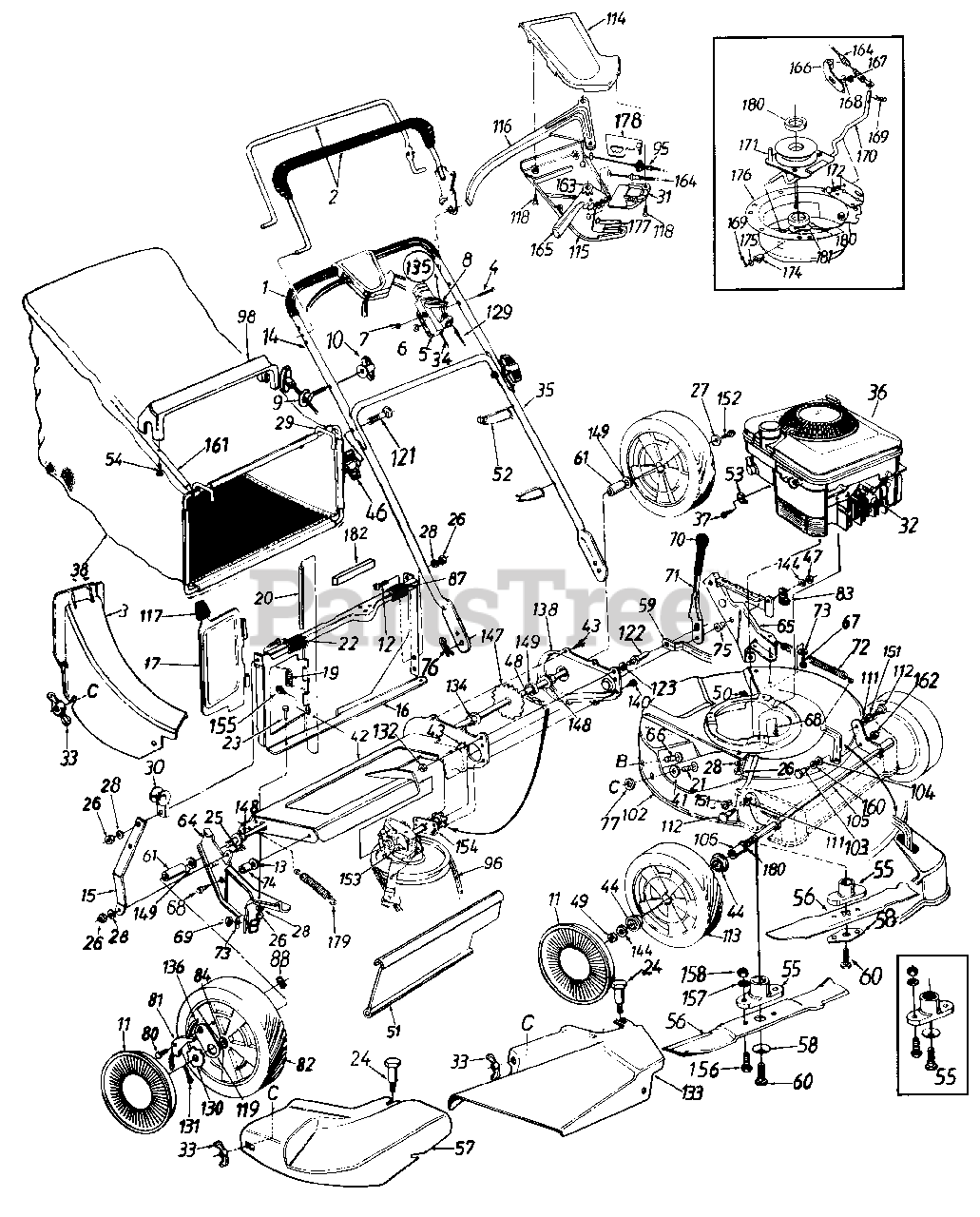

General Assembly Parts Diagram

  • Title

1

MTD 720-0225

Foam Grip
(Superseded to 720-0294A)

Note: Optional

$7.49

$

In Stock, Qty 5

0

2

MTD 747-0824

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Note: (Std.)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Note: (Deluxe)

$65.99

$

In Stock, only 1 left!

0

3

MTD 731-1023

Rear Discharge Chute Ass'y.

$

$

Not available

4

MTD 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 3 left!

0

5

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 4 left!

0

6

MTD 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

7

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

8

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 2 left!

0

9

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 3 left!

0

10

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

Usually ships in 3-6 days

0

11

Hub Cap

$

$

Not available

MTD 720-0249

Hub Cap, 3-1/2" Dia. (Gray)
(Superseded to 920-0249)

Note: Optional

$

$

Not available

MTD 731-0981A

Hub Cap, 5-1/2" Dia. (Gray)
(Superseded to 731-0981C)

Note: Optional

$10.99

$

Usually ships in 3-6 days

0

MTD 731-1426

Hub Cap, 5-1/2" Dia. (Yellow)
(Superseded to 731-1426B)

Note: Optional

$8.99

$

Usually ships in 3-6 days

0

12

MTD 710-0946

Truss Mach. Scr. 1/4-20 x .62" Lg.

$3.99

$

Usually ships in 3-6 days

0

13

MTD 736-0258

Fl-Wash. .383" I.D. x 1" O.D.

$4.49

$

In Stock, only 4 left!

0

14

MTD 749-0439B

Upper Handle
(Superseded to 749-0439E-0637)

Variations

MTD 749-0439B-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

15

MTD 16129A

Panel Support Brkt.
(Superseded to 16129A-0637)

Variations

MTD 16129A-0637

BRACKET-PANEL SUP - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

16

MTD 16862

Rear Catcher Panel Ass'y.

Variations

MTD 16862-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16862-0637

No Longer Available PANEL ASM - POWDER BLACK (0637)

$

$

Not available

MTD 16862-0638

No Longer Available PANEL ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16862-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 16862-0662

No Longer Available PANEL ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 16862-0665

No Longer Available PANEL ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

17

MTD 17095A

Rear Discharge Door

Variations

MTD 17095A-0637

Top Discharge Door - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 732-0483A

Torsion Spring

$10.99

$

Usually ships in 3-6 days

0

20

MTD 747-0514

Pivot Pin

$

$

Not available

21

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0255

Truss Mach. Scr. 1/4-20 x 3/4" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-0776A

Hex AB-Tap Scr. 1/4 x .38" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

24

MTD 738-0704

Shoulder Bolt .312 Dia. x .18 Lg. - Special

$17.99

$

Usually ships in 3-6 days

0

25

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

27

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

29

MTD 747-0705

Front Grass Catcher Frame
(Superseded to 747-0705-0637)

Variations

MTD 747-0705-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

30

MTD 719-0279

Rope Guide

$15.99

$

Usually ships in 3-6 days

0

31

MTD 731-0906

S.P. Control Cover
(Superseded to 753-0717)

$

$

Not available

32

MTD 735-0639

Spark Plug Insulator

$

$

Not available

33

MTD 712-0397

Wing Nut w/Washer
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

MTD 746-0674

Throttle Control Wire 61"
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

35

MTD 749-0907

Lower Handle
(Superseded to 749-0907B)

Variations

MTD 749-0907-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

36

Engine

$

$

Not available

37

MTD 710-1237

Hex Self-Tap Scr. #10-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

MTD 710-0871

Hex Sems Scr. #10-32 x .38" Lg.

$

$

Not available

38

MTD 764-0257

Grass Bag (Plain)
(Superseded to 964-0082)

$

$

Not available

MTD 764-0264

Grass Bag w/Logo
(Superseded to 964-0082)

$

$

Not available

41

MTD 736-0204

Fl-Wash. .344" I.D. x .62"

$4.49

$

In Stock, Qty 8

0

42

MTD 17055B

Chain - Axle Ass'y.

Variations

MTD 17055B-0483

No Longer Available Axle ASM- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17055B-0498

No Longer Available AXLE ASM- - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17055B-0629

No Longer Available Axle ASM- - SILVER FLAKE (0629)

$

$

Not available

MTD 17055B-0637

AXLE ASSY-CHAIN - POWDER BLACK (0637)

$

$

Not available

MTD 17055B-0638

AXLE ASSY-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17055B-0648

No Longer Available AXLE ASM- - TECH GRAY (0648)

$

$

Not available

MTD 17055B-0650

No Longer Available AXLE ASM- - RED METALLIC (0650)

$

$

Not available

MTD 17055B-0662

No Longer Available Axle ASM- - OYSTER GRAY (0662)

$

$

Not available

MTD 17055B-0665

AXLE ASSY-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

MTD 17055B-0667

No Longer Available AXLE ASM- - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17055B-0691

No Longer Available AXLE ASM- - BLACK JACK (0691)

$

$

Not available

$

$

43

MTD 710-0352

Hex B-Tap Scr. 1/4" x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

44

MTD 741-0484

Ball Bearing
(Superseded to 941-0484)

Note: Optional

$7.49

$

In Stock, only 1 left!

0

46

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

47

MTD 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

MTD 713-0353

#48 Chain .500" Pitch x 30 Links
(Superseded to 913-0353)

$

$

Not available

49

MTD 712-0346

Hex L-Nut 1/2-20 Thd.

$4.99

$

In Stock, Qty 9

0

50

MTD 731-0564

Plug

$

$

Not available

51

MTD 731-1488

Rear Flap 4.8" x 18" Lg.

$28.99

$

Usually ships in 3-6 days

0

52

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

53

MTD 751B213146

Cable Clamp
(Superseded to BS-690798)

Note: New Part

$5.49

$

In Stock, only 1 left!

0

MTD 7510007755

Cable Clamp

$

$

Not available

54

MTD 710-1025

Hex AB Scr. #12 x 1.25" Lg.

$6.49

$

Usually ships in 3-6 days

0

55

MTD 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

MTD 748-0376

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, Qty 5

0

56

MTD 742-0721

21" Mulching Blade
(Superseded to 942-0721)

Note: Used w/Splined Adapter

$32.99

$

Usually ships in 3-6 days

0

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

Note: Used w/Keyed Adapter

$29.99

$

In Stock, Qty 20+

0

57

MTD 731-1343

Mulching Plug
(Superseded to 731-1343A)

Note: Optional

$

$

Not available

58

MTD 736-0452

Bell-Wash. .39" I.D.

$4.99

$

In Stock, Qty 7

0

MTD 736-0524

Blade Belt Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

59

MTD 782-0521

Height Adj. Connecting Arm

$

$

Not available

60

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 9

0

61

MTD 748-0190

Spacer .513" I.D. x .703" O.D. x .69" Lg.

$6.49

$

In Stock, only 1 left!

0

?63

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

MTD 16136C

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

Note: New Part

Variations

MTD 16136C-0637

R.H. Handle Wheel Brkt. Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

65

MTD 16137C

L.H. Handle Wheel Brkt. Ass'y.

Note: New Part

Variations

MTD 16137C-0637

L.H. Handle Wheel Brkt. Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

66

MTD 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18

$4.99

$

Usually ships in 3-6 days

0

68

MTD 710-0654A

Hex Wash. Hd. TT-Tap Scr. 3/8-16

$4.49

$

In Stock, only 3 left!

0

69

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

71

MTD 732-0606

Height Adj. lever

$

$

Not available

72

MTD 732-0362

Extension Spring .75" O.D. x 8" Lg.
(Superseded to 932-0362)

$

$

Not available

73

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

MTD 750-0736

Spacer
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

75

MTD 750-0624

Shld. Spacer .500" Dia.

$

$

Not available

76

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

77

MTD 726-0233

Bolt Retainer 1/4 x 50" O.D.

$4.49

$

In Stock, only 3 left!

0

80

MTD 738-0137

Shld. Scr. .342" Dia. x .268

$

$

Not available

81

MTD 748-0381

Pawl - R.H.

$11.99

$

In Stock, only 1 left!

0

MTD 748-0188B

Pawl - L.H.
(Superseded to 948-0188B)

Note: Not Shown

$11.99

$

Usually ships in 3-6 days

0

82

MTD 734-1510B

Rear Wheel Ass'y. Comp.
(Superseded to 734-1826)

$33.99

$

In Stock, only 2 left!

0

MTD 734-1791

Rear Wheel Ass'y. Comp.

$

$

Not available

83

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

84

MTD 741-0486B

Bearing 1/2" I.D.

$

$

Not available

87

MTD 731-0880

Panel Clip

$3.99

$

Usually ships in 3-6 days

0

88

MTD 712-0414

Weld L-Nut 1/4-20 Thd.

$4.49

$

In Stock, only 4 left!

0

95

MTD 746-0710A

S.P. Cable
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

96

MTD 754-0343

"V"-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, only 4 left!

0

?97

MTD 710-0969

Hex AB-Tap Scr. 1" Lg.

$4.49

$

In Stock, only 2 left!

0

98

MTD 731-0801

Bag Handle

$

$

Not available

102

MTD 16859A

21" Deck Ass'y.

$

$

Not available

103

MTD 738-0234

Shld. Bolt .5" Dia. x .295

$10.99

$

In Stock, only 1 left!

0

104

MTD 736-0253

Bell-Wash. .515" I.D. x 1.0" O.D.

$3.99

$

In Stock, Qty 20+

0

105

MTD 682-7509

Front Axle Ass'y
(Superseded to 982-7509-0637)

$

$

Not available

106

MTD 711-0313

Sleeve .526" I.D. x .690" O.D. x .880" Lg.

$

$

Not available

111

MTD 736-0221

Intern. L-Wash. 3/8 I.D.

$

$

Not available

112

MTD 738-0705

Shld. Bolt .575" Dia. x .42
(Superseded to 938-0705)

$

$

Not available

113

MTD 734-1512A

Front Wheel Ass'y. Comp.
(Superseded to 734-1826)

$33.99

$

In Stock, only 2 left!

0

MTD 734-1790

Front Wheel Ass'y. Comp.

$

$

Not available

114

MTD 731-0904

Self-Propelled Control Cover
(Superseded to 753-0717)

$

$

Not available

115

MTD 731-0905

Self-Propelled Control Cover
(Superseded to 753-0717)

$

$

Not available

116

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

117

MTD 720-0190

Door Grip
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

118

MTD 710-0841

Fl - "C"-Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

119

MTD 16855

Pawl Plate

$6.49

$

In Stock, Qty 6

0

121

MTD 710-1174

Curved hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

122

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

123

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

129

MTD 746-0912

Control Cable 43" Lg.
(Superseded to 946-0912)

$26.99

$

In Stock, only 1 left!

0

MTD 746-0922

Control Cable 60" Lg.
(Superseded to 946-0922)

$31.99

$

Usually ships in 3-6 days

0

130

MTD 748-0318

Ratchet Wheel 1.62" O.D.
(Superseded to 948-0318)

$10.99

$

In Stock, only 2 left!

0

131

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.

$3.99

$

Usually ships in 3-6 days

0

132

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

133

MTD 731-0884

Side Chute Deflector Ass'y.

$

$

Not available

134

MTD 741-0522

Hex Flange Bearing

$

$

Not available

135

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: Incl. Ref. 4, 5, 6, 7, 8

$36.99

$

In Stock, only 1 left!

0

136

MTD 10622B

Spring - Nylon

$5.49

$

In Stock, Qty 20+

0

138

MTD 17053A

Chain Cover

Variations

MTD 17053A-0480

No Longer Available COVER-CHAI - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17053A-0483

No Longer Available COVER-CHAI - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17053A-0637

No Longer Available COVER-CHAI - POWDER BLACK (0637)

$

$

Not available

MTD 17053A-0638

No Longer Available COVER-CHAI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17053A-0650

No Longer Available COVER-CHAI - RED METALLIC (0650)

$

$

Not available

MTD 17053A-0662

No Longer Available COVER-CHAI - OYSTER GRAY (0662)

$

$

Not available

MTD 17053A-0665

No Longer Available COVER-CHAI - YARDMAN GREEN (0665)

$

$

Not available

MTD 17053A-0674

No Longer Available COVER-CHAI - YARDMAN YELLOW (0674)

$

$

Not available

$

$

140

MTD 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

144

MTD 736-0300

Fl-Wash. .385" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

147

MTD 738-0719A

Rear Shaft Ass'y. 21.94" Lg.
(Superseded to 938-0719A)

$

$

Not available

148

MTD 741-0324

Hex Flange Bearing .506" I.D. Plastic
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

149

MTD 736-0160

Fl-Wash. .531" I.D. x .930"

$4.49

$

In Stock, only 2 left!

0

151

MTD 741-0491

Flanged Nyliner Brg.

$5.49

$

In Stock, only 4 left!

0

152

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

153

MTD 717-0417B

Transmission Comp. (See Breakdown)
(Superseded to 917-0417B)

$234.99

$

Usually ships in 3-6 days

0

154

MTD 16500

Hex Bearing Cup
(Superseded to 16500A-0637)

$8.99

$

Usually ships in 3-6 days

0

155

MTD 710-0429

Hex B-Tap Scr. #10 x .38
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

156

MTD 710-1055

Hex Scr. 3/8-24 x 1.0" Lg.

$4.99

$

Usually ships in 3-6 days

0

157

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

158

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

160

MTD 736-0108

Fl-Wash. .51" I.D. x .75" O.D.

$6.99

$

Usually ships in 3-6 days

0

161

MTD 749-0764A

Rear Catcher Frame
(Superseded to 749-0764A-0637)

Variations

MTD 749-0764A-0637

FRAME-CATCHER-RR - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

162

MTD 712-0266

Hex Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0

163

MTD 713-0397

3 Tooth Rack Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

164

MTD 746-0706

Spd. Control Cable - 50" Lg.

$

$

Not available

165

MTD 731-0924

6-Spd. Shift Lever

$

$

Not available

166

MTD 17070

Adjustable Cable Brkt.
(Superseded to 17070-0637)

Variations

MTD 17070-0637

BRACKET-ADJ CABLE - POWDER BLACK (0637)

$

$

Not available

$

$

167

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

168

MTD 712-0291

Hex Cent. L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

169

MTD 714-0507

Cot-Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

170

MTD 747-0684

Shift Rod

$

$

Not available

171

MTD 656-0611

Pulley Ass'y.
(Superseded to 956-0611)

$268.99

$

Usually ships in 3-6 days

0

172

MTD 710-0167

Carr. Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

174

MTD 731-1137

Flanged Bushing
(Superseded to 931-1137)

$

$

Not available

175

MTD 736-0278

Fl-Wash. .382" I.D. x .68" O.D.

$5.99

$

Usually ships in 3-6 days

0

176

MTD 682-7514

Housing Ass'y.

Variations

MTD 682-7514-0637

Housing Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

177

MTD 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

178

MTD 16864

6-Speed Rack Cable Brkt.

$11.99

$

Usually ships in 3-6 days

0

179

MTD 732-0481

Ext. Spring 3.8" Lg.
(Superseded to 932-0481)

$

$

Not available

180

MTD 750-0968

Spacer .885" I.D. x 1" O.D.
(Superseded to 950-0968)

$5.99

$

Usually ships in 3-6 days

0

181

MTD 736-0526

Wave Wash. .88" I.D. x 1.38" O.D.

$6.99

$

Usually ships in 3-6 days

0

182

MTD 722-0139

Foam Strip

$

$

Not available
