125-528C000 - MTD Walk-Behind Mower (1995) General Assembly Parts Diagram

Walk-Behind Mower

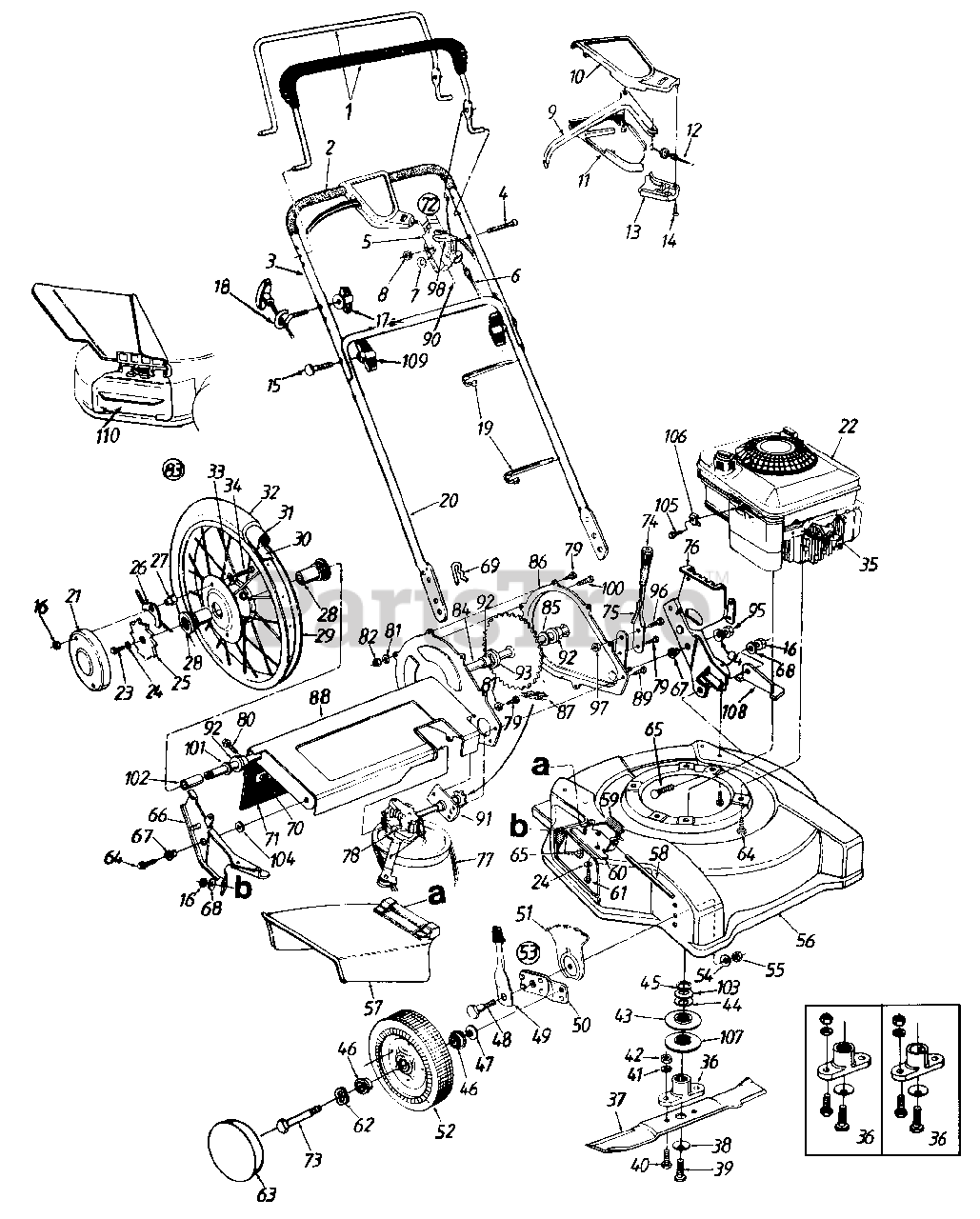

General Assembly Parts Diagram

  • Title

1

MTD 647-0004

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Note: (Deluxe)

$65.99

$

In Stock, only 1 left!

0

MTD 747-0824

Control Handle Ass'y
(Superseded to 747-0824B-0637)

Note: (Std.)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

2

MTD 720-0225

Foam Grip
(Superseded to 720-0294A)

Note: Optional

$7.49

$

In Stock, Qty 5

0

3

MTD 749-0539B

Upper Handle
(Superseded to 749-0539C-0637)

Variations

MTD 749-0539B-0637

HANDLE-UPPER - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

4

MTD 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 3 left!

0

5

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

6

MTD 746-0550

Control Cable - 39" Lg.
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

7

MTD 736-0501

Spring Wash. .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

8

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

9

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

10

MTD 731-1057

Control Cover Half - Upper
(Superseded to 753-0833)

$50.99

$

In Stock, only 1 left!

0

11

MTD 731-1058

Control Cover Half - Lower
(Superseded to 753-0833)

$50.99

$

In Stock, only 1 left!

0

12

MTD 746-0710A

Self-Propelled Cable - 48" Lg.
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

13

MTD 731-1059

Cable Mounting Cap
(Superseded to 753-0833)

$50.99

$

In Stock, only 1 left!

0

14

MTD 710-0841

Fl-"C" Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

15

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

16

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

MTD 720-0279

handle Knob 1/4-20 Thd.

$4.49

$

In Stock, only 4 left!

0

18

MTD 710-1205

rope Guide

$3.99

$

In Stock, only 2 left!

0

19

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

20

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

21

MTD 14967

Wheel Cover

$

$

Not available

22

Engine

$

$

Not available

23

MTD 710-0812

Hex Bolt 1/4-20 x .75" Lg. (Gr. 5)

$

$

Not available

24

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

25

MTD 748-0312

Wheel Ratchet

$

$

Not available

26

MTD 748-0315

Pawl and Spring Ass'y.

$15.99

$

Usually ships in 3-6 days

0

27

MTD 712-0329

Special Hex Nut 5/16-18 Thd.

$

$

Not available

28

MTD 741-0485

Flange Bearing .63" I.D.

$

$

Not available

29

MTD 734-1399

Rim Ass'y. Only 16" x 2.1"

$

$

Not available

30

MTD 734-1400

Rimstrip 16" x 7/8"

$

$

Not available

31

MTD 734-1397

Inner Tube 16" x 2.12"

$

$

Not available

32

MTD 734-1396

Chevron Tire 16" x 2.125"

$

$

Not available

33

MTD 736-0104

Intern. L-Wash. 5/16" I.D.
(Superseded to 936-0104)

$4.99

$

Usually ships in 3-6 days

0

34

MTD 710-0376

Hex Bolt 5/16-18 x 1.0" (Gr. 5)

$3.99

$

In Stock, only 4 left!

0

35

MTD 735-0639

Spark Plug Boot

Note: Optional

$

$

Not available

36

MTD 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

37

MTD 742-0622

22" Blade
(Superseded to 942-0622)

$

$

Not available

MTD 742-0722

22" Mulching Blade
(Superseded to 942-0722)

Note: Optional

$31.99

$

Usually ships in 3-6 days

0

38

MTD 736-0452

Bell-Wash. .39" I.D.

$4.99

$

In Stock, Qty 7

0

39

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, only 2 left!

0

40

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

41

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

42

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

43

MTD 756-0962

Upper Pulley Half

$

$

Not available

44

MTD 736-0514

Fl-Wash. .88" I.D.

$

$

Not available

45

MTD 748-0358

Crankshaft Spacer

$

$

Not available

46

MTD 741-0484

ball Bearing 1/2" I.D.
(Superseded to 941-0484)

Note: Optional

$7.49

$

In Stock, only 1 left!

0

47

MTD 736-0105

Bell-Wash. .38" I.D.

$4.49

$

In Stock, Qty 20+

0

48

MTD 738-0507B

Shld. Bolt .5"

$4.49

$

In Stock, only 4 left!

0

49

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

Wheel Ass'y. Comp.

$

$

Not available

MTD 634-0020

Wheel, Bar Tread - 8" x 1.75"

$39.99

$

In Stock, Qty 6

0

MTD 734-1268

Wheel, "T" Tread - 8" x 1.75"

$71.99

$

Usually ships in 3-6 days

0

MTD 734-1512A

Wheel, "S" Wave - 8" x 2"
(Superseded to 734-1826)

$33.99

$

In Stock, only 2 left!

0

53

MTD 14578

Height Adj. Ass'y. Comp. - R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp. - L.H.
(Superseded to 753-06761)

Note: Not Shown

$65.99

$

In Stock, Qty 7

0

54

MTD 736-0356

Bell-Wash. .39" I.d. x 1.38"
(Superseded to 936-0356)

$

$

Not available

55

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

56

MTD 682-0001A

22" Deck Ass'y.

Variations

MTD 682-0001A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-0001A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 682-0001A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

$

$

57

MTD 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

58

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

59

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

60

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

61

MTD 710-0599

Hex TT-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

62

MTD 736-0504

Wave Wash. .51" I.D. x .78"
(Superseded to 936-0504)

Note: Used w/Ref. 46

$4.49

$

In Stock, Qty 10

0

63

Hub Cap

Note: Optional

$

$

Not available

MTD 731-0981A

Hub Cap, 5-1/2" Dia.
(Superseded to 731-0981C)

Note: Optional

$10.99

$

In Stock, only 2 left!

0

MTD 720-0249

Hub Cap, 3-1/2" Dia.
(Superseded to 920-0249)

Note: Optional

$

$

Not available

MTD 731-0355A

Hub Cap, 4-1/4" Dia.

Note: Optional

$

$

Not available

MTD 731-0354

Hub Cap, 4-1/4" Dia.

Note: Optional

$

$

Not available

64

MTD 710-0654A

Hex TT-Tap Scr. 3/8-16 x 1"

$4.49

$

In Stock, only 3 left!

0

65

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

66

MTD 16136C

Handle Brkt. Ass'y. - R.H.
(Superseded to 16136C-0637)

Note: New Part

Variations

MTD 16136C-0637

R.H. Handle Wheel Brkt. Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

67

MTD 750-0624

Shld. Spacer .5" x .10"

$

$

Not available

68

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

69

MTD 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

70

MTD 16563A

Retaining Strip

$

$

Not available

71

MTD 731-1172

Rear Flap

$

$

Not available

72

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: Incl. Ref. 4, 5, 7, 8, 98

$36.99

$

In Stock, only 1 left!

0

73

MTD 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

74

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

75

MTD 732-0655

Height Adjustment Lever

$

$

Not available

76

MTD 682-3004

handle Brkt. Ass'y. - L.H.

Variations

MTD 682-3004-0637

No Longer Available BRACKET-LH - POWDER BLACK (0637)

$

$

Not available

$

$

77

MTD 754-0369

"V" Belt
(Superseded to 954-0369)

$28.99

$

Usually ships in 3-6 days

0

78

MTD 717-0417B

Transmission Comp. (See Breakdown)
(Superseded to 917-0417B)

$234.99

$

Usually ships in 3-6 days

0

79

MTD 710-0653

Hex Tap Scr. 1/4 x .38" Lg.

$4.49

$

In Stock, Qty 13

0

80

MTD 710-0896

Hex Tap Scr. 1/4 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

81

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

82

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

83

MTD 734-1398

Wheel Ass'y. Comp.

$

$

Not available

84

MTD 713-0425

Sprocket and Axle Ass'y.

$

$

Not available

85

MTD 736-0256

fl-Wash. .635" I.d. x 1.0" O.D.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

86

MTD 682-7501

Chaincase and Arm Ass'y.

Variations

MTD 682-7501-0480

No Longer Available HOUSING-CH - BRILLIANT GREEN (0480)

$

$

Not available

MTD 682-7501-0638

No Longer Available HOUSING-CH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-7501-0662

No Longer Available HOUSING-CH - OYSTER GRAY (0662)

$

$

Not available

$

$

87

MTD 713-0257

#48 Chain 1/2" Pitch x 52 Links

$

$

Not available

88

MTD 682-7500

Rear Drive Support Ass'y.

Variations

MTD 682-7500-0498

No Longer Available SUPPORT AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-7500-0629

No Longer Available SUPPORT AS - SILVER FLAKE (0629)

$

$

Not available

MTD 682-7500-0637

No Longer Available SUPPORT AS - POWDER BLACK (0637)

$

$

Not available

MTD 682-7500-0638

No Longer Available SUPPORT AS - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-7500-0662

No Longer Available SUPPORT AS - OYSTER GRAY (0662)

$

$

Not available

$

$

89

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

90

MTD 746-0843

Throttle Cable
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

91

MTD 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

MTD 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

92

MTD 741-0413

Hex Flange Brg. .631" I.D.

$9.99

$

Usually ships in 3-6 days

0

93

MTD 748-0313

Spacer .63" I.d. x 1.25"

$3.99

$

Usually ships in 3-6 days

0

94

MTD 736-0300

Fl-Wash. .385" I.d. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

95

MTD 712-0296

Hex L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

96

MTD 710-0201

Hex Bolt 3/8-16 x .62" Lg.

$

$

Not available

97

MTD 712-0431

Flanged L-Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

98

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 2 left!

0

?99

MTD 710-0603

Hex B-Tap Scr. 5/16-18 x .5"

$4.99

$

Usually ships in 3-6 days

0

100

MTD 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

101

MTD 736-0302

Fl-Wash. .632" I.D. x .943"

$

$

Not available

102

MTD 750-0547

Spacer .628" I.D. x .875"

$5.99

$

In Stock, only 2 left!

0

103

MTD 736-0513

Spr. Wash. .89" I.D.
(Superseded to 936-0513)

$

$

Not available

104

MTD 736-0258

Fl-Wash. .38" I.d. x 1" O.D.

$4.49

$

In Stock, only 1 left!

0

105

MTD 710-1237

Wash. Hd. Scr. #10-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

106

MTD 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

107

MTD 756-0961

Lower Pulley Half

$

$

Not available

108

MTD 784-9014

Deck Bracket

$

$

Currently unavailable

109

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

110

MTD 731-1386A

Mulching Baffle
(Superseded to 731-1386D)

Note: Optional

$

$

Not available
