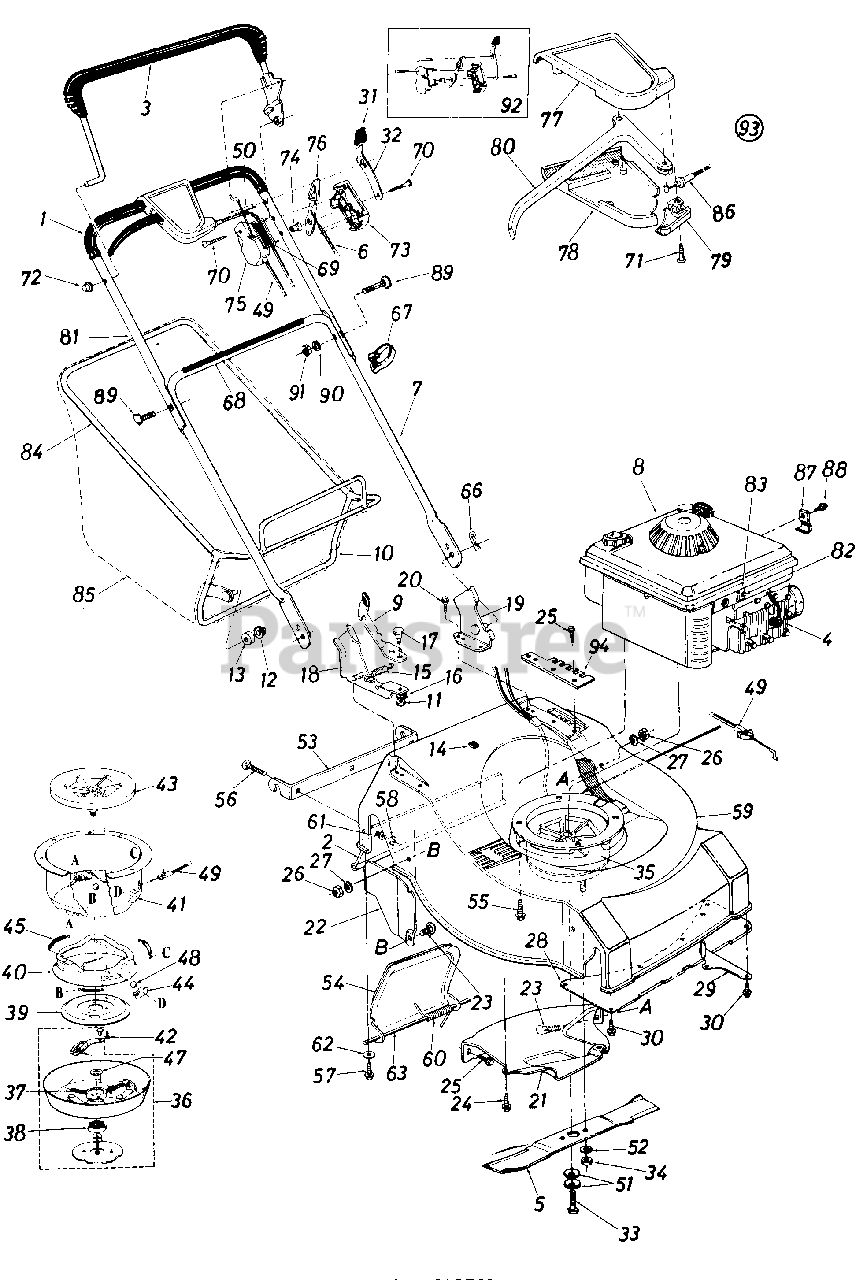

125-374-050 - Lawnflite Walk-Behind Mower (1985) (AAFES) Parts01 Parts Diagram

Walk-Behind Mower

Parts01 Parts Diagram

  • Title

1

MTD 718-0145

Grip

$

$

Currently unavailable

2

MTD 731-0585

Rear Flap Ass'y.

$

$

Not available

3

MTD 731-0609

Control Handle-L.H.

$

$

Not available

4

MTD 735-0639

Spark Plug Insulator

$

$

Not available

5

MTD 742-0222

22" Blade

$

$

Not available

6

MTD 746-0472

Throttle Wire-58.0"
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

7

MTD 749-0505

Lower Handle (Chrome)
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

MTD 749-0504

Lower Handle (Painted)
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

8

Engine

$

$

Not available

9

MTD 14845

Grass Catcher Lock Lever

$

$

Not available

10

MTD 14582

Grass Catcher Lower Frame Ass'y.

Variations

MTD 14582-0637

No Longer Available FRAME-LOWE - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

MTD 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, only 1 left!

0

13

MTD 731-0430

Plastic Roller

$

$

Not available

14

MTD 731-0564

Plug

$

$

Not available

15

MTD 732-0357

Extension Spring
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

16

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

MTD 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

18

MTD 14593

Handle Brkt. Ass'y.-R.H.

$

$

Not available

19

MTD 14597

Handle Brkt. Ass'y.-L.H.

$

$

Not available

20

MTD 710-0588

Hex Hd. Self-Tap Scr. 1/4-20 x 1.00" Lg.
(Superseded to 710-0788)

$7.49

$

In Stock, only 4 left!

0

21

MTD 15248

Rear Baffle-L.H.

$

$

Currently unavailable

22

MTD 15254

Side Baffle

$

$

Currently unavailable

23

MTD 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

24

MTD 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4 x.62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

25

MTD 710-0782

Hex Wash. Hd. Drill Scr. 1/4 x.75" Lg.

$

$

Not available

26

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

27

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

28

MTD 15668

Front Cover Plate

$

$

Currently unavailable

29

MTD 15253

Left Strap

$

$

Currently unavailable

30

MTD 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4 x.62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

31

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

32

MTD 732-0401

Lockout Spring

$

$

Not available

33

MTD 710-0818

Hex Bolt 3/8-24 x 2.00" Lg. (Grade 8)

$6.99

$

Usually ships in 3-6 days

0

34

MTD 712-0328

Hex Nut 3/8-24 Thd. (Grade 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

35

MTD 717-0485

Blade Brake Clutch Ass'y. Comp.

$

$

Not available

36

MTD 14300

Clutch Blade Housing Ass'y.

$

$

Not available

37

MTD 732-0396

Compression Spring .35" O.D. x 2.00" Lg.

$

$

Not available

38

MTD 741-0124

Ball Brg. .669" I.D. x 1.574" O.D. x .47
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

39

MTD 14304

Clutching Cone

$

$

Not available

40

MTD 14305

Brake Cup Cone

$

$

Currently unavailable

41

MTD 14307

Clutch Housing

$

$

Not available

42

MTD 710-0875

Hex TT-Tap L-Scr. 1/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

43

MTD 719-0256

Fan Adapter

$

$

Not available

44

MTD 731-0520

Ball Block

$

$

Not available

45

MTD 732-0397

Extension Spring .35" O.D. x 1.75" Lg.

$

$

Not available

47

MTD 736-0333

Fl-Wash. .690" I.D. x 1.060 O.D. x .030

$

$

Not available

48

MTD 741-0326

Steel Ball .500" Dia.

$

$

Not available

49

MTD 746-0400

Clutch Cable-46.0"

$

$

Not available

50

MTD 731-0607

Lock Pin .314" Dia. x 1.70

$

$

Not available

51

MTD 736-0105

Bell-Wash. .400" I.D. x .88"O.D.

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

53

MTD 14012

Grass Catcher Hitch Brkt.

$

$

Not available

54

MTD 15245

Chute Door

$

$

Currently unavailable

55

MTD 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

56

MTD 710-0932

Carriage Bolt 1/4-20 x 1.0" Lg .
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

57

MTD 710-0776

Hex Wash. Hd. "AB"-Tap Scr. 1/4 x.62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

58

MTD 712-0271

Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

59

MTD 719-0253

22" Deck Ass'y.

$

$

Currently unavailable

60

MTD 732-0408

Torsion Spring .34" I.D. x 2.38" Lg.

$

$

Not available

61

MTD 736-0173

Fl-Wash. .281" I.D. x .73" O.D. x .063

$4.49

$

In Stock, Qty 20+

0

62

MTD 736-0211

Fl-Wash. .285" I.D. x 1.25" O.D. x .060

$6.99

$

In Stock, Qty 7

0

63

MTD 747-0353

Rod .25" Dia. x 8.25" Lg.

$

$

Not available

66

MTD 714-0104

Intern. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

67

MTD 726-0192

Cable Tie

$

$

Not available

68

MTD 777-3453

Instruction Label-Handle

$

$

Currently unavailable

69

MTD 777-5166

Control Label-Throttle

$

$

Not available

70

MTD 710-0796

Truss Mach. B-Tap Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

71

MTD 710-0841

Flat C-Sunk AB-Tap Scr. #10 x.75" Lg.

$4.49

$

Usually ships in 3-6 days

0

72

MTD 726-0135

Cap Speed Nut 5/16" Rod

$6.99

$

In Stock, only 1 left!

0

73

MTD 731-0523

Control Panel Half

$

$

Not available

74

MTD 731-0524

Control Disc Pin

$

$

Not available

75

MTD 731-0526

Clutch Panel Half

$

$

Not available

76

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

77

MTD 731-0617

Control Cover Half-Upper
(Superseded to 731-0617A)

$

$

Not available

78

MTD 731-0618

Control Cover Half-Lower
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

79

MTD 731-0619

Cable Mtg. Cap

$

$

Not available

80

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

81

MTD 749-0437

Upper Handle (Chrome)

$

$

Currently unavailable

MTD 749-0439

Upper Handle (Painted)
(Superseded to 749-0439E-0637)

$47.99

$

In Stock, only 1 left!

0

82

MTD 710-0899

Hex Sems Scr. #10-32 x .62"
(Superseded to 710-0899A)

$6.99

$

Usually ships in 3-6 days

0

83

MTD 751-0333

Casing Clamp

$

$

Not available

84

MTD 749-0278

Grass Catcher Upper Frame

$

$

Not available

85

MTD 764-0171

Grass Bag
(Superseded to 964-0171B)

$

$

Not available

86

MTD 746-0463

Self-Propelled Clutch Cable-50.0" Lg.

$

$

Not available

87

MTD 12894

Casing Clamp

$

$

Not available

88

MTD 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

89

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

90

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

91

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

92

MTD 753-0361

Kit-Control Housing Comp.

$

$

Not available

93

MTD 753-0362

Kit-Clutch Housing Comp.

$

$

Not available

94

MTD 15879

Reinforcing Brkt.

$

$

Currently unavailable

MTD 8374-000-5

Hardware Pack

$

$

Currently unavailable
