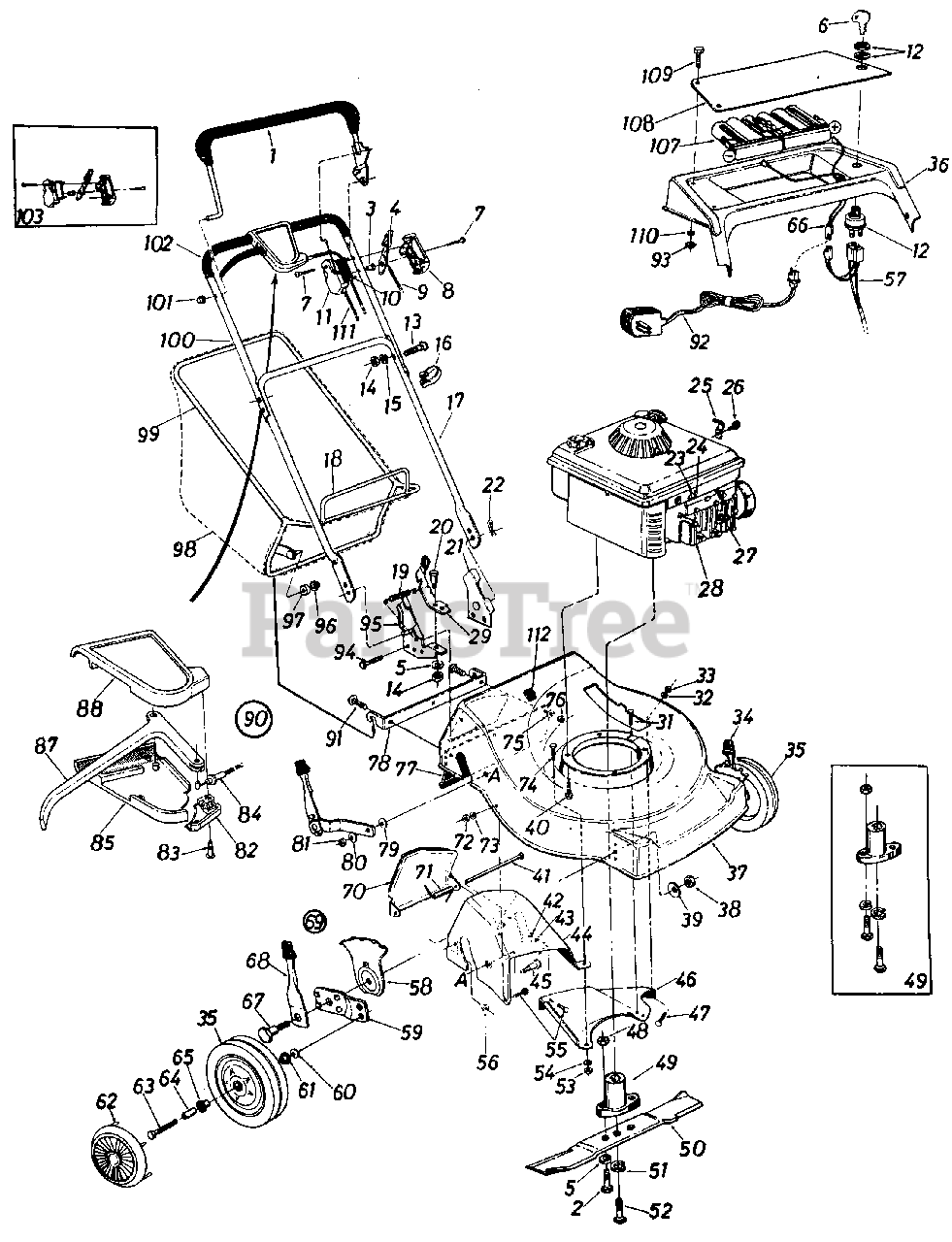

125-366-000 - MTD Walk-Behind Mower (1985) Parts07 Parts Diagram

Walk-Behind Mower

Parts07 Parts Diagram

  • Title

1

MTD 731-0609

L.H. Bail Ass'y.

$

$

Not available

2

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)

$4.49

$

In Stock, Qty 5

0

3

MTD 731-0524

Control Disc Pin

$

$

Not available

4

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

5

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

7

MTD 710-0796

Truss Mach. Hi-B Tap Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

8

MTD 731-0523

Control Panel Half

$

$

Not available

9

MTD 746-0472

Throttle Control Wire- 58" Lg.
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

10

MTD 777-5166

Control Label

$

$

Not available

11

MTD 731-0526

Clutch Panel Half

$

$

Not available

12

MTD 725-0873

Ignition Switch
(Superseded to 925-0873)

$

$

Not available

13

MTD 710-0405

Curved Carr. Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

14

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

MTD 726-0192

Cable Tie

$

$

Not available

17

MTD 749-0505

Lower Handle
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

18

MTD 14582

Catcher Lower Frame Ass'y.

Variations

MTD 14582-0637

No Longer Available FRAME-LOWE - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 732-0357

Extension Spring
(Superseded to 932-0357A)

$4.49

$

In Stock, only 3 left!

0

20

MTD 738-0155

Shld. Bolt .437" Dia. x .162
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

21

MTD 14158

Handle Bracket Ass'y.- L. H

$

$

Currently unavailable

22

MTD 714-0104

Hairpin Cotter5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

23

MTD 751-0333

Casing Clamp

$

$

Not available

24

MTD 710-0895

Hex Sems Scr. #10-32 x .62" Lg.

$6.49

$

In Stock, Qty 5

0

25

MTD 12894

Cable Clip

$

$

Not available

26

MTD 710-0429

Hex "B"-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

27

MTD 735-0639

Spark Plug Insulator

$

$

Not available

28

4 H.P. Engine B&S 110787-317502

$

$

Not available

29

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

31

MTD 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

33

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

34

MTD 14579

Height Adj. Ass'y.-L.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

35

MTD 734-0643

Front Wheel Ass'y. Comp. 8x 1.75

$

$

Not available

36

MTD 731-0741

Handle Panel

$

$

Not available

37

MTD 16327

22" Deck Ass'y.

Variations

MTD 16327-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

38

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

39

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

40

MTD 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.0" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

41

MTD 738-0386

Hinge Pin

$

$

Not available

42

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

43

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

44

MTD 14236

Rear Chute-R.H.

$

$

Not available

45

MTD 738-0430

Shld. Bolt .500" Dia. x .685

$11.99

$

In Stock, only 2 left!

0

46

MTD 14014

Rear Baffle-L.H.

$

$

Currently unavailable

47

MTD 710-0167

Carr. Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

48

MTD 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

49

MTD 753-0348

Blade Adapter Kit

$

$

Currently unavailable

50

MTD 742-0125

22" Blade
(Superseded to 942-0125B)

$

$

Not available

51

MTD 736-0217

L-Wash. 3/8" I.D. Heavy Duty

$4.49

$

In Stock, Qty 9

0

52

MTD 710-0331

Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5)

$6.99

$

In Stock, Qty 7

0

53

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

54

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

55

MTD 710-0167

Carr. Bolt 1/4-20 x .50" Lg.*
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

56

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

57

MTD 725-1096

Wire Harness

$

$

Currently unavailable

58

MTD 15261

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

59

MTD 15262

Wheel Pivot Bar
(Superseded to 15262B)

$14.99

$

In Stock, only 1 left!

0

60

MTD 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

61

MTD 741-0267

Flg. Ball Brg. 3/8" I.D.

$

$

Not available

62

MTD 731-0124

Plastic Hub Cap

$

$

Not available

63

MTD 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

64

MTD 750-0434

Spacer.375" I.D. x .505 O.D.

$6.99

$

Usually ships in 3-6 days

0

65

MTD 741-0484

Flg. Ball Brg. 1/2" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

66

MTD 725-1106

Battery Pack Lead

$

$

Currently unavailable

67

MTD 738-0507

Shld. Bolt .50" Dia. x.430
(Superseded to 938-0507B)

$4.49

$

In Stock, only 4 left!

0

68

MTD 14832

Spring Lever Ass'y. w/ Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

69

MTD 14578

Height Adj. Ass'y.-R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

70

MTD 13407

Chute Door

$

$

Not available

71

MTD 732-0346

Torsion Spring

$

$

Not available

72

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

73

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

74

MTD 710-0206

Hex Bolt 1/4-20 x .88" Lg.

$4.49

$

Usually ships in 3-6 days

0

75

MTD 736-0211

Fl-Wash. .285" I.D. x 1.25"O.D.

$6.99

$

In Stock, Qty 7

0

76

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

77

MTD 731-0664

Rear Flap

$

$

Not available

78

MTD 14012

Grass Catcher Hitch Brkt.

$

$

Not available

79

MTD 736-0219

Bell-Wash. .400" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

80

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

81

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

82

MTD 731-0692

Cable Mounting Cap

$

$

Not available

83

MTD 710-0841

Flat "C"-Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

84

MTD 746-0463

S.P. Cable-43" Lg.

$

$

Not available

85

MTD 731-0618

Control-Lower Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 1 left!

0

87

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

88

MTD 731-0617

Control-Upper Cover
(Superseded to 731-0617A)

$

$

Not available

90

MTD 753-0362

Clutch Control Housing Comp.

$

$

Not available

91

MTD 710-0703

Carr. Bolt 1/4-20 x .75" Lg.*

$4.49

$

In Stock, Qty 15

0

92

MTD 725-0727

Battery Charger
(Superseded to 925-0727)

$77.99

$

In Stock, only 1 left!

0

93

MTD 712-0142

Hex Nut #8-32 Thd.

$4.49

$

In Stock, Qty 9

0

94

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.*

$5.99

$

In Stock, Qty 8

0

95

MTD 14752

Handle Bracket Ass'y.-R.H.

$

$

Currently unavailable

96

MTD 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, only 3 left!

0

97

MTD 731-0430

Plastic Roller

$

$

Not available

98

MTD 764-0171

Grass Bag
(Superseded to 964-0171B)

$

$

Not available

99

MTD 749-0278

Catcher Upper Frame

$

$

Not available

100

MTD 749-0437

Upper Handle

$

$

Currently unavailable

101

MTD 726-0135

Cap Speed Nut

$6.99

$

In Stock, only 1 left!

0

102

MTD 718-0145

Grip

$

$

Currently unavailable

103

MTD 753-0361

Control Housing Comp.

$

$

Not available

107

MTD 725-1105

Battery Pack

$

$

Not available

108

MTD 16360

Battery Plate

$

$

Currently unavailable

109

MTD 710-0783

Fl-Hd. Phil. Scr. #8-32 x .38" Lg.

$

$

Not available

110

MTD 736-0168

External L-Wash. #8 I.D.

$

$

Not available

111

MTD 746-0477

Clutch Control Cable 45"
(Superseded to 946-0477A)

$

$

Not available

112

MTD 731-0564

Plug

$

$

Not available

MTD 8366-000-5

Hardware Pack

$

$

Currently unavailable
