125-204-190 - White Outdoor Lawn Boss 21" Walk-Behind Mower (1985) 21" Rotary Mower Assembly Parts Diagram

Lawn Boss 21" Walk-Behind Mower

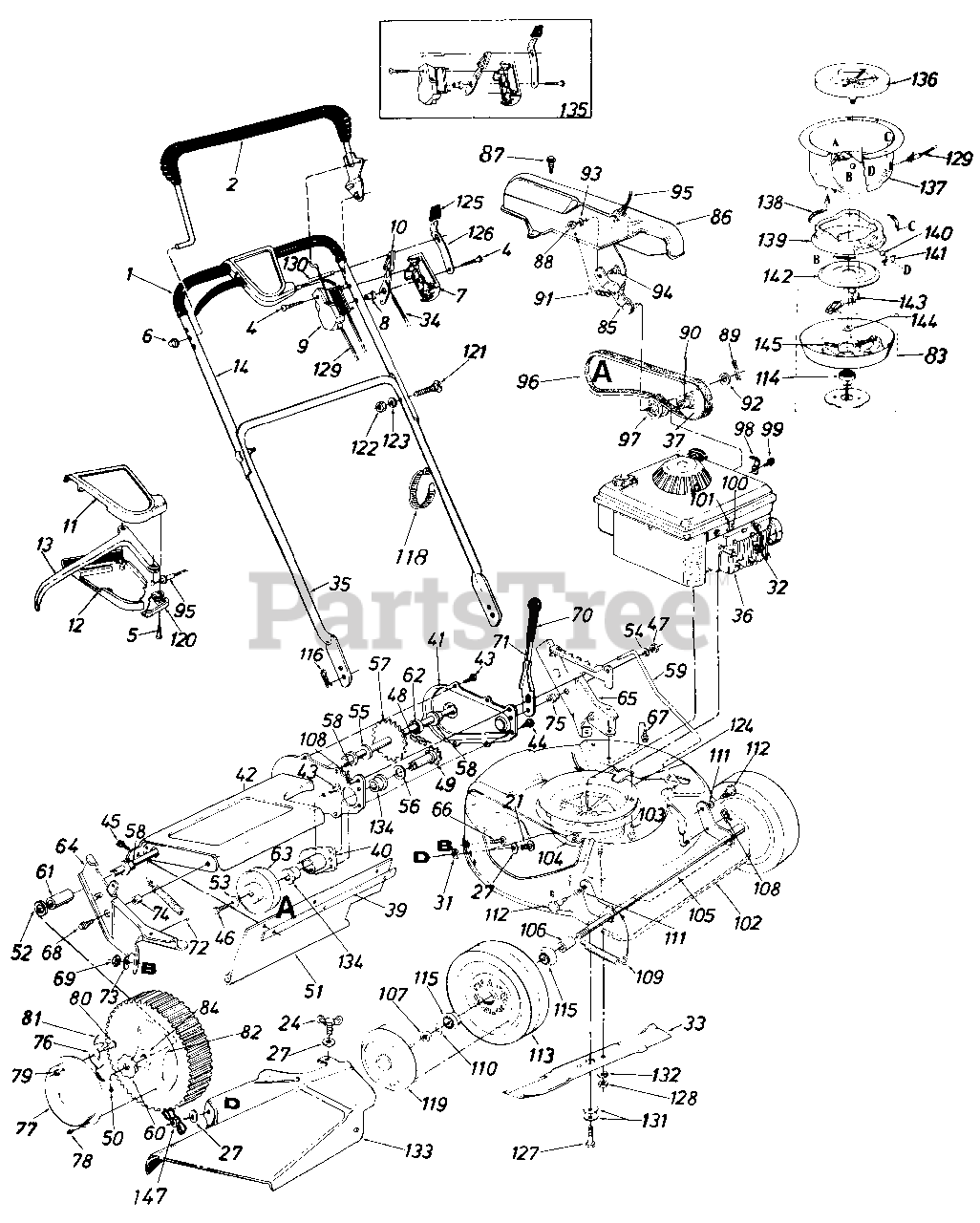

21" Rotary Mower Assembly Parts Diagram

  • Title

1

718-0145

Grip

$

$

Not available

2

White Outdoor 731-0609

Control Handle Ass'y. L.H.

$

$

Not available

4

White Outdoor 710-0796

Truss Mach. Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

5

White Outdoor 710-0841

Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

6

White Outdoor 726-0135

Cap Speed Nut .31 Dia.

$6.99

$

In Stock, only 1 left!

0

7

White Outdoor 731-0523

Control Panel Half

$

$

Not available

8

White Outdoor 731-0524

Control Disc Pin

$

$

Not available

9

White Outdoor 731-0526

Clutch Panel Half

$

$

Not available

10

White Outdoor 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

11

White Outdoor 731-0617

Self-Propelled Control Cover
(Superseded to 731-0617A)

$

$

Not available

12

White Outdoor 731-0618

Self-Propelled Control Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

13

White Outdoor 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

14

749-0437

Upper Handle Chrome

$

$

Not available

21

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62" Lg.*

$4.49

$

In Stock, Qty 20+

0

24

710-0934

Wing Bolt 1/4-20 x .62" Lg.

$

$

Not available

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

27

White Outdoor 736-0463

Fl-Wash. .280" I.D. x .620" O.D.

$4.49

$

In Stock, Qty 20+

0

White Outdoor 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

31

White Outdoor 726-0233

Bolt Retainer 1/4 x .50" O.D.

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 735-0639

Spark Plug Insulator

$

$

Not available

33

White Outdoor 742-0290

21" Blade

$

$

Not available

34

White Outdoor 746-0472

Throttle Control Wire 58.0" Lg.
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

35

White Outdoor 749-0505

Lower Handle Chrome
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

36

Engine

$

$

Not available

37

White Outdoor 756-0460

Erigine Pulley 1/2"

$

$

Not available

39

White Outdoor 14835

Retaining Strip

$

$

Not available

40

16118

Bearing Hub Flange Ass'y.

$

$

Not available

41

16119

Chain Cover

$

$

Not available

42

White Outdoor 16121

Chain Axle Ass'y.

$

$

Not available

43

White Outdoor 710-0352

Hex B-Tap Scr. 1/4" x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

44

White Outdoor 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

45

White Outdoor 710-0776

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 710-0875

Hex Wash. TT-Tap Scr. 1/4-20

$3.99

$

In Stock, only 2 left!

0

47

White Outdoor 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

White Outdoor 713-0353

#48 Chain .500" Pitch x .30 Links
(Superseded to 913-0353)

$

$

Not available

49

White Outdoor 713-0355

Sprocket Shaft Ass'y.

$

$

Not available

50

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.*

$3.99

$

In Stock, only 2 left!

0

51

White Outdoor 731-0672

Rear Flap 3.75" x 17.30" Lg.
(Superseded to 731-0672A)

$31.99

$

Usually ships in 3-6 days

0

52

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

53

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

54

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 736-0326

Fl-Wash. .510" I.D. x 1.0" O.D.

$4.49

$

In Stock, only 2 left!

0

56

White Outdoor 736-0254

Fl-Wash. .62" I.D. x 1.12" O.D.
(Superseded to 936-0349)

$4.49

$

In Stock, Qty 20+

0

57

White Outdoor 738-0614

Rear Shaft Ass'y. 22.05" Lg.

$

$

Not available

58

White Outdoor 741-0324

Hex Flange Bearing .506" I.D. Plastic
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

59

White Outdoor 747-0510

Height Adj. Rod 1.50" x 19.42" Lg.

$

$

Not available

60

White Outdoor 748-0187

Ratchet Wheel 1.62" O.D.

$

$

Not available

61

White Outdoor 748-0191

Spacer.51" I.D. x .69" O.D. x .690" Lg.
(Superseded to 750-0190)

$

$

Not available

62

748-0301

Spacer.510" I.D. x 1.00" O.D. x .210" Lg.

$

$

Not available

63

White Outdoor 756-0459

1/2" "V"-Pulley

$

$

Not available

64

White Outdoor 16136

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

$

$

Not available

65

White Outdoor 16137

L.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16137C-0637)

$

$

Not available

66

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

White Outdoor 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-1 8

$4.99

$

Usually ships in 3-6 days

0

68

White Outdoor 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-1 6
(Superseded to 710-0654A)

$4.49

$

In Stock, Qty 20+

0

69

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

70

White Outdoor 720-0143

Grip

$

$

Not available

71

White Outdoor 732-0473

Height Adj. Lever 1.25 x 8.5" Lg.
(Superseded to 732-0473B)

$

$

Not available

72

White Outdoor 732-0481

Extension Spring .50" O.D. x 3.80" Lg.
(Superseded to 932-0481)

$

$

Not available

73

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

74

White Outdoor 750-0526

Spacer.385" I.D. x .502" O.D. x .270" Lg.

$4.99

$

In Stock, only 1 left!

0

75

White Outdoor 750-0624

Shld. Spacer.500" Dia. x .100

$

$

Not available

76

White Outdoor 10622

Spring Nylon
(Superseded to 10622BP)

$5.49

$

In Stock, Qty 20+

0

77

White Outdoor 10647

Hub Cap

$

$

Not available

78

White Outdoor 710-0748

Pan Hd. Tap Scr. #12 x .50" Lg.

$

$

Not available

79

White Outdoor 712-0324

Hex ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

80

White Outdoor 738-0137

Shld. Scr. .342" Dia. x .268

$

$

Not available

81

White Outdoor 748-0188

Pawl
(Superseded to 948-0188B)

$

$

Not available

82

White Outdoor 734-1026

Wheel Ass'y. Comp. Rear 8 x 1.75

$

$

Not available

83

White Outdoor 14300

Clutch Blade Housing Ass'y.

$

$

Not available

84

White Outdoor 741-0180

Flange Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

85

White Outdoor 16134

Belt Idler Bracket Ass'y.

$

$

Not available

86

16146

Belt Cover

$

$

Not available

87

White Outdoor 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

88

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

89

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.*

$3.99

$

In Stock, only 2 left!

0

90

White Outdoor 715-0247

Spring Pin Spir. 3/16" Dia. x 1.00" Lg.
(Superseded to 915-0247)

$

$

Not available

91

White Outdoor 732-0357

Extension Spring .33" O.D. x 1.12" Lg.
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

92

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .930" O.D. x .050

$4.49

$

In Stock, only 2 left!

0

93

White Outdoor 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

94

White Outdoor 738-0255

Shld. Bolt .375" Dia. x .181
(Superseded to 938-0255)

$5.49

$

In Stock, Qty 6

0

95

White Outdoor 746-0466

S.P. Cable x 53.0" Lg.
(Superseded to 946-0466)

$

$

Not available

96

White Outdoor 754-0104

"V"-Belt 1/2" x 32.0" Lg.

$

$

Not available

97

White Outdoor 756-0360

Fl-ldler Plastic 1.62" Dia.

$

$

Not available

98

White Outdoor 12894

Throttle Control Cable Clip

$

$

Not available

99

White Outdoor 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

100

White Outdoor 710-0899

Hex Sems Bolt #10-32 x .62" Lg.
(Superseded to 710-0899A)

$6.99

$

Usually ships in 3-6 days

0

101

White Outdoor 751-0333

Casing Clamp

$

$

Not available

102

White Outdoor 16126

Top Discharge Deck Ass'y.

Variations

White Outdoor 16126-0638

No Longer Available DECK ASSEMBLY-TOP- - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

103

White Outdoor 710-0654

Hex Wash Hd. TT-Tap Scr. 3/8-1 6
(Superseded to 710-0654A)

$4.49

$

In Stock, Qty 20+

0

104

White Outdoor 712-0185

Speed Nut 1/4-20 U-Type

$

$

Not available

105

10662

Front Axle Ass'y

$

$

Not available

106

White Outdoor 711-0313

Sleeve 526" I.D. x .690" O.D. x .880" Lg.
(Superseded to 911-0313)

$

$

Not available

107

White Outdoor 712-0200

Hex L-Nut 1/2-20 Thd.
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

108

White Outdoor 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

109

White Outdoor 732-0482

Extension Spring .50" O.D. x 3.20" Lg.

$

$

Not available

110

White Outdoor 736-0160

Fl-Wash. .531 " I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

111

White Outdoor 736-0221

Intern. L-Wash. 3/8 x .56" O.D.

$

$

Not available

112

White Outdoor 738-0615

Shld. Bolt .623" Dia. x .425

$

$

Not available

113

734-1267

Front-Wheel Ass'y. Comp 7 x 1.75

$

$

Not available

114

White Outdoor 741-0124

Ball Brg. .669" I.D. x 1.574"
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

115

White Outdoor 741-0180

Flange Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

116

White Outdoor 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

118

White Outdoor 726-0192

Cable Tie

$

$

Not available

119

White Outdoor 731-0124

Hub Cap Plastic

$

$

Not available

120

White Outdoor 731-0619

S.P. Control Cover

$

$

Not available

121

White Outdoor 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

122

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

123

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

124

White Outdoor 717-0485

Blade Brake Clutch Comp.

$

$

Not available

125

White Outdoor 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

126

White Outdoor 732-0401

Lockout Spring

$

$

Not available

127

White Outdoor 710-0818

Hex Cent. L-Bolt 3/8-24 x 2.00" (Grade 8)

$6.99

$

In Stock, only 1 left!

0

128

White Outdoor 712-0328

Hex Nut 3/8-24 Thd. (Grade 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

129

White Outdoor 746-0400

BBC Clutch Cable x 46.0" Lg.

$

$

Not available

130

White Outdoor 731-0607

Lock Pin .314" Dia. x 1.75" Lg.

$

$

Not available

131

White Outdoor 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

132

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

133

White Outdoor 16148

Side Chute Deflector

$

$

Not available

134

White Outdoor 748-0249

Flange Bushing

$

$

Not available

135

White Outdoor 753-0361

Kit Control Housing Comp.

$

$

Not available

136

White Outdoor 719-0256

Fan Adapter

$

$

Not available

137

White Outdoor 14307

Clutch Housing

$

$

Not available

138

White Outdoor 732-0397

Extension Spring .35 O.D. x 1.75" Lg.

$

$

Not available

139

14305

Brake Cup Cone

$

$

Not available

140

White Outdoor 741-0326

Steel Ball .500" Dia.

$

$

Not available

141

White Outdoor 731-0520

Ball Block

$

$

Not available

142

White Outdoor 14304

Clutching Cone

$

$

Not available

143

White Outdoor 710-0875

Hex Tap L-Scr. 1/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

144

White Outdoor 736-0333

Fl-Wash. .690" I.D. x 1.060" O.D.

$

$

Not available

145

White Outdoor 732-0396

Compression Spring .35" O.D. x 2.00" Lg.

$

$

Not available

White Outdoor 726-0233

Bolt Retainer 1/4 x .50 O.D.

$4.49

$

In Stock, Qty 20+

0

8204-190-4

Hardware Pack

$

$

Not available

147

White Outdoor 712-0109

Wing Nut

$

$

Not available
