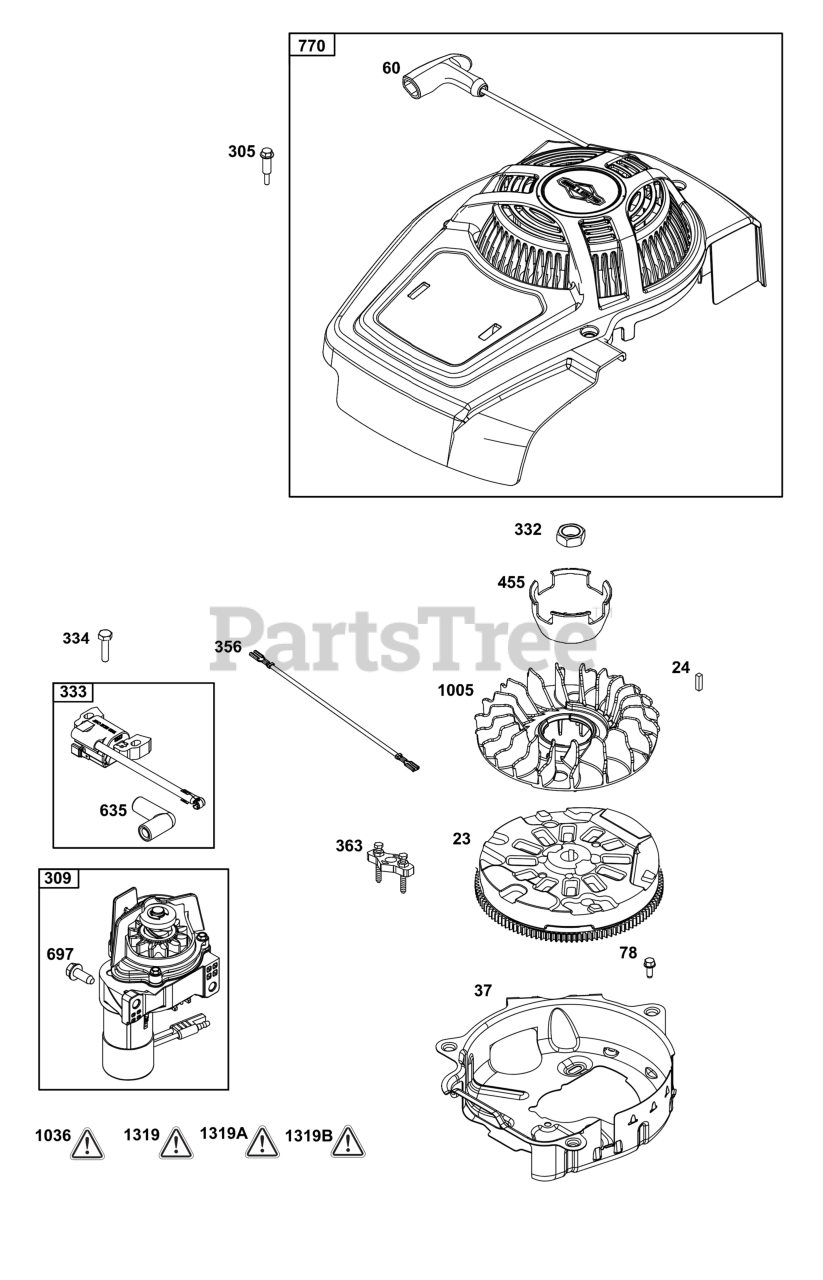

124P05-0011-F1 - Briggs & Stratton Vertical Engine Flywheel, Ignition, and Starter Group Parts Diagram

Vertical Engine

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 84003743

FLYWHEEL

$167.99

$

Usually ships in 2-12 days

0

24

KEY, Flywheel

Note: (Part information located in Crankshaft Group.)

$

$

Not available

37

Briggs & Stratton 597759

GUARD, Flywheel

$31.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 281434S

GRIP, Starter Rope

$3.99

$

In Stock, only 4 left!

0

78

Briggs & Stratton 793480

SCREW

Note: (Flywheel Guard)

$3.99

$

In Stock, Qty 20+

0

305

Briggs & Stratton 590586

SCREW

Note: (Blower Housing)

$3.49

$

In Stock, Qty 20+

0

309

Briggs & Stratton 84004218

MOTOR, Starter

$146.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 690662

NUT

Note: (Flywheel)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 595291

ARMATURE, Magneto

$50.99

$

In Stock, only 3 left!

0

334

Briggs & Stratton 793454

SCREW

Note: (Magneto Armature)

$4.49

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 597293

WIRE, Stop

$5.49

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 84003782

CUP, Flywheel

$14.99

$

Usually ships in 2-12 days

0

770

Briggs & Stratton 597279

STARTER, Rewind

$122.99

$

In Stock, only 4 left!

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

697

Briggs & Stratton 691127

SCREW

Note: (Drive Cap)

$4.49

$

In Stock, Qty 13

0

1005

Briggs & Stratton 597278

FAN, Flywheel

$26.99

$

Usually ships in 2-12 days

0

1036

LABEL, Emissions

Note: (Available From A Briggs & Stratton Authorized Service Dealer)

$

$

Not available

1319

Briggs & Stratton 794467

LABEL, Warning

Note: (Required When Replacing Parts With Warning Labels Affixed)

$20.99

$

Usually ships in 2-12 days

0

1319A

Briggs & Stratton 841997

LABEL, Emissions

Note: (Required When Replacing Parts With Warning Labels Affixed)

$16.99

$

Usually ships in 2-12 days

0

1319B

Briggs & Stratton 278911GS

LABEL, Warning

Note: (Required When Replacing Parts With Warning Labels Affixed)

$12.99

$

In Stock, only 1 left!

0
