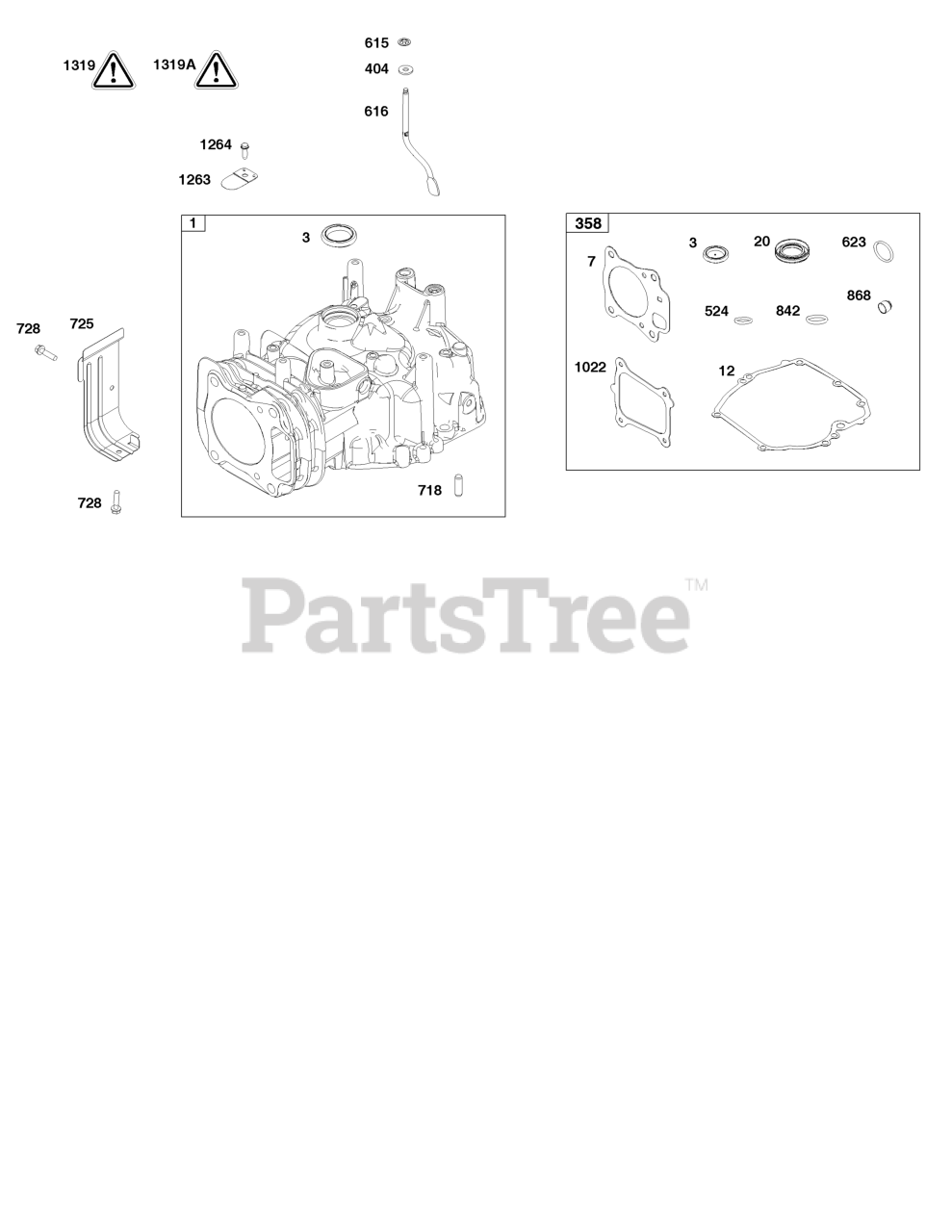

124P02-0005-F1 - Briggs & Stratton Vertical Engine Cylinder Group Parts Diagram

Vertical Engine

Cylinder Group Parts Diagram

  • Title
1

Briggs & Stratton 595286

Cylinder Assembly

$259.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.49

$

In Stock, Qty 20+

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

GASKET, Crankcase

Note: (Part information located in Sump and Lubrication Group.)

$

$

Not available

20

SEAL, Oil

Note: (Part information located in Sump and Lubrication Group.)

$

$

Not available

358

GASKET SET, Engine

Note: (Part information located in Service Parts and Tools Group.)

$

$

Not available

404

Briggs & Stratton 690272

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, only 2 left!

0

524

SEAL, O-Ring

Note: (Part information located in Sump and Lubrication Group.)

$

$

Not available

615

Briggs & Stratton 690340

RETAINER, Governor Shaft

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 798327

Crank-Governor

$12.99

$

In Stock, only 1 left!

0

623

SEAL, O-Ring

Note: (Part information located in Carburetor Group.)

$

$

Not available

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

725

$7.99

$

Usually ships in 2-12 days

0

728

Briggs & Stratton 793480

SCREW

Note: (Heat Shield)

$3.99

$

In Stock, Qty 20+

0

842

SEAL, O-Ring

$

$

Not available

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1263

Briggs & Stratton 697124

REED, Breather

$7.49

$

In Stock, Qty 20+

0

1264

Briggs & Stratton 793453

SCREW

Note: (Breather Reed)

$3.99

$

Usually ships in 2-12 days

0

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1319A

Briggs & Stratton 841997

LABEL-EMISSIONS

$16.99

$

Usually ships in 2-12 days

0
