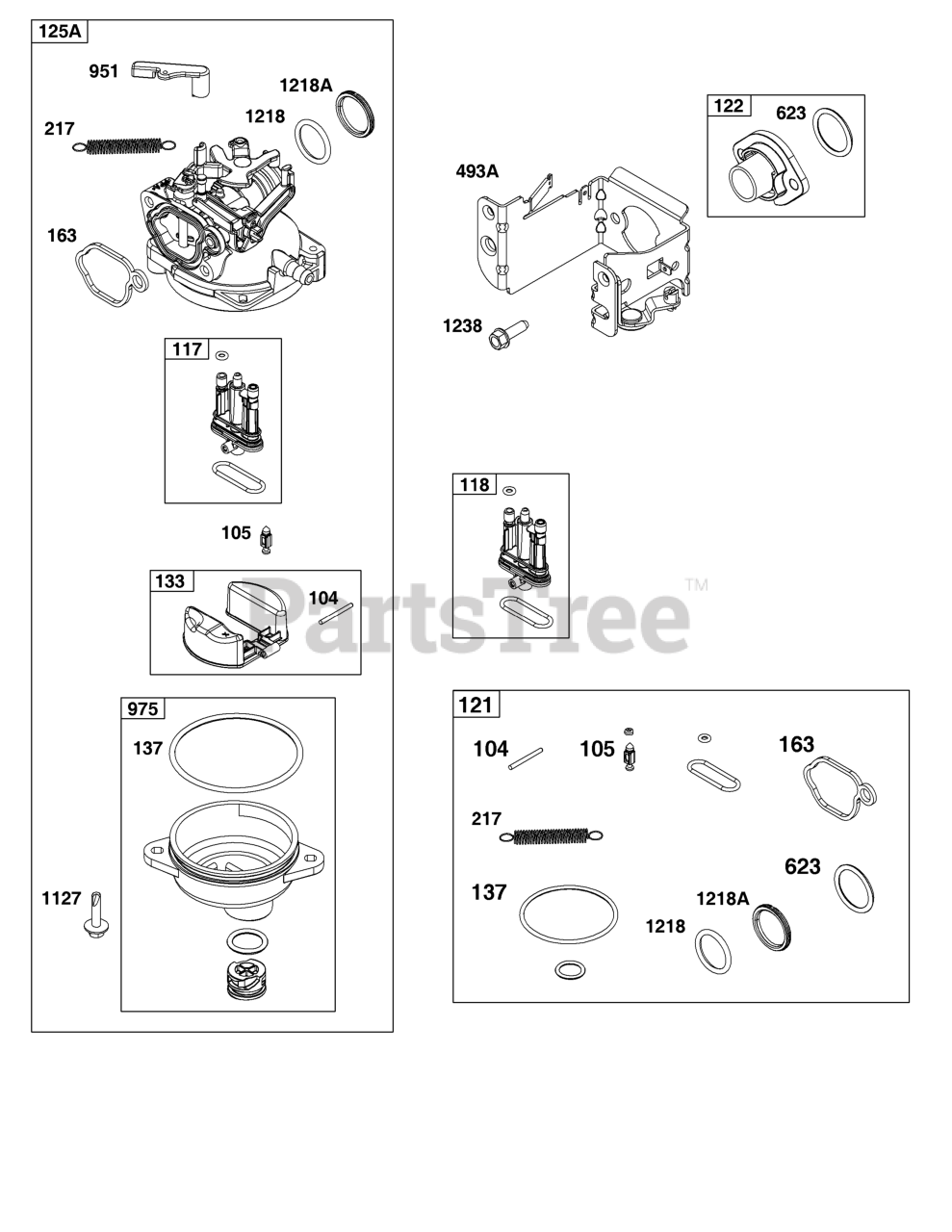

124P02-0005-F1 - Briggs & Stratton Vertical Engine Carburetor Group Parts Diagram

Vertical Engine

Carburetor Group Parts Diagram

  • Title

104

Briggs & Stratton 590558

Pin-Float Hinge

$4.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 590558

Pin-Float Hinge

$4.49

$

In Stock, only 2 left!

0

117

Briggs & Stratton 597331

JET, Main

$

$

Not available

118

Briggs & Stratton 597332

JET, Main

Note: (High Altitude)

$18.99

$

Usually ships in 2-12 days

0

121

KIT, Carburetor Overhaul

Note: (Part information located in Service Parts and Tools Group.)

$

$

Not available

122

Briggs & Stratton 590549

Spacer-Carburetor

$10.99

$

In Stock, only 1 left!

0

1238

Briggs & Stratton 590562

SCREW

Note: (Carburetor Spacer)

$3.49

$

In Stock, Qty 20+

0

125A

Briggs & Stratton 597327

CARBURETOR

$69.99

$

In Stock, only 2 left!

0

133

Briggs & Stratton 591120

Float-Carburetor

$13.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 594633

Gasket-Float Bowl

$15.99

$

In Stock, only 2 left!

0

163

Briggs & Stratton 799580

Gasket-Air Cleaner

$5.99

$

In Stock, only 1 left!

0

217

Briggs & Stratton 590740

Spring-Choke Return

$8.49

$

Usually ships in 2-12 days

0

493A

Briggs & Stratton 597308

VALVE, Throttle

$16.99

$

Usually ships in 2-12 days

0

623

Briggs & Stratton 799581

Seal-O Ring

Note: (Carburetor Spacer)

$4.99

$

In Stock, only 1 left!

0

951

Briggs & Stratton 591104

Lever-Choke

$10.99

$

In Stock, only 2 left!

0

975

Briggs & Stratton 594632

Bowl-Float

$17.99

$

In Stock, only 3 left!

0

1127

Briggs & Stratton 590554

Screw

Note: (Float Bowl to Carburetor Body)

$3.99

$

Usually ships in 2-12 days

0

1218

Briggs & Stratton 270344S

Seal-O Ring

$3.49

$

In Stock, Qty 20+

0

1218A

Briggs & Stratton 697478

Retainer-Seal

$4.99

$

In Stock, Qty 20+

0
