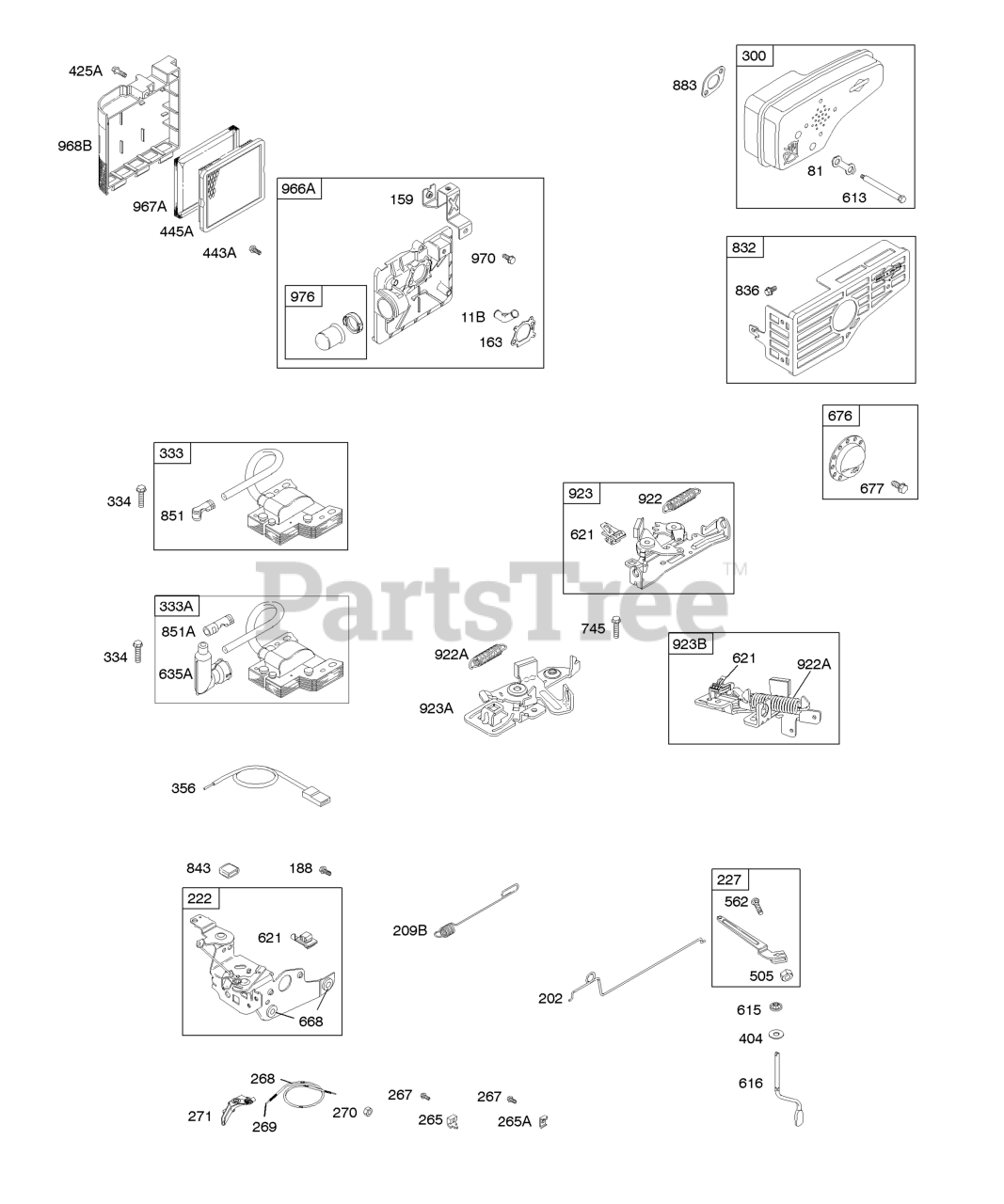

124H02-0120-B1 - Briggs & Stratton Vertical Engine Air Cleaner, Controls, Electrical, Exhaust System, Flywheel Brake, Governor Spring, Ignition Parts Diagram

Vertical Engine

Air Cleaner, Controls, Electrical, Exhaust System, Flywheel Brake, Governor Spring, Ignition Parts Diagram

  • Title

11B

Briggs & Stratton 691923

Tube-Breather

$9.49

$

In Stock, only 1 left!

0

81

Briggs & Stratton 691740

Lock-Muffler Screw

$5.49

$

In Stock, Qty 6

0

159

Briggs & Stratton 691753

Bracket-Air Cleaner Primer
(Superseded to 795259)

$32.99

$

In Stock, only 3 left!

0

163

Briggs & Stratton 272653S

Gasket-Air Cleaner
(Superseded to 795629)

$3.49

$

In Stock, Qty 20+

0

188

Briggs & Stratton 690877

Screw

Note: (Control Bracket)

$3.99

$

In Stock, only 3 left!

0

202

Briggs & Stratton 691829

Link-Mechanical Governor

$8.49

$

Usually ships in 2-12 days

0

209B

Briggs & Stratton 691292

Spring-Governor

$8.49

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 790143

Bracket-Control

Note: (Remote/Manual Friction)(Primer)

$44.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 690783

Lever-Governor Control

$15.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 690798

Clamp-Casing

$5.49

$

In Stock, only 1 left!

0

265A

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 6

0

267

Briggs & Stratton 691044

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 4 left!

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 496106S

Muffler
(Superseded to 692038)

Note: (Tuned)

$29.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

333A

Briggs & Stratton 793353

Armature-Magneto
(Superseded to 590455)

Note: (Snap In Spark Plug Boot)

$

$

Not available

333A

Briggs & Stratton 792640

Armature-Magneto
(Superseded to 590455)

Note: (Screw On Spark Plug Boot)

$

$

Not available

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 692390

Wire-Stop

$

$

Not available

404

Briggs & Stratton 690272

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, only 2 left!

0

425A

Briggs & Stratton 690670

Screw

Note: (Air Cleaner Cover)

$5.99

$

In Stock, only 4 left!

0

443A

Briggs & Stratton 692523

Screw

Note: (Air Cleaner Primer Base)

$7.49

$

In Stock, only 2 left!

0

445A

Briggs & Stratton 491588S

FILTER, A/C Cartridge

$6.49

$

In Stock, Qty 20+

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 92613

Bolt

Note: (Governor Control Lever)

$

$

Not available

613

Briggs & Stratton 691340

Screw

Note: (Muffler)

$4.99

$

In Stock, Qty 7

0

615

Briggs & Stratton 690340

RETAINER, Governor Shaft

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 698801

Crank-Governor

$10.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

635A

Briggs & Stratton 793351

Boot-Spark Plug

Note: (Snap In Style)

$14.99

$

In Stock, only 1 left!

0

635A

Briggs & Stratton 792597

Boot-Spark Plug
(Superseded to 793351)

Note: (Screw On Style)

$14.99

$

In Stock, only 1 left!

0

668

Briggs & Stratton 493823

Spacer

$6.49

$

In Stock, only 1 left!

0

676

Briggs & Stratton 396548

Deflector-Muffler

Note: (Single Louver)

$16.99

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 690661

SCREW

Note: (Muffler Deflector)

$3.49

$

In Stock, Qty 8

0

745

Briggs & Stratton 691648

Screw

Note: (Brake)

$4.99

$

Usually ships in 2-12 days

0

832

Briggs & Stratton 499034

Guard-Muffler
(Superseded to 593875)

Note: Used Before Code Date 11070100

$55.99

$

In Stock, only 3 left!

0

832

Briggs & Stratton 590486

Guard-Muffler
(Superseded to 593875)

Note: Used After Code Date 11063000

$55.99

$

In Stock, only 3 left!

0

836

Briggs & Stratton 690664

Screw

Note: (Muffler Guard)

$5.49

$

In Stock, only 2 left!

0

843

Briggs & Stratton 691884

Sleeve-Lever

Note: (Control Bracket)

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

851A

Briggs & Stratton 692424

Terminal-Spark Plug

$5.99

$

In Stock, Qty 13

0

883

Briggs & Stratton 691881

Gasket-Exhaust

$8.99

$

Usually ships in 2-12 days

0

922

Briggs & Stratton 691831

Spring-Brake

$10.99

$

In Stock, only 2 left!

0

922A

Briggs & Stratton 692135

Spring-Brake

$8.49

$

In Stock, Qty 13

0

923A

Briggs & Stratton 695891

Brake
(Superseded to 796136)

Note: Used Before Code Date 08050100

$32.99

$

In Stock, only 2 left!

0

923B

Briggs & Stratton 796136

Brake

Note: Used After Code Date 08043000

$32.99

$

In Stock, only 2 left!

0

966A

Briggs & Stratton 496116

Base-Air Cleaner Primer
(Superseded to 795259)

$32.99

$

In Stock, only 3 left!

0

967A

Briggs & Stratton 493537S

Filter-Pre Cleaner

$6.49

$

In Stock, Qty 19

0

968B

Briggs & Stratton 692298

Cover-Air Cleaner

$27.99

$

In Stock, only 1 left!

0

970

Briggs & Stratton 691681

SCREW

Note: (Air Cleaner Primer Bracket)

$8.49

$

In Stock, only 1 left!

0

976

Briggs & Stratton 694395

Primer-Carburetor

$4.49

$

In Stock, Qty 20+

0
