124432-0117-E1 - Briggs & Stratton Horizontal Engine Carburetor, Kits/Gaskets - Carburetor Parts Diagram

Horizontal Engine

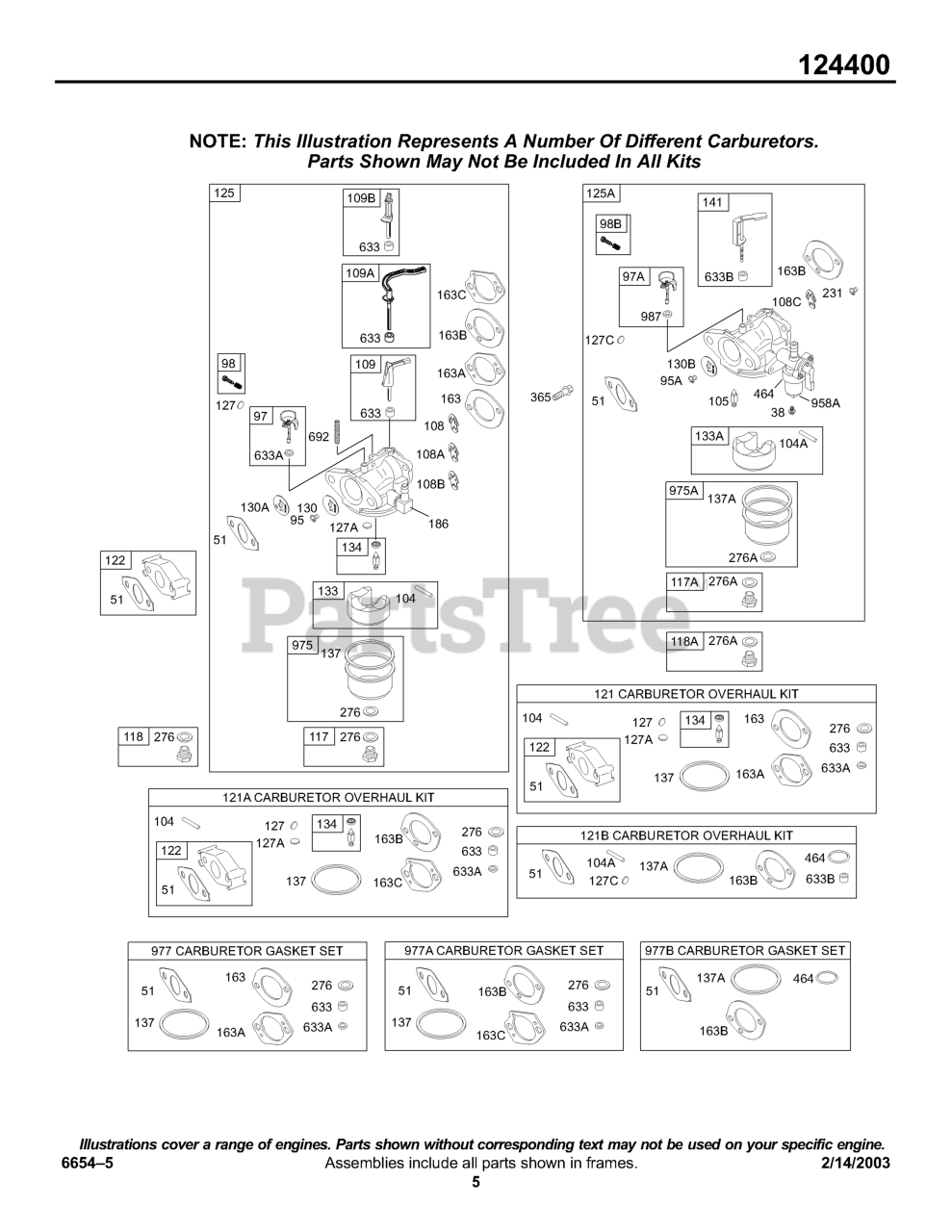

Carburetor, Kits/Gaskets - Carburetor Parts Diagram

  • Title

95

Briggs & Stratton 691636

Screw (Throttle Valve)

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 690024

Shaft-Throttle

$27.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 398185

Screw-Idle Speed (Lmt 26, 27, 28, 31)

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 691242

Pin-Float Hinge
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

108B

Briggs & Stratton 692567

Valve-Choke

Note: (.0156" Diameter Holes, Stamped 224449)

$9.49

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 691182

Valve-Choke

Note: (.223" Diameter Holes, Stamped 223471)

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 690023

Shaft-Choke

Note: (Straight Handle)

$28.99

$

In Stock, Qty 9

0

117

Briggs & Stratton 498976

Jet-Main

Note: (Standard) Used Before Code Date 20030128

$19.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 690048

Jet-Main (STANDARD)

Note: (Standard) Used After Code Date 20020929

$

$

Not available

117

Briggs & Stratton 691428

Jet-Main

Note: (Standard) Used Before Code Date 20020930

$19.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 691428

Jet-Main

Note: (Standard) Used After Code Date 20030127

$19.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 493869

Jet-Main (Standard)

Note: (High Altitude) Used Before Code Date 20020930

$19.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 498976

Jet-Main

Note: (High Altitude) Used After Code Date 20020929

$19.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 694975

Jet-Main

Note: (High Altitude) Used Before Code Date 20030128

$19.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 695042

Jet-Main

Note: (High Altitude) Used After Code Date 20030127

$19.99

$

In Stock, only 1 left!

0

121A

Briggs & Stratton 696998

Kit-Carburetor Overhaul
(Superseded to 792006)

Note: (High Vent)

$28.99

$

In Stock, Qty 20+

0

121

Briggs & Stratton 695157

Kit-Carburetor Overhaul

$18.99

$

In Stock, only 1 left!

0

125

Briggs & Stratton 690046

Carburetor
(Superseded to 591299)

Note: (Reference number 161 required for replacement) Used Before Code Date 20020930

$92.99

$

In Stock, Qty 20+

0

125

Briggs & Stratton 694508

Carburetor
(Superseded to 798653)

Note: (Reference number 161 required for replacement) Used Before Code Date 20030127

$66.99

$

In Stock, Qty 20+

0

125

Briggs & Stratton 698474

Carburetor
(Superseded to 591299)

Note: Used After Code Date 20020929

$92.99

$

In Stock, Qty 20+

0

125

Briggs & Stratton 698810

Carburetor
(Superseded to 591299)

Note: Used After Code Date 20030126

$92.99

$

In Stock, Qty 20+

0

127A

Briggs & Stratton 694468

Plug-Welch (Bowl Vent)

Note: (3/8" Diameter)

$4.49

$

In Stock, only 3 left!

0

127

Briggs & Stratton 691739

Plug-Welch

Note: (5/16" Diameter)

$4.49

$

Usually ships in 2-12 days

0

130A

Briggs & Stratton 691203

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 691181

Valve-Throttle

$7.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Kit-Needle/seat (Includes Seat)

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 698545

Kit-Choke Shaft

$28.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 692317

Connector-Hose

$6.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

$6.99

$

In Stock, Qty 6

0

365

Briggs & Stratton 692568

Screw (CARBURETOR)

Note: (Carburetor)

$3.99

$

In Stock, only 1 left!

0

464

Briggs & Stratton 698550

SEAL, O-Ring

Note: (Fuel Shut-off Valve)

$7.49

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 691321

Seal-Dust (Throttle Shaft)

$4.99

$

Usually ships in 2-12 days

0

633B

Briggs & Stratton 690998

SEAL, Choke/Throttle Shaft

$7.99

$

Usually ships in 2-12 days

0

633

Briggs & Stratton 693867

Seal-Choke/Throttle Shaft

$4.99

$

In Stock, only 2 left!

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

Note: (Carburetor)

$5.49

$

In Stock, Qty 11

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$

$

Not available

977A

Briggs & Stratton 697001

Gasket Set-Carburetor
(Superseded to 792006)

Note: (High Vent)

$28.99

$

In Stock, Qty 20+

0

977

Briggs & Stratton 695156

Gasket Set-Carburetor
(Superseded to 695157)

$18.99

$

In Stock, only 1 left!

0
