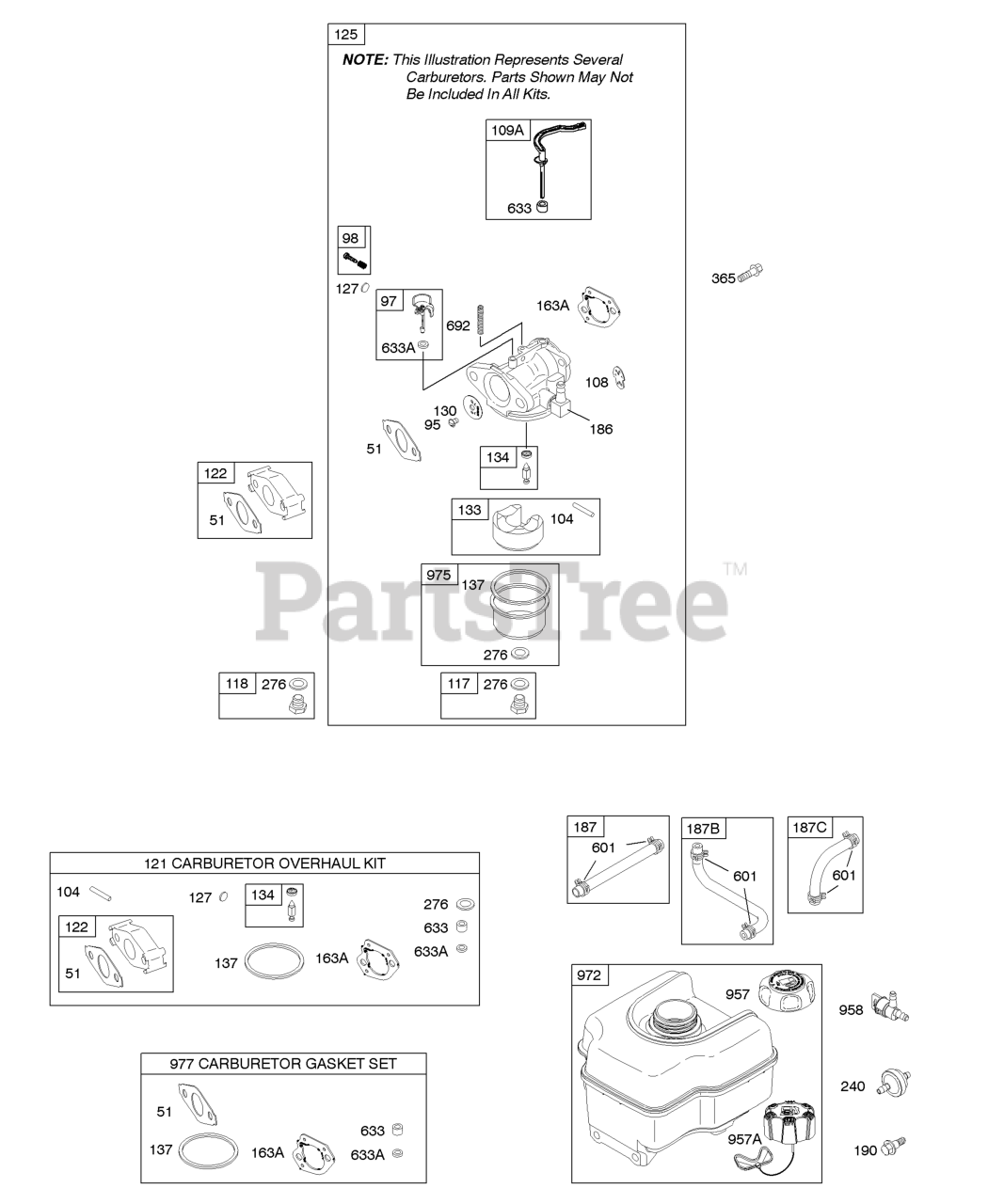

124032-0101-E1 - Briggs & Stratton Horizontal Engine Carburetor, Fuel Supply Parts Diagram

Horizontal Engine

Carburetor, Fuel Supply Parts Diagram

  • Title

51

Briggs & Stratton 692555

Gasket-Intake

$3.99

$

In Stock, Qty 9

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 690024

Shaft-Throttle

$27.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 398185

Kit-Idle Speed

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 691242

Pin-Float Hinge
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

108

Briggs & Stratton 692567

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109A

Briggs & Stratton 693628

Shaft-Choke

$28.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 698344

Jet-Main

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 691428

Jet-Main

Note: (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 792006

Kit-Carb Overhaul

$28.99

$

In Stock, Qty 20+

0

122

Briggs & Stratton 795643

Spacer-Carburetor

$13.99

$

In Stock, Qty 10

0

125

Briggs & Stratton 698475

Carburetor
(Superseded to 591925)

$

$

Not available

127

Briggs & Stratton 691739

Plug-Welch

$4.49

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 691181

Valve-Throttle

$7.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

163A

Briggs & Stratton 792870

Gasket-Air Cleaner

Note: (High Mount)

$6.49

$

In Stock, only 4 left!

0

186

Briggs & Stratton 692317

Connector-Hose

$6.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

187B

Briggs & Stratton 791874

Line-Fuel

Note: (Molded)

$16.99

$

In Stock, only 1 left!

0

187C

Briggs & Stratton 791866

Line-Fuel

Note: (Molded)

$24.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 699220

Screw
(Superseded to 597133)

Note: (Fuel Tank)

$4.99

$

In Stock, Qty 9

0

240

Briggs & Stratton 394358S

FILTER, Fuel

$5.99

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

$6.99

$

In Stock, Qty 5

0

365

Briggs & Stratton 699484

Screw

Note: (Carburetor)

$3.99

$

In Stock, only 2 left!

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 693867

Seal-Choke/Thr Shaft

$4.99

$

In Stock, only 2 left!

0

633A

Briggs & Stratton 691321

Seal-Choke/Thr Shaft

$4.99

$

Usually ships in 2-12 days

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

Note: (Choke)

$5.49

$

In Stock, Qty 11

0

957

Briggs & Stratton 792647

Cap-Fuel Tank
(Superseded to 795027)

Note: (Plastic) (Fresh Start)

$10.99

$

In Stock, Qty 20+

0

957

Briggs & Stratton 795027

Cap-Fuel Tank

Note: (Plastic) (Text Free)

$10.99

$

In Stock, Qty 20+

0

957A

Briggs & Stratton 799719

CAP, Fuel Tank

Note: (Plastic) (Carbon In Cap)

$40.99

$

In Stock, only 3 left!

0

958

Briggs & Stratton 698180

Valve-Fuel Shut Off

Note: (Plastic)

$11.99

$

In Stock, Qty 20+

0

972

Briggs & Stratton 694260

Tank-Fuel
(Superseded to 799863)

Note: (Plastic)

$89.99

$

In Stock, Qty 10

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$

$

Not available

977

Briggs & Stratton 792007

Gasket Set-Carburetor
(Superseded to 792006)

$28.99

$

In Stock, Qty 20+
