124005 (116-328C013) - Select Series Walk-Behind Mower (1996) (Costco) General Assembly Parts Diagram

Walk-Behind Mower

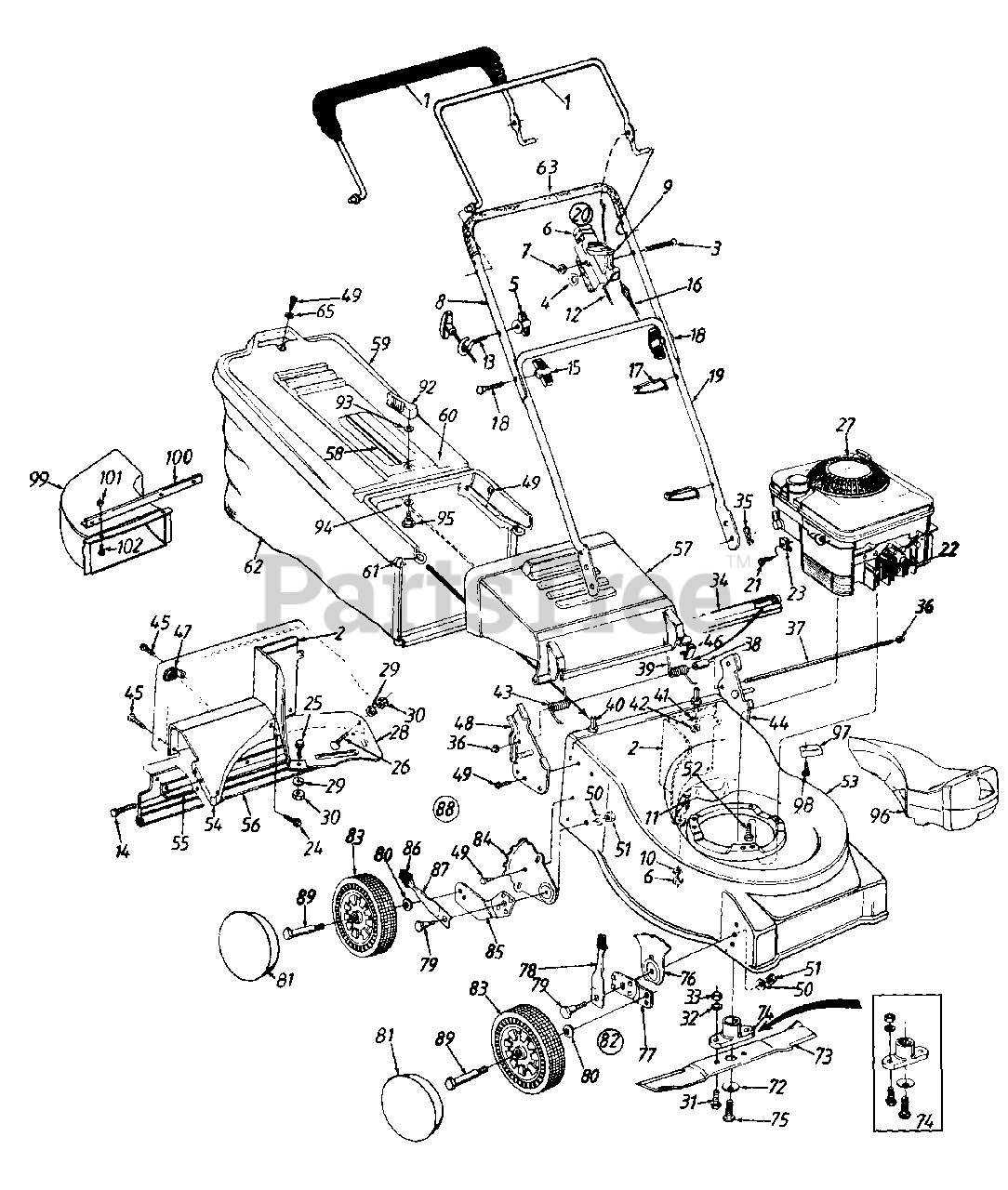

General Assembly Parts Diagram

  • Title

1

MTD 747-0824

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Note: (Std.)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Note: (Deluxe)

$65.99

$

In Stock, only 1 left!

0

2

MTD 17007

Rear Panel Baffle

Variations

MTD 17007-0637

Rear Panel Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 710-0605

Oval C-Sunk Mach.-Scr.

$4.49

$

In Stock, only 3 left!

0

4

MTD 736-0501

Spr. Wash..66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

5

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

Usually ships in 3-6 days

0

6

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 4 left!

0

7

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

8

MTD 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 2 left!

0

10

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-0252

Hex Bolt 1/4-20 x .85"
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

12

MTD 746-0843

Throttle Control Wire - 55"
(Superseded to 946-0671A)

Note: For model 328C

$14.99

$

Usually ships in 3-6 days

0

MTD 746-0845

Throttle Control Wire - 45"
(Superseded to 946-1115)

Note: For model 325A

$28.99

$

In Stock, only 1 left!

0

13

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 1 left!

0

14

MTD 710-0653

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.49

$

In Stock, Qty 13

0

15

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

16

MTD 746-0554

Control Cable - 40.5"
(Superseded to 946-0554)

Note: For model 328C

$21.99

$

In Stock, only 4 left!

0

MTD 746-0555

Control Cable - 55"
(Superseded to 946-0555)

Note: For model 325A

$26.99

$

In Stock, only 4 left!

0

17

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

18

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

19

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

20

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 3, 4, 5, 6, 9)

$36.99

$

In Stock, only 1 left!

0

21

MTD 710-1237

Hex Self-Tap Scr. #10-32 x .62" Lg.

Note: For model 328C

$4.49

$

Usually ships in 3-6 days

0

MTD 710-0871

Hex Sems Scr. #10-32 x .3" Lg.

Note: For model 325A

$

$

Not available

22

MTD 735-0639

Spark Plug Boot

$

$

Not available

23

MTD 751B213146

Cable Clamp
(Superseded to BS-690798)

Note: For model 328C

$5.49

$

In Stock, only 1 left!

0

MTD 7510007755

Cable Clamp

Note: For model 325A

$

$

Not available

24

MTD 710-0352

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

25

MTD 710-0252

Hex Bolt 1/4-20 x .85" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

26

MTD 710-0134

Carriage Bolt 1/4-20 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

27

Engine

$

$

Not available

28

MTD 17013A

Baffle

Variations

MTD 17013A-0637

No Longer Available BAFFLE-BEL - POWDER BLACK (0637)

$

$

Not available

$

$

29

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

30

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

31

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

32

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

33

MTD 712-0241

Mex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

34

MTD 731-0858

Seal - Extrusion

$

$

Not available

35

MTD 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

36

MTD 726-0106

Cap Speed Nut

$3.99

$

Usually ships in 3-6 days

0

37

MTD 747-0698B

Hinge Pin 17.75" Lg.

$

$

Not available

38

MTD 750-0566

Spacer .255" I.D.
(Superseded to 750-0566A)

$9.99

$

In Stock, only 1 left!

0

39

MTD 732-0577B

Torsion Spring - L.H.
(Superseded to 932-0577B)

$

$

Not available

40

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

41

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

42

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

43

MTD 732-0578B

Torsion Spring - R.H.

$

$

Not available

44

MTD 12297B

Handle Brkt. Ass'y.- L.H.

Variations

MTD 12297B-0637

Handle Brkt. Ass'y.-L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

45

MTD 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

46

MTD 731-0970B

Deflector Plug

$

$

Not available

47

MTD 731-0931

Corner Plug

$

$

Not available

48

MTD 12296B

Handle Brkt. Ass'y.- R.H.
(Superseded to 12296B-0637)

Variations

MTD 12296B-0637

BRACKET ASSY-HDLE - POWDER BLACK (0637)

$

$

Not available

$

$

49

MTD 710-0896

Hex L-Wash. B-Tap Scr 1/4 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

50

MTD 736-0356

Bell-Wash .39" I.D.
(Superseded to 936-0356)

$

$

Not available

51

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

52

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, only 3 left!

0

53

MTD 16998A

21" Deck Ass'y.

Variations

MTD 16998A-0499

No Longer Available DECK ASM - CUB BEIGE (0499)

$

$

Not available

MTD 16998A-0629

No Longer Available DECK ASM - SILVER FLAKE (0629)

$

$

Not available

MTD 16998A-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16998A-0650

No Longer Available DECK ASM - RED METALLIC (0650)

$

$

Not available

MTD 16998A-0662

No Longer Available DECK ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 16998A-0667

No Longer Available DECK ASM - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

54

MTD 17008

Chute Baffle
(Superseded to 17008-0637)

Variations

MTD 17008-0637

BAFFLE-RR-CHUTE - POWDER BLACK (0637)

$

$

Not available

$

$

55

MTD 14847

Retaining Strip 14.25" Lg.

Variations

MTD 14847-0637

Retaining Strip - POWDER BLACK (0637)

$

$

Not available

$

$

56

MTD 731-0669

Rear Flap 17.30" Lg.

$50.99

$

Usually ships in 3-6 days

0

57

MTD 731-0859A

Rear Chute Deflector
(Superseded to 931-0859A)

$120.99

$

Usually ships in 3-6 days

0

58

MTD 731-0856A

Hardtop Handle
(Superseded to 631-0003)

$104.99

$

Usually ships in 3-6 days

0

59

MTD 731-0857A

Hardtop Bag Cover
(Superseded to 631-0003)

$104.99

$

Usually ships in 3-6 days

0

60

MTD 749-0736A

Rear Catcher Frame

$

$

Not available

61

MTD 764-0411

Front Catcher Frame
(Superseded to 764-0411-0637)

Variations

MTD 764-0411-0637

CATCHER-FRT - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

62

MTD 764-0252

Grass Bag
(Superseded to 964-0252)

$143.99

$

Usually ships in 3-6 days

0

63

MTD 720-0226

Foam Grip
(Superseded to 720-0295)

Note: Optional Parts

$33.99

$

Usually ships in 3-6 days

0

65

MTD 736-0463

Fl-Wash. .281" I.D.

$4.49

$

In Stock, only 2 left!

0

72

MTD 736-0452

Bell-Wash. .39" I.D.

$4.99

$

In Stock, Qty 7

0

73

MTD 742-0621

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

MTD 742-0721

21" Mulching Blade
(Superseded to 942-0721)

Note: Optional Parts

$32.99

$

Usually ships in 3-6 days

0

74

MTD 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

75

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 9

0

76

MTD 15261A

Height Adj.. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

77

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

78

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

79

MTD 738-0507B

Shld. Bolt .50" Dia. x .357"

$4.49

$

In Stock, only 4 left!

0

80

MTD 736-0105

Bell-Wash..38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

81

MTD 731-0981A

Hub Cap (5-1/2" Dia.)
(Superseded to 731-0981C)

Note: Optional Parts

$10.99

$

Usually ships in 3-6 days

0

MTD 720-0249

Hub Cap (3-1/2" Dia.)
(Superseded to 920-0249)

Note: Optional Parts

$

$

Not available

82

MTD 14578

Height Adj. Ass'y. Comp.- R H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp.- L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

83

Wheel Ass'y. Comp.

$

$

Not available

MTD 734-1781

Wheel Bar Tread

$32.99

$

In Stock, Qty 7

0

MTD 734-1512A

Wheel "S" Tread
(Superseded to 734-1826)

$33.99

$

In Stock, only 2 left!

0

84

MTD 14764C

Index Plate

$8.49

$

Usually ships in 3-6 days

0

85

MTD 14765

Pivot Bar - R.H.

$19.99

$

Usually ships in 3-6 days

0

MTD 14766

Pivot Bar - L.H.

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

86

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

87

MTD 732-0417A

Spring Lever

$

$

Not available

88

MTD 16106

Rear Height Adj. Ass'y. Comp.- R.H

$

$

Not available

MTD 16107

Rear Height Adj. Ass'y. Comp.- L.H.

Note: (Not Shown)

$

$

Not available

89

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

92

MTD 720-0224

Grass Catcher Locking Knob
(Superseded to 920-0224)

$

$

Not available

93

MTD 736-0498

Internal L - Wash. 1/4" I.D.

$4.49

$

Usually ships in 3-6 days

0

94

MTD 736-0286

Wave Washer 3/8" I.D.
(Superseded to 936-0286)

$6.99

$

In Stock, only 2 left!

0

95

MTD 738-0137

Shld. Bolt .342" Dia. x .268"

$

$

Not available

96

MTD 731-1446

Mulching Plug
(Superseded to 931-1446)

Note: Optional Parts

$

$

Not available

97

MTD 782-7010

Stop Bracket

Note: Optional Parts

$

$

Not available

98

MTD 710-1006

Hex Tap Scr. 3/8-16 x .75" Lg.
(Superseded to 910-1006)

Note: Optional Parts

$

$

Not available

99

MTD 731-1461

Chute Deflector
(Superseded to 931-1461)

Note: Optional Parts

$

$

Not available

100

MTD 782-7011

Chute Mounting Brkt.
(Superseded to 782-7011-0637)

Note: Optional Parts

Variations

MTD 782-7011-0637

Chute Mounting Bracket - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

101

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

Note: Optional Parts

$3.99

$

In Stock, Qty 17

0

102

MTD 710-0286

Mach. Scr 1/4-20 x .5" Lg.

Note: Optional Parts

$4.49

$

Usually ships in 3-6 days

0
