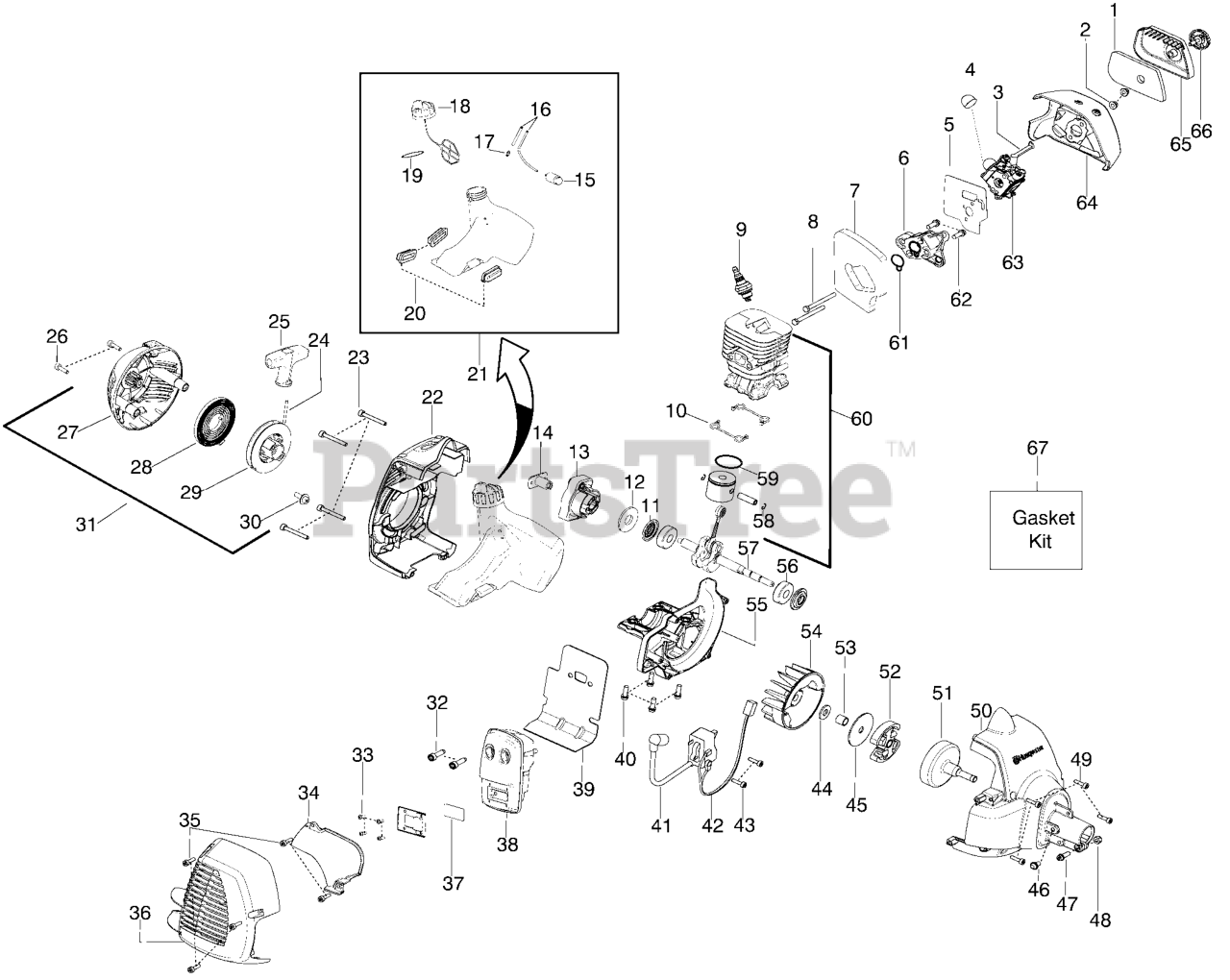

124 L - Husqvarna String Trimmer (2009-03) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Husqvarna 530150253

Filter

$3.99

$

In Stock, Qty 11

0

2

Husqvarna 530016101

Nut - Carb. Screw

$6.49

$

In Stock, only 2 left!

0

3

Husqvarna 530057844

Lever - Choke

$8.99

$

In Stock, Qty 7

0

4

Husqvarna 530058709

Bulb - Purge

$7.99

$

In Stock, Qty 11

0

5

Husqvarna 545008086

Kit-Carb. Gasket

Note: (Incl 7,63)

$18.99

$

In Stock, only 2 left!

0

6

Husqvarna 530035596

Adaptor - Carb.

$12.99

$

In Stock, only 1 left!

0

7

Husqvarna 545008084

Foam - Gasket (kit)

$26.99

$

In Stock, only 2 left!

0

8

Husqvarna 530016400

Bolt

$6.49

$

In Stock, only 1 left!

0

9

Husqvarna 952030249

Plug - Spark (RCJ-6Y)
(Superseded to 530030179)

$7.49

$

Usually ships in 3-10 days

0

10

Husqvarna 545008084

Seal - Cylinder (kit)

$26.99

$

In Stock, only 2 left!

0

11

Husqvarna 545008084

Seal - Crankshaft (kit)

$26.99

$

In Stock, only 2 left!

0

12

Washer

$

$

Not available

13

Assy - Starter Cup

$

$

Not available

14

Coupling - Starter

$

$

Not available

15

Husqvarna 530095646

Assy - Fuel Filter

$6.99

$

In Stock, Qty 20+

0

16

Husqvarna 530069599

Kit - Fuel Line

Note: (Incl. 17)

$7.49

$

In Stock, Qty 9

0

17

Husqvarna 530023877

Fitting - Fuel Line

$5.99

$

In Stock, only 4 left!

0

18

Husqvarna 530150350

Assy - Cap w/ret.
(Superseded to 578931503)

Note: (Incl. 19)

$7.99

$

In Stock, Qty 5

0

19

Husqvarna 545008084

O-Ring - Fuel Cap (kit)

$26.99

$

In Stock, only 2 left!

0

20

Husqvarna 530059780

Isolator - Fuel Tank

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 545180870

Kit - Fuel Tank

$44.99

$

In Stock, only 3 left!

0

22

Husqvarna 530057851

Shroud - Rear
(Superseded to 576153201)

Note: (Incl. 15,16,17,18,19,20)

$13.99

$

In Stock, only 4 left!

0

23

Husqvarna 530016448

Screw

$6.49

$

In Stock, Qty 6

0

24

Husqvarna 545029901

Kit - Rope

$14.99

$

In Stock, only 2 left!

0

25

Husqvarna 530150318

Handle - Starter

$6.49

$

In Stock, Qty 18

0

26

Husqvarna 530016426

Screw

$6.49

$

In Stock, only 2 left!

0

27

Husqvarna 545029603

Starter Hsg. w/eyelet

$

$

Not available

28

Husqvarna 545029801

Kit - Starter Spring
(Superseded to 545008015)

$7.99

$

In Stock, Qty 16

0

29

Husqvarna 545029701

Kit - Starter Pulley

$18.99

$

In Stock, Qty 10

0

30

Husqvarna 530016468

Screw

$6.49

$

In Stock, Qty 7

0

31

Husqvarna 545106301

Assy-Starter Hsg.

$26.99

$

In Stock, only 1 left!

0

32

Husqvarna 530058982

Bolt - Muffler

Note: (Incl. 15,16,17,18,19,20)

$4.99

$

In Stock, Qty 8

0

33

Husqvarna 530015241

Screw
(Superseded to 545227101)

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 530150440

Shield - Heat

$8.99

$

In Stock, only 1 left!

0

35

Husqvarna 530016449

Screw

$6.49

$

In Stock, only 2 left!

0

36

Husqvarna 545104901

Guard - Muffler
(Superseded to 576215001)

$14.99

$

In Stock, Qty 13

0

37

Husqvarna 545030501

Kit – Spark

Note: (Incl. 33)

$8.99

$

Usually ships in 3-10 days

0

38

Husqvarna 574031501

Kit - Muffler
(Superseded to 574031502)

Note: (Incl. 32,33,37,39)

$40.99

$

Usually ships in 3-10 days

0

39

Husqvarna 545008084

Gasket-Paper Met.(kit)

$26.99

$

In Stock, only 2 left!

0

40

Husqvarna 530015897

Screw

$6.49

$

In Stock, Qty 19

0

41

Husqvarna 530039224

Module
(Superseded to 545046701)

$56.99

$

In Stock, only 1 left!

0

42

Husqvarna 530039227

Assy - Leadwire

$8.99

$

In Stock, only 3 left!

0

43

Husqvarna 530016456

Screw

$6.49

$

In Stock, only 2 left!

0

44

Husqvarna 530016463

Washer

$6.99

$

In Stock, only 3 left!

0

45

Husqvarna 530094189

Washer - Clutch

$6.99

$

In Stock, only 1 left!

0

46

Husqvarna 530016469

Screw

$

$

Not available

47

Husqvarna 530016470

Screw

$

$

Not available

48

Husqvarna 530015768

Nut

$6.49

$

In Stock, only 2 left!

0

49

Husqvarna 530016456

Screw

$6.49

$

In Stock, only 2 left!

0

50

Husqvarna 545017501

Assy - Fan Housing

$

$

Not available

51

Assy - Clutch Drum

$

$

Not available

52

Husqvarna 545050405

Kit - Clutch Assy.
(Superseded to 525472901)

$12.99

$

Usually ships in 3-10 days

0

53

Husqvarna 530057852

Spacer

$10.99

$

In Stock, only 2 left!

0

54

Husqvarna 530039242

Flywheel

$44.99

$

In Stock, only 1 left!

0

55

Crankcase - cast

$

$

Not available

56

Husqvarna 545013401

Bearing

$10.99

$

Usually ships in 3-10 days

0

57

Crankshaft - Assy

$

$

Not available

58

Husqvarna 530015162

Retainer - Piston Pin

$6.49

$

In Stock, only 2 left!

0

59

Husqvarna 530019283

Ring - Piston
(Superseded to 575227901)

$7.49

$

In Stock, Qty 5

0

60

Kit - Cyl./Piston

Note: (Incl. 60,61)

$

$

Not available

61

Husqvarna 530015162

Seal - adaptor (kit)

$6.49

$

In Stock, only 2 left!

0

62

Husqvarna 530019283

Screw
(Superseded to 575227901)

$7.49

$

In Stock, Qty 5

0

63

Kit - Carb.

Note: (Incl. 3,4,5)

$

$

Not available

64

Airbox

$

$

Not available

65

Husqvarna 530057846

Cover - Air Box

$9.49

$

In Stock, Qty 14

0

66

Husqvarna 530059796

Assy - Knob

$5.99

$

In Stock, Qty 17

0

67

Husqvarna 545008084

Kit - Gasket

Note: (Incl. 5,7,10,11,19,39,61)

$26.99

$

In Stock, only 2 left!

0
