124 C - Husqvarna String Trimmer (SN: 20102300001 & Above) SHAFT & HANDLE Parts Diagram

String Trimmer

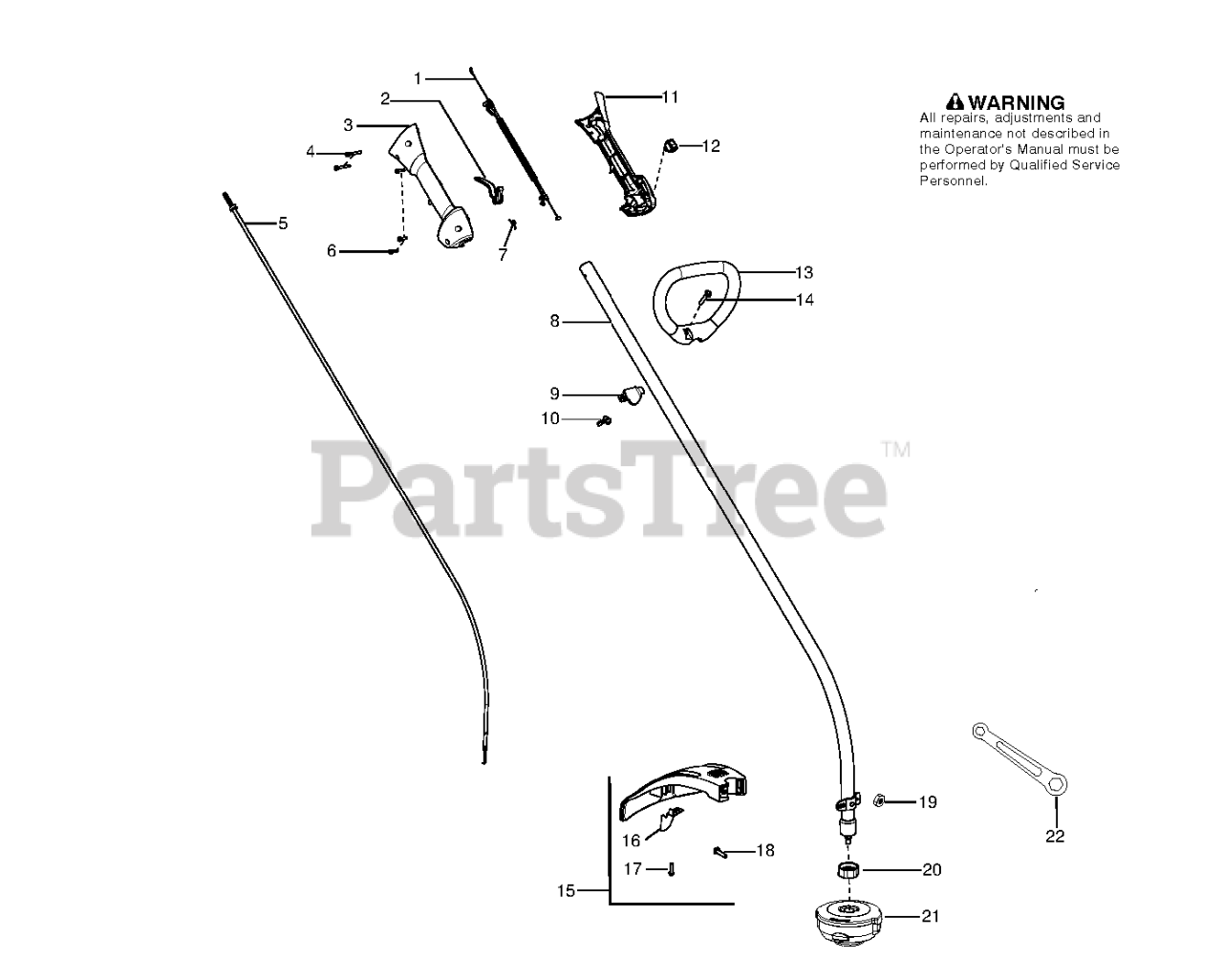

SHAFT & HANDLE Parts Diagram

  • Title

6

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, only 2 left!

0

9

Husqvarna 530059185

CLAMP ASSIST HANDLE

$6.49

$

In Stock, only 1 left!

0

10

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

5

Husqvarna 545007508

FLEX SHAFT 52"

Note: 2006-274N AND HIGHER, SERVICE REFERENCE

$22.99

$

Usually ships in 3-10 days

0

12

Husqvarna 545030601

KIT SWITCH
(Superseded to 545049301)

$10.99

$

In Stock, Qty 10

0

14

Husqvarna 530015820

BOLT, TYPE 2

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 545180802

KIT-DRIVESHAFT

$

$

Not available

18

Husqvarna 530015820

BOLT, TYPE 2

$4.99

$

In Stock, only 1 left!

0

3

Husqvarna 545062002

HOUSING-THROTTLE (RH)

$

$

Not available

13

Husqvarna 530150076

HANDLE ASSIST

$12.99

$

In Stock, Qty 5

0

16

Husqvarna 545081862

KIT - LIMITER - LINE

$6.99

$

In Stock, only 2 left!

0

1

Husqvarna 545125301

ASSY-CABLE WIRE HARNESS

Note: 2006-060N AND HIGHER. SERVICE REFERENCE

$37.99

$

In Stock, only 3 left!

0

22

Husqvarna 530056401

WRENCH

$13.99

$

Usually ships in 3-10 days

0

4

Husqvarna 530016448

SCREW

$6.49

$

In Stock, only 4 left!

0

19

Husqvarna 530015197

NUT

$6.49

$

In Stock, Qty 5

0

17

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

11

Husqvarna 545067001

HSG THROTTLE LH

$

$

Not available

21

Husqvarna 537263701

Assy-T25 Cutting Head

$

$

Not available

15

Husqvarna 545006095

SHIELD ASSY

$37.99

$

Usually ships in 3-10 days

0

20

Husqvarna 545017404

DUST CUP

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 545066001

TRIGGER THROTTLE

$

$

Not available

7

Husqvarna 530016454

SPRING TRIGGER

$6.49

$

In Stock, Qty 7

0
