124 C - Husqvarna String Trimmer (2008-01) Engine Parts Diagram

String Trimmer

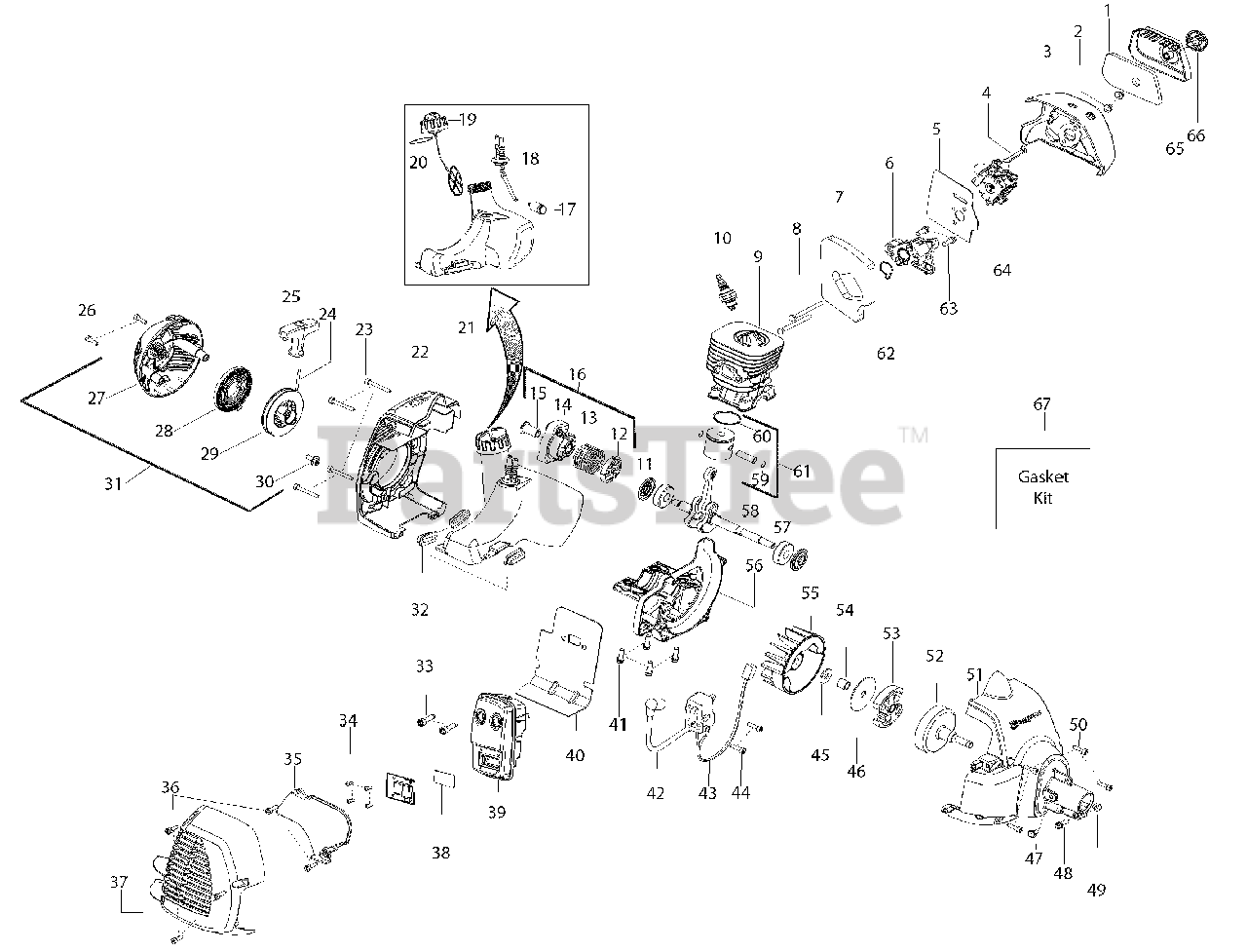

Engine Parts Diagram

  • Title

1

Husqvarna 530150253

Filter

$3.99

$

In Stock, Qty 8

0

2

Husqvarna 530016101

Nut-Carb. Screw

$6.49

$

In Stock, only 2 left!

0

3

Air Box

$

$

Not available

4

Husqvarna 530057844

Lever - Choke

$8.99

$

In Stock, Qty 7

0

5

Husqvarna 545050402

Kit-Carb. Gasket

Note: (Incl 7,62)

$18.99

$

In Stock, Qty 9

0

6

Husqvarna 530035596

Adaptor-Carb.

$12.99

$

In Stock, only 1 left!

0

7

Husqvarna 545030101

Kit-Gasket
(Superseded to 545081898)

Note: (foam)

$26.99

$

In Stock, only 1 left!

0

8

Husqvarna 530016400

Bolt

$6.49

$

In Stock, only 1 left!

0

9

Husqvarna 545001001

Cylinder
(Superseded to 545003378)

$34.99

$

In Stock, only 4 left!

0

10

Husqvarna 952030249

Plug-Spark
(Superseded to 530030179)

Note: (RCJ-6Y)

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 545050403

Kit-Crankshaft seal

$9.99

$

In Stock, only 4 left!

0

12

Washer - Starter

$

$

Not available

13

Spring - Starter Cup

$

$

Not available

14

Assy - Starter Cup

$

$

Not available

15

Coupling - Starter

$

$

Not available

16

Husqvarna 545008017

Kit - Starter
(Superseded to 545180844)

Note: (Incl. 12,13,14,15)

$37.99

$

In Stock, only 4 left!

0

17

Husqvarna 530095646

Assy - Fuel Filter

$6.99

$

In Stock, Qty 20+

0

18

Husqvarna 545081897

Kit - Fuel Line

$18.99

$

In Stock, Qty 11

0

19

Husqvarna 530150350

Assy-Cap w/ret.
(Superseded to 578931503)

Note: (Incl. 20)

$7.99

$

In Stock, only 4 left!

0

20

Husqvarna 530019293

O-ring - Fuel Cap

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 545105105

Assy-Fuel Tank
(Superseded to 545105107)

Note: (Incl. 17,18,19,20)

$

$

Not available

22

Husqvarna 530057851

Shroud-Rear
(Superseded to 576153201)

$13.99

$

In Stock, only 4 left!

0

23

Husqvarna 530016448

Screw

$6.49

$

In Stock, only 4 left!

0

24

Husqvarna 545029901

Kit-Rope

$14.99

$

In Stock, only 2 left!

0

25

Husqvarna 530150318

Handle - Starter

$6.49

$

In Stock, Qty 18

0

26

Husqvarna 530016426

Screw

$6.49

$

In Stock, only 2 left!

0

27

Husqvarna 545029603

Starter Hsg. w/eyelet

$

$

Not available

28

Husqvarna 545029801

Kit-Starter Spring
(Superseded to 545008015)

$7.99

$

In Stock, Qty 16

0

29

Husqvarna 545029701

Kit-Starter Pulley

$18.99

$

In Stock, Qty 10

0

30

Husqvarna 530016468

Screw

$6.49

$

In Stock, Qty 7

0

31

Husqvarna 545106301

Assy-Starter Hsg.

Note: (Incl. 24,25,27,28,29,30)

$26.99

$

In Stock, only 1 left!

0

32

Husqvarna 530059780

Isolator-Tank

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 530058982

Bolt-Muffler

$4.99

$

In Stock, Qty 7

0

34

Husqvarna 530015496

Screw

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 530150440

Shield-Heat

$8.99

$

In Stock, only 1 left!

0

36

Husqvarna 530016449

Screw

$6.49

$

In Stock, only 2 left!

0

37

Husqvarna 545104901

Guard-Muffler
(Superseded to 576215001)

$14.99

$

In Stock, Qty 13

0

38

Husqvarna 545030501

Kit-Spark Arrestor

Note: (Incl. 34)

$8.99

$

In Stock, only 1 left!

0

39

Husqvarna 545057501

Assy-Muffler
(Superseded to 574031502)

$40.99

$

In Stock, only 1 left!

0

40

Husqvarna 530057848

Gasket-Paper Metal

$12.99

$

Usually ships in 3-10 days

0

41

Husqvarna 530015897

Screw

$6.49

$

In Stock, Qty 19

0

42

Husqvarna 530039224

Module
(Superseded to 545046701)

$56.99

$

Usually ships in 3-10 days

0

43

Husqvarna 530039227

Assy-Leadwire

$8.99

$

In Stock, only 3 left!

0

44

Husqvarna 530016456

Screw

$6.49

$

In Stock, only 2 left!

0

45

Husqvarna 530016463

Washer

$6.99

$

In Stock, only 3 left!

0

46

Husqvarna 530094189

Washer-Clutch

$6.99

$

In Stock, only 1 left!

0

47

Husqvarna 530016469

Screw

$

$

Not available

48

Husqvarna 530016470

Screw

$

$

Not available

49

Husqvarna 530015768

Locknut

$6.49

$

In Stock, only 2 left!

0

50

Husqvarna 530016456

Screw

$6.49

$

In Stock, only 2 left!

0

51

Husqvarna 545017501

Assy-Fan Housing

$

$

Not available

52

Assy-Clutch Drum

$

$

Not available

53

Husqvarna 545050405

Kit-Clutch Assy.
(Superseded to 525472901)

$12.99

$

Usually ships in 3-10 days

0

54

Husqvarna 530057852

Spacer

$10.99

$

In Stock, only 2 left!

0

55

Husqvarna 530039242

Flywheel

$44.99

$

In Stock, only 1 left!

0

56

Husqvarna 545054601

Crankcase

$27.99

$

Usually ships in 3-10 days

0

57

Husqvarna 545013401

Bearing

$10.99

$

Usually ships in 3-10 days

0

58

Husqvarna 545030001

Kit-Crankshaft

$60.99

$

Usually ships in 3-10 days

0

59

Husqvarna 530015162

Retainer-Piston Pin

$6.49

$

In Stock, only 1 left!

0

60

Husqvarna 530019283

Ring-Piston
(Superseded to 575227901)

$7.49

$

In Stock, only 4 left!

0

61

Husqvarna 545030301

Kit-Piston

Note: (Incl. 59,60)

$60.99

$

Usually ships in 3-10 days

0

62

Husqvarna 545030101

Kit-Gasket
(Superseded to 545081898)

Note: (adaptor seal)

$26.99

$

In Stock, only 1 left!

0

63

Husqvarna 530015897

Screw

$6.49

$

In Stock, Qty 19

0

64

Kit-Carb.

Note: (Incl. 4,5)

$

$

Not available

65

Husqvarna 530057846

Cover-Air Box

$9.49

$

In Stock, Qty 12

0

66

Husqvarna 530059796

Assy-Knob

$5.99

$

In Stock, Qty 13

0

67

Husqvarna 545030101

Kit-Gasket
(Superseded to 545081898)

Note: (Incl. 5,7,11,20,40,62)

$26.99

$

In Stock, only 1 left!

0

Husqvarna 530058709

Bulb-Purge

Note: Not Shown

$7.99

$

In Stock, only 1 left!

0

Husqvarna 545039105

Decal-Starter Housing

Note: Not Shown

$

$

Not available
