124 C - Husqvarna String Trimmer (2006-05) Engine, Fuel Tank & Ignition Parts Diagram

String Trimmer

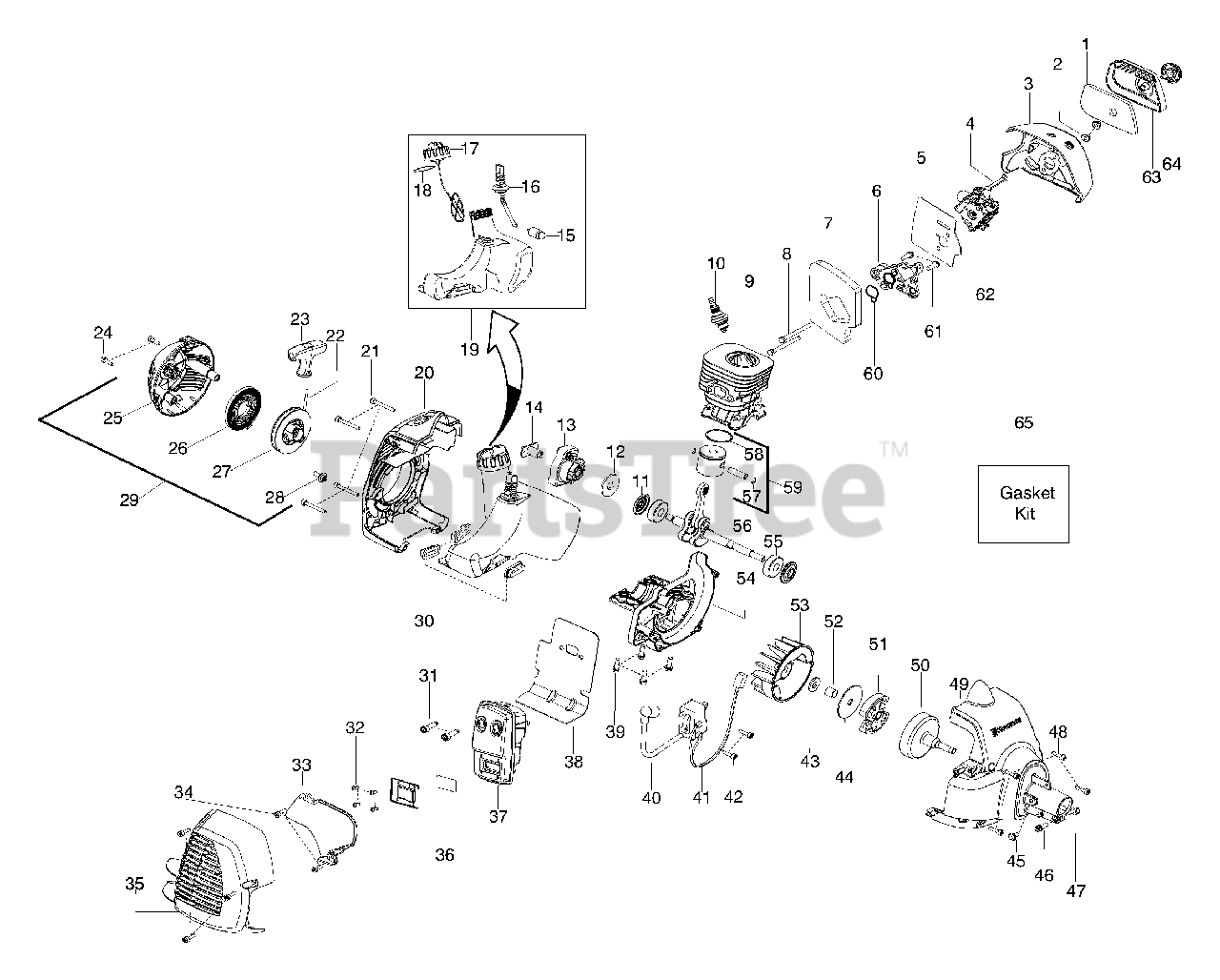

Engine, Fuel Tank & Ignition Parts Diagram

  • Title

1

Husqvarna 530150253

Filter

$3.99

$

In Stock, only 2 left!

0

2

Husqvarna 530016101

Nut-Carb. Screw

$6.49

$

In Stock, only 2 left!

0

3

Husqvarna 545084601

Air Box
(Superseded to 576459001)

$7.99

$

In Stock, only 2 left!

0

4

Husqvarna 530057844

Lever - Choke

$8.99

$

In Stock, Qty 7

0

5

Husqvarna 545050402

Kit-Carb. Gasket

Note: (Incl 7,60)

$18.99

$

In Stock, Qty 9

0

6

Husqvarna 530035596

Adaptor-Carb.

$12.99

$

In Stock, only 1 left!

0

7

Husqvarna 545030101

Kit-Gasket (foam)
(Superseded to 545081898)

$26.99

$

In Stock, only 1 left!

0

8

Husqvarna 530016400

Bolt

$6.49

$

In Stock, only 1 left!

0

9

Husqvarna 545001001

Cylinder
(Superseded to 545003378)

$34.99

$

In Stock, only 4 left!

0

10

Husqvarna 952030201

Plug-Spark
(Superseded to 503235112)

Note: (RCJ-8Y)

$3.99

$

In Stock, Qty 11

0

11

Husqvarna 545050403

Kit-Crankshaft seal

$9.99

$

In Stock, only 4 left!

0

12

Husqvarna 530015828

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 545102302

Assy-Starter Cup
(Superseded to 545102303)

$17.99

$

In Stock, Qty 18

0

14

Husqvarna 545099201

Coupling-Starter

$8.99

$

In Stock, Qty 5

0

15

Husqvarna 530095646

Assy-Fuel Filter

$6.99

$

In Stock, Qty 19

0

16

Husqvarna 545030201

Kit-Fuel Line
(Superseded to 545081897)

$18.99

$

In Stock, Qty 11

0

17

Husqvarna 530150350

Assy-Cap w/ret.
(Superseded to 578931503)

Note: (Incl. 18)

$7.99

$

In Stock, only 3 left!

0

18

Husqvarna 530019293

O-ring - Fuel Cap

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 545105101

Assy-Fuel Tank
(Superseded to 545105107)

Note: (Incl. 15,16,17,18)

$

$

Not available

20

Husqvarna 530057851

Shroud-Rear
(Superseded to 576153201)

$13.99

$

In Stock, only 4 left!

0

21

Husqvarna 530016448

Screw

$6.49

$

In Stock, only 4 left!

0

22

Husqvarna 545029901

Kit-Rope

$14.99

$

In Stock, only 2 left!

0

23

Husqvarna 530150318

Handle-Starter

$6.49

$

In Stock, Qty 18

0

24

Husqvarna 530016426

Screw

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 545029603

Starter Hsg. w/eyelet

$

$

Not available

26

Husqvarna 545029801

Kit-Starter Spring
(Superseded to 545008015)

$7.99

$

In Stock, Qty 16

0

27

Husqvarna 545029701

Kit-Starter Pulley

$18.99

$

In Stock, Qty 10

0

28

Husqvarna 530016468

Screw

$6.49

$

In Stock, Qty 7

0

29

Husqvarna 545106301

Assy-Starter Hsg.

Note: (Incl.22,23,25,26,27,28)

$26.99

$

Usually ships in 3-10 days

0

30

Husqvarna 530059780

Isolator-Tank

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 530058982

Bolt-Muffler

$4.99

$

In Stock, Qty 7

0

32

Husqvarna 530015496

Screw

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 530150440

Shield-Heat

$8.99

$

In Stock, only 1 left!

0

34

Husqvarna 530016449

Screw

$6.49

$

In Stock, only 2 left!

0

35

Husqvarna 545104901

Guard-Muffler
(Superseded to 576215001)

$14.99

$

In Stock, Qty 13

0

36

Husqvarna 545030501

Kit-Spark Arrestor

Note: (Incl. 32)

$8.99

$

In Stock, only 1 left!

0

37

Husqvarna 545057501

Assy-Muffler
(Superseded to 574031502)

$40.99

$

In Stock, only 1 left!

0

38

Husqvarna 530057848

Gasket-Paper Metal

$12.99

$

Usually ships in 3-10 days

0

39

Husqvarna 530015897

Screw

$6.49

$

In Stock, Qty 19

0

40

Husqvarna 530039224

Module
(Superseded to 545046701)

$56.99

$

In Stock, only 1 left!

0

41

Husqvarna 530039227

Assy-Leadwire

$8.99

$

In Stock, only 3 left!

0

42

Husqvarna 530016456

Screw

$6.49

$

In Stock, only 2 left!

0

43

Husqvarna 530016030

Washer

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 530094189

Washer-Clutch

$6.99

$

In Stock, only 1 left!

0

45

Husqvarna 530016469

Screw

$

$

Not available

46

Husqvarna 530016470

Screw

$

$

Not available

47

Husqvarna 530403094

Nut

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 530016456

Screw

$6.49

$

In Stock, only 2 left!

0

49

Husqvarna 545017501

Assy-Fan Housing

$

$

Not available

50

Husqvarna 545106801

Assy-Clutch Drum

$

$

Not available

51

Husqvarna 545050405

Kit-Clutch Assy.
(Superseded to 525472901)

$12.99

$

Usually ships in 3-10 days

0

52

Husqvarna 530057852

Spacer

$10.99

$

In Stock, only 2 left!

0

53

Husqvarna 530039242

Flywheel

$44.99

$

In Stock, only 1 left!

0

54

Husqvarna 545054601

Crankcase

$27.99

$

Usually ships in 3-10 days

0

55

Husqvarna 545013401

Bearing

$10.99

$

In Stock, only 2 left!

0

56

Husqvarna 545030001

Kit-Crankshaft

$60.99

$

Usually ships in 3-10 days

0

57

Husqvarna 530015162

Retainer-Piston Pin

$6.49

$

In Stock, only 1 left!

0

58

Husqvarna 530019283

Ring-Piston
(Superseded to 575227901)

$7.49

$

In Stock, only 4 left!

0

59

Husqvarna 545030301

Kit-Piston

Note: (Incl. 57,58)

$60.99

$

Usually ships in 3-10 days

0

60

Husqvarna 545030101

Kit-Gasket
(Superseded to 545081898)

Note: (adaptor seal)

$26.99

$

In Stock, only 1 left!

0

61

Husqvarna 530015897

Screw

$6.49

$

In Stock, Qty 19

0

62

Husqvarna 545030401

Kit-Carb.
(Superseded to 545006061)

Note: (Incl. 4,5)

$87.99

$

In Stock, only 2 left!

0

63

Husqvarna 530057846

Cover-Air Box

$9.49

$

In Stock, Qty 12

0

64

Husqvarna 530059796

Assy-Knob

$5.99

$

In Stock, Qty 13

0

65

Husqvarna 545030101

Kit-Gasket
(Superseded to 545081898)

Note: (Incl. 5,7,11,18,38,60)

$26.99

$

In Stock, only 1 left!

0

Husqvarna 530058709

Bulb-Purge

Note: Not Shown

$7.99

$

In Stock, only 1 left!

0
