124-538P190 - White Outdoor 22" Walk-Behind Mower (1994) Transmission And Guards Parts Diagram

22" Walk-Behind Mower

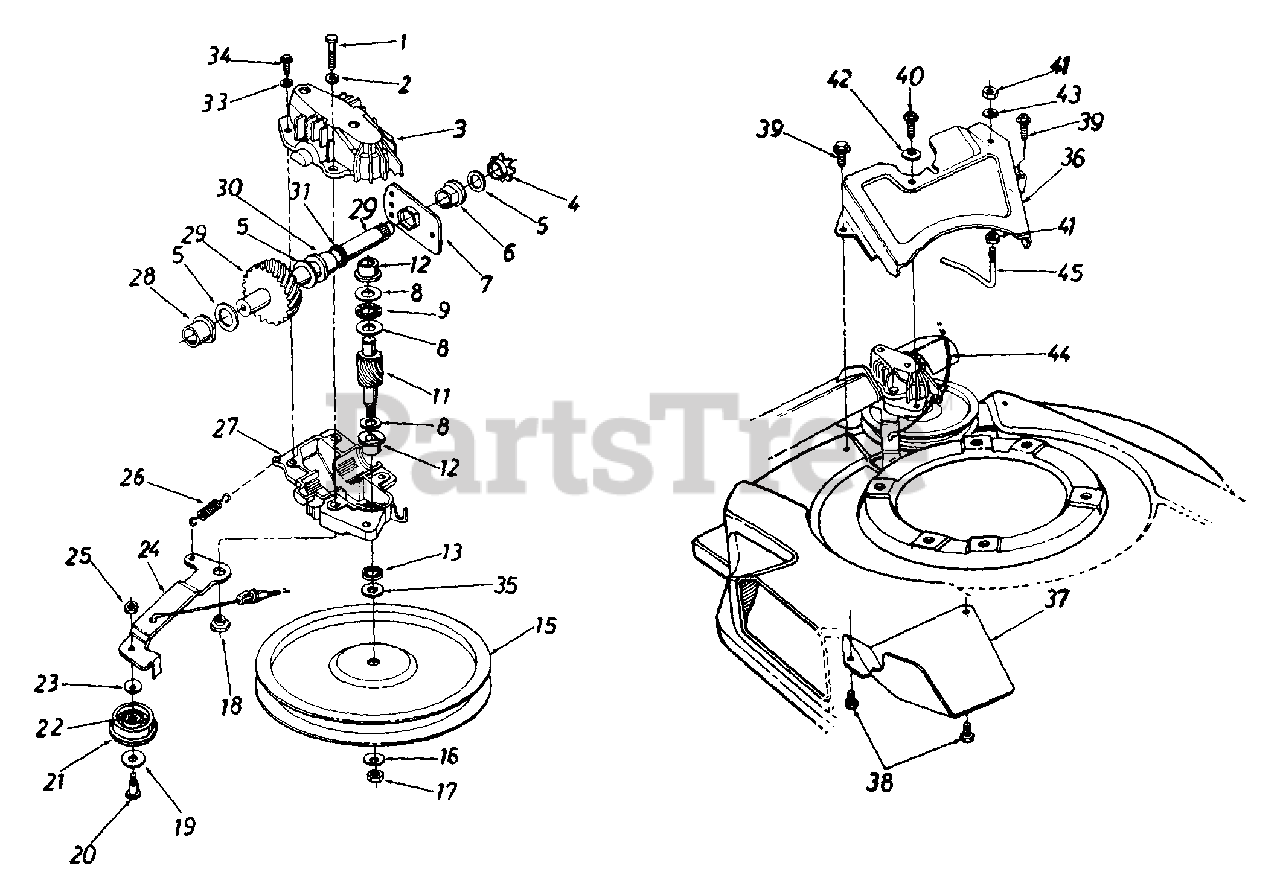

Transmission And Guards Parts Diagram

  • Title

1

MTD 710-1062

Hex Patch Bolt 1/4-20 x 1.25" Lg.

$6.49

$

Usually ships in 3-6 days

0

2

MTD 726-0329

L-Wash. 1/4" I.D.

Note: NLA

$

$

Currently unavailable

3

MTD 717-0418A

Upper Hsg. Half

$

$

Not available

4

MTD 713-0400

#48 Sprocket 7 Tooth x 1/2 Pitch

$

$

Not available

5

MTD 936-0336

Fl-Wash. 5/8" I.D. x .030

$4.49

$

In Stock, Qty 7

0

6

MTD 941-0413

Hex Flange Brg. .631" I.D.

$10.99

$

Usually ships in 3-6 days

0

7

MTD 16500A-0637

Hex Bearing Cup

$8.99

$

Usually ships in 3-6 days

0

8

MTD 936-0314

Thrust Wash. .382" I.D. x .70" O.D.
(Superseded to 736-0314)

$

$

Not available

9

MTD 741-0479

Thrust Bearing .375" I.D. x .812" O.D.

$11.99

$

Usually ships in 3-6 days

0

11

MTD 917-1216

11 Tooth Helical Gear

$

$

Not available

12

MTD 748-0208A

Flange Bearing

$4.49

$

Usually ships in 3-6 days

0

13

MTD 721-0212

Oil Seal

$

$

Not available

15

MTD 756-0330A

Fl-Pulley 5.06" I.D.

$

$

Not available

16

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

17

MTD 912-0351

Hex Nut 1/4-28 L.H. Thd.
(Superseded to 712-04326)

$14.99

$

In Stock, only 1 left!

0

18

MTD 738-0440

Shld. Spacer .375" Dia. x .170

$5.99

$

In Stock, only 4 left!

0

19

MTD 936-0344

Fl-Wash. .390" I.D. x 1.0"
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

20

MTD 938-0826

Shld. Bolt .375" Dia. x .40"

$12.99

$

In Stock, Qty 5

0

21

MTD 956-0008

Fl-Idler Plastic 1.50" Dia.

$20.99

$

In Stock, only 2 left!

0

22

MTD 941-0556

Needle Brg. .375" x .375"
(Superseded to 741-0556)

$

$

Not available

23

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

24

MTD 17052A

Idler Brk't. Ass'y.

$

$

Not available

25

MTD 912-0138

Hex Patch L-Nut 1/4-28 Thd.
(Superseded to 712-0138)

$

$

Not available

26

MTD 932-0357A

Extension Spring 1.12" Lg.
(Superseded to 732-0357A)

$4.49

$

In Stock, Qty 13

0

27

MTD 717-0419A

Lower Hsg. Half

Note: NLA

$

$

Not available

28

MTD 941-0415

Flange Bearing .56 Dia.

$10.99

$

Usually ships in 3-6 days

0

29

MTD 717-0616A

Sprocket Shaft Ass'y.

$

$

Not available

30

MTD 741-0414

Flange Bearing .629 Dia.

$10.99

$

Usually ships in 3-6 days

0

31

MTD 721-0213

Oil Seal .625 Dia.

$10.99

$

In Stock, Qty 15

0

33

MTD 936-0722

L-Wash. #10 I.D.
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

34

MTD 710-0651

Hex B-Tap Scr. #10 x .62"

$3.99

$

Usually ships in 3-6 days

0

35

MTD 936-0410

Hex Washer .26" x .88"

$

$

Not available

36

MTD 17718

Transmission Belt Guard

Note: NLA

Variations

MTD 17718-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

MTD 17718-0638

No Longer Available GUARD-BELT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17718-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17718-0665

No Longer Available GUARD-BELT - YARDMAN GREEN (0665)

$

$

Not available

$

$

37

MTD 17064

Belt Cover

Note: NLA

Variations

MTD 17064-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 710-0352

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

39

MTD 710-0599

Hex AB-Tap Scr. 1/4 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

40

MTD 710-0896

Hex B-Tap Scr. 1/4 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

41

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

42

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

43

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

44

MTD 946-0710A

S.P. Cable - 48" Lg.

$40.99

$

In Stock, only 4 left!

0

45

MTD 747-0549

S.P. Belt Guard

$

$

Not available

MTD 917-0417B

Transmission Comp.

$234.99

$

Usually ships in 3-6 days

0
