124-456B033 - MTD Walk-Behind Mower (1994) (Ace Hardware) Engine, Grass Catcher, Mulching Kit And Chute Deflector Parts Diagram

Walk-Behind Mower

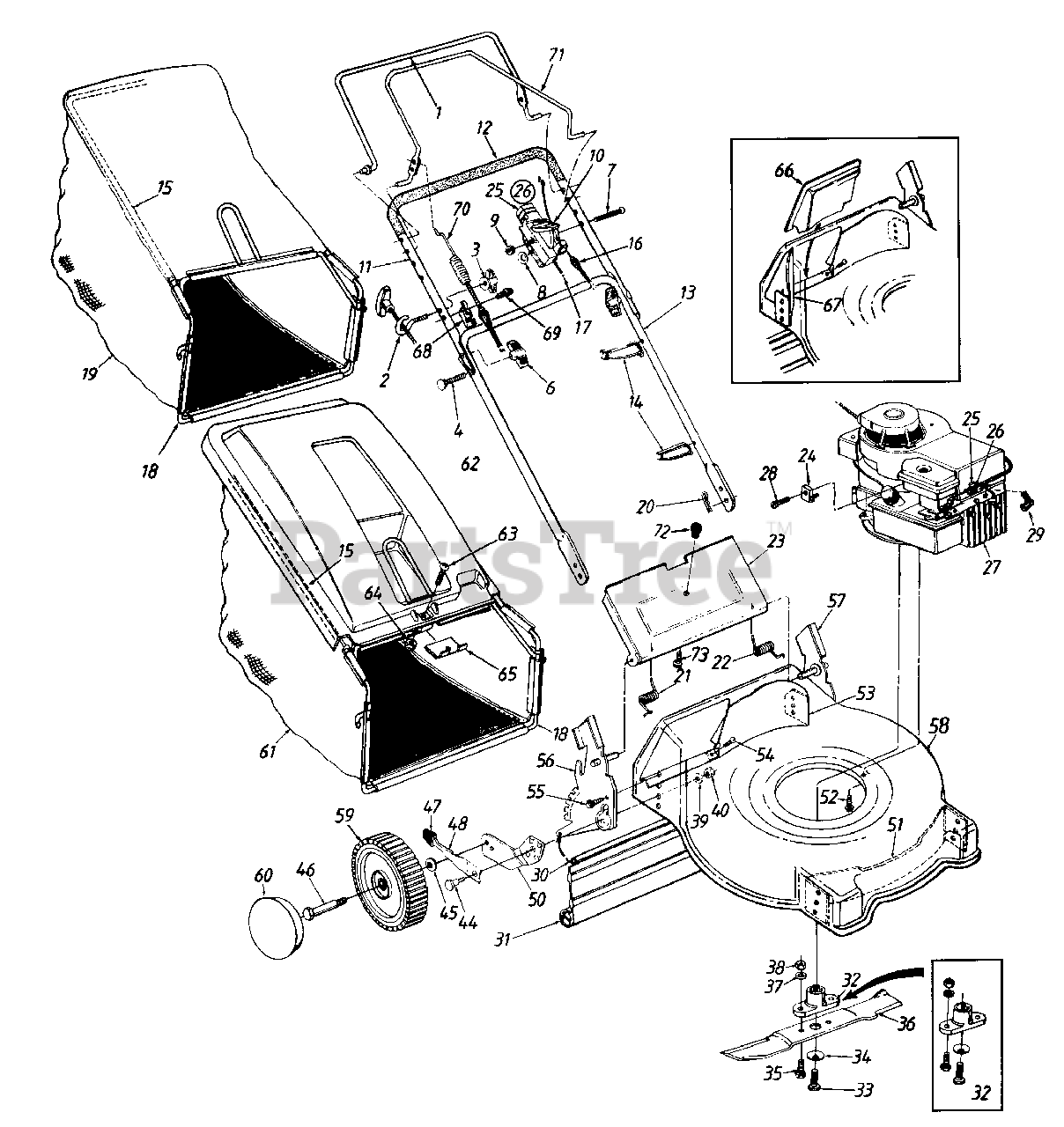

Engine, Grass Catcher, Mulching Kit And Chute Deflector Parts Diagram

  • Title

1

MTD 747-0824

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

2

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

3

MTD 720-0279

Handle Knob 1/4-20 Thd.

Note: New Part

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

6

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

7

MTD 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 2 left!

0

8

MTD 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

9

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

10

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 3 left!

0

11

MTD 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 720-0226

Foam Grip
(Superseded to 720-0295)

Note: (Optional)

$33.99

$

Usually ships in 3-6 days

0

13

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

MTD 764-0310

Rear Catcher Frame
(Superseded to 764-0310A-0637)

Variations

MTD 764-0310-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

16

MTD 746-0550

Control Cable-39"
(Superseded to 946-0550)

Note: For model (442, 452)

$21.99

$

In Stock, only 3 left!

0

MTD 746-0553

Control Cable-36"
(Superseded to 946-0553)

Note: For model (446, 448, 456, 458)

$24.99

$

Usually ships in 3-6 days

0

MTD 746-0737

Control Cable-51"
(Superseded to 946-0737)

Note: For model (457)

$28.99

$

In Stock, only 4 left!

0

17

MTD 746-0847

Throttle Control Wire-42"
(Superseded to 946-1115)

Note: For model (457)

$28.99

$

In Stock, only 1 left!

0

MTD 746-0843

Throttle Control Wire-55"
(Superseded to 946-0671A)

Note: For model (442, 446, 448, 456, 452, 458)

$14.99

$

Usually ships in 3-6 days

0

18

MTD 764-0311

Front Catcher Frame
(Superseded to 764-0311-0637)

Variations

MTD 764-0311-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 764-0309

Grass Bag
(Superseded to 964-0309)

Note: For models 442 thru 448 only.

$151.99

$

Usually ships in 3-6 days

0

20

MTD 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

21

MTD 732-0678

Door Spring-R.H.

$8.49

$

Usually ships in 3-6 days

0

22

MTD 732-0677

Door Spring-L.H.
(Superseded to 932-0677)

$

$

Not available

23

MTD 782-7000

Rear Discharge Door

Variations

MTD 782-7000-0483

DOOR-REAR DISCHARG - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-7000-0637

DOOR-REAR DISCHARG - POWDER BLACK (0637)

$

$

Not available

MTD 782-7000-0638

DOOR-REAR DISCHARG - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-7000-0662

DOOR-REAR DISCHARG - OYSTER GRAY (0662)

$

$

Not available

MTD 782-7000-0665

DOOR-REAR DISCHARG - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-7000-0674

No Longer Available DOOR-REAR - YARDMAN YELLOW (0674)

$

$

Not available

$

$

24

MTD 751B213146

Cable Clamp (B&S)
(Superseded to BS-690798)

Note: New Part

$5.49

$

In Stock, only 1 left!

0

25

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

26

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl Ref. 7, 8, 9, 19, 25)

$36.99

$

In Stock, only 1 left!

0

27

Engine

$

$

Not available

28

MTD 710-1237

Hex Wash. Hd. Scr. #10-32 x .62" Lg. (B&S)

$4.49

$

Usually ships in 3-6 days

0

29

MTD 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

30

MTD 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

31

MTD 731-1236

Rear Flap
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

32

MTD 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

33

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, only 1 left!

0

34

MTD 736-0452

Bell-Wash. 39" I.D.

$4.99

$

In Stock, Qty 5

0

MTD 736-0453

Bell-Wash. .46" I.D.
(Superseded to 936-0453)

Note: (Used w/Splined Adapter)

$3.49

$

Usually ships in 3-6 days

0

35

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

36

MTD 742-0621

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

MTD 742-0721

21" Mulching Blade
(Superseded to 942-0721)

Note: (Optional)

$32.99

$

Usually ships in 3-6 days

0

37

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

38

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

39

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

40

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

44

MTD 738-0507B

Shld. Bolt .5" Dia. x .357"

$4.49

$

In Stock, only 4 left!

0

45

MTD 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

46

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

48

MTD 732-0417A

Spring Lever

$

$

Not available

50

MTD 14765

Pivot Bar

$19.99

$

Usually ships in 3-6 days

0

51

MTD 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

52

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, only 4 left!

0

53

MTD 782-5003

Rear Baffle
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

54

MTD 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

55

MTD 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

56

MTD 682-0514

Handle Brkt. Ass'y.-R.H.
(Superseded to 682-0516-0637)

$

$

Not available

57

MTD 682-0513

Handle Brkt. Ass'y.-L.H.
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

58

MTD 782-0020

21" R.D. Deck

Variations

MTD 782-0020-0483

No Longer Available DECK ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-0020-0499

No Longer Available DECK ASM - CUB BEIGE (0499)

$

$

Not available

MTD 782-0020-0629

No Longer Available DECK ASM - SILVER FLAKE (0629)

$

$

Not available

MTD 782-0020-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0020-0648

No Longer Available DECK ASM - TECH GRAY (0648)

$

$

Not available

MTD 782-0020-0662

No Longer Available DECK ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 782-0020-0691

No Longer Available DECK ASM - BLACK JACK (0691)

$

$

Not available

$

$

59

MTD 634-0020

Wheel Ass'y. Comp.

$39.99

$

In Stock, Qty 6

0

60

MTD 720-0249

Hub Cap 3-1/2" Dia.
(Superseded to 920-0249)

Note: (Optional)

$

$

Not available

MTD 731-0981A

Hub Cap 5-1/2" Dia.
(Superseded to 731-0981C)

Note: (Optional)

$10.99

$

In Stock, only 2 left!

0

61

MTD 764-0433

Grass Bag
(Superseded to 964-0433)

Note: For models 452 thru 458 only

$

$

Not available

62

MTD 731-1322

Hard Top Cover
(Superseded to 731-1876)

Note: For models 452 thru 458 only

$

$

Not available

63

MTD 710-0286

Pan Hd. Mach. Scr. 1/4-20 x .5" Lg.

Note: For models 452 thru 458 only

$4.49

$

Usually ships in 3-6 days

0

64

MTD 712-0324

Hex Nylon L-Nut 1/4-20 Thd.

Note: For models 452 thru 458 only

$3.99

$

In Stock, Qty 16

0

65

MTD 782-9011

Mounting Bracket
(Superseded to 782-9011-0637)

Variations

MTD 782-9011-0637

BRACKET-MTG - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

66

MTD 782-5007

Mulching Baffle Plug
(Superseded to 782-5007C)

Note: (Optional)

Variations

MTD 782-5007-0637

Mulching Baffle Plug - POWDER BLACK (0637)

$52.99

$

In Stock, only 1 left!

0

$52.99

$

In Stock, only 1 left!

0

67

MTD 782-5004

Mulching Baffle-R.R.
(Superseded to 782-5004B)

Note: (Optional)

Variations

MTD 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

MTD 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

68

MTD 16309A

Cable Mtg. Brkt.

$

$

Not available

69

MTD 710-0726

Hex Wash. AB-Tap Scr. 5/16" x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

70

MTD 746-0906

S.P. Cable 44.75" Lg.
(Superseded to 946-0906)

$55.99

$

Usually ships in 3-6 days

0

71

MTD 747-0854

Drive Control Lever
(Superseded to 747-0854-0637)

Variations

MTD 747-0854-0637

LEVER-DRIVE CONTRO - POWDER BLACK (0637)

$

$

Not available

$

$

72

MTD 720-0275

Knob

$

$

Not available

73

MTD 710-0192

Truss Mach. Scr. #10-24 x .38" Lg.

$3.99

$

In Stock, Qty 12

0

Soft Top

Note: For model 190-088-000; Complete grass catcher

$

$

Not available

Hard Top

Note: For model 190-091-000; Complete grass catcher

$

$

Not available

Mulching Kit

Note: For model 190-099-000; Attachments available

$

$

Not available

Chute Deflector

Note: For model 190-104-000; Attachments available

$

$

Not available
