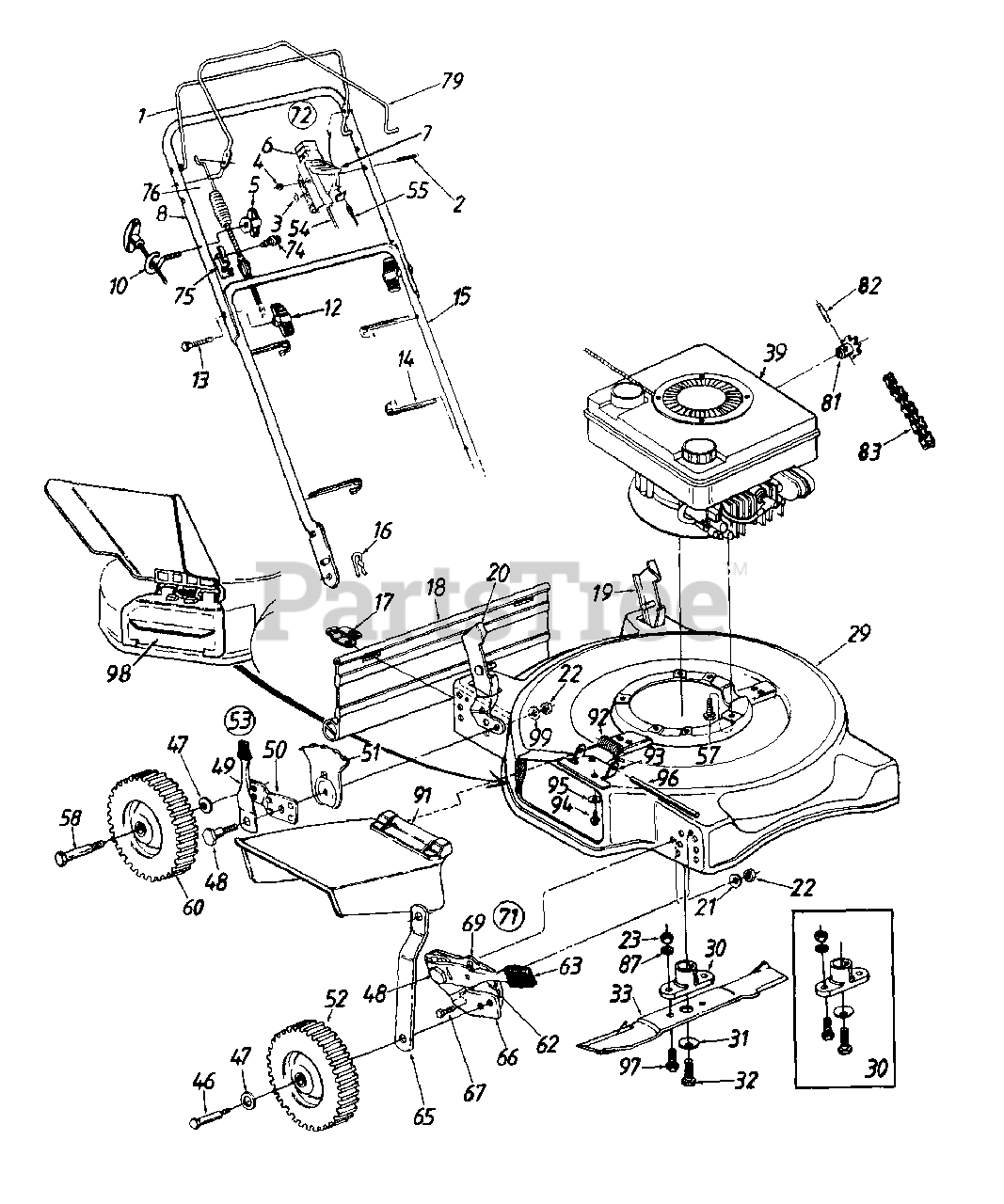

124-265D302 - MTD Walk-Behind Mower (1994) (Builder's Square) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

2

MTD 710-0602

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0501

Spr. Wash .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

4

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

5

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

6

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

Note: New Part

$9.49

$

In Stock, only 3 left!

0

7

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 3 left!

0

8

MTD 749-0824

Upper Handle

Variations

MTD 749-0824-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

12

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

13

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

16

MTD 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

17

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

MTD 731-1029

Rear Flap

$26.99

$

Usually ships in 3-6 days

0

19

MTD 17189B

Handle Bracket Ass'y.- L.H.

Variations

MTD 17189B-0637

Handle Bracket Ass'y.-L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 17188B

Handle Bracket Ass'y.- R.H.

Variations

MTD 17188B-0637

Handle Bracket Assembly, RH - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 736-0105

Bell-Wash .39" I.D. x 1.38"

$4.49

$

In Stock, Qty 20+

0

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

23

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

29

MTD 17046

22" Deck Ass'y.
(Superseded to 97046)

$197.99

$

Usually ships in 3-6 days

0

30

MTD 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

31

MTD 736-0452

Bell-Wash .39" I.D.

$4.99

$

In Stock, Qty 5

0

32

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, only 1 left!

0

33

MTD 742-0622

22" Blade
(Superseded to 942-0622)

$

$

Not available

MTD 742-0722

22" Mulching Blade
(Superseded to 942-0722)

Note: (Optional), Part of Optional Mulching Kit-For model 190-100-000.

$31.99

$

Usually ships in 3-6 days

0

39

Engine

$

$

Not available

46

MTD 738-0144

Front Axle Bolt
(Superseded to 938-0144)

$

$

Not available

47

MTD 736-0105

Bell-Wash .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

48

MTD 738-0507B

Shld. Bolt .50" Dia. x .357"

$4.49

$

In Stock, Qty 20+

0

49

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

MTD 734-1174A

Front Wheel Ass'y. Comp.

$

$

Not available

53

MTD 14578

Height Adj. Ass'y. Comp.- R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp.- L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

54

MTD 746-0845

Throttle Control Wire - 45"
(Superseded to 946-1115)

$28.99

$

In Stock, only 1 left!

0

55

MTD 746-0737

Control Cable - 51"
(Superseded to 946-0737)

$28.99

$

In Stock, only 4 left!

0

57

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

58

MTD 738-0102

Rear Axle Bolt

$9.99

$

In Stock, Qty 10

0

60

MTD 734-1174A

Rear Wheel Ass'y. Comp.

$

$

Not available

62

MTD 732-0417A

Spring Lever

$

$

Not available

63

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

?64

MTD 736-0192

Fl-Wash .531" I.D. x .93"

$4.49

$

In Stock, Qty 18

0

65

MTD 16532B

Link 5.3" Lg.
(Superseded to 16532B-0637)

Variations

MTD 16532B-0637

No Longer Available LINK-5.3 LG - POWDER BLACK (0637)

$

$

Not available

$

$

66

MTD 14765

Pivot Bar R.H.

$19.99

$

Usually ships in 3-6 days

0

MTD 14766

Pivot Bar L.H.

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

67

MTD 710-0892

Hex AB-Tap 1/4-.62" Lg.
(Superseded to 910-0892)

$

$

Not available

69

MTD 14764C

Index Plate

$8.49

$

Usually ships in 3-6 days

0

71

MTD 16106

Front Height Adj. Ass'y.- R.H.

$

$

Not available

MTD 16107

Front Height Adj. Ass'y.- L.H.

Note: (Not Shown)

$

$

Not available

72

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 2, 3, 4, 6, 7)

$36.99

$

In Stock, only 1 left!

0

74

MTD 710-0726

Hex Wash. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

75

MTD 16309A

Cable Brkt.

$

$

Not available

76

MTD 746-0626

Clutch Cable w/Spring - 47"
(Superseded to 946-0626)

$68.99

$

Usually ships in 3-6 days

0

79

MTD 747-0854

S.P. Bail Ass'y.
(Superseded to 747-0854-0637)

Variations

MTD 747-0854-0637

LEVER-DRIVE CONTRO - POWDER BLACK (0637)

$

$

Not available

$

$

81

MTD 713-0308

10 Tooth Sprocket Ass'y.

$

$

Not available

82

MTD 715-0247

Spring Pin Spir. 3/16" Dia. x 1" Lg.
(Superseded to 915-0247)

$

$

Not available

83

MTD 713-0311

#48 Chain 1/2" Pitch 50 Links (Endless)
(Superseded to 913-0311)

$31.99

$

Usually ships in 3-6 days

0

87

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

91

MTD 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

92

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

93

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

94

MTD 710-0599

Hex Self-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

95

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

96

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

97

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

98

MTD 731-1386A

Mulching Plug
(Superseded to 731-1386D)

Note: (Optional), Part of Optional Mulching Kit-For model 190-100-000.

$

$

Not available

99

MTD 736-0356

Bell-Wash .39" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available
