124-138C302 - MTD Walk-Behind Mower (1994) (Builder's Square) General Assembly Parts Diagram

Walk-Behind Mower

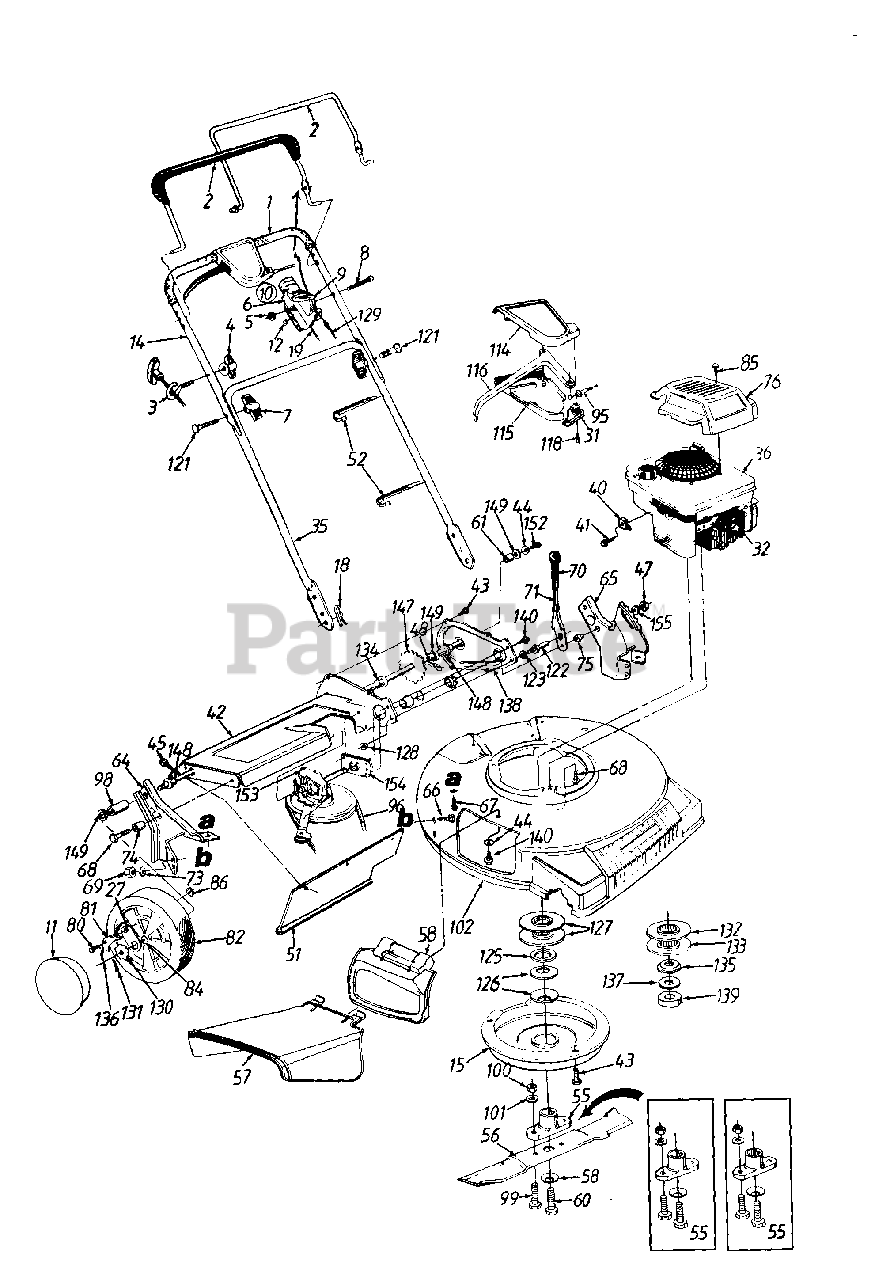

General Assembly Parts Diagram

  • Title

1

MTD 720-0225

Grip
(Superseded to 720-0294A)

Note: Optional

$7.49

$

In Stock, Qty 5

0

2

MTD 647-0004

Control Handle w/Plastic
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

MTD 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

3

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

4

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

6

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

7

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

8

MTD 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 2 left!

0

9

MTD 946-0876

Throttle Lever

$8.49

$

In Stock, only 3 left!

0

10

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 5, 6, 8, 9, 12)

$36.99

$

In Stock, only 1 left!

0

11

MTD 731-0981A

5-1/2" Dia. Gray Hub Cap
(Superseded to 731-0981C)

Note: Optional Hub Caps

$10.99

$

In Stock, only 2 left!

0

11

MTD 720-0249

3-1/2" Dia. Gray Hub Cap
(Superseded to 920-0249)

Note: Optional Hub Caps

$

$

Not available

12

MTD 736-0501

Spr. Wash .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

14

MTD 749-0539B

Upper Handle
(Superseded to 749-0539C-0637)

Variations

MTD 749-0539B-0637

HANDLE-UPPER - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

15

MTD 782-7522

Belt Cover

Variations

MTD 782-7522-0637

Belt Cover - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 714-0104

Internal Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

19

MTD 746-0843

Throttle Control Wire 55" Lg.
(Superseded to 946-0671A)

Note: For model (138)

$14.99

$

In Stock, only 3 left!

0

19

MTD 746-0847

Throttle Control Wire 42" Lg.
(Superseded to 946-1115)

Note: For model (137)

$28.99

$

In Stock, only 1 left!

0

27

MTD 16855

Pawl Plate

$6.49

$

In Stock, Qty 7

0

31

MTD 731-1059

S.P. Control Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

32

MTD 735-0639

Spark Plug Insulator

$

$

Not available

35

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

36

Engine

Note: Shown for reference

$

$

Not available

40

MTD 751B213146

Cable Clamp (B&S)
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

41

MTD 710-1237

Hex Self-Tap Scr. #10-32 x .62" (B&S)

$4.49

$

Usually ships in 3-6 days

0

42

MTD 682-7513

Chain - Axle Ass'y.
(Superseded to 982-7513)

Variations

MTD 682-7513-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 682-7513-0483

AXLE ASSY-CHAIN (6 - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-7513-0498

AXLE ASSY-CHAIN (6 - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-7513-0629

AXLE ASSY-CHAIN (6 - SILVER FLAKE (0629)

$

$

Not available

MTD 682-7513-0637

AXLE ASSY-CHAIN (6 - POWDER BLACK (0637)

$

$

Not available

MTD 682-7513-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-7513-0640

No Longer Available - CO-OP GREEN (0640)

$

$

Not available

MTD 682-7513-0648

AXLE ASSY-CHAIN (6 - TECH GRAY (0648)

$

$

Not available

MTD 682-7513-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 682-7513-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

43

MTD 710-0352

Hex B-Tap Scr. 1/4" x .38"

$4.99

$

Usually ships in 3-6 days

0

44

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

45

MTD 710-0224

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

47

MTD 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

MTD 713-0361

#48 Chain .500" Pitch x 38 Links
(Superseded to 913-0361)

$

$

Not available

51

MTD 731-1483

Rear Flap 4.8" x 17.5" Lg.

$

$

Not available

52

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

55

MTD 753-0519

Blade Adapter Kit (Splined)

$

$

Not available

55

MTD 753-0566

Blade Adapter Kit (Keyed)

$

$

Not available

56

MTD 742-0721

21" Mulching Blade
(Superseded to 942-0721)

$32.99

$

Usually ships in 3-6 days

0

57

MTD 731-1407

Chute Ass'y.
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

58

MTD 682-7000

Mulching Plug Ass'y.

$

$

Not available

58

MTD 736-0453

Bell-Wash..47" I.D.
(Superseded to 936-0453)

Note: (Used w/Splined Adapter)

$3.49

$

Usually ships in 3-6 days

0

58

MTD 736-0452

Bell-Wash..39" I.D.

Note: (Used w/Keyed Adapter)

$4.99

$

In Stock, Qty 5

0

60

MTD 710-0561

Hex Bolt 7/16-20 x 2.5"

Note: (Used w/Splined Adapter)

$10.99

$

In Stock, only 1 left!

0

60

MTD 710-1257

Hex Bolt 3/8-24 x 2.5"

Note: (Used w/Keyed Adapter)

$7.99

$

In Stock, only 1 left!

0

61

MTD 748-0190

Spacer .513" I.D.

$6.49

$

In Stock, Qty 11

0

63

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

MTD 682-3006

R.H. Handle Wheel Brkt. Ass'y.

$

$

Not available

65

MTD 682-3007

L.H. Handle Wheel Brkt. Ass'y.

$

$

Not available

66

MTD 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

MTD 710-0603

Hex B-Tap Scr. 5/16-18

$4.99

$

Usually ships in 3-6 days

0

68

MTD 710-0654

Hex TT-Tap Scr. 3/8-16
(Superseded to 710-0654A)

$4.49

$

In Stock, Qty 20+

0

69

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

71

MTD 732-0725

Height Adj. Lever

$

$

Not available

73

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

MTD 750-0736

Spacer .383" I.D.
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

75

MTD 750-0624

Shld. Spacer .5" Dia.

$

$

Not available

76

MTD 751B281191

XTE Black Shroud
(Superseded to 751B281440)

Note: (Optional)

$

$

Not available

76

MTD 731-1396

Black Shroud
(Superseded to 731-1396A)

Note: (Optional)

$

$

Not available

80

MTD 738-0137

Shld. Scr..342" Dia. x .268

$

$

Not available

81

MTD 748-0188B

Pawl
(Superseded to 948-0188B)

$

$

Not available

81

MTD 748-0381

RH Pawl

$11.99

$

Usually ships in 3-6 days

0

82

MTD 634-0020

8" x 1.75", Wheel, Bar Tread

Note: Wheel Ass'y. Comp.- Rear

$39.99

$

In Stock, Qty 6

0

82

MTD 734-1510

8" x 2" Gray, Wheel, "S" Wave
(Superseded to 734-1826)

Note: Wheel Ass'y. Comp.- Rear

$33.99

$

In Stock, Qty 9

0

84

MTD 741-0486B

Sleeve Bearing 1/2" I.D.

Note: (Used w/734-1510B Wheel)

$

$

Not available

85

MTD 710-1256

Hi-Lo Scr. #10 x 1.25" Lg.

$5.99

$

In Stock, only 2 left!

0

86

MTD 712-0414

Weld Top L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

95

MTD 746-0710A

S.P. Cable - 44" Lg.
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

96

MTD 754-0343

V"-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, only 1 left!

0

98

MTD 711-0313

Sleeve .526" I.D.

$

$

Not available

99

MTD 710-1055

Hex Bolt 3/8-24 x 1.0" Lg.

$4.99

$

Usually ships in 3-6 days

0

100

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

101

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

102

MTD 682-0023

21" Deck Ass'y.

Variations

MTD 682-0023-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-0023-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 682-0023-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0023-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 682-0023-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

114

MTD 731-1057

Self-Propelled Control Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

115

MTD 731-1058

Self-Propelled Control Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

116

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

118

MTD 710-0841

Fl-"C"-Sunk Hd. Tap Scr. #10 x 75" Lg

$4.49

$

Usually ships in 3-6 days

0

121

MTD 710-1174

Curved Hd Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

122

MTD 711-0805

Shld. Pin 1.43" Lg.

$

$

Not available

123

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

125

MTD 748-0332

Crankshaft Spacer

Note: (Used w/Splined Adapter)

$

$

Not available

125

MTD 736-0409

Serrated Wash. 1" I.D. (Tec.)
(Superseded to 936-0409)

$

$

Not available

126

MTD 736-0450

Bell-Wash 1.01" I.D.

Note: (Used w/Splined Adapter)

$

$

Not available

126

MTD 736-0447

Wave Wash. 1" I.D. (Tecumseh)

$4.49

$

In Stock, Qty 20+

0

127

MTD 756-0502

Pulley Half - 2 Req'd.
(Superseded to 956-0502)

Note: (Used w/Splined Adapter)

$

$

Not available

128

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

129

MTD 746-0550

Control Cable - 39"
(Superseded to 946-0550)

Note: For model (138)

$21.99

$

In Stock, only 3 left!

0

129

MTD 746-0737

Control Cable 51" Lg.
(Superseded to 946-0737)

Note: For model (137)

$28.99

$

In Stock, only 4 left!

0

130

MTD 748-0318

Ratchet Wheel 1.62" O.D.
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 16

0

131

MTD 714-0115

Cotter Pin 1/8" Dia. x 1"

$3.99

$

In Stock, only 2 left!

0

132

MTD 756-0979

Pulley Half
(Superseded to 956-0979)

Note: (Used w/Keyed Adapter)

$

$

Not available

133

MTD 756-0962

Pulley Half

Note: (Used w/Keyed Adapter)

$

$

Not available

134

MTD 741-0522

Hex Flange Bearing

$

$

Not available

135

MTD 736-0513

Spr. Wash .89" I.D.
(Superseded to 936-0513)

Note: (Used w/Keyed Adapter)

$

$

Not available

136

MTD 10622B

Spring - Nylon

$5.49

$

In Stock, Qty 20+

0

137

MTD 736-0514

Fl-Wash 85" I D

Note: (Used w/Keyed Adapter)

$

$

Not available

138

MTD 682-7506

Chain Cover Ass'y.

Variations

MTD 682-7506-0483

No Longer Available COVER ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-7506-0498

No Longer Available COVER ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-7506-0637

No Longer Available COVER ASM - POWDER BLACK (0637)

$

$

Not available

MTD 682-7506-0638

No Longer Available COVER ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

139

MTD 748-0358

Crankshaft Spacer

Note: (Used w/Keyed Adapter)

$

$

Not available

140

MTD 710-0599

Hex S-Tap Scr. 1/4-20 x .50"

$4.49

$

In Stock, Qty 20+

0

147

MTD 738-0864

Rear Shaft Ass'y. 21.44" Lg.
(Superseded to 938-0864)

$

$

Not available

148

MTD 741-0324

Hex Flange Brg .506" I.D.
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

149

MTD 736-0160

Fl-Wash .531" I.D. x .930"

$4.49

$

In Stock, only 2 left!

0

152

MTD 710-0751

Hex Bolt 1/4-20 x 62" Lg. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

153

MTD 717-0417B

Transmission Comp
(Superseded to 917-0417B)

Note: (See Transmission for other parts)

$234.99

$

Usually ships in 3-6 days

0

154

MTD 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

MTD 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

155

MTD 736-0300

Fl-Wash 385" I.D. x 87" O.D.

$4.49

$

In Stock, Qty 20+

0
