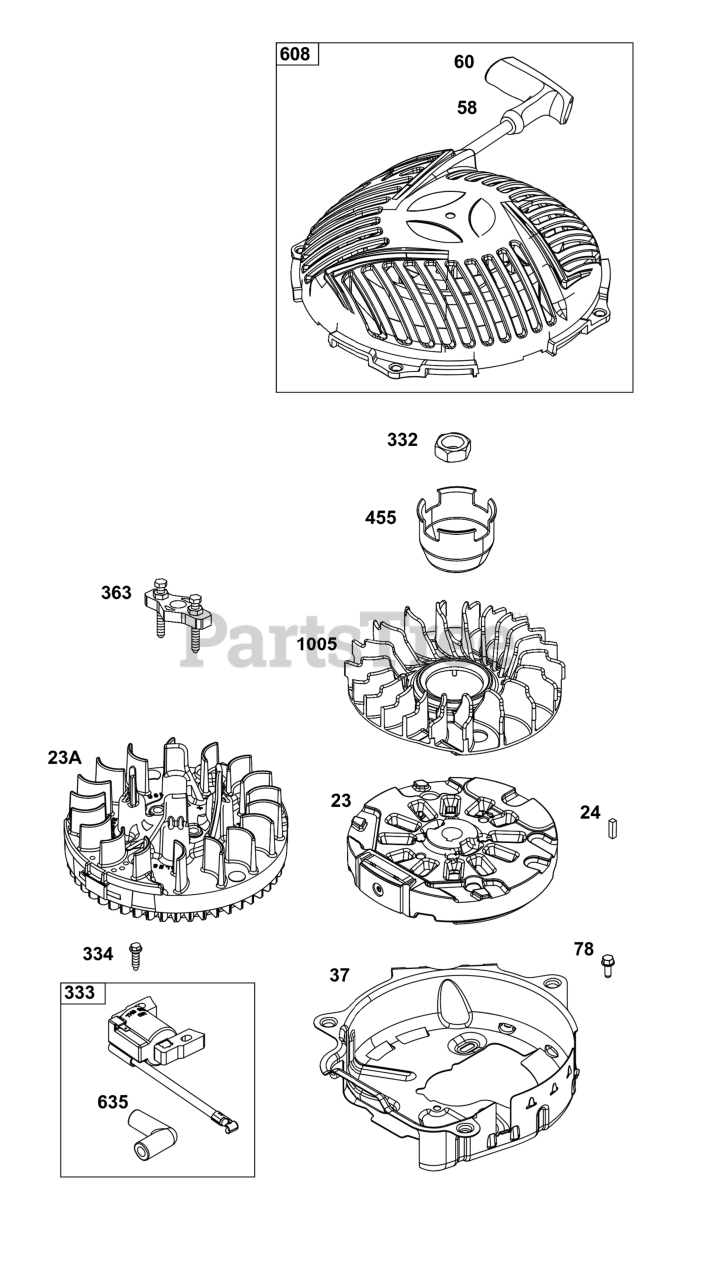

123P02-0008-H5 - Briggs & Stratton Vertical Engine Flywheel/Ignition/Starter Group Parts Diagram

Vertical Engine

Flywheel/Ignition/Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 597427

FLYWHEEL

Note: (Used After Code Date 22041300)

$

$

Currently unavailable

23A

Briggs & Stratton 597464

FLYWHEEL

Note: (Used Before Code Date 22041400)

$155.99

$

Usually ships in 2-12 days

0

24

KEY, Flywheel

Note: (Part information located in Crankshaft Group.)

$

$

Not available

37

Briggs & Stratton 595290

HOUSING, Blower

$38.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 591108

ROPE, Starter

$7.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 281434S

GRIP, Starter Rope

$3.99

$

In Stock, Qty 5

0

78

Briggs & Stratton 793480

SCREW

Note: (Flywheel Guard)

$3.99

$

In Stock, Qty 20+

0

332

Briggs & Stratton 690662

NUT

Note: (Flywheel)

$5.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 595291

ARMATURE, Magneto

$50.99

$

Usually ships in 2-12 days

0

334

Briggs & Stratton 793454

SCREW

Note: (Magneto Armature)

$4.49

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 591400

CUP, Flywheel

$35.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 596468

STARTER, Rewind

$56.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

1005

Briggs & Stratton 799265

FAN, Flywheel

Note: (Used After Code Date 22041300)

$26.99

$

Usually ships in 2-12 days

0
