123P02-0002-H5 - Briggs & Stratton Vertical Engine Controls Group Parts Diagram

Vertical Engine

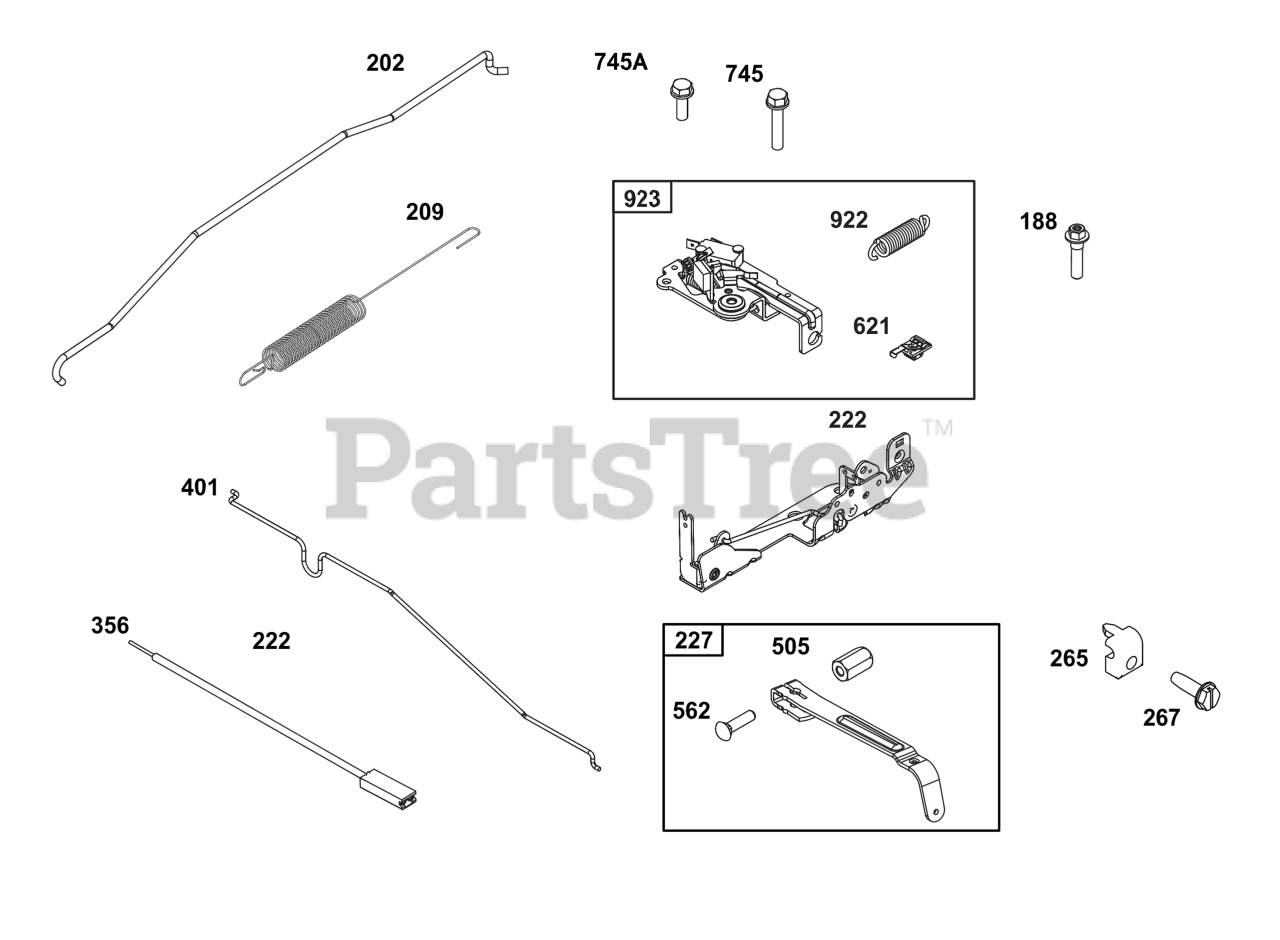

Controls Group Parts Diagram

  • Title

188

Briggs & Stratton 793480

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, Qty 20+

0

202

Briggs & Stratton 597337

LINK, Mechanical Governor

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 597438

SPRING, Governor

$7.49

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 597273

BRACKET, Control

$43.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 597336

LEVER, Governor Control

$13.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 690798

CLAMP, Casing

$5.49

$

In Stock, only 1 left!

0

267

Briggs & Stratton 692577

SCREW

Note: (Casing Clamp)

$3.99

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 692390

WIRE, Stop

$

$

Not available

401

Briggs & Stratton 597323

LINK, Choke

$4.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 597312

NUT

Note: (Governor Control Lever)

$11.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 793514

BOLT

Note: (Governor Control Lever)

$7.49

$

In Stock, only 1 left!

0

621

Briggs & Stratton 692310

SWITCH, Stop

$5.99

$

In Stock, Qty 20+

0

745

Briggs & Stratton 691146

SCREW

Note: (Brake)

$3.99

$

Usually ships in 2-12 days

0

745A

Briggs & Stratton 690859

SCREW

Note: (Brake)

$3.99

$

In Stock, Qty 8

0

922

Briggs & Stratton 84003107

SPRING, Brake

$3.99

$

Usually ships in 2-12 days

0

923

Briggs & Stratton 597417

BRAKE

$13.99

$

Usually ships in 2-12 days

0
