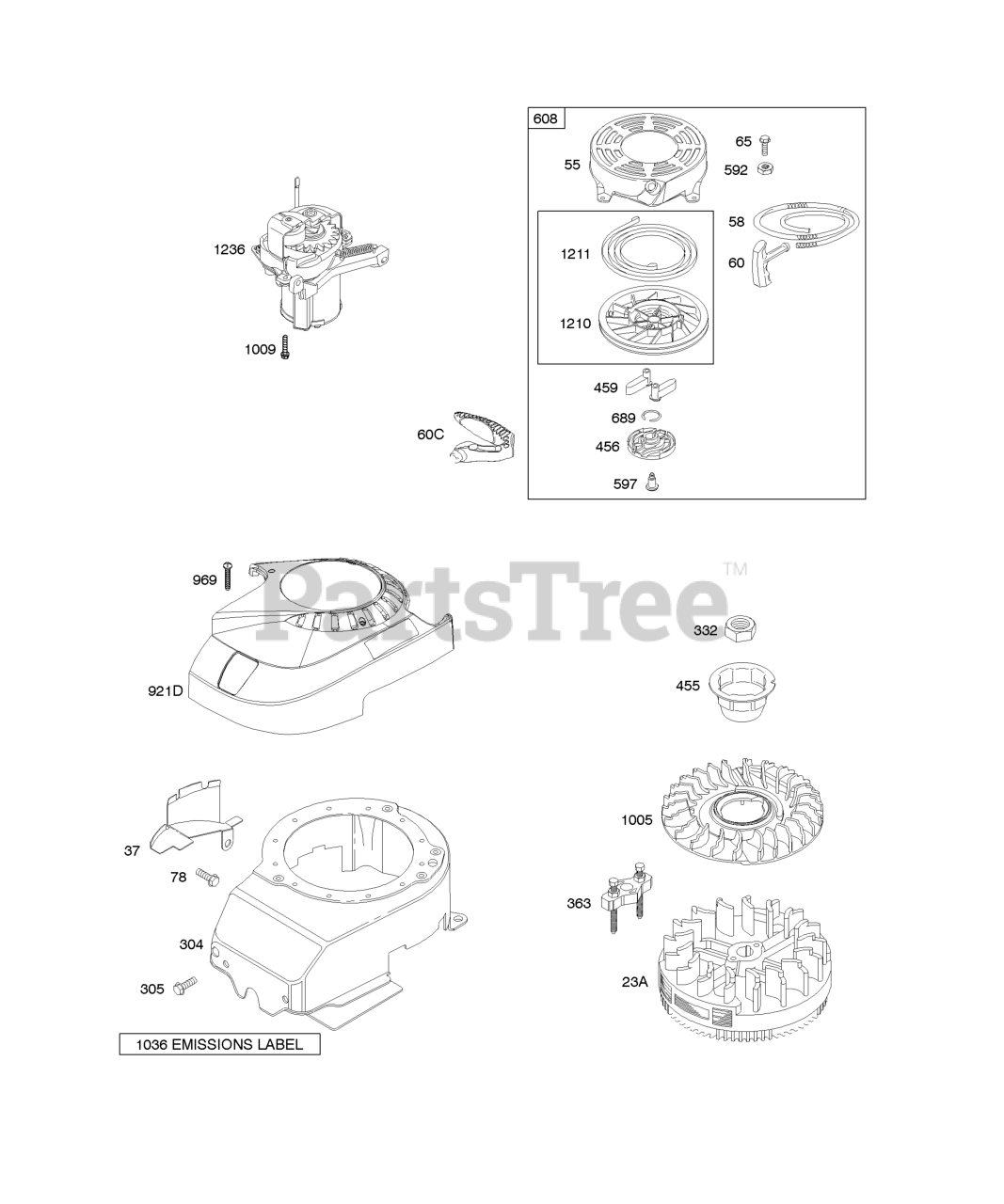

123J02-0187-E1 - Briggs & Stratton Vertical Engine Blower Housing/Shrouds, Flywheel, Rewind Starter Parts Diagram

Vertical Engine

Blower Housing/Shrouds, Flywheel, Rewind Starter Parts Diagram

  • Title

23A

Briggs & Stratton 691987

Flywheel

$112.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 694086

Guard-Flywheel
(Superseded to 793756)

$10.99

$

In Stock, only 4 left!

0

55

Briggs & Stratton 691421

Housing-Rewind Starter

$64.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 697316

Rope-Starter

Note: (Cut To Required Length)

$5.99

$

In Stock, Qty 16

0

60

Briggs & Stratton 281434S

Grip-Starter Rope

$3.99

$

In Stock, only 4 left!

0

60C

Briggs & Stratton 799716

Grip-Starter Rope

$10.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 690837

Screw

Note: (Rewind Starter)

$3.49

$

In Stock, Qty 20+

0

78

Briggs & Stratton 691108

SCREW

Note: (Flywheel Guard)

$3.49

$

In Stock, Qty 20+

0

304

Briggs & Stratton 695892

Housing-Blower

$103.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 691108

SCREW

Note: (Blower Housing)

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 690662

Nut

Note: (Flywheel)

$5.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 791960

Cup-Flywheel

$11.99

$

In Stock, only 1 left!

0

456

Briggs & Stratton 692299

Plate-Pawl Friction

$4.99

$

In Stock, only 2 left!

0

459

Briggs & Stratton 281505S

PAWL, Ratchet

$3.49

$

In Stock, Qty 15

0

592

Briggs & Stratton 690800

Nut

Note: (Rewind Starter)

$3.99

$

In Stock, Qty 13

0

597

Briggs & Stratton 691696

Screw

Note: (Pawl Friction Plate)

$11.99

$

In Stock, Qty 6

0

608

Briggs & Stratton 497680

Starter-Rewind

$49.99

$

In Stock, Qty 20+

0

689

Briggs & Stratton 691855

SPRING, Friction

$4.49

$

In Stock, only 3 left!

0

921D

Briggs & Stratton 691339

Cover-Blower Housing

$76.99

$

Usually ships in 2-12 days

0

969

Briggs & Stratton 690700

Screw

Note: (Blower Housing Cover)

$3.99

$

In Stock, only 2 left!

0

1005

Briggs & Stratton 691346

Fan-Flywheel

$26.99

$

Usually ships in 2-12 days

0

1009

Briggs & Stratton 696255

Screw

Note: (Starter Motor)

$3.49

$

Usually ships in 2-12 days

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1210

Briggs & Stratton 498144

Pulley/Spring Assembly

Note: (Pulley)

$19.99

$

In Stock, Qty 20+

0

1211

Briggs & Stratton 498144

Pulley/Spring Assembly

Note: (Spring)

$19.99

$

In Stock, Qty 20+

0

1236

Briggs & Stratton 695959

Starter-Mechanical

Note: (Touch N Mow)(Do Not Service Individual Parts, Only As A Whole)

$219.99

$

Usually ships in 2-12 days

0
