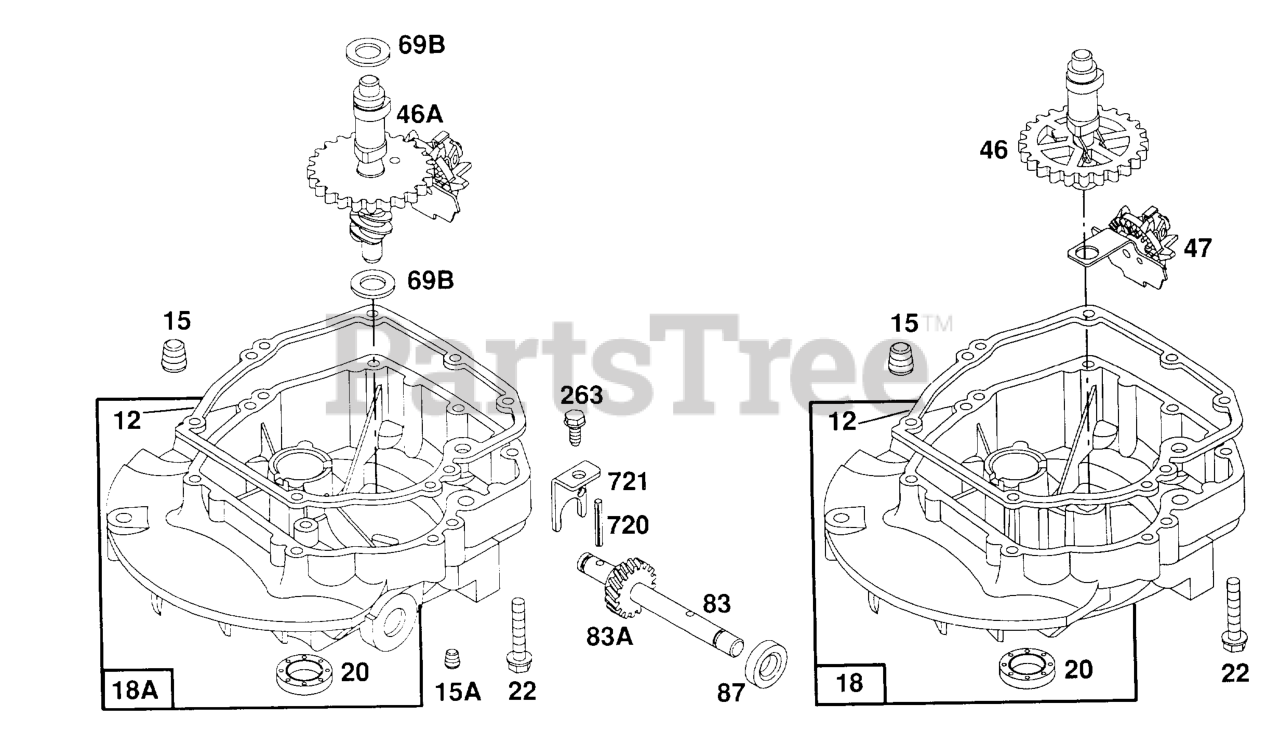

123802-0409-01 - Briggs & Stratton Vertical Engine Sump Base Assemblies Parts Diagram

Vertical Engine

Sump Base Assemblies Parts Diagram

  • Title

12

Briggs & Stratton 272198

Gasket-Crankcase
(Superseded to 692232)

Note: Included in Gasket Set-See Ref. 358

$5.99

$

In Stock, Qty 20+

0

15A

Briggs & Stratton 94470

Plug, Pipe (1/16" 27 Npt)
(Superseded to 691093)

$5.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 94613

Plug, Pipe (Flush)
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

18A

Briggs & Stratton 493365

Sump-Engine

$63.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 493279

Sump, Engine

$120.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Gasket Set-See Ref. 358

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94220

Screw, Sem Hex Wash
(Superseded to 691092)

$3.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 94612

Screw-Hex (One Used In Hole Nearest Breather)
(Superseded to 691092)

$3.99

$

Usually ships in 2-12 days

0

46A

Briggs & Stratton 493738

Camshaft (Counterclockwise)

$56.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 492830

Gear-Cam
(Superseded to 691449)

$73.99

$

In Stock, only 1 left!

0

47

Briggs & Stratton 493737

Slinger-Oil
(Superseded to 691997)

$25.99

$

Usually ships in 2-12 days

0

69B

Briggs & Stratton 68938

Washer, Thrust
(Superseded to 691074)

Note: (13/16 ODx17/32 ID) Use on Aux Drive PTO.Cam

$

$

Not available

83A

Briggs & Stratton 231279

Gear, Helical (Counterclockwise)
(Superseded to 691772)

$82.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 231671

Shaft-Drive
(Superseded to 691778)

$24.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 391484

Seal, Auxiliary PTO (For 1/2"Auxiliary Drive Shaft)
(Superseded to 691952)

$9.99

$

In Stock, Qty 9

0

263

Briggs & Stratton 93572

Screw, Hex Head Tap (10-32 X 3/8)
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

720

Briggs & Stratton 93474

Pin-Shaft
(Superseded to 691623)

$

$

Not available

721

Briggs & Stratton 224249

Stop-Shaft
(Superseded to 690449)

$5.99

$

Usually ships in 2-12 days

0
