12380155 - Snapper Pro Exhaust Mufflers & Heat Shields Exhaust Mufflers & Heat Shields Parts Diagram

Pro Exhaust Mufflers & Heat Shields

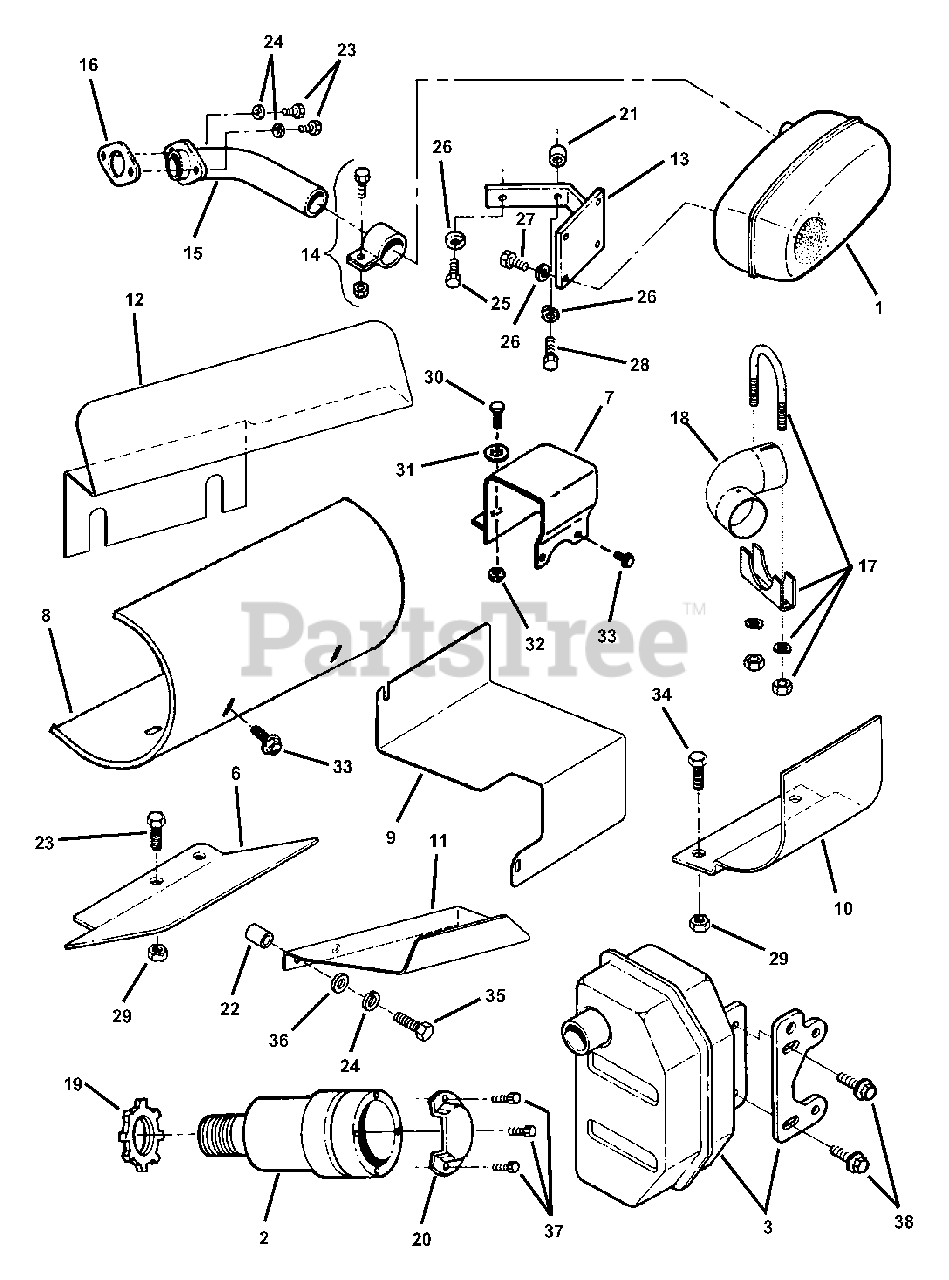

Exhaust Mufflers & Heat Shields Parts Diagram

  • Title

1

Snapper 7076507

MUFFLER, Super Lo-Tone

Note: (Briggs 11 & 12 HP)

$

$

Not available

2

Snapper 77717

MUFFLER, Round Lo-Tone

Note: For Briggs and Stratton 8HP engines only.

$

$

Currently unavailable

3

Snapper 7017163

MUFFLER GROUP

Note: (Kohler 14HP)

$

$

Currently unavailable

4

Snapper 7028959

MUFFLER, Kohler V-Twin
(Superseded to 7028959YP)

Note: (SPLH231KHE only) (not shown)

$239.99

$

Usually ships in 2-12 days

0

5

Snapper 7028757

MUFFLER, Briggs 16HP V-2

Note: (PRO 7) (not shown)

$

$

Currently unavailable

6

Snapper 7034618

SHIELD, Heat
(Superseded to 7034618YP)

Note: (Kawasaki and Kohler engines only; replaces 3-3319)

$16.99

$

Usually ships in 2-12 days

0

7

Snapper 7034653

SHIELD, Heat
(Superseded to 7034653YP)

Note: (Briggs only)

$78.99

$

Usually ships in 2-12 days

0

8

Snapper 7028958

SHIELD, Heat

Note: (SPLH231KHE only)

$

$

Currently unavailable

9

Snapper 7046755

SHIELD, Heat
(Superseded to 7046755YP)

Note: (Kohler 15HP only)

$50.99

$

Usually ships in 2-12 days

0

10

Snapper 7026881

SHIELD, Heat

Note: (Kohler 14HP & Kawasaki 14HP)

$

$

Currently unavailable

Snapper 7033572

SHIELD, Heat
(Superseded to 7033572YP)

Note: (Kawasaki 12.5HP)

$21.99

$

Usually ships in 2-12 days

0

11

Snapper 33489

SHIELD, Heat

Note: (Kawasaki 12.5HP)

$

$

Currently unavailable

12

Snapper 7032898

SHIELD, Heat
(Superseded to 7032898YP)

Note: (Kawasaki)

$15.99

$

Usually ships in 2-12 days

0

13

Snapper 7076384

BRACKET, Muffler Mount

Note: (Briggs 12 HP)

$

$

Currently unavailable

14

Snapper 7076503

CLAMP, Muffler w/Bolt & Nut

Note: For Briggs and Stratton 11 & 12HP engines only.

$5.99

$

In Stock, only 1 left!

0

15

Snapper 7076569

TUBE, Exhaust Assembly

Note: For Briggs and Stratton 11 & 12HP engines only.

$

$

Currently unavailable

16

Snapper 7076570

GASKET, Exhaust

Note: For Briggs and Stratton 11 & 12HP engines only.

$

$

Not available

17

Snapper 7043813

ASSEMBLY, Clamp

Note: (Includes Clamp, U-Bolt, 2 Split Lock Washers and 2 Hex Nuts) (used on SPLH231KHE only)

$

$

Currently unavailable

18

Snapper 7043814

ELBOW, Exhaust

Note: (used on SPLH231KHE only)

$

$

Currently unavailable

19

Snapper 77716

RING, Locking

Note: For Briggs and Stratton 8HP engines only.

$

$

Currently unavailable

20

Snapper 7076355

DEFLECTOR, Side Out

Note: For Briggs and Stratton 8HP engines only.

$

$

Currently unavailable

21

Snapper 7077762

SPACER, Muffler Bracket

Note: For Briggs and Stratton 11 & 12HP engines only.

$

$

Currently unavailable

22

Snapper 7023515

SPACER
(Superseded to 7023515YP)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7076934

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 5
(Superseded to 7076934YP)

Note: For Briggs and Stratton 11 & 12HP engines only.

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

Note: For Briggs and Stratton 11 & 12HP engines only.

$3.49

$

In Stock, Qty 20+

0

25

Snapper 7027230

SCREW, 1/4-20 x 1" Hex Head Cap, Grade 5
(Superseded to 703820)

Note: Was 90548 (For Briggs and Stratton 11 & 12HP engines only.)

$3.99

$

In Stock, only 4 left!

0

26

Snapper 7090052

WASHER, 1/4" Split Lock
(Superseded to 7090052SM)

Note: For Briggs and Stratton 11 & 12HP engines only.

$3.49

$

In Stock, only 4 left!

0

27

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap, Grade 5
(Superseded to 001X38MA)

Note: For Briggs and Stratton 11 & 12HP engines only.

$4.49

$

In Stock, Qty 10

0

28

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap
(Superseded to 703925)

Note: Was 76932 (For Briggs and Stratton 11 & 12HP engines only)

$4.49

$

In Stock, Qty 7

0

29

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7091631

SCREW, #10-24 x 1/2" Hex Head Machine
(Superseded to 7091631YP)

Note: (Briggs engine only)

$2.99

$

Usually ships in 2-12 days

0

31

Snapper 7090010

WASHER, #10 Flat
(Superseded to 7091552SM)

$3.99

$

In Stock, Qty 14

0

32

Snapper 7091267

NUT, #10-24 Hex Center Lock
(Superseded to 7091267SM)

Note: (Briggs engine only)

$3.99

$

In Stock, Qty 6

0

Snapper 7091290

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

33

Snapper 7091649

SCREW, #8-18 x 9/16" Hex Washer Self-Tap
(Superseded to 7091649YP)

Note: (4 for SPLH231KHE; 2 for Briggs; 4 for Kohler 18HP)

$2.99

$

In Stock, only 1 left!

0

Snapper 7091581

SCREW, #8-18 x 1/2" Hex Head, Self-Tap
(Superseded to 7091581YP)

$3.49

$

Usually ships in 2-12 days

0

34

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 5
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 8

0

35

Snapper 7077692

SCREW, M8 1.25 x .25 Hex Head Cap
(Superseded to 703989)

$4.49

$

Usually ships in 2-12 days

0

36

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

37

Snapper 7077690

SCREW, Muffler Deflector

Note: For Briggs and Stratton 8HP engines only.

$

$

Currently unavailable

38

Snapper 7091113

SCREW, M6 x 16mm Hex Cap

$

$

Not available
