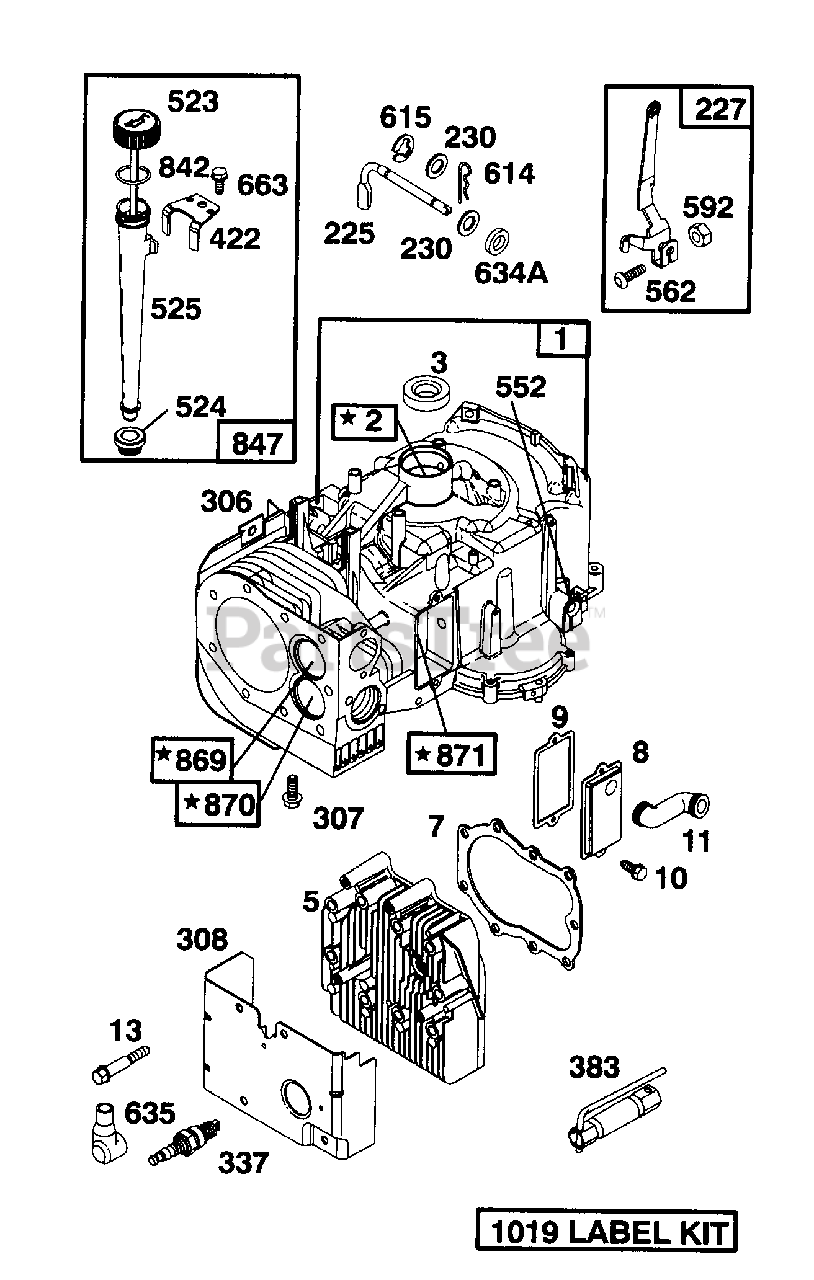

1238 (133I582B100) - Cub Cadet Rear-Engine Riding Mower Engine (1993) B&S 12 HP Short Block Ass'y Parts Diagram

Rear-Engine Riding Mower Engine

B&S 12 HP Short Block Ass'y Parts Diagram

  • Title

Cub Cadet BS-490763

Short Block

$

$

Not available

1

Cub Cadet BS-490450

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-399265

Bearing--Cylinder
(Superseded to BS-797673)

$18.99

$

In Stock, Qty 8

0

3

Cub Cadet BS-391086

Seal--Oil
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-494240

Head--Cylinder

$110.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-271866

Gasket--Cylinder Head
(Superseded to BS-271866S)

$9.49

$

In Stock, only 1 left!

0

8

Cub Cadet BS-391406

Breather Assembly
(Superseded to BS-495735)

$63.99

$

In Stock, Qty 6

0

9

Cub Cadet BS-27803

Gasket Valve Cover
(Superseded to BS-27803S)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-94621

Screw--Sem
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-280100

Tube--Breather
(Superseded to BS-692253)

$9.99

$

In Stock, Qty 12

0

13

Cub Cadet BS-94622

Screw--Cylinder Head
(Superseded to BS-690904)

$11.99

$

In Stock, only 4 left!

0

225

Cub Cadet BS-231058

Crank--Governor
(Superseded to BS-692012)

$13.99

$

In Stock, only 2 left!

0

227

Cub Cadet BS-493935

Lever Ass'y.--Governor

$

$

Not available

230

Cub Cadet BS-94742

Washer--Gov. Crank
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

306

Cub Cadet BS-224545

Shield--Cylinder

$

$

Not available

307

Cub Cadet BS-94623

Screw--Cylinder Shield Mounting Sem

$

$

Not available

308

Cub Cadet BS-491490

Cover--Cylinder Head

$

$

Not available

337

Cub Cadet 759-3338

Plug--Spark

$3.99

$

In Stock, Qty 14

0

383

Cub Cadet BS-89838

Wrench--Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, only 4 left!

0

422

Cub Cadet BS-224390

Clamp--Oil Filler Tube

$

$

Not available

523

Cub Cadet BS-494978

Cap and Dipstick--Oil Filler
(Superseded to BS-692014)

$25.99

$

In Stock, Qty 6

0

524

Cub Cadet BS-68838

Seal--Filler Tube
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

525

Cub Cadet BS-280741

Tube--Oil Filler

$

$

Not available

552

Cub Cadet BS-231597

Bushing--Gov. Crank

$

$

Not available

562

Cub Cadet BS-92613

Bolt--Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut--Hex

$

$

Not available

614

Cub Cadet BS-93306

Cotter--Hair Pin

$

$

Not available

615

Cub Cadet BS-93307

Retainer--E-Ring

$5.99

$

In Stock, only 3 left!

0

634A

Cub Cadet BS-491323

Seal--Governor
(Superseded to BS-692407)

$7.99

$

In Stock, Qty 8

0

635

Cub Cadet BS-66538

Elbow--Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 5

0

663

Cub Cadet BS-94620

Screw--Hex Head
(Superseded to BS-691693)

$3.99

$

In Stock, Qty 8

0

842

Cub Cadet BS-270920

Seal--Oil Filler Cap
(Superseded to BS-691870)

$4.49

$

Usually ships in 2-12 days

0

847

Cub Cadet BS-490474

Fill Group--Oil

$

$

Not available

869

Cub Cadet BS-261463

Seat--Intake Valve (Standard)
(Superseded to BS-691802)

$17.99

$

Usually ships in 2-12 days

0

870

Cub Cadet BS-213316

Seat--Exhaust Valve (Standard)
(Superseded to BS-691844)

$18.99

$

In Stock, only 1 left!

0

871

Cub Cadet BS-261961

Guide--Exhaust Valve

$14.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-231218

Guide--Intake Valve

$14.99

$

In Stock, Qty 7

0

1019

Cub Cadet BS-491255

Label Kit

$

$

Currently unavailable

Cub Cadet BS-494241

Gasket Set

$39.99

$

In Stock, Qty 8

0
