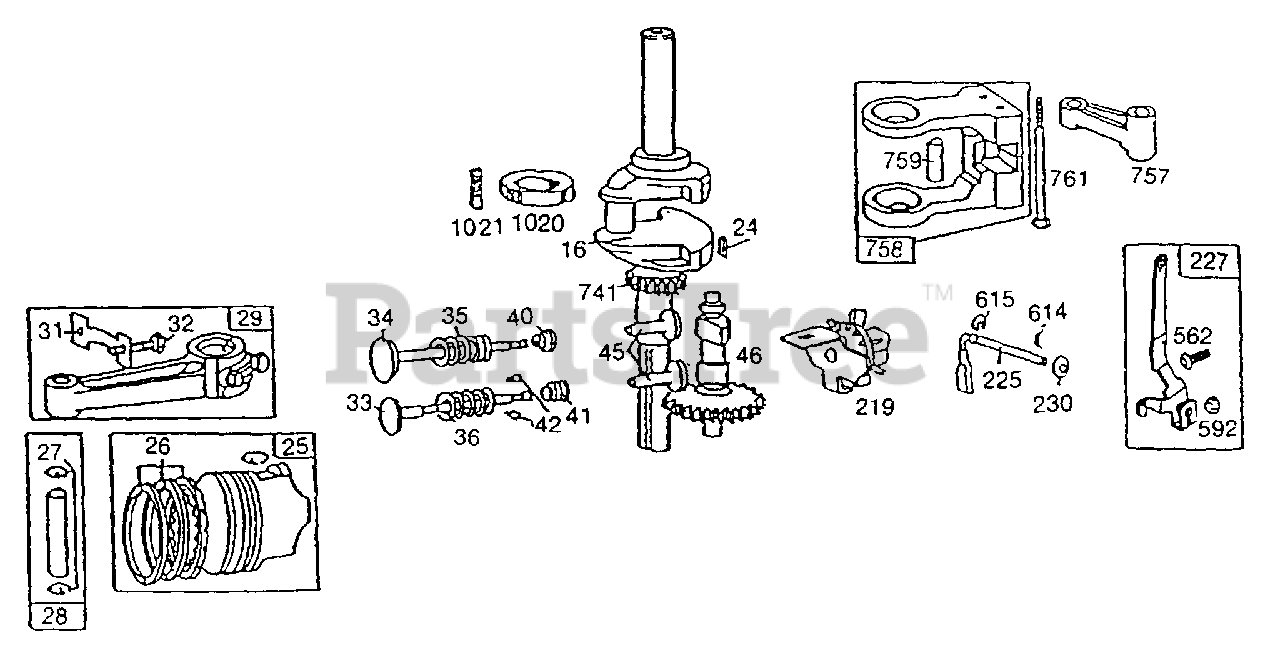

1238 (132-552F100) - Cub Cadet Rear-Engine Riding Mower Engine (1992) B&S 12 HP Piston, Connecting Rod, Counterweight, Governor Lever Parts Diagram

Rear-Engine Riding Mower Engine

B&S 12 HP Piston, Connecting Rod, Counterweight, Governor Lever Parts Diagram

  • Title

16

Cub Cadet BS-490466

Crankshaft

Note: Order Part Number BS-94196 For Timing Gear Key.

$

$

Not available

Cub Cadet BS-94196

Timing Gear Key

$

$

Not available

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-394661

Piston. (Std.)
(Superseded to BS-499284)

$

$

Not available

Cub Cadet BS-394662

Piston Ass'y. (.010" O.S.)
(Superseded to BS-499288)

$73.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-394663

Piston Ass'y. (.020" O.S.)

$

$

Not available

Cub Cadet BS-394664

Piston Ass'y. (.030" O.S.):

$

$

Not available

26

Cub Cadet BS-391780

Ring Set-Piston (Std.)
(Superseded to BS-499996)

Note: For Chrome Ring Set(Standard Size) Order No. BS-392331.

$53.99

$

In Stock, only 1 left!

0

Cub Cadet BS-391781

Ring Set-Piston (.010" O.S.)

Note: For Chrome Ring Set(Standard Size) Order No. BS-392331.

$

$

Not available

Cub Cadet BS-391782

Ring Set-Piston (.020" O.S.)

Note: For Chrome Ring Set(Standard Size) Order No. BS-392331.

$

$

Not available

Cub Cadet BS-391783

Ring Set-Piston (.030" O.S.)

Note: For Chrome Ring Set(Standard Size) Order No. BS-392331.

$

$

Not available

27

Cub Cadet BS-260924

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-299691

Pin Assembly-Piston (Standard)

$17.99

$

In Stock, only 1 left!

0

Cub Cadet BS-391286

Pin Assembly-Piston (.005" O.S.)

$

$

Currently unavailable

29

Cub Cadet BS-490348

Rod Assembly-Connecting

Note: For Connecting Rod With .020" Undersize Crankpin Bore-Order No. BS-490469.

$50.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-222299

Lock-Connecting Rod Screw

$

$

Not available

32

Cub Cadet BS-92909

Screw-Connecting Rod

$

$

Not available

33

Cub Cadet BS-262246

Valve-Exhaust

$

$

Not available

34

Cub Cadet BS-262247

Valve-Intake
(Superseded to BS-262247S)

$

$

Not available

35

Cub Cadet BS-65906

Spring-Intake Valve

$

$

Not available

36

Cub Cadet BS-26828

Spring-Exhaust Valve

$

$

Not available

40

Cub Cadet BS-221596

Retainer-Intake Valve
(Superseded to BS-690656)

$

$

Not available

41

Cub Cadet BS-292260

Rotocoil-Exhaust Valve
(Superseded to BS-691939)

$27.99

$

In Stock, Qty 5

0

42

Cub Cadet BS-93630

Retainer-Exhaust Valve Rotocoil
(Superseded to BS-494553)

$7.99

$

In Stock, only 2 left!

0

45

Cub Cadet BS-262248

Tappet-Valve

$

$

Not available

46

Cub Cadet BS-212897

Gear-Cam

$

$

Not available

219

Cub Cadet BS-490815

Oil Slinger, Governor Gear and Bracket Assembly
(Superseded to BS-691968)

$37.99

$

In Stock, Qty 20+

0

225

Cub Cadet BS-231058

Crank-Governor
(Superseded to BS-692012)

$13.99

$

In Stock, only 2 left!

0

227

Cub Cadet BS-493935

Lever Ass'y.-Governor

$

$

Not available

230

Cub Cadet BS-222450

Washer-Governor Crank
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

562

Cub Cadet BS-92613

Bolt-Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut-Hex

$

$

Not available

614

Cub Cadet BS-93306

Cotter-Pin

$

$

Not available

615

Cub Cadet BS-93307

Retainer-E-Ring

$5.99

$

In Stock, only 3 left!

0

741

Cub Cadet BS-262135

Gear-Timing
(Superseded to BS-691284)

$10.99

$

Usually ships in 2-12 days

0

757

Cub Cadet BS-212359

Link-Counterweight

$

$

Not available

758

Cub Cadet BS-399891

Counterweight Assembly
(Superseded to BS-692423)

$222.99

$

Usually ships in 2-12 days

0

759

Cub Cadet BS-298909

Pin-Counterweight

$8.99

$

In Stock, only 2 left!

0

761

Cub Cadet BS-93875

Screw-Counterweight

$

$

Currently unavailable

1020

Cub Cadet BS-262243

Eccentric

$36.99

$

Usually ships in 2-12 days

0

1021

Cub Cadet BS-94160

Pin-Eccentric

$

$

Not available

Cub Cadet BS-392331

Chrome Ring Set (Standard Size)

$37.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-490469

.020" Undersize Crankpin Bore

$

$

Not available
