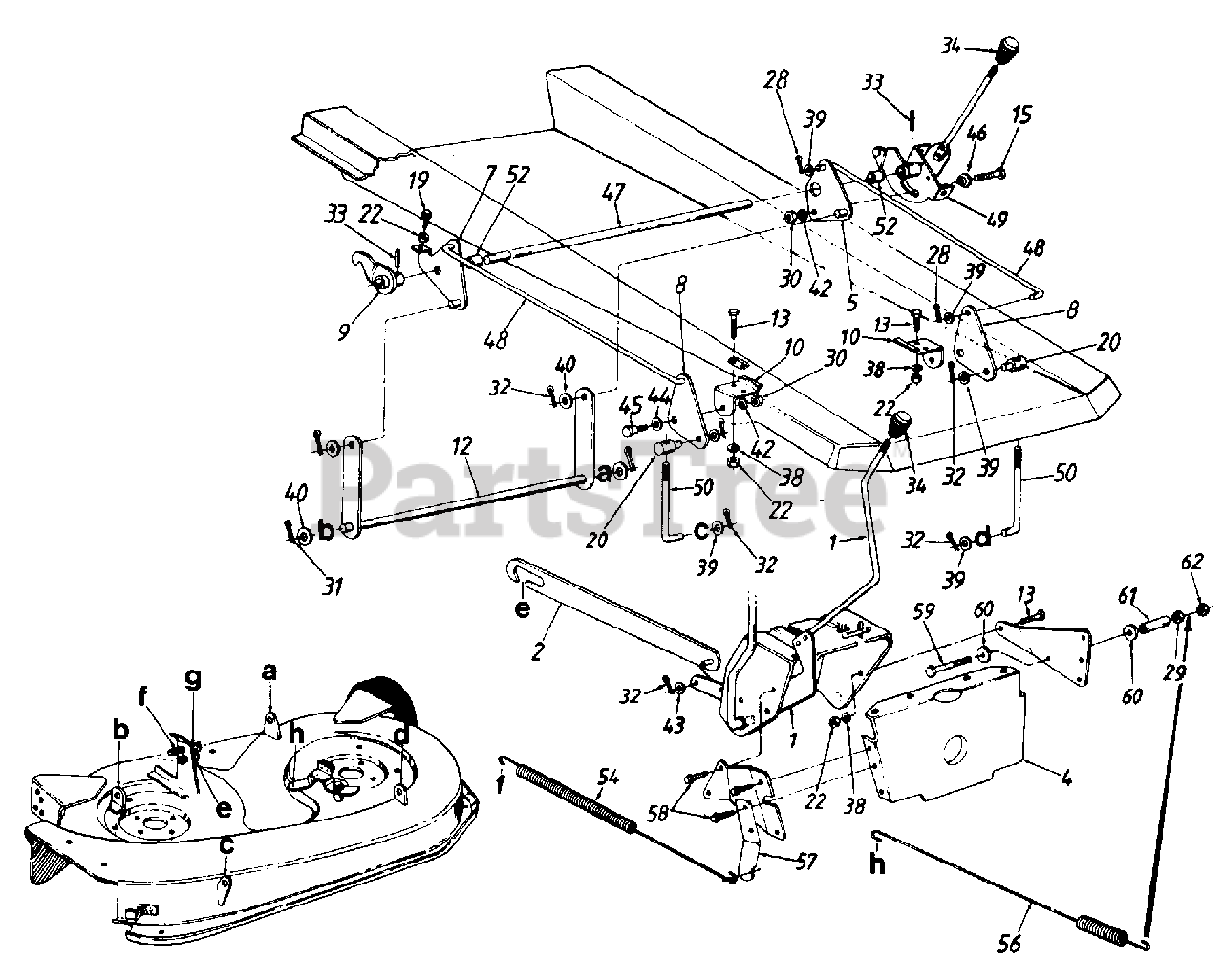

1238 (132-552F100) - Cub Cadet Rear-Engine Riding Mower (1992) Lawn Tractor with 38" Deck Parts Diagram

Rear-Engine Riding Mower

Lawn Tractor with 38" Deck Parts Diagram

  • Title

1

Cub Cadet 703-1914

Deck Engagement Brkt. w/Handle

Variations

Cub Cadet 703-1914-0637

BRACKET,-DECK ENGAGEMPOWDER BLAC - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 15644A

Deck Drive Control Brkt. Ass'y.

$

$

Not available

4

Cub Cadet 15613A

Pivot Bar Brkt.

Variations

Cub Cadet 15613A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 17108

Deck Lift Brkt. Ass'y.

$

$

Not available

7

Cub Cadet 17111

Deck Lift Brkt. Ass'y.

$

$

Currently unavailable

8

Cub Cadet 17112

Deck Lift Bracket

$

$

Currently unavailable

9

Cub Cadet 17114A

Deck Lift Float Brkt Ass'y.

$

$

Not available

10

Cub Cadet 17115

Deck Lift Pivot Brkt.

$

$

Not available

12

Cub Cadet 17123

Stabilizer Shaft Ass'y.

$

$

Not available

13

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0817

Hex Wash.-Tap Scr. 5/16-18 x 1.25" Lg.

$6.99

$

In Stock, Qty 15

0

20

Cub Cadet 711-0198

Ferrule
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

22

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 714-0507

Cotter Pin 3/32" Dia.

$4.49

$

In Stock, only 2 left!

0

29

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet 714-0101

Internal Cot. Pin 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

32

Cub Cadet 714-0145

Int. Cot. Pins 3/8" Dia.

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 715-0114

Spring Pin Spir. 1/4" Dia.

$9.49

$

In Stock, Qty 5

0

34

Cub Cadet 720-0232

Knob
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

38

Cub Cadet 736-0119

L-Wash 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

Cub Cadet 736-0140

Fl-Wash. .385 I.D. x .62

$7.49

$

In Stock, Qty 7

0

40

Cub Cadet 736-0156

Fl-Wash. .635 I.D. x 1.12

$4.49

$

In Stock, Qty 12

0

42

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0300

Fl-Wash. .385 I.D. x .87 O.D.

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 736-0232

Spring Washer .530 I.D.

$4.99

$

In Stock, Qty 12

0

45

Cub Cadet 738-0183

Shld. Bolt .500" Dia. x .215"
(Superseded to 938-0183)

$

$

Not available

46

Cub Cadet 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 738-0550

Rear Hgt. Adj. Shaft

$

$

Not available

48

Cub Cadet 747-0557

Connecting Rod

Variations

Cub Cadet 747-0557-0498

CONNECTING ROD - OLD CUB YELLOW (0498)

$

$

Not available

$

$

49

Cub Cadet 703-1915

Deck Lift Handle Ass'y.

$

$

Currently unavailable

50

Cub Cadet 747-0690

J-Bolt 5.4" Lg.

$

$

Not available

52

Cub Cadet 750-0707

Spacer .885 I.D.

$

$

Not available

54

Cub Cadet 732-0531

Ext. Spring 22.05" Lg.

$

$

Not available

56

Cub Cadet 732-0575

Ext. Spring 15-5/8" Lg.

Note: (32" Deck)

$

$

Not available

Cub Cadet 732-0587

Ext. Spring 17 3/4" Lg.

Note: (38" Deck)

$

$

Not available

57

Cub Cadet 17310

Spring Anchor

$

$

Not available

58

Cub Cadet 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 710-0102

Hex Bolt 1/4-20 x 2.5" Lg.
(Superseded to 710-1122)

$7.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 736-0176

Fl-Wash. .25" I.D. x .93" O.D.

$4.99

$

In Stock, Qty 6

0

61

Cub Cadet 750-0583

Spacer.255" I.D.

$

$

Not available

62

Cub Cadet 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0
