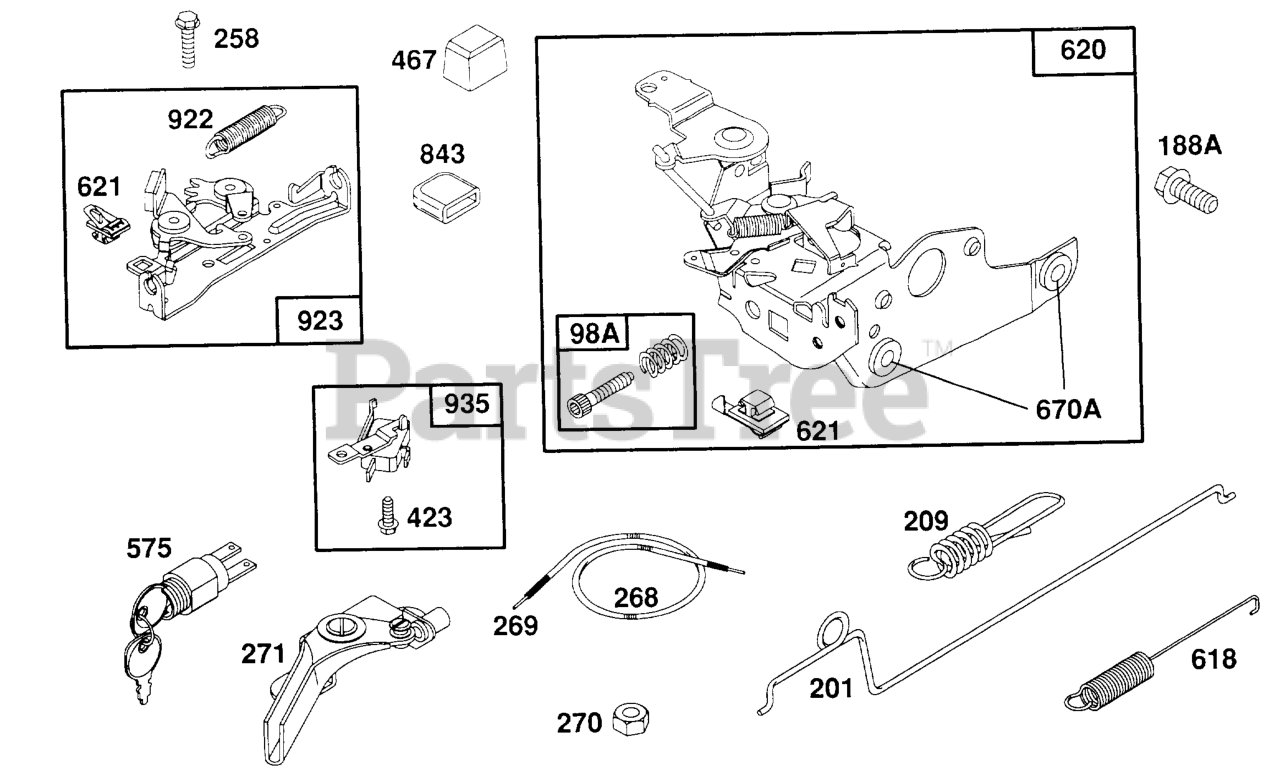

123702-0151-01 - Briggs & Stratton Vertical Engine Control Bracket Assy, Brake Parts Diagram

Vertical Engine

Control Bracket Assy, Brake Parts Diagram

  • Title

98A

Briggs & Stratton 493280

Screw-Speed Adj.

$8.99

$

Usually ships in 2-12 days

0

188A

Briggs & Stratton 94644

Screw, Machine Hex
(Superseded to 690877)

$3.99

$

In Stock, Qty 5

0

201

Briggs & Stratton 262579

Link-Mechanical Governor
(Superseded to 691829)

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 262664

Spring-Governor
(Superseded to 691833)

$8.49

$

Usually ships in 2-12 days

0

258

Briggs & Stratton 94512

Screw, Tapping Hex
(Superseded to 691648)

$4.99

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 66986

Casing, Wire (48" Cut To Required Length)
(Superseded to 691025)

Note: If Longer Casing is Needed, Specify Length in Inches; if Shorter Casing is Needed, Order and Cut To Required Length.

$

$

Not available

269

Briggs & Stratton 26099

Wire, Control (54" Cut To Required Length)
(Superseded to 691026)

Note: If Longer Wire is Needed, Specify Length in Inches; if Shorter Wire is Needed, Order and Cut To Required Length.

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

423

Briggs & Stratton 93758

Screw, Hex Wash Hd
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 280857

Knob-Slide Control

$3.49

$

Usually ships in 2-12 days

0

575

Briggs & Stratton 396291

Switch-Starting
(Superseded to 690646)

Note: Include(s): 392832 Key Set

$34.99

$

In Stock, Qty 5

0

618

Briggs & Stratton 262749

Choke Return Spring
(Superseded to 690354)

$7.49

$

In Stock, only 1 left!

0

620

Briggs & Stratton 493895

Bracket, Control As (Manual Friction)
(Superseded to 495521)

Note: Used Before Code Date 93080200

$40.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 396847

Switch, Stop Assy
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

670A

Briggs & Stratton 493823

Spacer (Includes 2) (Sold In Kit Only)

Note: Included in Gasket Set-See Ref. 358

$6.49

$

In Stock, only 1 left!

0

843

Briggs & Stratton 272616

Sleeve-Lever
(Superseded to 691884)

$4.99

$

Usually ships in 2-12 days

0

922

Briggs & Stratton 262640

Spring-Brake
(Superseded to 691831)

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 493442

Brake Assembly
(Superseded to 796387)

$

$

Not available

935

Briggs & Stratton 398758

Switch-Interlock (For 12 Volt Starter)
(Superseded to 499421)

$31.99

$

Usually ships in 2-12 days

0
