12355S - MTD Walk-Behind Mower (1985) Rotary (Part 1) Parts Diagram

Walk-Behind Mower

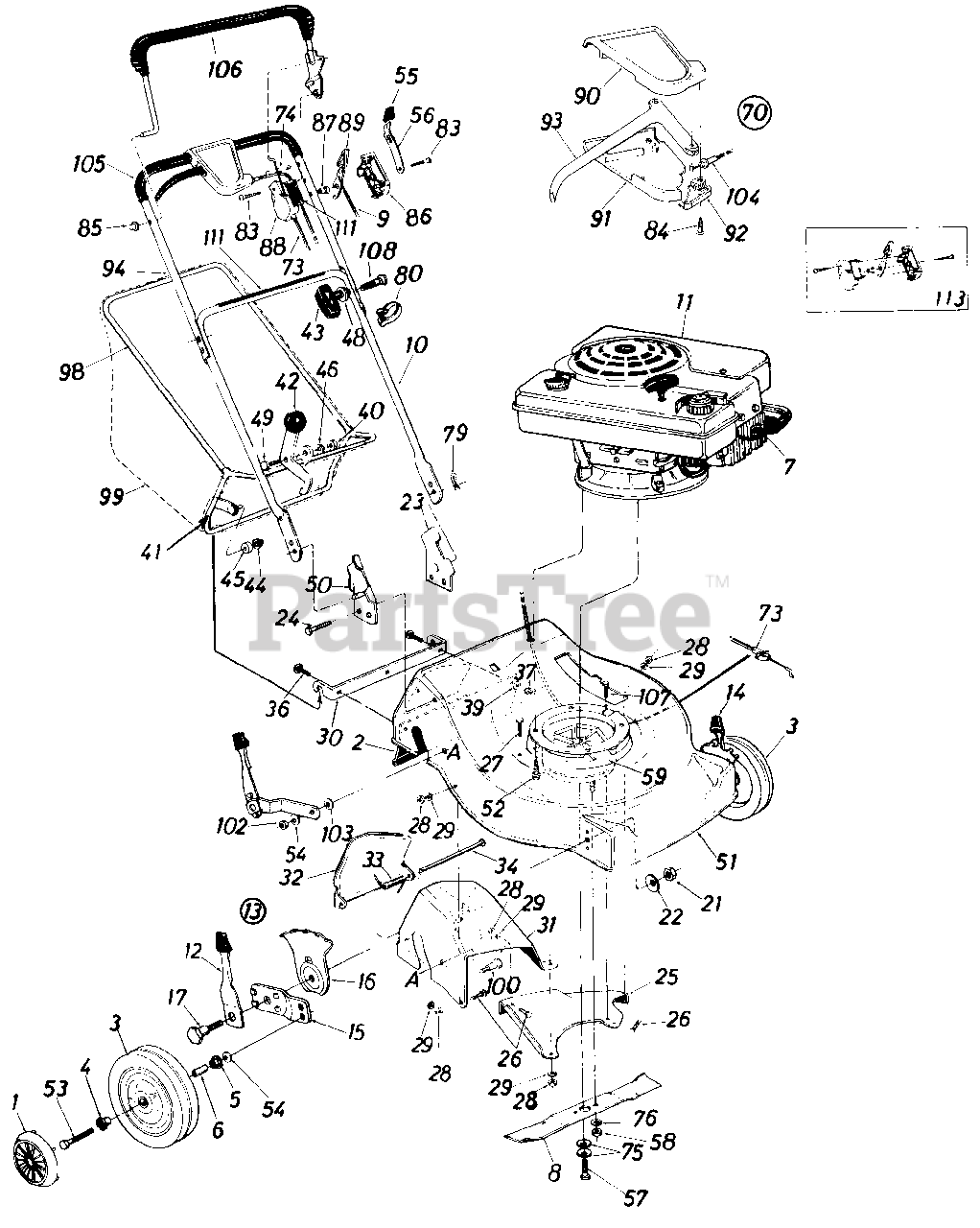

Rotary (Part 1) Parts Diagram

  • Title

1

MTD 731-0571

Hub Cap Plastic

$

$

Currently unavailable

2

MTD 731-0581

Rear Flap Ass'y.
(Superseded to 731-0665)

$

$

Not available

3

MTD 734-0657

Front Wheel Ass'y. Comp.

$

$

Not available

4

MTD 741-0267

Bearing 3/8 I.D.

$

$

Not available

5

MTD 741-0484

Bearing 112" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

6

MTD 750-0434

Spacer

$6.99

$

Usually ships in 3-6 days

0

7

MTD 735-0639

Spark Plug Boot

$

$

Not available

8

MTD 742-0220

20" Blade

$

$

Not available

9

MTD 746-0417

Throttle Control Wire 43"
(Superseded to 946-1115)

$28.99

$

In Stock, only 1 left!

0

10

MTD 749-0505

Lower Handle
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

11

4 H.P. Engine TVS105-53055

$

$

Not available

12

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

13

MTD 14578

Height Adjust. Ass'y. R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

14

MTD 14579

Height Adjust. Ass'y. L.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

15

MTD 15262

Pivot Bar
(Superseded to 15262B)

$14.99

$

In Stock, only 1 left!

0

16

MTD 15261

Index Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

17

MTD 738-0507

Shld. Bolt .50" Dia. x .375"
(Superseded to 938-0507B)

$4.49

$

In Stock, only 4 left!

0

21

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

22

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

23

MTD 12297

Handle Brk't. Ass'y. L.H.

$

$

Not available

24

MTD 710-0892

Hex Wash. Hd. A B-Tap Scr. 1/4" x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

25

MTD 13405

Rear Baffle L.H.

$

$

Not available

26

MTD 710-0167

Carriage Bolt 1/4-20 x .50"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

27

MTD 710-0206

Hex Bolt 1/4-20 x .88" Lg.*

$4.49

$

Usually ships in 3-6 days

0

28

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

29

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

30

MTD 14012

Grass Catcher Hitch Brk't.

$

$

Not available

31

MTD 14235

Rear Chute Baffle Ass'y.

$

$

Not available

32

MTD 13407

Chute Door

$

$

Not available

33

MTD 732-0346

Torsion Spring

$

$

Not available

34

MTD 738-0386

Hinge Pin .250" Dia. 7.88" Lg.

$

$

Not available

36

MTD 710-0703

Carriage Bolt 1/4-20 x .75"

$4.49

$

In Stock, Qty 15

0

37

MTD 712-0271

Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

39

MTD 736-0211

Fl-Wash. .285" I.D. x 1.25"

$6.99

$

In Stock, Qty 7

0

40

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

41

MTD 13924

Grass Catcher Lower Frame A ss'y.

$

$

Not available

42

MTD 13435

Cam Lever Ass'y.

$

$

Not available

43

MTD 09966

Hand Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

44

MTD 726-0100

Push Nut 3/8 Rod

$4.49

$

In Stock, Qty 20+

0

45

MTD 731-0430

Plastic Roller

$

$

Not available

46

MTD 736-0119

L-Wash 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

49

MTD 738-0140

Shld. Bolt .437" Dia. x .180"

$5.99

$

In Stock, Qty 15

0

50

MTD 12296

Handle Brk't. Ass'y. R.H.
(Superseded to 12296B-0637)

$

$

Not available

51

MTD 16109

20" Deck Ass'y.

Variations

MTD 16109-0498

No Longer Available DECK ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 16109-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16109-0665

No Longer Available DECK ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

52

MTD 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.0" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

53

MTD 710-0347

Axle Bolt

$5.49

$

In Stock, Qty 20+

0

54

MTD 736-0105

Bell-Wash. .44" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

55

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

56

MTD 732-0401

Lockout Lever

$

$

Not available

57

MTD 710-0818

Hex Bolt 3/8-24 x 2.00" Lg. (Grade 8)

$6.99

$

Usually ships in 3-6 days

0

58

MTD 712-0328

Hex Nut 3/8-24 Thd. (Grade 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

59

MTD 717-0485

Blade Brake Clutch Ass'y. Comp.

$

$

Not available

70

MTD 753-0362

Clutch Control Housing Comp.

$

$

Not available

73

MTD 746-0400

Clutch Cable 46"

$

$

Not available

74

MTD 731-0607

Lock Pin .314" Dia. x 1.70"

$

$

Not available

75

MTD 736-0105

Bell-Wash. .44" I.D. x 88"

$4.49

$

In Stock, Qty 20+

0

76

MTD 736-0169

L-Wash. 3/8 I.D.

$3.99

$

In Stock, Qty 20+

0

79

MTD 714-0104

Intern. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

80

MTD 726-0192

Cable Tie

$

$

Not available

83

MTD 710-0796

T-russ Mach. Scr. #12 x 1.50"

$5.49

$

In Stock, only 1 left!

0

84

MTD 710-0841

Flat "C"-Sunk Hd. Scr. #10 x 1.0" Lg.

$4.49

$

Usually ships in 3-6 days

0

85

MTD 726-0135

Cap Speed Nut 5/16" Rod

$6.99

$

In Stock, only 1 left!

0

86

MTD 731-0523

Control Panel Half

$

$

Not available

87

MTD 731-0524

Control Disc Pin

$

$

Not available

88

MTD 731-0526

Clutch Panel Half

$

$

Not available

89

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

90

MTD 731-0617

Control Cover Half Upper
(Superseded to 731-0617A)

$

$

Not available

91

MTD 731-0618

Control Cover Half Lower
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

92

MTD 731-0619

Cable Mtg. Cap

$

$

Not available

93

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

94

MTD 749-0437

Upper Handle

$

$

Currently unavailable

98

MTD 749-0512

Grass Catcher Upper Frame

$

$

Not available

99

MTD 764-0191

Grass Bag

$

$

Not available

100

MTD 738-0430

Shld. Bolt .500" Dia. x .685"

$11.99

$

In Stock, only 2 left!

0

102

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

103

MTD 736-0219

Bell-Wash. .400" I.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

104

MTD 746-0463

Clutch Cable 50"

$

$

Not available

105

MTD 718-0145

Grip

$

$

Currently unavailable

106

MTD 731-0609

Blade Clutch Control Handle

$

$

Not available

107

MTD 710-0642

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

108

MTD 710-0405

Curved Hd. Carr. Bolt 5/16-18 x 1.751'
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

111

MTD 777-5196

Control Labels

$

$

Currently unavailable

113

MTD 753-0361

Control Housing Comp.

$

$

Not available

MTD 8355-400-5

Hardware Pack

$

$

Currently unavailable
