123432-0143-E1 - Briggs & Stratton Horizontal Engine Air Cleaner Group, Muffler Group Parts Diagram

Horizontal Engine

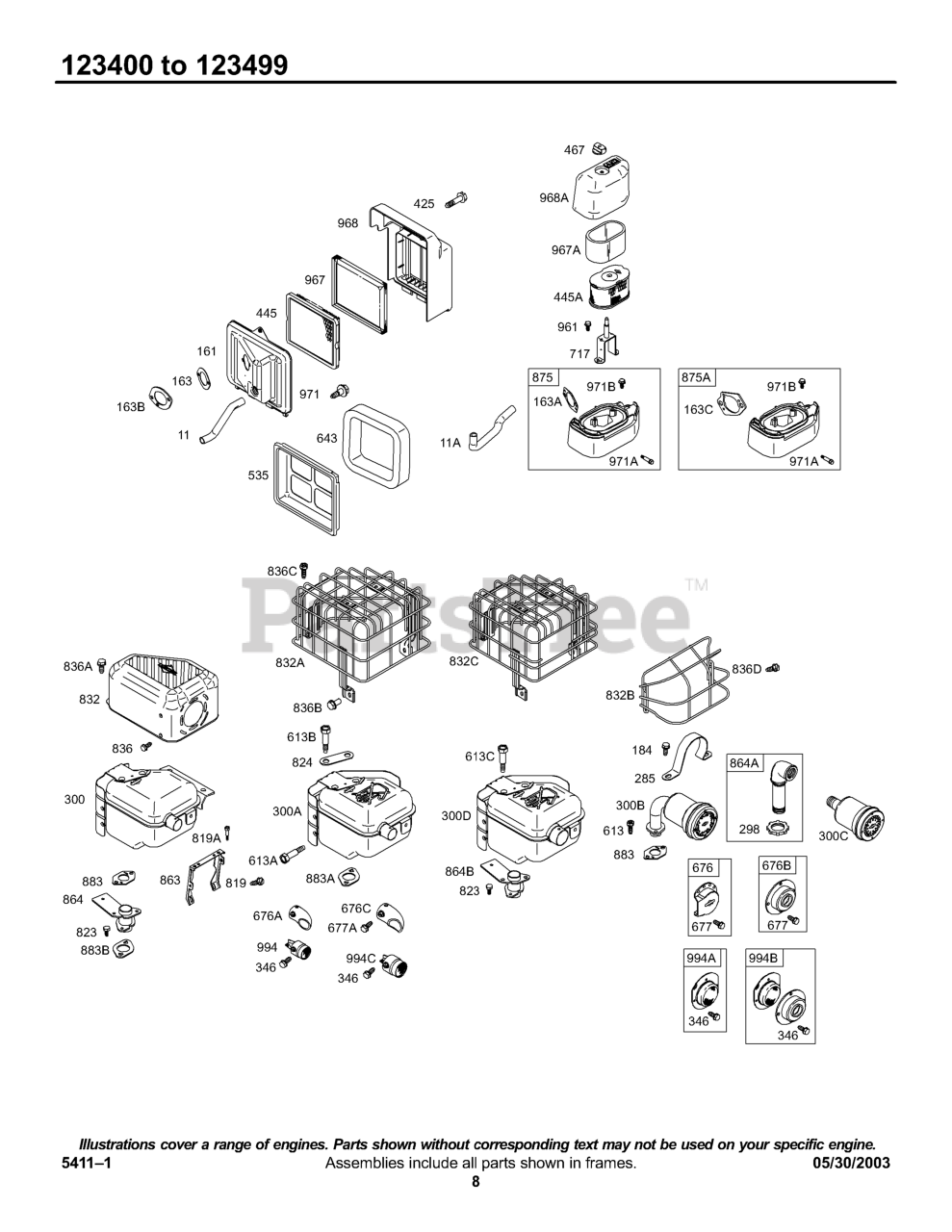

Air Cleaner Group, Muffler Group Parts Diagram

  • Title

11A

Briggs & Stratton 693647

Tube-Breather

Note: (High Mount Air Cleaner)

$10.99

$

In Stock, only 1 left!

0

300A

Briggs & Stratton 694429

Muffler

Note: (Super Lo Tone) Used Before Code Date 02031800

$54.99

$

Usually ships in 2-12 days

0

300B

Briggs & Stratton 693593

Muffler

Note: (Lo Tone)

$37.99

$

In Stock, only 1 left!

0

300D

Briggs & Stratton 697813

Muffler
(Superseded to 797433)

Note: Used After Code Date 02031700

$83.99

$

Usually ships in 2-12 days

0

445A

Briggs & Stratton 697029

Filter-Air Cleaner Cartridge

$13.99

$

In Stock, Qty 20+

0

467

Briggs & Stratton 691668

Knob-Air Cleaner

$5.49

$

In Stock, only 1 left!

0

613

Briggs & Stratton 691665

Screw

Note: (Muffler)

$7.99

$

In Stock, only 4 left!

0

613A

Briggs & Stratton 694460

Screw

Note: (Muffler) (Shoulder Screw) Used Before Code Date 02031800

$18.99

$

Usually ships in 2-12 days

0

613B

Briggs & Stratton 691108

SCREW

Note: (Muffler) (9/16" Long)

$3.49

$

In Stock, Qty 20+

0

613C

Briggs & Stratton 697812

Screw

Note: (Muffler) Used After Code Date 03031700

$5.99

$

Usually ships in 2-12 days

0

717

Briggs & Stratton 693462

Bracket-Air Cleaner

$8.49

$

Usually ships in 2-12 days

0

819

Briggs & Stratton 691685

Screw

Note: (Muffler Bracket)

$3.99

$

In Stock, Qty 5

0

819A

Briggs & Stratton 691108

SCREW

Note: (Muffler Bracket)

$3.49

$

In Stock, Qty 20+

0

823

Briggs & Stratton 691665

Screw

Note: (Muffler Adapter)

$7.99

$

In Stock, only 4 left!

0

824

Briggs & Stratton 696017

Gasket-Heat Shield

$13.99

$

In Stock, only 1 left!

0

832

Briggs & Stratton 693583

Guard-Muffler
(Superseded to 593953)

Note: (Lo Tone Muffler)

$45.99

$

In Stock, only 1 left!

0

832A

Briggs & Stratton 694459

Guard-Muffler
(Superseded to 697818)

Note: (Super Lo Tone Muffler) Used Before Code Date 02031800

$53.99

$

Usually ships in 2-12 days

0

832C

Briggs & Stratton 697818

Guard-Muffler

Note: (Super Lo Tone) Used After Code Date 02031700

$53.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 690661

SCREW

Note: (Muffler Guard) (1/2" Long)

$3.49

$

In Stock, Qty 8

0

836A

Briggs & Stratton 693624

Screw

Note: (Muffler Guard) (9/16" Long)

$3.99

$

In Stock, only 1 left!

0

836B

Briggs & Stratton 691003

SCREW

Note: (Muffler Guard) (7/16" Long)

$3.49

$

In Stock, Qty 9

0

836C

Briggs & Stratton 691665

Screw

Note: (Muffler Guard) (5/8" Long)

$7.99

$

In Stock, only 4 left!

0

863

Briggs & Stratton 692596

Bracket-Muffler
(Superseded to 699229)

$24.99

$

Usually ships in 2-12 days

0

864

Briggs & Stratton 694430

Adapter-Muffler
(Superseded to 699232)

Note: Used Before Code Date 02031800

$37.99

$

Usually ships in 2-12 days

0

864B

Briggs & Stratton 697814

Adapter-Muffler
(Superseded to 699232)

Note: Used After Code Date 02031700

$37.99

$

Usually ships in 2-12 days

0

875

Briggs & Stratton 693459

Base-Air Cleaner

Note: (Plastic) Used Before Code Date 02110100

$

$

Not available

875A

Briggs & Stratton 697030

Base-Air Cleaner

Note: (Plastic) (High Vent) Used After Code Date 02103100

$

$

Not available

883

Briggs & Stratton 692237

Gasket-Exhaust

Note: (Adapter to Muffler)

$5.49

$

In Stock, only 2 left!

0

883A

Briggs & Stratton 691893

Gasket-Exhaust

Note: (Cylinder Head Side)

$4.49

$

In Stock, Qty 20+

0

961

Briggs & Stratton 693598

Screw
(Superseded to 698304)

Note: (Air Cleaner Bracket) Used Before Code Date 02080500

$3.49

$

In Stock, only 1 left!

0

961

Briggs & Stratton 698304

SCREW

Note: (Air Cleaner Bracket) Used After Code Date 02080400

$3.49

$

In Stock, only 1 left!

0

967A

Briggs & Stratton 273356S

Filter-Pre Cleaner

Note: (High Mount)

$5.49

$

In Stock, Qty 6

0

968A

Briggs & Stratton 693460

Cover-Air Cleaner

Note: (High Mount)

$24.99

$

In Stock, only 1 left!

0

971A

Briggs & Stratton 690349

Screw

Note: (Air Cleaner Base to Carburetor) (1-3/8" Long)

$6.99

$

In Stock, only 2 left!

0

971B

Briggs & Stratton 691693

SCREW

Note: (Air Cleaner Base to Carburetor) (3/8" Long)

$3.99

$

In Stock, Qty 8

0
