123 R (31A-2M5G711) - Troy-Bilt Squall Snow Thrower (2017) Engine Drive Parts Diagram

Squall Snow Thrower

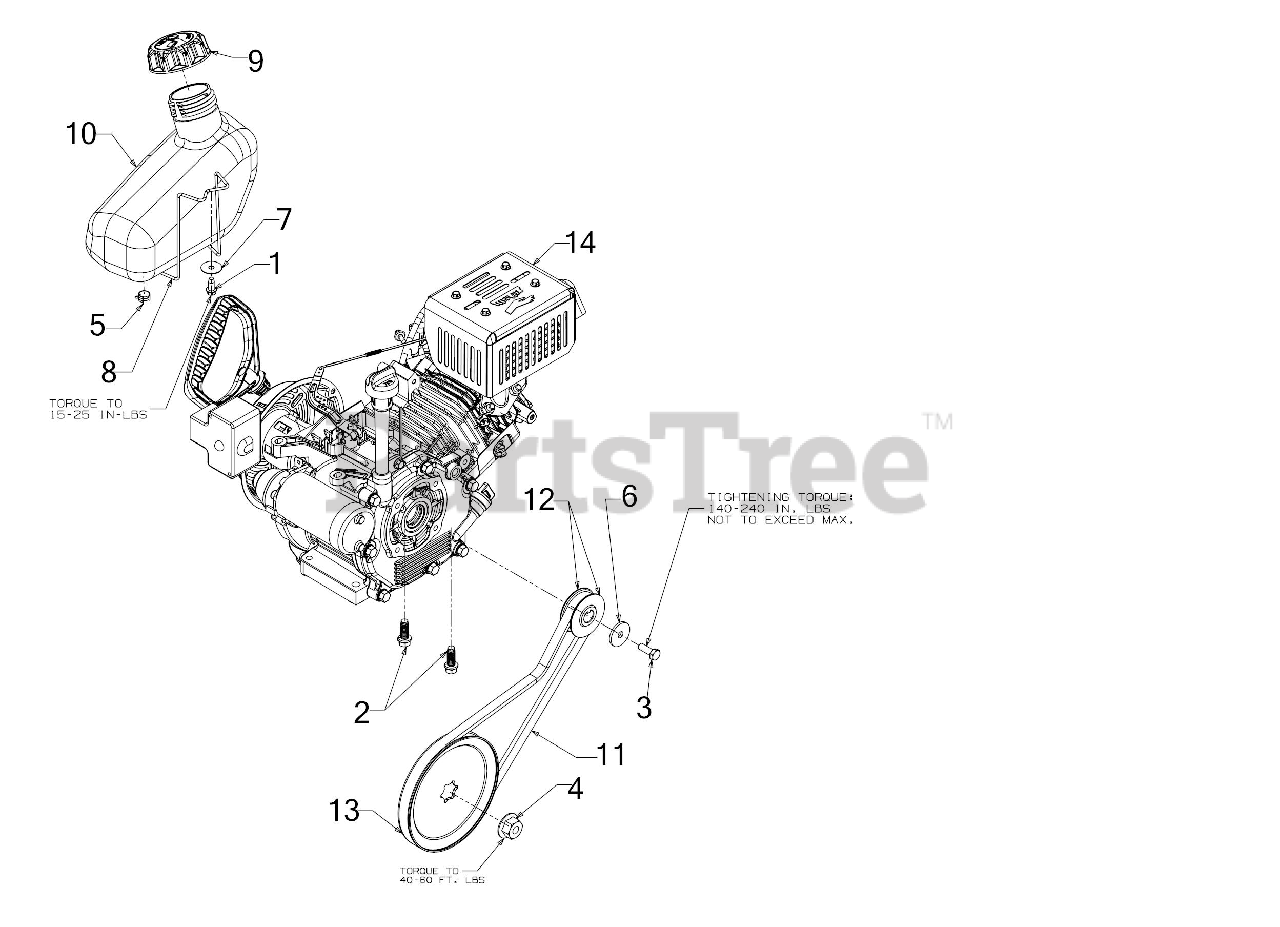

Engine Drive Parts Diagram

  • Title

1

Troy-Bilt 710-04065

SCREW 1/4-10:.625

$6.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0654A

SCREW 3/8-16 x 1

$4.49

$

In Stock, only 3 left!

0

3

Troy-Bilt 710-1245B

SCREW 5/16-24 x .875 GR5

$8.49

$

In Stock, only 1 left!

0

4

Troy-Bilt 912-0702

FLANGE NUT W/HUB

$18.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 726-0205

HOSE CLAMP 1/20

$3.99

$

In Stock, Qty 18

0

6

Troy-Bilt 736-0343

WASHER-5/16 x 1.25X 1.27

$4.49

$

In Stock, Qty 7

0

7

Troy-Bilt 736-3092

FLAT WASHER

$3.99

$

In Stock, Qty 9

0

8

Troy-Bilt 747-05513

SUPPORT WIRE

$11.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 751-10487A

FUEL CAP THREAD VENT
(Superseded to 751-10487C)

$16.99

$

In Stock, Qty 5

0

10

Troy-Bilt 751-14001

FUEL TANK (2 QT)
(Superseded to 751-14001A)

$44.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 954-04050A

V-BELT .500 x 35.

$27.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 956-0416B

HALF PULLEY

$10.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 756-04443

AUGER PULLEY

$23.99

$

In Stock, only 4 left!

0

14

Troy-Bilt 952Z161-JWA-12

123CC COMPLETE ENGINE

$641.99

$

Usually ships in 3-6 days

0
